Description
The DMP V-4020C-1 is an indoor wired/wireless video
camera that allows live view and recorded clips through
the Virtual Keypad App, as well as email motion-
triggered video clip notification. To install and activate
the camera, you need an active dealer account at
vk.securecomwireless.com.
Compatibility
•
Any DMP system with an active Virtual Keypad App
What is Included:
• V-4020C-1 Camera
• 3-Axis Bracket
• 12V Power Transformer
• Mounting Screws
Mounting the Camera
The DMP V-4020C-1 Camera is suitable for both wall and
ceiling mounting applications. Ceiling mounting will be
covered as an example in this section, however, the
same steps may be referenced for wall mounting.
Stand Mount
1. Assemble the 3-Axis bracket.
2. Align the camera body to the bracket, and rotate
the camera body to connect it to the bracket.
Wall or Ceiling Mount
1. Using the included template, mark and drill the
screw holes for the mounting plate.
2. Install the fixed plate with the supplied screws.
3. Install the mounting base to the fixed plate.
4. Install the camera to the bracket.
5. Adjust the camera angle.
a. Loosen the knob to adjust the pan and tilt angle.
b. After adjusting the camera to the desired
position, tighten the knob (Figure 2).
Camera Configuration Options
The V-4020C-1 can be configured to communicate to the SecureCom Video server in four ways:
Option #1 - DMP WAP Auto Pair connection
Option #2 - Wired connection
Option #3 - Wireless connection using DMP V-IP1006RR Wireless Access Point (WAP) with WiFi Protected Setup (WPS)
Option #4 - Wireless connection using a WPS enabled WAP
Option #5 - Wired connection using PoE
Option #1 Configuration - DMP V-IP1006RR WAP Auto Pair:
1. Plug in the power adapter to the WAP
and to a power outlet.
2. Plug in the power adapter to the camera
and to a power outlet.
3. Repeat step 2 for each camera you will
be connecting at this site.
The camera is now ready to be activated
through vk.securecomwireless.com.
Inst alla tIon GuIde
V-4020C-1 Indoor HD Video Camera
Option One
Camera
Figure 3: Option #1 - DMP V-IP1006RR WAP Auto Pair Connection
Option Two
Lens
PIR
Sensor
Ethernet/PoE
Interface
WPS/Reset
IR LED
Front View

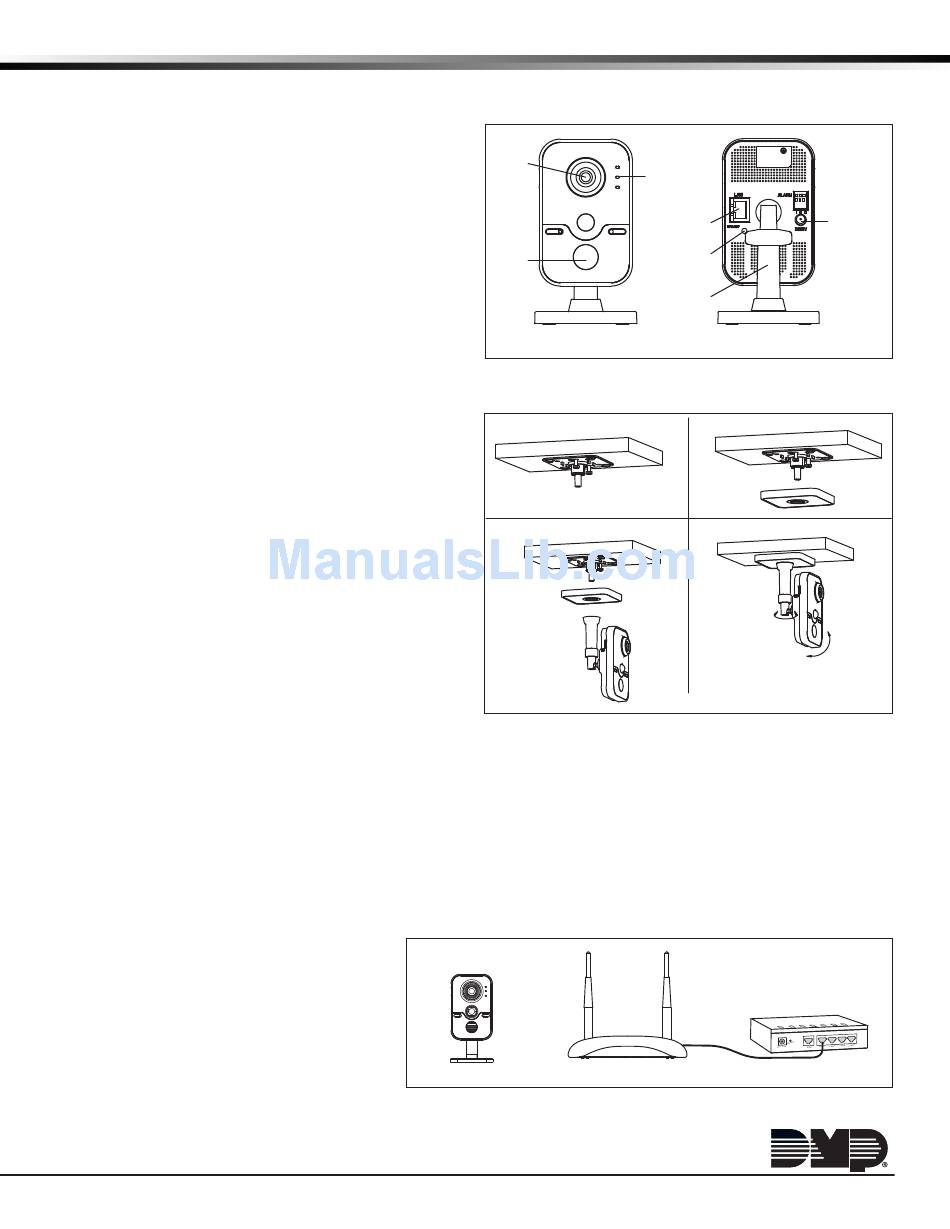

Figure 1: Indoor HD Video Camera
Figure 2: Camera Mounting and Adjustment
DMP Wireless Access Point
Ethernet Cable
12Vdc
Connection
Button
3-Axis
Bracket
Rear View
360°
Ethernet
Cable
DHCP Router
Advertisement
Related Manuals for DMP Electronics V-4020C-1
Summary of Contents for DMP Electronics V-4020C-1
-
Page 1: Mounting The Camera
After adjusting the camera to the desired position, tighten the knob (Figure 2). Camera Configuration Options The V-4020C-1 can be configured to communicate to the SecureCom Video server in four ways: Option #1 - DMP WAP Auto Pair connection Option #2 - Wired connection... - Page 2 DHCP Router Camera DMP Wireless Access Point Option #2 Configuration - Wired connection: Option One 1. IMPORTANT: Before plugging in power to the Option Two camera, plug an Ethernet cable with an active Ethernet internet connection into the Ethernet port. Cable Recommendation: It is recommended marking the Ethernet Cable...
- Page 3 Activating a Camera through SecureCom Wireless Once communication has been established, a camera can be activated at vk.securecomwireless.com. 1. Login with your dealer login information at vk.securecomwireless. com and choose the correct customer. 2. Enable video on the Customer’s system by clicking the edit button to the right of the account number of that system (Figure 8).
-
Page 4: Specifications
Viewing the Camera To view the camera during installation, select the camera name on the Camera Profile Screen (Figure 11) to display a live video feed for 60 minutes. This is to allow positioning of the camera to the user’s desired location. Once the 60 minutes has past, the camera feed can only be seen through the user’s Virtual Keypad App.
