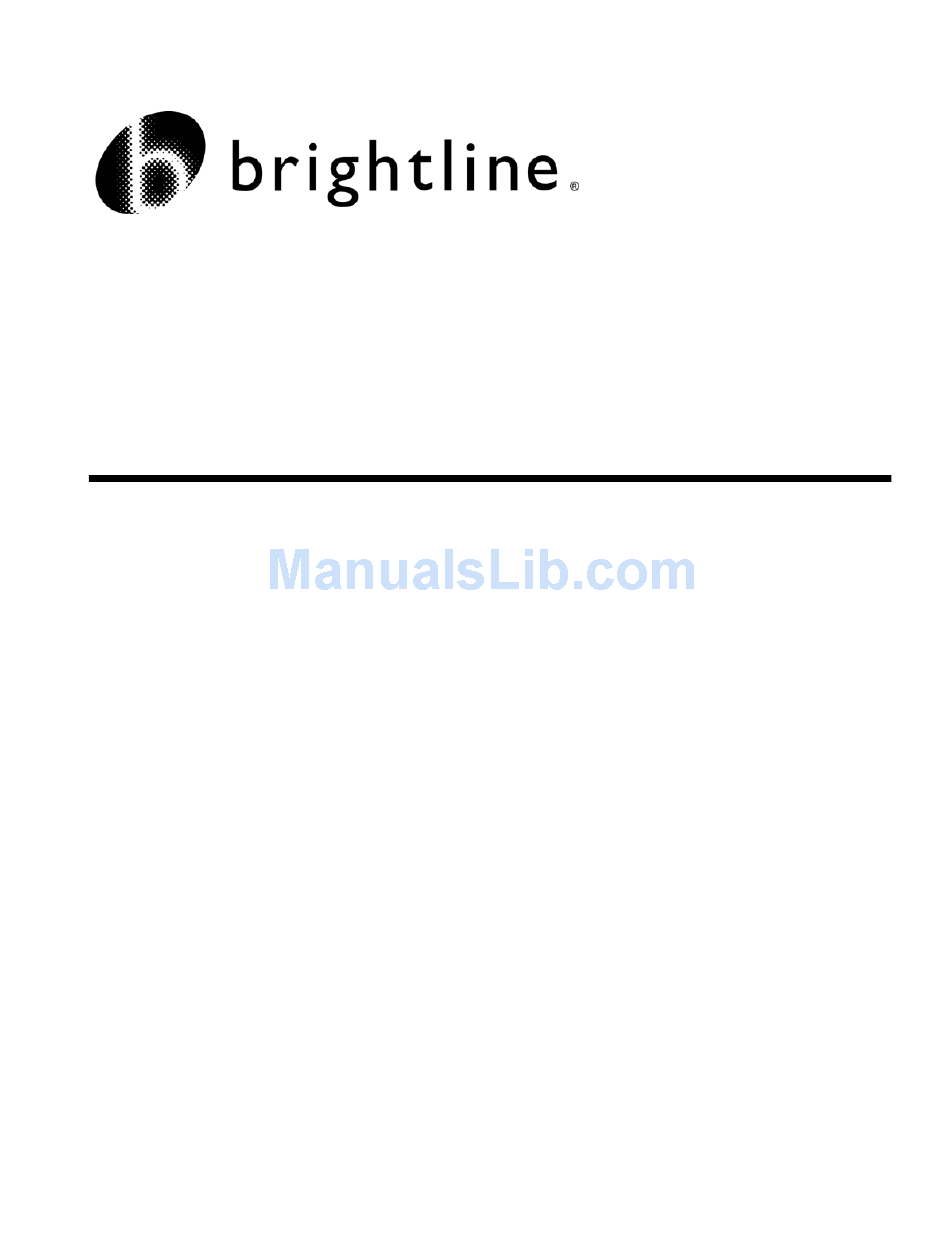

Page 1: Operating Instructions
1.4D/X 1.4D/XE Operating Instructions (supplements 1.4N/1.4D operating instructions) 580 Mayer Street, Building #7, Bridgeville, PA 15017 • phone 412.206.0106 • fax 412.206.0114 www.brightlines.com © 2001 brightline, L.P... -
Page 2: Owner's Record
Serial No.________________________ Date of Purchase__________________ Product Description • The brightline 1.4D/X and 1.4D/XE is a 4-lamp, 55-watt, DMX512 controlled, energy-efficient light fixture. This fixture combines digital electronics with a state-of-the-art optical system to produce a soft, full-spectrum, flicker-free light source. -
Page 3: Exploded Assembly
Exploded Assembly A - Yoke N - Reflector Bracket B - Cork Washer O - Accessory Latch C - Nylon Washer P - Socket Bracket D - Yoke Palm Handle Q - Wire Guard Bracket E - Receptacle R - Socket F - Power Inlet Module with Fuse S - Reflector G - Rocker Switch... - Page 4 "twofers" is not allowed. 2. You can use up to 32 brightline DMX fixtures on a single DMX data line. If there are more than 32 units, the use of a DMX repeater amplifier or splitter amplifier is required. A repeater amplifier is an electronic device which boosts the DMX signal.
-
Page 5: Disconnecting Cables
Intalling DMX Control Cables 1. Turn Power “OFF” on all devices. 4. To add additional fixtures lineup the locking key on the male plug end of the jumper cable (Figure 1) with the Note: If the fixture power is not turned “OFF” before female receptacle labeled “DMX THRU”... - Page 6 Reading the LED Display Channel Indicator Fixture Status Indicator DMX Signal Indicator Adjustment Buttons Figure 7 1. The channel indicator is used to determine the setting of the fixture in the following modes: a.) Emergency On Mode: Fixture is manually operating at 100% b.) Manual Dimming Mode: Fixture is manually dimmed at LED display without the use of a lighting control console.
-
Page 7: Setting The Dmx Address
Setting the DMX Address 1. Program DMX addresses by gently pressing in the adjustment buttons with a pointed object such as a pen (Figure 8). Figure 8 2. Use channels 001 thru 512 to program the DMX addresses for the lighting control console. - Page 8 Wiring Diagram - 1.4D/X 120V Note: Use 10 amp, time delay, 250 volts, 5 x 20mm fuses only. Wiring Diagram - 1.4D/XE 230V Note: Use 10 amp, time delay, 250 volts, 5 x 20mm fuses only. Doc: 019-156.P65 Rev: C...
- Page 9 Notes...
