OPERATIONS / MAINTENANCE MANUAL
MODEL QD4 SQUARE DRIVE
D

GENERAL

All Bolttech-Mannings Hydraulic Wrenches are supplied completely assembled, ready for use. A
hydraulic Power Pack is required to provide the speed and pressure that makes your
Wrench System efficient and accurate.
C

CONNECTING THE SYSTEM

The wrench head and power pack are connected by a 10,000 psi hose assembly which
consists of two hoses. One hose has a female connector on each end while the other
has male connectors. Connect the twin line hose to the wrench head and pump.
Insure the connectors are fully engaged and screwed snugly and completely together.

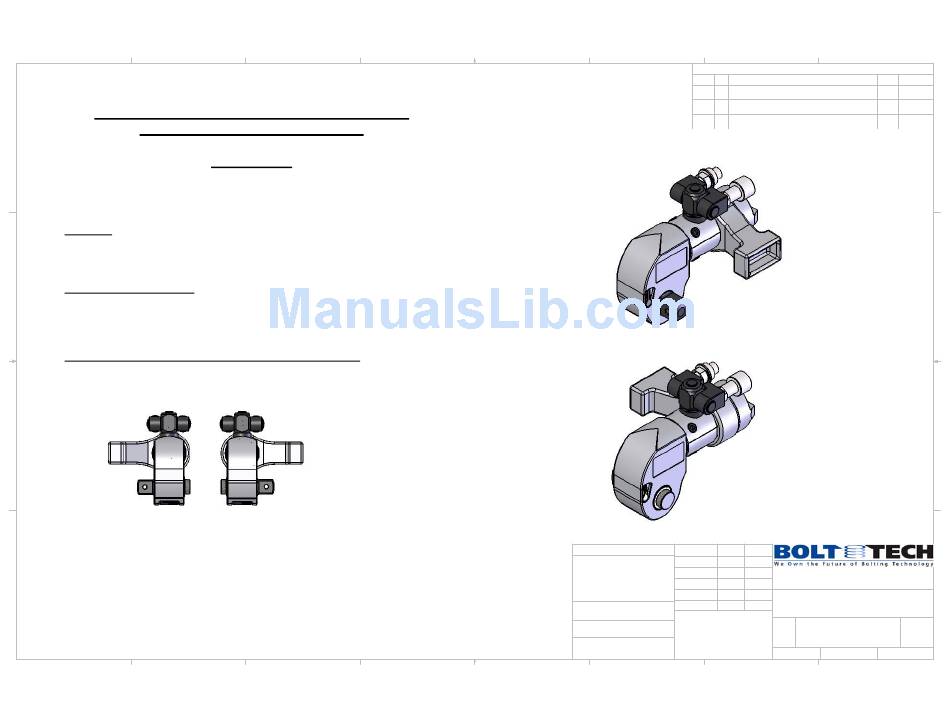

DRIVE DIRECTION CHANGE FOR SQUARE DRIVE TOOLS ONLY

(to change from loosening to tightening)
LOOSEN
B
Remove the hand wheel in the drive cap which is located on the opposite side of the
drive extension and pull the drive out of the tool housing. Place the drive in the desired
direction, re-insert the drive cap and secure the hand wheel.
A
NOTE: The square drives are splined. As you push the spline part of the drive into the
tool, align the ratchet and push, while slowly rotating, the square drive into position.
8
6
7
Revision 8
TIGHTEN
7 6
5 4
