Summary of Contents for Jinlang Audio Aurum Cantus SW-10

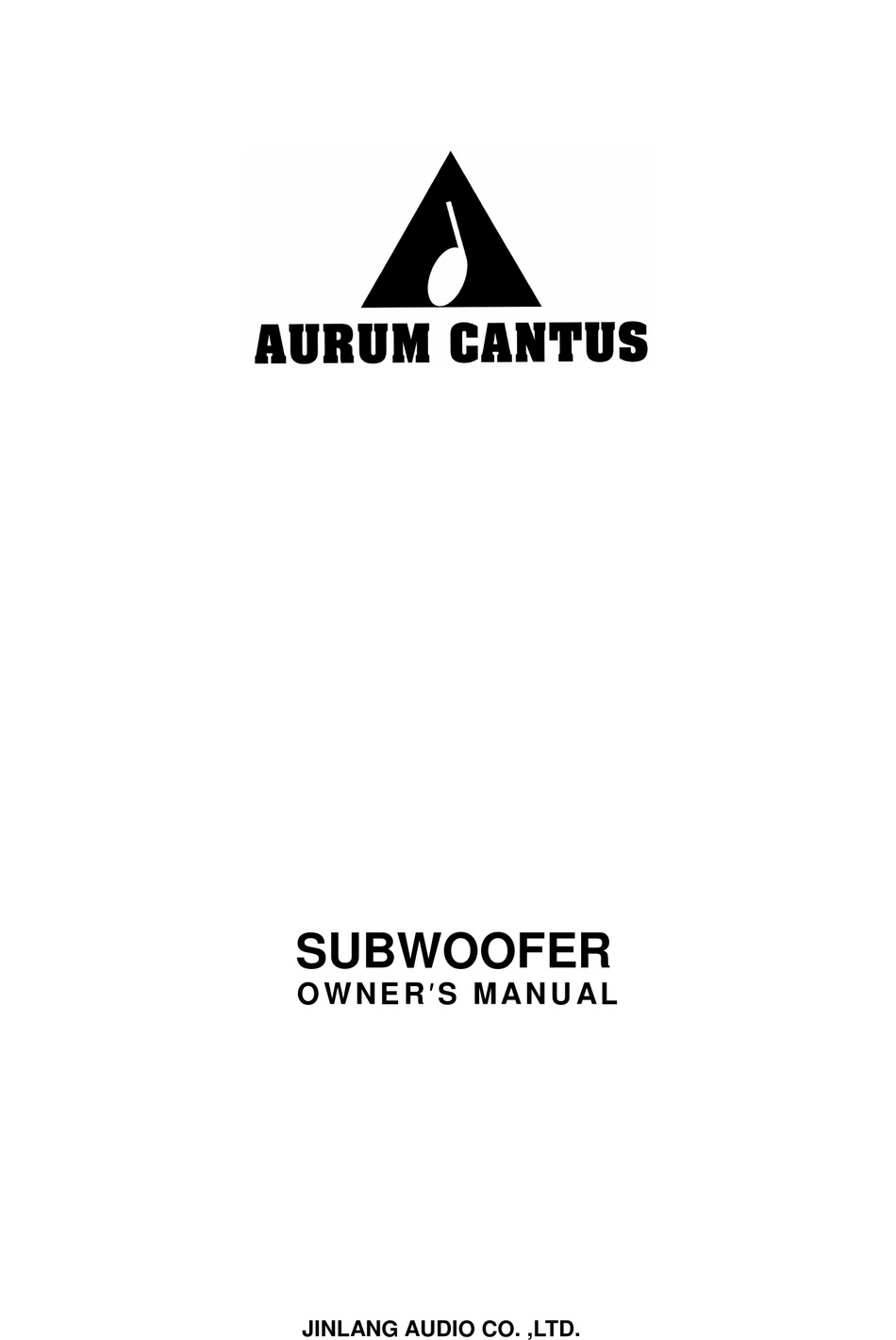

- Page 1 SUBWOOFER O W N E R ′ S M A N U A L JINLANG AUDIO CO. ,LTD.
-
Page 2: Specifications
HONOURABLE PURCHASER： ： ： ： Congratulations on purchasing your AURUM CANTUS active subwoofer. You will enjoy years of trouble free Hi-End sound reproduction from it. In order to achieve optimal performance, please read this manual carefully before use. Please keep this manual in a safe and appropriate place for future reference. SW-10 SUBWOOFER This is an active subwoofer with exceptional performance that will compliment any Aurum Cantus model and any other speaker brand. -
Page 3: Amplifier Diagram
Signal/Noise： ： ： ： 90dB Function: Level volume control–crossover frequency control–automatic control–phase control-low gain control. Input terminals： Line level，high level speaker level. Output terminals: Line level，high level speaker level. Low pass filter： Active second order, variable crossover point. High pass filter： Passive first order, variable crossover point. - Page 4 3. Automatic control： When setting to AUTO，the amplifier will be in automatic control status, here the amplifier will automatically turn on once the audio signal is detected at the line level input or high level/speaker level input. When set to ON the automatic control will be shut down. When set to OFF the amplifier will be shut down.
-
Page 5: Connecting Your Subwoofer
CONNECTING YOUR SUBWOOFER It is very simple to connect the subwoofer; you can choose line level input or high level/speaker level input. Please note! Do not connect the high level/speaker level signal to the line level input. Please assure that the volume level control is set in the lowest position before power up. Furthermore, we recommend you to set the phase control to the position of 0º, and set the low gain to the 0dB position, you can adjust the volume level control slowly until you are satisfied with the volume. - Page 6 PENGLAI JINLANG AUDIO CO.,LTD. NO.1 XIANQIAO STREET,BEIGUAN ROAD, PENGLAI P.R. OF CHINA P.C.: 265600 TEL: 86-535 5643369 FAX: 86-535 5610809 E-mail: aurumcantus@aurumcantus.com Http://www.aurumcantus.com...
