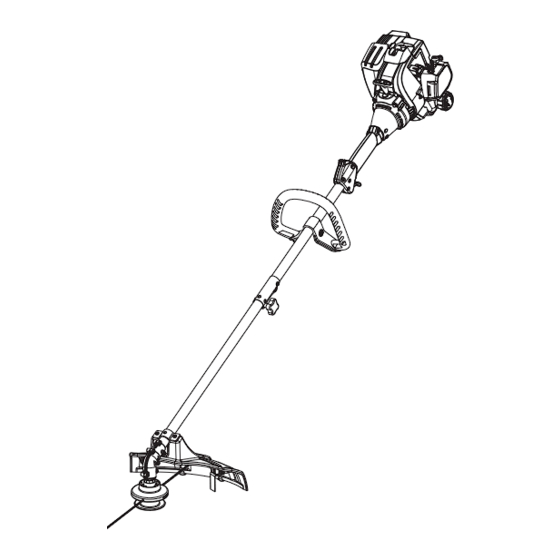

2-cycle trimmer
Table of Contents

Advertisement

Available languages

Available languages

2-Cycle Trimmer
769-08353 / 00
Operator's Manual
TABLE OF CONTENTS
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Oil and Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting and Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
SAVE THESE INSTRUCTIONS
SERVICE
DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF
PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.
For assistance regarding the assembly, controls, operation or
maintenance of the unit, please call the Customer Support Department
at 1-800-800-7310 in the United States or 1-800-668-1238 in Canada.
Additional information about the unit can be found on our website:
www.mtdproducts.com (U.S.) or www.mtdproducts.ca (Canada).
For service, please call the Customer Support Department to obtain
a list of authorized service dealers near you. Service on this unit,
both within and after the warranty period, should only be performed
by an authorized and approved service dealer. When servicing, use
only identical replacement parts.
All information, illustrations, and specifications in this manual are based
on the latest product information available at the time of printing. We
reserve the right to make changes at any time without notice.
Copyright© 2012 MTD SOUTHWEST INC, All Rights Reserved.
08/12

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2560 and is the answer not in the manual?

Questions and answers

Chris Gonzales
June 5, 2025

How do i mix the gas and oil

Brian Williams
May 31, 2025

How do you remove the trimmer head?

Summary of Contents for Murray MS2560

  • Page 1 Operator’s Manual TABLE OF CONTENTS Service ..........1 Safety .
  • Page 2 SAFETY SPARK ARRESTOR NOTE The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, NOTE: For users on U.S. Forest Land and in the states of deserve your careful attention and understanding. The safety California, Maine, Oregon and Washington.
  • Page 3 • IMPORTANT SAFETY INSTRUCTIONS • READ ALL INSTRUCTIONS BEFORE OPERATING WHILE OPERATING • Wear safety glasses or goggles that meet current ANSI Z87.1 WARNING: When using the unit, all safety rules must be standards and are marked as such. Wear ear/hearing protection followed.
  • Page 4: Save These Instructions

    OTHER SAFETY WARNINGS • Never store the unit with fuel in the tank, inside a building where fumes may reach an open flame (pilot lights, etc.) or sparks • All service, other than the maintenance procedures described in (switches, electrical motors, etc.). this manual, should be performed by a qualified service dealer.
  • Page 5: Trimmer Overview

    KNOW YOUR UNIT APPLICATIONS Spark Plug Muffler As a trimmer: • Cutting grass and light weeds. Starter • Edging Rope Grip • Decorative trimming around trees, fences, etc. Other optional accessories may be used with this unit. Shaft Grip On/Off Switch ASSEMBLY TOOLS REQUIRED: Air Filter Cover...
  • Page 6: Assembly

    ASSEMBLY INSTALLING THE CUTTING HEAD SHIELD Screws (2) WARNING: To prevent serious personal injury, never Cutting Head operate the unit without the cutting head shield in place. Shield Mount Bracket Use the following instructions if the cutting head shield is not installed.
  • Page 7 OPERATING THE COUPLER 90˚ Edging Hole The coupler enables the use of various optional attachments. (Trimmer Only) WARNING: Before using any attachment, read and understand the manual that came with the attachment. Follow all safety information contained within. WARNING: To avoid serious personal injury and damage to the unit, shut the unit off before removing or installing an attachment.
  • Page 8: Oil And Fuel

    OIL AND FUEL FUELING THE UNIT OIL AND FUEL MIXING INSTRUCTIONS The use of old and/or improperly mixed fuel is the most common cause WARNING: Gasoline is extremely flammable. Ignited of performance problems. Use only fresh, clean unleaded gasoline. vapors may explode. Always stop the engine and allow it Follow the instructions carefully for the proper gasoline/oil mixture.
  • Page 9: Starting And Stopping

    STARTING AND STOPPING WARNING: Operate this unit only in a well-ventilated Off (O) / Stop outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area. On ( I ) / Start WARNING: Avoid accidentally starting the unit. To avoid serious injury, the operator and the unit must be in a stable position when pulling the starter rope (Fig.
  • Page 10: Operation

    OPERATION HOLDING THE UNIT WARNING: Always wear eye, hearing, hand, foot and body protection to reduce the risk of injury when operating this unit. • Stand in the operating position (Fig. 10). • Hold the shaft grip with the right hand. Keep the right arm slightly bent.
  • Page 11: Maintenance

    MAINTENANCE WARNING: To prevent serious injury, never perform Holes maintenance or repairs while the unit is running. Always allow the unit to cool before servicing or repairing the unit. Disconnect the spark plug wire to prevent the unit from starting accidentally. MAINTENANCE SCHEDULE Perform these required maintenance procedures at the frequency Cutting Head...
  • Page 12 MAINTAINING THE AIR FILTER Air Filter WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit. Failure to maintain the air filter can result in poor performance or can cause permanent damage to the engine.
  • Page 13 MAINTAINING THE SPARK PLUG 1. Stop the engine and allow it to cool. Grasp the spark plug boot firmly and pull it from the spark plug. 2. Clean around the spark plug. Remove the spark plug from the cylinder head with a 5/8-inch socket, turning counterclockwise. WARNING: Do not sand blast, scrape or clean spark plug electrodes.
  • Page 14: Cleaning And Storage

    CLEANING AND STORAGE CLEANING STORAGE • Never store a fueled unit where fumes may reach an open flame WARNING: To avoid serious personal injury, always stop or spark. the engine and allow it to cool before cleaning or maintaining • Allow the engine to cool before storing.
  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION THE ENGINE WILL NOT START The fuel tank is empty Fill the fuel tank with properly mixed fuel The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible Squeeze the throttle control and pull the starter rope until the engine The engine is flooded starts The fuel is old (over 30 days) and/or improperly mixed...
  • Page 16: Warranty

    MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by MTD LLC (MTD) with respect to new merchandise purchased and used in the United States, its possessions and territories. MTD warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship.
  • Page 17: Table Of Contents

    Manuel de l’opérateur TABLE DES MATIÈRES Service technique ........17 Sécurité...
  • Page 18: Sécurité

    SÉCURITÉ NOTE SUR LE PARE-ÉTINCELLES Les symboles de sécurité visent à attirer votre attention sur les dangers éventuels. Vous devez accorder une attention particulière REMARQUE : à l’intention des utilisateurs sur les terrains aux symboles de sécurité afin de bien les comprendre. Les forestiers américains et dans les États de Californie, du Maine, avertissements de sécurité...
  • Page 19 • CONSIGNES DE SÉCURITÉ IMPORTANTES • VEUILLEZ LIRE TOUTES LES INSTRUCTIONS AVANT • Évitez de créer une source d’inflammation en présence d’un déversement de carburant. Essuyez immédiatement tout carburant échappé du réservoir avant de démarrer l’appareil. Éloignez AVERTISSEMENT : quand vous utilisez l’appareil, l’appareil à...
  • Page 20 • Utilisez uniquement des pièces et des accessoires de rechange • Avant une inspection, un entretien, un nettoyage, un entreposage, du fabricant d’origine pour cet appareil. Ils sont disponibles un transport ou le remplacement d’une pièce de l’appareil : auprès de votre centre de réparation agréé. L’utilisation d’autres 1.
  • Page 21: Apprenez À Connaître Votre Appareil

    APPRENEZ À CONNAÎTRE VOTRE APPAREIL APPLICATIONS Bougie Pot d’échappement Utilisation comme taille-bordure : • Coupe d’herbe et de mauvaises herbes. Poignée du câble • Coupe de bordures de démarreur • aille décorative autour des arbres, des clôtures, etc. D’autres accessoires facultatifs peuvent être utilisés avec cet appareil. Poignée d’arbre Interrupteur Marche/Arrêt AUCUN OUTIL NÉCESSAIRE POUR...
  • Page 22: Assemblage

    ASSEMBLAGE INSTALLATION DU CARTER DE PROTECTION DE LA Vis (2) TÊTE DE COUPE Carter de protection de la tête de coupe AVERTISSEMENT : pour éviter toute blessure grave, n’utilisez jamais cet appareil quand le carter de protection Support de de la tête de coupe n’est pas en place. fixation Suivez les instructions suivantes si le carter de protection n’est pas installé.
  • Page 23 UTILISATION DU COUPLEUR Orifice de bordure à 90 ° Le coupleur permet l'utilisation de différents accessoires en option. (Tondeuse seulement) AVERTISSEMENT : Avant d'utiliser un accessoire, lire et comprendre le manuel livré avec l'accessoire. Respectez toutes les consignes de sécurité qu’il contient. AVERTISSEMENT : pour éviter toute blesse grave ou dommage, arrêtez l’appareil avant de démonter ou...
  • Page 24: Huile Et Carburant

    HUILE ET CARBURANT Mélange du carburant INSTRUCTIONS DE MÉLANGE D’HUILE ET DE CARBURANT REMARQUE : cet appareil est livré avec un bidon d’huile pour moteur à 2 temps de 95 ml (3,2 oz.). Pour obtenir le mélange de L’utilisation d’un carburant vieux et/ou mal mélangé est la cause la carburant correct décrit ci-dessous, versez la totalité...
  • Page 25: Mise En Marche Et Arrêt

    MISE EN MARCHE ET ARRÊT AVERTISSEMENT : utilisez cet appareil uniquement Arrêt (O) dans une zone extérieure bien aérée. Des émanations de monoxyde de carbone dans un endroit confiné peuvent Marche (I) être mortelles. AVERTISSEMENT : évitez tout démarrage accidentel de l’appareil.
  • Page 26: Utilisation

    UTILISATION TENUE DE L’APPAREIL AVERTISSEMENT : portez toujours une protection pour les yeux, les oreilles, les mains, les pieds et le corps afin de limiter les risques de blessure pendant l’utilisation de cet appareil. • Placez-vous en position d’utilisation (Fig. 10). •...
  • Page 27: Entretien

    ENTRETIEN AVERTISSEMENT : pour éviter des blessures graves, Orifices n’effectuez jamais des travaux d’entretien ou des réparations quand l’appareil est en marche. Laissez toujours l’appareil refroidir avant un entretien ou une réparation. Débranchez le fil de la bougie pour éviter un démarrage accidentel de l’appareil.
  • Page 28 ENTRETIEN DU FILTRE À AIR Filtre à air AVERTISSEMENT : pour éviter toute blessure grave, arrêtez toujours le moteur et laissez-le refroidir avant de nettoyer ou de procéder à un entretien de l’appareil. Le non-entretien du filtre à air peut entraîner une mauvaise performance ou des dommages permanents du moteur.
  • Page 29 ENTRETIEN DE LA BOUGIE 1. Arrêtez le moteur et laissez-le refroidir. Saisissez fermement le chapeau de la bougie et retirez-le de la bougie. 2. Nettoyez tout autour de la bougie. Retirez la bougie de la culasse avec une douille de 16 mm (5/8 po.), en tournant dans le sens horaire inverse.
  • Page 30: Nettoyage Et Entreposage

    NETTOYAGE ET ENTREPOSAGE NETTOYAGE ENTREPOSAGE • Ne rangez jamais l’appareil quand le réservoir contient encore AVERTISSEMENT : pour éviter toute blessure grave, de l’essence dont les vapeurs pourraient entrer en contact avec arrêtez toujours le moteur et laissez-le refroidir avant de une flamme nue ou une étincelle.
  • Page 31: Dépannage

    DÉPANNAGE PROBLÈME SOLUTION LE MOTEUR NE DÉMARRE PAS Le réservoir de carburant est vide Remplissez le réservoir avec un carburant correctement mélangé La poire d’amorçage n’a pas été comprimée suffisamment Appuyez sur la poire à 10 reprises ou jusqu’à l’apparition du carburant Appuyer sur la manette des gaz et tirer sur le cordon du démarreur Le moteur est noyé...
  • Page 32: Garantie

    GARANTIE LIMITÉE DU FABRICANT POUR : La garantie limitée énoncée ci-après est accordée par MTD LLC (« MTD ») et s’applique aux produits neufs achetés et utilisés aux États- Unis, ses possessions et territoires. MTD garantit ce produit contre tout défaut de pièces et de main d’œuvre pendant une période de deux (2) ans à compter de la date d’achat initiale et s’engage à...
  • Page 33: Reparación Y Mantenimiento

    Manual del Operador ÍNDICE Reparación y mantenimiento ......33 Seguridad ......... . .34 Recortadora de 2 ciclos Conozca su unidad .
  • Page 34: Seguridad

    SEGURIDAD NOTA SOBRE EL AMORTIGUADOR DE CHISPAS El objetivo de los símbolos de seguridad es dirigir su atención hacia posibles peligros. Los símbolos de seguridad, así como sus NOTA: Para usuarios de los territorios de bosques de EE. UU. y explicaciones, necesitan su atención y comprensión completas.
  • Page 35 • INSTRUCCIONES DE SEGURIDAD IMPORTANTES • LEA TODAS LAS INSTRUCCIONES ANTES DE USAR LA • Evite que se genere una fuente de encendido para el combustible derramado. Limpie de inmediato el combustible UNIDAD derramado de la unidad, antes de encenderla. Mueva la unidad al menos 30 pies (9.1m) de la fuente de combustible y del sitio ADVERTENCIA: Se deben respetar todas las normas...
  • Page 36 • Use sólo piezas de reemplazo y accesorios del fabricante del • Antes de inspeccionar, limpiar, guardar o transportar la unidad, o equipo original (OEM) para esta unidad. Los puede adquirir al de hacer tareas de reparación o mantenimiento o reemplazar distribuidor de servicio autorizado.
  • Page 37: Conozca Su Unidad

    CONOZCA SU UNIDAD APLICACIONES Bujía de encendido Como recortadora: Silenciador • Corta hierbas y malezas ligeras. Empuñadura • Bordeado cuerda de arranque • Recorte decorativo alrededor de árboles, vallas, etc. Con esta unidad se pueden usar otros accesorios opcionales: Empuñadura del eje Interruptor encendido / apagado HERRAMIENTAS DE ENSAMBLADO...
  • Page 38: Montaje

    MONTAJE INSTALACIÓN DEL PROTECTOR DEL CABEZAL Tornillos (2) DE CORTE Protector del cabezal de corte ADVERTENCIA: A fin de evitar que se produzcan lesiones personales graves, no opere nunca la unidad sin Soporte de el protector del cabezal de corte en su lugar. montaje Utilice las siguientes instrucciones si no está...
  • Page 39 FUNCIONAMIENTO DEL ACOPLADOR Orificio de recorte de bordes de 90° El acoplador permite el uso de varios accesorios opcionales. (recortadora únicamente) ADVERTENCIA: Antes de comenzar a utilizar cualquiera de los accesorios, lea y comprenda el manual que viene con dicho accesorio. Tenga en cuenta toda la información de seguridad que incluye.
  • Page 40: Aceite Y Combustible

    ACEITE Y COMBUSTIBLE Mezcla del combustible INSTRUCCIONES PARA LA MEZCLA DEL ACEITE Y EL COMBUSTIBLE NOTA: La presente unidad viene con una botella de 3.2 onzas de aceite de 2 ciclos. Para obtener la mezcla de combustible El uso de combustible viejo y/o mal mezclado es la causa más correcta que se describe a continuación, vierta toda la botella frecuente de los problemas de rendimiento.
  • Page 41: Arranque Y Detención

    ARRANQUE Y PARADA ADVERTENCIA: Opere esta unidad únicamente en una Off (O) / Parada zona bien ventilada, al aire libre. Los humos de escape de monóxido de carbono pueden ser mortales en un lugar On ( I ) / Arranque cerrado.
  • Page 42: Funcionamiento

    FUNCIONAMIENTO CÓMO SOSTENER LA UNIDAD ADVERTENCIA: Utilice siempre protección ocular, auditiva, de manos, pies y corporal para reducir el riesgo de sufrir lesiones durante la operación de esta unidad. • Párese en la posición de arranque (Fig. 10). • Sujete la empuñadura del eje con la mano derecha. Mantenga el brazo derecho ligeramente doblado.
  • Page 43: Mantenimiento

    MANTENIMIENTO ADVERTENCIA: Para evitar lesiones graves, nunca Orificios realice el mantenimiento ni las reparaciones con la unidad en funcionamiento. Siempre deje que se enfríe la unidad antes de hacer el mantenimiento o las reparaciones de la unidad. Desconecte el cable de la bujía para evitar que la unidad arranque accidentalmente.
  • Page 44 MANTENIMIENTO DEL FILTRO DE AIRE Filtro de aire ADVERTENCIA: A fin de evitar lesiones personales graves, siempre pare el motor y deje que se enfríe antes de limpiar o mantener la unidad. Si no se mantiene el filtro de aire se puede obtener un rendimiento insuficiente o se pude dañar el motor de manera permanente.
  • Page 45 MANTENIMIENTO DE LA BUJÍA 1. Detenga el motor y deje que se enfríe. Sujete con firmeza la funda de la bujía y tire para sacarla de la bujía. 2. Limpie alrededor de la bujía. Retire la bujía de la tapa del cilindro con una llave de cubo de 5/8 pulgadas, girando en sentido contrario a las agujas del reloj.
  • Page 46: Limpieza Y Almacenamiento

    LIMPIEZA Y ALMACENAMIENTO LIMPIEZA ALMACENAMIENTO • Nunca almacene la unidad con combustible en lugares donde ADVERTENCIA: A fin de evitar lesiones personales las emanaciones pueden alcanzar llamas abiertas o chispas. graves, siempre pare el motor y deje que se enfríe antes de •...
  • Page 47: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA SOLUCIÓN EL MOTOR NO ARRANCA Llene el depósito de combustible con combustible que se haya El depósito de combustible está vacío mezclado adecuadamente El bulbo del cebador no se presionó lo suficiente Oprima el bulbo del cebador 10 veces o hasta que se vea combustible Apriete el control del acelerador y tire de la cuerda de arranque El motor se ahoga hasta que el motor se ponga en marcha...
  • Page 48: Garantía

    GARANTÍA LIMITADA DEL FABRICANTE PARA: La garantía limitada que se extiende a continuación es otorgada por la empresa MTD LLC (MTD) y cubre mercaderías nuevas compradas y utilizadas en los Estados Unidos, sus posesiones y territorios. MTD garantiza este producto por defectos materiales y de fabricación por un período de dos (2) años a partir de la fecha de la compra original y reparará...
