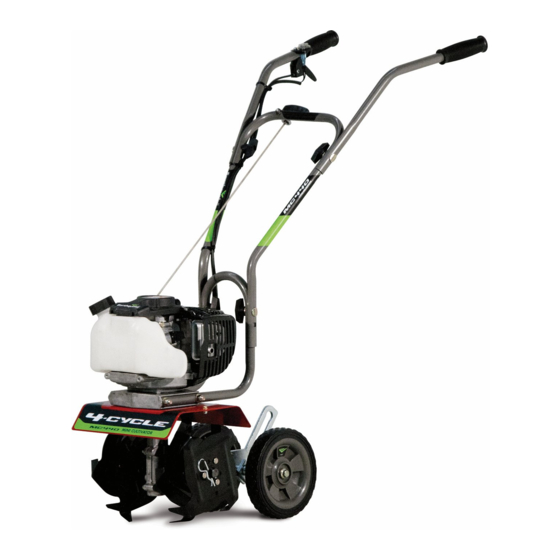

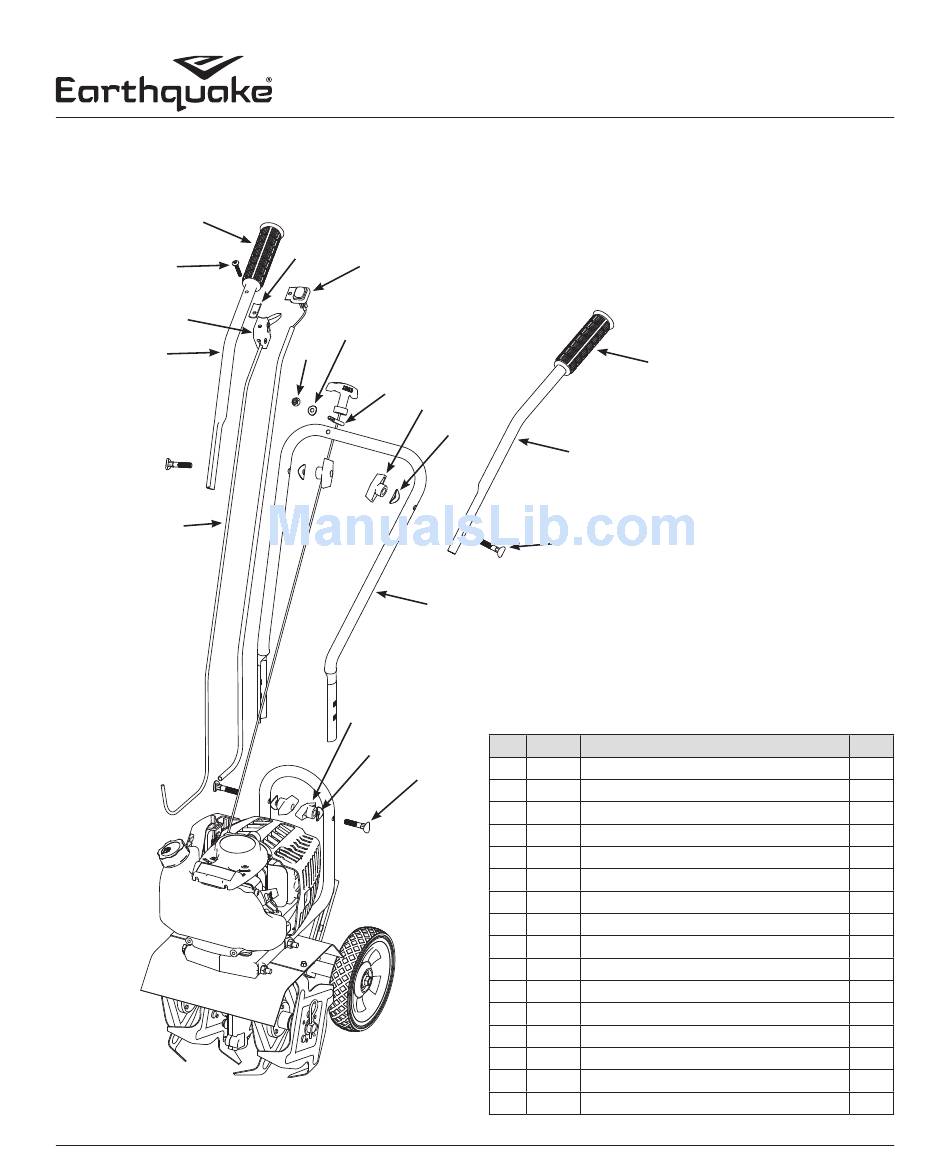

Operator's Manual MC440 4-Cycle Cultivator HOOD & TINES PARTS EXPLOSION PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 46146 TINE SHIELD 46142 BOLT M6 X 1.0 X 20 46138 TRANSMISSION ASSEMBLY 4650 NUT M6 X 1.0 4602 TINE -C- ASSEMBLY...
Page 3
Operator's Manual MC440 4-Cycle Cultivator ENGINE PARTS EXPLOSION...
Page 4
Operator's Manual MC440 4-Cycle Cultivator ENGINE PARTS LIST PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. 13307 FUEL LINE CUT TO 195MM 13192 CARBURETOR 13320 WASHER M6 X 10MM X 1MM 300413 ASSY CENTRIFUGAL CLUTCH ROTOR VIPER 13322 ENGINE BLOCK...
Page 5
Operator's Manual MC440 4-Cycle Cultivator TRANSMISSION PARTS EXPLOSION 1, 26 13, 26 PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 46136* MC LOWER TRANSMISSION CASTING LEFT 46144 DUST CAP 4646 SEAL SHAFT 19MM SHAFT 32MM BORE 4648 BOLT M6 X 1.0 X 22 FLANGE 4645 BUSHING M19 ID X 25.5OD D-PROFILE FLANGE...
Page 6
Operator's Manual MC440 4-Cycle Cultivator 15073 BORDER-EDGER KIT INSTALLATION (OPTIONAL ACCESSORY) The Border-Edger Kit is a useful tool for making clean cuts in CAUTION the lawn along the borders of gardens, flower beds, walkways, and driveways for a well manicured look. To install the Border-...
Page 7
Operator's Manual MC440 4-Cycle Cultivator DK43 DETHATCHER KIT INSTALLATION (OPTIONAL ACCESSORY) The Dethatcher Kit is very effective for lifting away the excessive matted layers of thatch that can prevent moisture, oxygen and nutrients from penetrating the soil and can harbor disease and insects. Use in Spring, Summer, and Fall to bring life and color back to your lawn.
