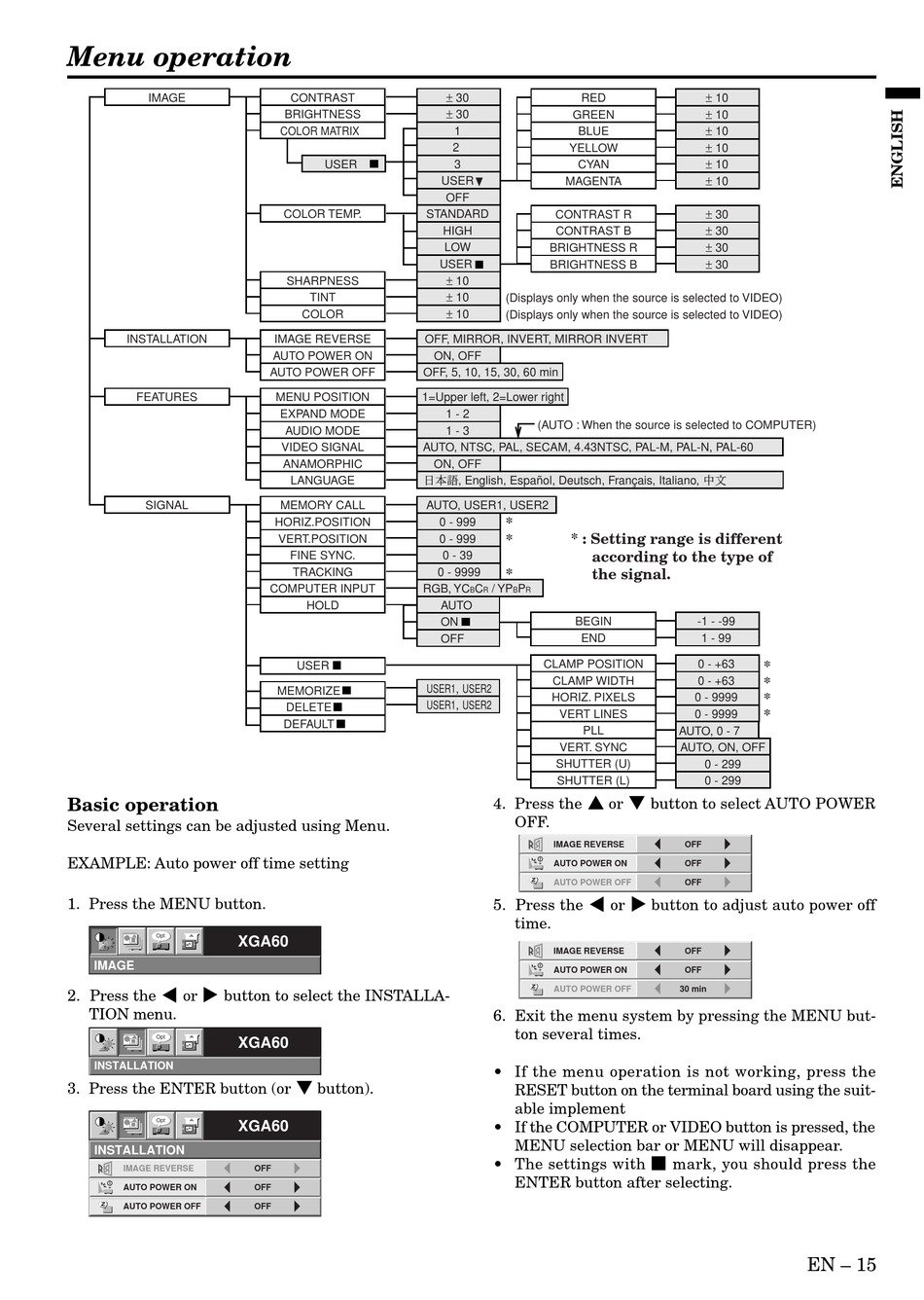

Menu operation

INSTALLATION
FEATURES
SIGNAL

Basic operation

Several settings can be adjusted using Menu.
EXAMPLE: Auto power off time setting
1. Press the MENU button.
Opt
XGA60
2. Press the $ or % button to select the INSTALLA-
TION menu.
Opt
XGA60
INSTALLATION
3. Press the ENTER button (or } button).
Opt
XGA60
INSTALLATION
IMAGE REVERSE
AUTO POWER ON
AUTO POWER OFF
CONTRAST
BRIGHTNESS
COLOR MATRIX
USER
COLOR TEMP. STANDARD
SHARPNESS
TINT
COLOR
IMAGE REVERSE OFF, MIRROR, INVERT, MIRROR INVERT
AUTO POWER ON
AUTO POWER OFF OFF, 5, 10, 15, 30, 60 min
MENU POSITION 1=Upper left, 2=Lower right
EXPAND MODE
AUDIO MODE
VIDEO SIGNAL AUTO, NTSC, PAL, SECAM, 4.43NTSC, PAL-M, PAL-N, PAL-60
ANAMORPHIC
LANGUAGE
MEMORY CALL AUTO, USER1, USER2
HORIZ.POSITION
VERT.POSITION
FINE SYNC.
TRACKING
COMPUTER INPUT RGB, YC
HOLD
USER
USER1, USER2
MEMORIZE
USER1, USER2
DELETE
DEFAULT
OFF
OFF
OFF
30 RED
30
GREEN
1 BLUE
2 YELLOW
3 CYAN
USER MAGENTA
OFF
CONTRAST R
HIGH CONTRAST B
LOW BRIGHTNESS R
USER
BRIGHTNESS B
10
10 (Displays only when the source is selected to VIDEO)
10 (Displays only when the source is selected to VIDEO)
ON, OFF
1 - 2
(AUTO : When the source is selected to COMPUTER)
1 - 3
ON, OFF
, English, Español, Deutsch, Français, Italiano,
0 - 999 *
* : Setting range is different
0 - 999 *
0 - 39
according to the type of
0 - 9999
* the signal.
C / YP P
B R B R
AUTO
ON BEGIN
END
OFF
CLAMP POSITION
CLAMP WIDTH
HORIZ. PIXELS
VERT LINES
PLL
VERT. SYNC
SHUTTER (U)
SHUTTER (L)
4. Press the { or } button to select AUTO POWER
OFF.
IMAGE REVERSE
AUTO POWER ON
AUTO POWER OFF
5. Press the $ or % button to adjust auto power off
time.
IMAGE REVERSE
AUTO POWER ON
AUTO POWER OFF
6. Exit the menu system by pressing the MENU but-
ton several times.
• If the menu operation is not working, press the
RESET button on the terminal board using the suit-
able implement
• If the COMPUTER or VIDEO button is pressed, the
MENU selection bar or MENU will disappear.
• The settings with 2 mark, you should press the
ENTER button after selecting.
