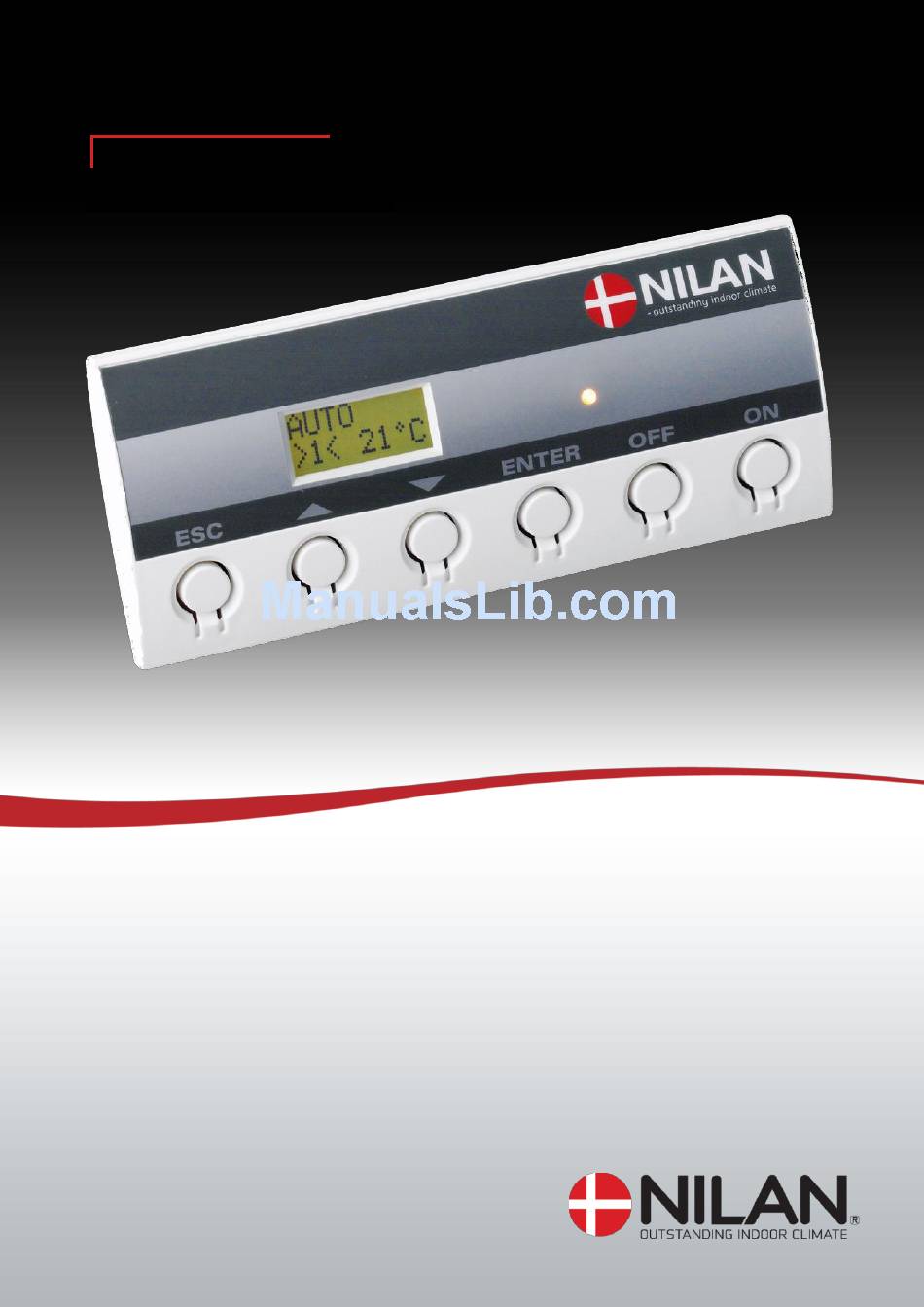

- Page 1 User manual CTS 602 by Nilan VPL 28 Version: 10.00, 13-04-2015 Software-version: 2.30...
-
Page 2: Table Of Contents
Table of contents Table of contents ..........................2 Figure table ............................ 2 Introduction ............................. 3 Review of the thermometer sensors ....................4 CTS 602 panel ..........................5 How to use the menu: ......................... 5 Review of the menus ........................6 Menus in the CTS 602 control ..................... -
Page 3: Introduction
Introduction Please control that the following documents have been delivered together with the unit: Directions for assembly and use CTS 602 directions (this document) Electrical chart The purpose of this manual is to clearly show the menus and possibilities of the CTS 602 control. This manual may describe functions that are not accessible in your unit. -
Page 4: Review Of The Thermometer Sensors
Review of the thermometer sensors Figure 1: Thermometer sensors Explanation for figure 1: T1 - is the thermometer sensor for the fresh air and should be placed at the north side of the building. - is the thermometer sensor for the inlet air at the fan (without heating surface). - shows the temperature of the condenser. -

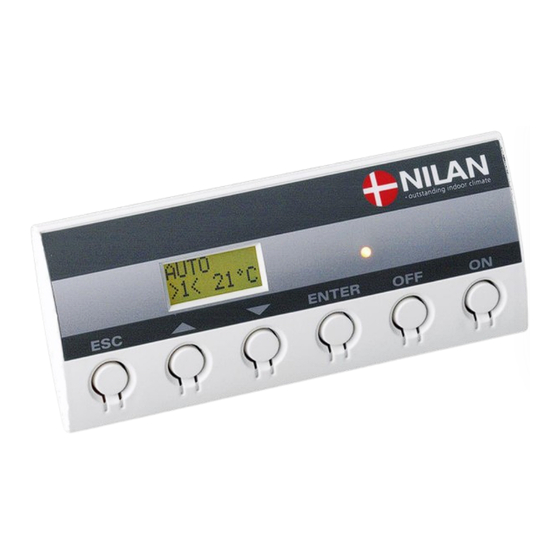

Page 5: Cts 602 Panel
CTS 602 panel Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o adj ust an act i vat ed m enu - pr ess ENTER t o act i vat e a m enu - pr ess ENTER t o conf i r m a m enu... -
Page 6: Review Of The Menus
Review of the menus Menus in the CTS 602 control The control will have the main menu as starting point, (the menu in the full-drawn frame). From here it is possible to go through the other menus via pq. SHOW Alarm display and reset . -
Page 7: Operating Mode
Operating mode The main menu shows 3 different values: operating mode, ventilation step and temperature. Those values indicate the state of the unit and are selected by the user. The main menu is automatically shown 15 seconds after the unit is electrically connected and is now ready to be set. -
Page 8: Main Menu
Main menu The main menu is automatically shown 15 seconds after the unit is electrically connected. ” ” indicates that the menu point flashes and can be set to another value. Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o adj ust an act i vat ed m enu - pr ess ENTER t o act i vat e a m enu... -
Page 9: Show Alarms
Show alarms If the unit is in a state of alarm the yellow light-emitting diode on the front of the CTS 602 panel will flash. The ”Show alarms” menu indicates the type of alarm and the time of the alarm. This is also the menu where the alarm should be reset. - Page 10 Alarm codes are given because of a fault situation or when it is important to inform the user. The alarms are divided into the following categories: Critical Operation is partly or completely stopped as long as the alarm is active. Warning These types of alarms will become critical if the problem is not solved quickly.
- Page 11 Alarm Categori Text in Description/ cause How to remedy alarms code display ROOM LOW When room temperature drops Heat up the house and below 10°C the unit will stop in reset the alarm order to protect the house from further cooling down. The function is useful when the house is not occupied and the main heating has stopped.
-
Page 12: Show Data
Show data The actual operation data can be read in the ”Show data” menu. See review of thermometer sensors at page 5. Room temperature recorded by T15 (sensor in CTS 600 control panel). ENTER SHOW STATUS DATA HEATING PANEL 20°C T10 is an external sensor that can be EXTERNAL WATER... -
Page 13: User Select
User select The menu CUSTOM OPTIONS overrides the operating mode of the main menu by activating an external switch. ”VENTILAT”: There is a possibility here to run with a higher or lower speed on the air exhaust and air inlet for a limited amount of time. The external pressure will activate the function. The function has high priority. -
Page 14: User Select 2
User select 2 User select 2 as user select Possibility to run at a higher or lower SELECT ENTER rate. High priority. ”VENTILAT” SELECT ENTER Choose the ”EXT OFFS” afterrunning and displacement of the setpunkt, for ENTER SELECT USER SELECT ENTER ENTER externak heating. -
Page 15: Setting Of Clock
Setting of clock In case of power cut the clock will function for at least 24 hours. If the time function is lost there will be a alarm. Changing to daylight saving time has to be done manually. ” ” indicates that the menu point flashes and can be set to another value. Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o... -
Page 16: Week Programme
Week programme The unit is equipped with 3 standardized week programmes. See page 17. Anlægget er fra fabrikken indstillet til program 1. In addition to these programmes it is possible to programme your own week programme which can be one of the standard programmes with minor alterations. ”... -
Page 17: Factory Settings For The 3 Weekly Programs
Factory settings for the 3 weekly programs: Program 1 is suitable for the working family Program 2 is suitable for the non-working family Program 3 is suitable for offices Program Week day Function Time Ventilation Temperature Program 1 Monday - 6.00 Friday 8.00... - Page 18 Heating surface The menu HEATING SURFACE is only accessible when the system has a heating surface in- stalled and when the control has been set up to a heating surface in the SERVICE MENU. ” ” indicates that the menu point flashes and can be set to another value. Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o...
-
Page 19: Cooling
Cooling The ”Cooling” menu enables you to chose at which temperature cooling should be activated ac- cording to the room temperature. ” ” indicates that the menu point flashes and can be set to another value. Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o adj ust an act i vat ed m enu... -
Page 20: Night Cooling
Night Cooling The NIGHT COOLING menu makes it possible to select passive night cooling, provided that the outdoor temperature on the day before has exceeded the day temperature limit set in the NIGHT COOLING menu for at least one hour. During the night cooling period, the compressor cooling is suspended and the room setpoint is lowered to the temperature set in the NIGHT COOLING menu. -
Page 21: Humidity
Humidity In the “Humidity” menu it is possible to regulate the ventilation step in accordance with the humidity level. Low ventilation step is only active in wintertime and at humidity levels below 30%. High step is activated by a change from 10-5% of average RH from 40-80% over the last 24 hours High ventilation step is deactivated when humidity drops 3% or more compared to the average humidity level the last 24 hours. -
Page 22: Air Exchange
Air exchange In the ”Air exchange” menu it is possible to chose between 2 different types of ventilation depend- ing on your individual demand. ” ” indicates that the menu point flashes and can be set to another value. Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o adj ust an act i vat ed m enu... -
Page 23: Air Filter
Air filter In the ”Air filter” menu it is possible to chose the interval of the filter guard. The unit is factory configured to provide emergency with 90 days interval. It is then possible to change this range if necessary. ”... -
Page 24: Temp. Control
Temp. control In the ”Temp. control” menu it is possible to set the highest and lowest inlet temperature. ” ” indicates that the menu point flashes and can be set to another value. Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o adj ust an act i vat ed m enu... -
Page 25: Setting Of Language
Setting of language In this menu you set which language to be used in the CTS 602 panel. ” ” indicates that the menu point flashes and can be set to another value. Use of t he CTS 600 panel : - pr ess ESC t o go one st ep back i n t he m enu - pr ess qpt o m ove up or down i n a m enu or t o adj ust an act i vat ed m enu... -
Page 26: System Dimensions
System dimensions Figure 20: System dimensions Udeluft, Fresh Air, Aussenluft, Air neuf Tilluft, Air Inlet, Zuluft, Air pulse Fraluft, Air Exhaust, Abluft, Air repris Afkastluft, Air Discharge, Fortluft, Air extrait Kondensafløb, Evacuation condersats, Kondensatmuffe, Vacuation des condensats page 26 of 27 May be subject to change... -
Page 27: Accessories/Spare Parts
Accessories/spare parts VPL 28 Filter types Designation Qty. Nilan item no. Duct filter Ø250mm 85063 Heating surface, water Unit Qty. Nilan item no. VPL 28 768983Z Heating surface, electrical Unit Qty. Nilan item no. VPL 28 764231 Filter FU Unit...
