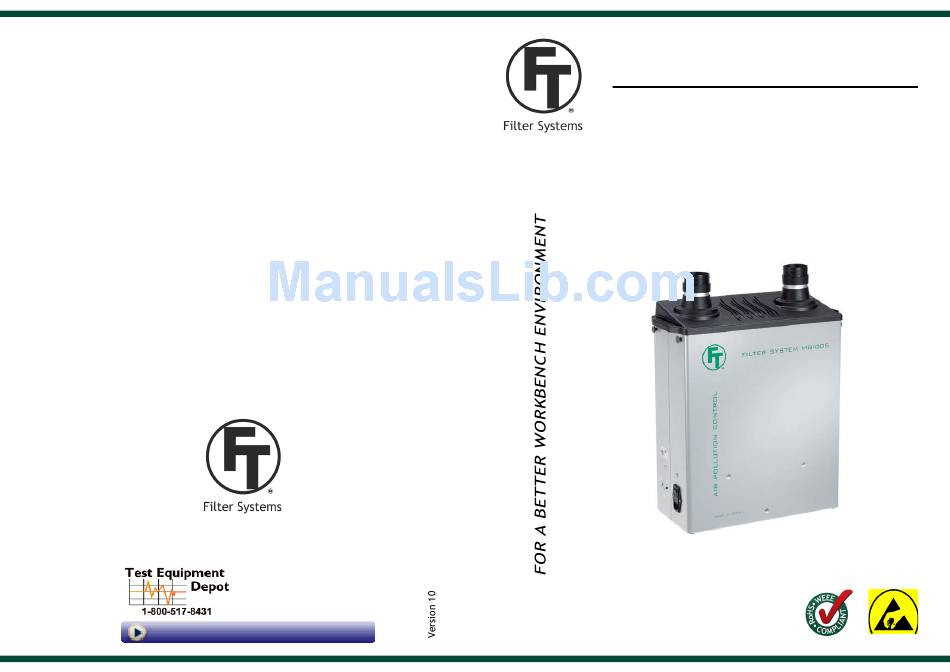

Page 1: Operating Manual
OPERATING MANUAL MG100S Filter system FILTRONIC 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com... - Page 2 Filtronic reserves the right to introduce technical changes in the course of product devel- opment. MG100S is a mobile filter unit for cleaning of both particles and gases. The unit are used for filtration of process air from soldering, gluing, cleaning, printing processes etcetera.
-
Page 3: Safety Instructions
7. Technical data MG100S 3. Safety instructions Width x height x depth 460 x 640 x 210 mm The unit must not be exposed to temperatures exceeding 50° C, open flames or condensated solvents. Weight 15 kg Sound level at 1 meter 52 dB(A) Switch off the filter unit when changing filter. -
Page 4: Troubleshooting
5. Troubleshooting 6. Maintenance and service To guarantee a satisfactory function, clean Do not modify the filter unit. Repairs must be performed by personnel the nozzle, extraction arm and connection trained by Filtronic. hose regularly. Exchange of main filter: Swith off the filter unit (5). - If the filter unit is out of order, please check: Loosen the top (2) with the four knobs on the short sides of the unit.
