Summary of Contents for Signet QC8005

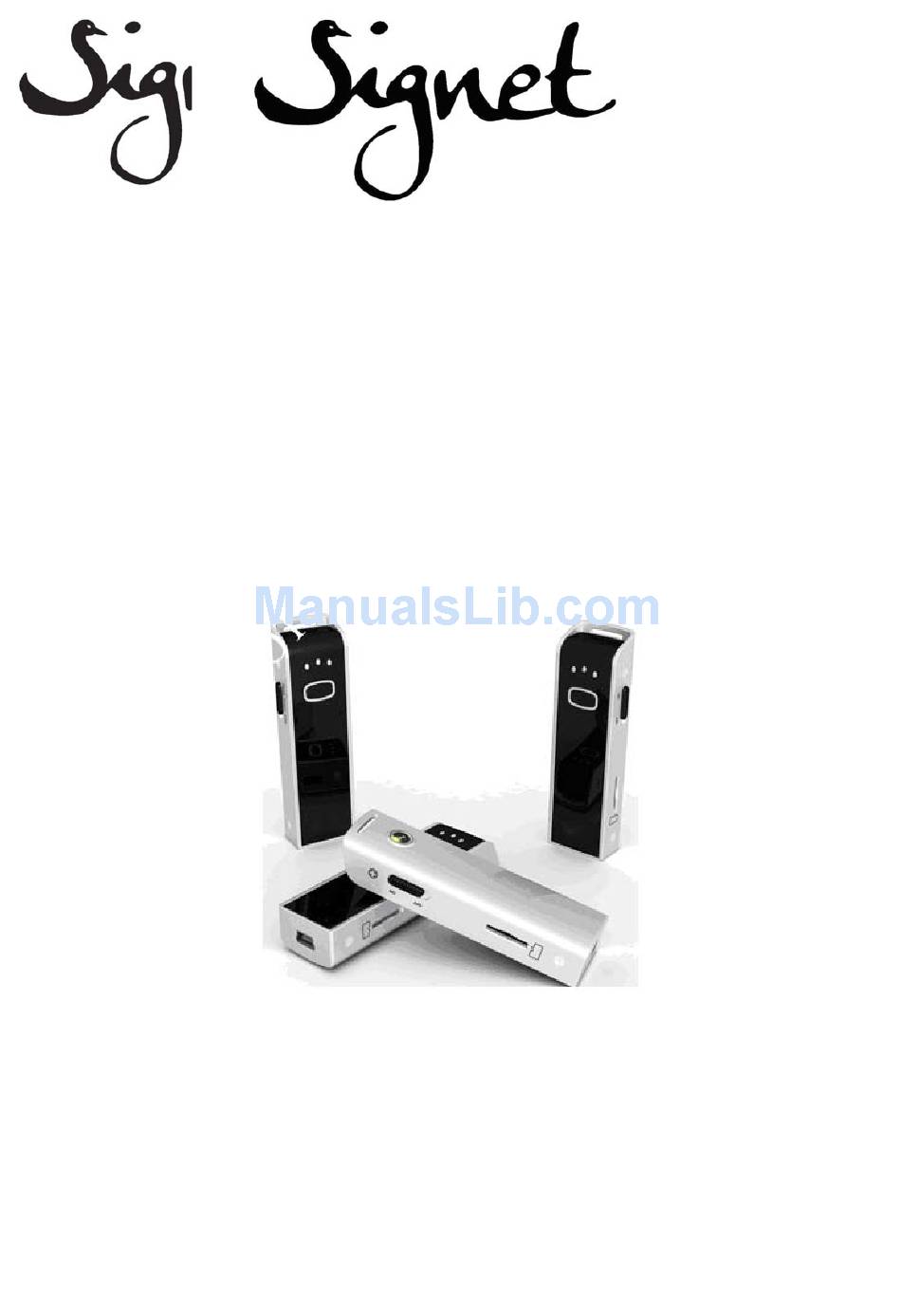

- Page 1 Mini HD DVR QC8005...
- Page 2 Mini HD DVR Mini Camera Version 1.2 Preface Thank you for your purchasing the HD digital camera. With ultra-small, exquisite, unique user-friendly design and multipurpose back clips. The HD DVR can be used in many recording situations such as network video, family entertainment, business meeting, outdoor sport activities, evidence collection and home security, pet fun monitoring.
- Page 3 2.Features Easy to use Fast start up 2G internal micro TF storage (Maximum) Up to 32G external SDHC micro SD card support (not included) 720p (1280x720 30fps) recording with date/time video stamp Mic dual channel input High sensitivity sensor...
- Page 4 Parameters Item Description Format AVI (MJPG) Video Resolution 1280x720 / 640 x 480 high resolution Frame rate 30 fps Internal 2GB memory External up to 32GB (SDHC Support) Storage Input Voltage By USB Power 150mAh consumption Power Power Supply By USB Internal Lithium battery battery...
-
Page 5: Product Structure
4.Product structure 5.Installation for user The Mini HD DVR can be used by hand. It also can be fixed on the bracket.. By hand On the bracket... - Page 6 6.Buttons functions mapping Power on/off slide switch Recording button Video models slide switch(High definition/Standard definition) MicroSD Card Slot.
- Page 7 7.Led function mapping Three lights turnon together when power on Normal mode standing by: Yellow light on Video mode: Yellow light on, and blue light blink Photo mode: Blue light glister for 1 second Plug the USB: Yellow light on, and green light blink ...
-
Page 8: Clock Setup
USB charging, yellow light blink. Yellow light on means full charged. 8.Clock setup Putting a date.txt and put the latest date on it Format : YYYY/MM/DD HH:MM 9. Functions description Record button Press once for image capture ... - Page 9 According to your own computer systems to find and install them.
- Page 10 Where to find CD-ROM drive, click OK. Click Next, enter the installation.
- Page 11 Click Finish to enter the mode Network HD DVR camera. My computer will appear the following picture, that is all of the installation is complete...
- Page 12 10.Package and Accessories: Bracket, Clip, Sling line, , Charger, USB cable, CD and Manual. Bracket Clip Sling line Charger USB cable...
