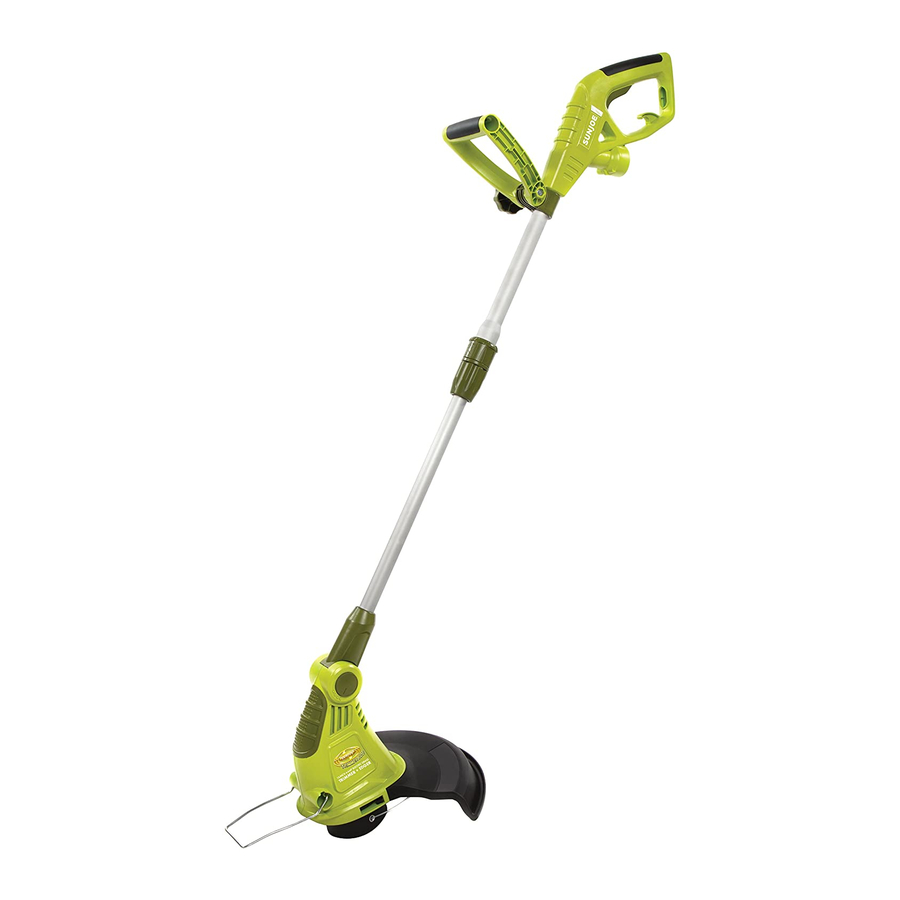

sunjoe TRJ13STE Operator's Manual

13-inch 4-amp electric grass trimmer + edger

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

A Division of Snow Joe

, LLC

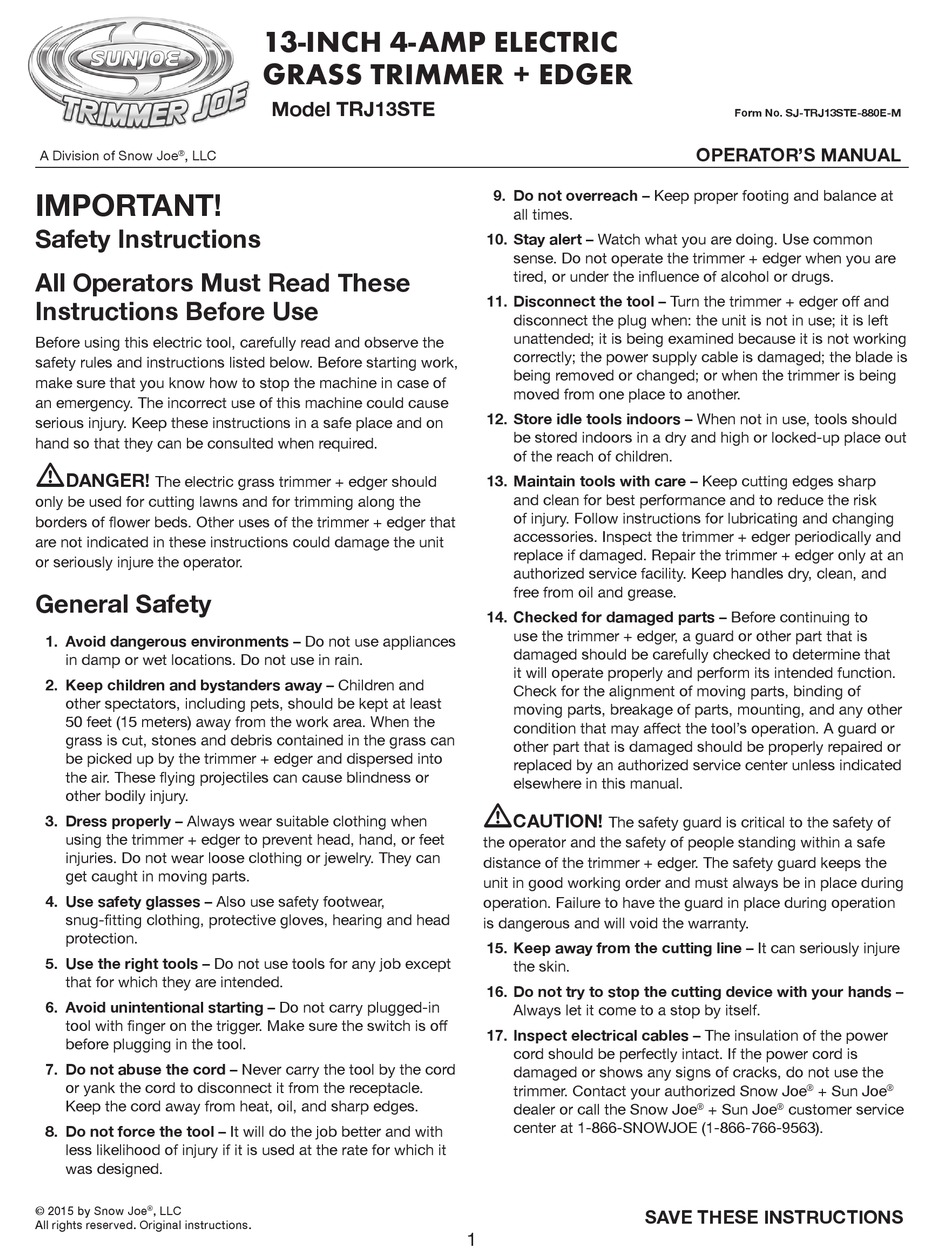

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Before using this electric tool, carefully read and observe the

safety rules and instructions listed below. Before starting work,

make sure that you know how to stop the machine in case of

an emergency. The incorrect use of this machine could cause

serious injury. Keep these instructions in a safe place and on

hand so that they can be consulted when required.

DANGER!

The electric grass trimmer + edger should

only be used for cutting lawns and for trimming along the

borders of flower beds. Other uses of the trimmer + edger that

are not indicated in these instructions could damage the unit

or seriously injure the operator.

General Safety

1. Avoid dangerous environments – Do not use appliances

in damp or wet locations. Do not use in rain.

2. Keep children and bystanders away – Children and

other spectators, including pets, should be kept at least

50 feet (15 meters) away from the work area. When the

grass is cut, stones and debris contained in the grass can

be picked up by the trimmer + edger and dispersed into

the air. These flying projectiles can cause blindness or

other bodily injury.

3. Dress properly – Always wear suitable clothing when

using the trimmer + edger to prevent head, hand, or feet

injuries. Do not wear loose clothing or jewelry. They can

get caught in moving parts.

4. Use safety glasses – Also use safety footwear,

snug-fitting clothing, protective gloves, hearing and head

protection.

5. Use the right tools – Do not use tools for any job except

that for which they are intended.

6. Avoid unintentional starting – Do not carry plugged-in

tool with finger on the trigger. Make sure the switch is off

before plugging in the tool.

7. Do not abuse the cord – Never carry the tool by the cord

or yank the cord to disconnect it from the receptacle.

Keep the cord away from heat, oil, and sharp edges.

8. Do not force the tool – It will do the job better and with

less likelihood of injury if it is used at the rate for which it

was designed.

, LLC

13-INCH 4-AMP ELECTRIC

GRASS TRIMMER + EDGER

Model TRJ13STE

9. Do not overreach – Keep proper footing and balance at

all times.

10. Stay alert – Watch what you are doing. Use common

sense. Do not operate the trimmer + edger when you are

tired, or under the influence of alcohol or drugs.

11. Disconnect the tool – Turn the trimmer + edger off and

disconnect the plug when: the unit is not in use; it is left

unattended; it is being examined because it is not working

correctly; the power supply cable is damaged; the blade is

being removed or changed; or when the trimmer is being

moved from one place to another.

12. Store idle tools indoors – When not in use, tools should

be stored indoors in a dry and high or locked-up place out

of the reach of children.

13. Maintain tools with care – Keep cutting edges sharp

and clean for best performance and to reduce the risk

of injury. Follow instructions for lubricating and changing

accessories. Inspect the trimmer + edger periodically and

replace if damaged. Repair the trimmer + edger only at an

authorized service facility. Keep handles dry, clean, and

free from oil and grease.

14. Checked for damaged parts – Before continuing to

use the trimmer + edger, a guard or other part that is

damaged should be carefully checked to determine that

it will operate properly and perform its intended function.

Check for the alignment of moving parts, binding of

moving parts, breakage of parts, mounting, and any other

condition that may affect the tool's operation. A guard or

other part that is damaged should be properly repaired or

replaced by an authorized service center unless indicated

elsewhere in this manual.

CAUTION!

The safety guard is critical to the safety of

the operator and the safety of people standing within a safe

distance of the trimmer + edger. The safety guard keeps the

unit in good working order and must always be in place during

operation. Failure to have the guard in place during operation

is dangerous and will void the warranty.

15. Keep away from the cutting line – It can seriously injure

the skin.

16. Do not try to stop the cutting device with your hands –

Always let it come to a stop by itself.

17. Inspect electrical cables – The insulation of the power

cord should be perfectly intact. If the power cord is

damaged or shows any signs of cracks, do not use the

trimmer. Contact your authorized Snow Joe

dealer or call the Snow Joe

center at 1-866-SNOWJOE (1-866-766-9563).

SAVE THESE INSTRUCTIONS

Form No. SJ-TRJ13STE-880E-M

OPERATOR'S MANUAL

+ Sun Joe

customer service

Table of Contents

Need help?

Do you have a question about the TRJ13STE and is the answer not in the manual?

Questions and answers

Summary of Contents for sunjoe TRJ13STE

Page 1: Safety Instructions
13-INCH 4-AMP ELECTRIC GRASS TRIMMER + EDGER Model TRJ13STE Form No. SJ-TRJ13STE-880E-M OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! 9. Do not overreach – Keep proper footing and balance at all times. Safety Instructions 10. Stay alert – Watch what you are doing. Use common sense.
Page 2: Electrical Safety
4. To prevent electric shock, use only with an extension cord CAUTION! The trimmer line spool will continue to rotate suitable for outdoor use, such as SW-A, SOW-A, STW-A, after turning the trimmer OFF. Wait until the trimmer line spool STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.
Page 3: Double-Insulated Appliances
Additional Electrical Safety Rules Double-Insulated Appliances • The voltage must correspond to the one marked on the In a double-insulated appliance, two systems of insulation technical data plate (120 V~60 Hz). Do not use other are provided instead of grounding. No grounding means is sources of power.
Page 4: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, Keep bystanders and children and follow all instructions in the a safe distance away.
Page 5: Technical Data
Know Your Electric Grass Trimmer + Edger Read the owner’s manual and safety instructions carefully before operating the electric grass trimmer + edger. Compare the illustration below to your electric grass trimmer + edger in order to familiarize yourself with the location of the various controls and adjustments.
Page 6: Carton Contents
Unpacking 2. Place the safety guard in the direction of the arrow shown to align it with the screw hole in the motor housing (Fig. 2). Carton Contents Fig. 2 • Electric grass trimmer + edger • Safety guard • Edger guide + flower guard •...
Page 7: Operation
Operation 2. While lightly spreading the edger guide + flower guard, fit the curved ends into the small holes on both sides of the motor housing, and release (Figs. 5 & 6). Auxiliary Handle Adjustment Fig. 5 NOTE: For maximum comfort and control, adjust the auxiliary handle to fit your height.
Page 8: Height Adjustment
3. Turn the handle knob clockwise to tighten and secure the 3. Extend the telescoping tube to a comfortable height auxiliary handle in place (Fig. 10). (Fig. 12). Fig. 12 Fig. 10 Auxiliary handle Handle knob 4. Lock the telescoping tube in position by turning the telescoping locking coupler counter-clockwise.
Page 9 Trimming 3. Connect the extension cord to the power plug (Fig. 14). • Wear non-slip gloves for maximum grip and protection. Fig. 14 • For the best cutting action against walls, fences, and in high grass, move the grass trimmer slowly so grass is cut with the tip of the high speed nylon line.
Page 10 Edging 1. Hold the trimmer at an angle of approximately 10 – 30 degrees to the work area (Fig. 16). 1. To convert for maintenance edging, turn OFF and unplug the tool. Fig. 16 2. To use the edger guide + flower guard, flip it down from its stored position (Fig.
Page 11 Advancing Strings 4. Rotate the whole unit 180 degrees. The tool is now ready to be used in edger mode (Fig. 21). NOTE: Your trimmer uses 0.063 in. (1.6 mm) diameter nylon line to cut grass and weed quickly and easily. In time, the Fig.
Page 12: Winding The Line
NOTE: A dual-line factory wound spool (model TRJ13STERS) 3. In case of jams or tangled line, unwrap about 6 inches is available for easy spool replacement on the TRJ13STE (15 cm) of line to ensure that it's not damaged. electric grass trimmer + edger. Visit snowjoe.com to purchase 4.
Page 13: Service And Support
4. Wind both ends into the grooves using slight tension and following the direction of the arrows (Fig. 28). If your Sun Joe Trimmer Joe TRJ13STE electric grass trimmer ® + edger requires service or maintenance, please call the Fig. 28...
Page 14: Troubleshooting
Troubleshooting Problems Possible Cause Possible Solution The motor does not • Power failure/unit not plugged • Check to make sure the unit is plugged into a working run or the tool runs into a working receptacle. outlet. Make sure the extension cord is not damaged. slowly.
Page 15 + ® edger. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. Accessories Item Model Dual-line pre-wound spool for TRJ13STE TRJ13STERS Snow Joe + Sun Joe Power Joe SJTW-A ®...
Page 16 NOTES...
Page 17 NOTES...
Page 18 NOTES...
Page 19 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience ® ® as pleasant as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions.
Page 20 snowjoe.com...
