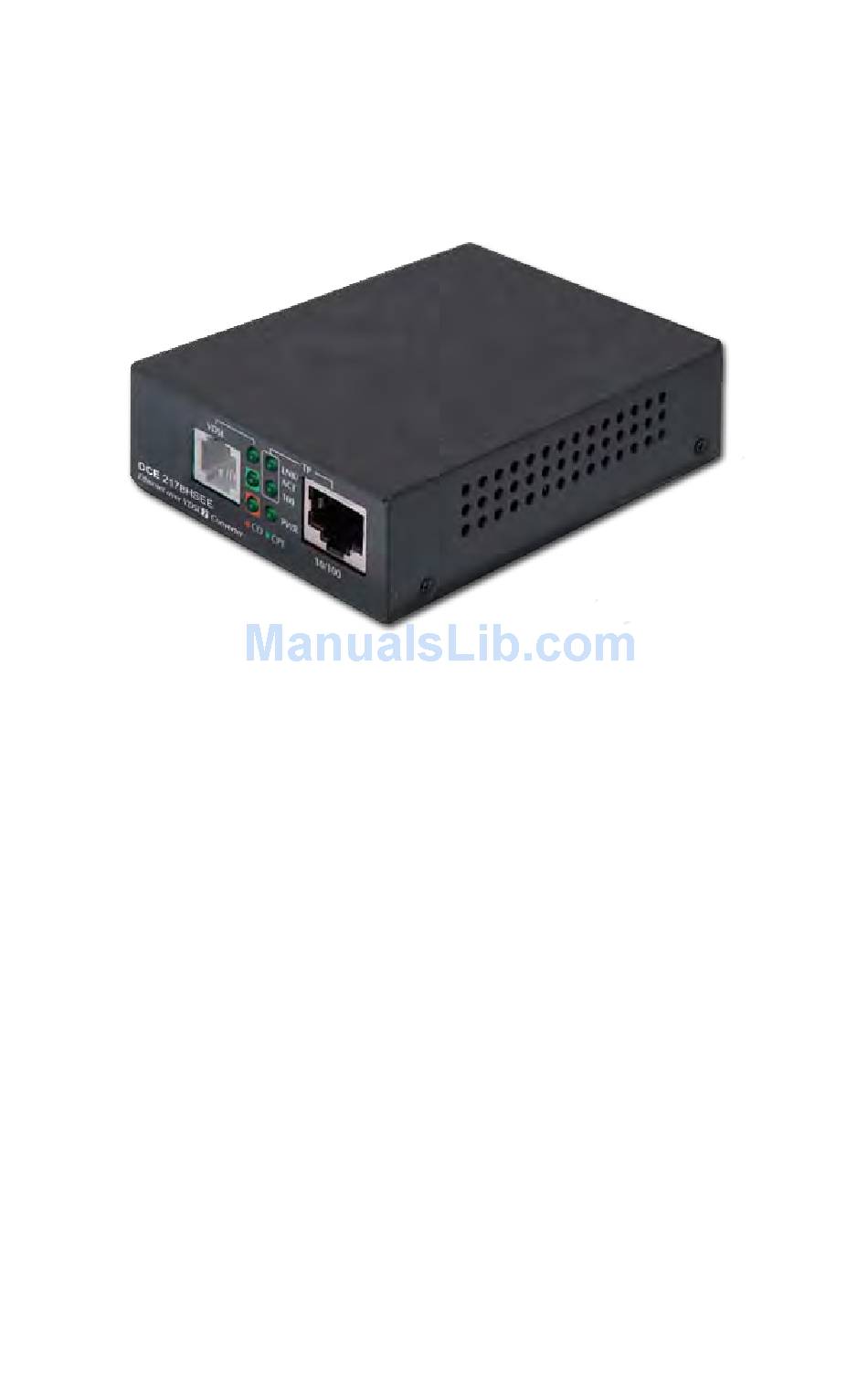

Ethernet over VDSL2 Converter
DCE 2178HSEE / HSEE4
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCE 2178HSEE and is the answer not in the manual?

Questions and answers

Related Manuals for Data Connect DCE 2178HSEE

Summary of Contents for Data Connect DCE 2178HSEE

  • Page 1 Ethernet over VDSL2 Converter DCE 2178HSEE / HSEE4 User’s Manual...

  • Page 3: Fcc Warning

    Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision Ethernet over VDSL2 Converter User’s Manual For Models: DCE 2178HSEE Rev 1.0 (October, 2009) Part No.: DCE 2178HSEE...

  • Page 4: Table Of Contents

    3.1.1 2178HSEE / HSEE4 LAN to LAN connection ..20 3.1.2 2178HSEE / HSEE4 Connect to Multi-Port Master 21 3.2 Connecting DCE 2178HSEE / 2178HSEE4 ....22 3.2.1 Connecting Standalone PC ........ 22 3.2.2 Connecting Multiple PCs to an Ethernet LAN ..23 3.3 Chassis Installation and Rack Mounting (2178HSEE)..

  • Page 5: Introduction

    1. Introduction 1.1 Checklist Check the contents of your package for following parts: DCE 2178HSEE / DCE 2178HSEE4 Splitter (2178HSEE only) Power Adapter RJ-11 Telephone line User’s Manual If any of these pieces are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the original packing material, and use them against to repack the product in case there is a need to return it to us for repair.
  • Page 6 1.4km. This capability is ideal for use as an Ethernet extender for your existing Ethernet network. Data Connect's VDSL2 Converter solution provides a much cheaper replacement and smooth migration for existing Long Reach Ethernet (LRE) networks. The cable specifications of the connection are listed as following:...
  • Page 7 Ethernet over VDSL2 and Telephone Network Telephone wire VDSL2 Up to 1.4km Main office/PBX, Splitter Splitter Telco CO, wire closet DCE 2178HSEE/CO DCE 2178HSEE/CPE Ethernet over VDSL2 and Telephone Network Telephone wire VDSL2 Up to 1.4km Main office/PBX, Telco CO, wire closet...
  • Page 8 Multi-LAN Connection Ethernet Telephone Network VDSL2 VDSL2 Telephone wire Main office/PBX, VDSL2 Telco CO, wire closet VDSL2 Ethernet over VDSL2 and Telephone Network Splitter VDSL2 VDSL2 Switch (Multi-port CO) Telephone wire Main office/PBX, Telco CO, LAN1 2178HSEE/CPE wire closet Splitter VDSL2 UP to 1.4km 2178HSEE/CPE...

  • Page 9: Key Features

    1.3 Key Features The Ethernet over VDSL2 Converter provides the following key features: Cost-effective VDSL2 CO/CPE bridge solution One box design, CO/CPE selectable via DIP Switch Defines profile 17a band plan for the long distance transmis- sion of upstream and downstream signals Defines profile 30a band plan for the short distance transmis- sion of upstream and downstream signals Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x...

  • Page 10: Specifications

    1.4 Specifications Product 2178HSEE 2178HSEE4 Hardware Specification 1 RJ-45, Auto-negotiation 4 RJ-45, Auto-negotiation 10/100Base-TX and Auto-MDI/MDI-X and Auto-MDI/MDI-X Ports VDSL 1 RJ-11, female Phone Jack Additional Splitter for 1 RJ-11, Built-in splitters PHONE POTS connection for POTS connection 4 position DIP switch •...
  • Page 11 30a profile 300m -> 100/100Mbps 300m -> 100/100Mbps 400m -> 90/90Mbps 400m -> 90/90Mbps 600m -> 61/40Mbps 600m -> 69/55Mbps 800m -> 54/8Mbps 800m -> 48/9Mbps Power Requirement 5V DC, 2A Dimension (W x D x H) 97 x 70 x 26 mm 155 x 86 x 26 mm Weight 199g...

  • Page 12: Hardware Description

    LED indicators. Before connecting any network device to the converter / Bridge, read this chapter carefully. 2.1 Front Panel The units’ front panel provides a simple interface monitoring the Ethernet over VDSL2 Converter. n DCE 2178HSEE Front Panel Figure 2-1: front panel...

  • Page 13: Led Indicators For Dce 2178Hsee

    DCE 2178HSEE4 Front Panel Figure 2-2: front panel 2.1.1 LED indicators for DCE 2178HSEE The rich diagnostic LEDs on the front panel can provide the operating status of individual port and whole system. n System Color Function Lights to indicate that the VDSL Converter has power.

  • Page 14: Led Indicators For Dce 2178Hsee4

    n 10/100Base-TX Port Color Function Indicate that the port is link up. Indicate that the VDSL Converter is LNK/ Green Blink actively sending or receiving data over that port. Indicate that the port is link down. Indicate that the port is operating at 100Mbps.
  • Page 15 n VDSL Color Function Indicate that the VDSL link is established. Fast Indicate that the VDSL link is at training VDSL Green Blink status (about 10 seconds). Slow Indicate that the VDSL link is at idle Blink status. Indicate the VDSL Bridge is running at Green CO mode.

  • Page 16: The Rear Panel

    2.2 The Rear Panel The rear panel of the Ethernet over VDSL2 Converter is shown as below. n DCE 2178HSEE Rear Panel 1 2 3 4 Figure 2-3: rear panel n DCE 2178HSEE4 Rear Panel 1 2 3 4 Figure 2-4: rear panel 2.2.1 MODE DIP Switch...
  • Page 17 n DIP-1: Mode (CO/CPE) CO (Central Office) – the Master device mode, usually the CO device will be located at the data center of ISP or enterprise to link to the backbone. CPE (Customer Premises Equipment) – the Slave device mode, usually the CPE device will be located at branch office, home or remote side as the long reach data receiver.

  • Page 18: Dc Power Jack

    1. By default, the four DIP switch are at “ON” position that will operate as “CPE”. For operate as “CO”, please adjust the DIP 1 switch at “OFF” position. Then adjust other DIP switch accordingly to fulfill different network applica- tion demand.

  • Page 19: Installing And Using Vdsl Converter

    3. Installing and Using VDSL Converter 3.1 Install the Ethernet Over VDSL2 Converter The Ethernet over VDSL2 Converter / Bridge does not require any software configuration. Users can immediately use any feature of this product simply by attached the cables and plug power on.

  • Page 20: 2178Hsee / Hsee4 Lan To Lan Connection

    3.1.1 2178HSEE / 2178HSEE4 LAN to LAN connection Two sets of the Ethernet over VDSL2 Converters / Bridge could be used to link two local Area networks that are located in different place. Through the normal telephone line, it could setup a 100/100Mbps symmetric backbone, but one Ethernet over VDSL2 Converters / Bridge must be Master (CO mode) and the other one is Slave (CPE mode).

  • Page 21: 2178Hsee / Hsee4 Connect To Multi-Port Master

    3.1.2 2178HSEE / 2178HSEE4 Connect to Multi-Port Master In order, to built up a local Internet in apartment, hotel and campus and hospitality environment. The Multi-port Master (for example, 5208-SW / 5224-SW VDSL2 Switch) need to be placed in the wiring center (MDF room) and connect to the telephone line system, on the other hand, need to install a Slave (2178HSEE / HSEE4) Converters / Bridge on the individual client side and connect to the Multi-port Master...

  • Page 22: Connecting Dce 2178Hsee / 2178Hsee4

    3.2 Connecting 2178HSEE / 2178HSEE4 3.2.1 Connecting Standalone PC Refer to the following procedures to setup the 2178HSEE to a standalone PC. 1. Set the 2178HSEE to be CO mode or CPE mode from the DIP switch at the rear panel. 2.

  • Page 23: Connecting Multiple Pcs To An Ethernet Lan

    3.2.2 Connecting Multiple PCs to an Ethernet LAN Refer to the following procedures to setup the 2178HSEE / 2178HSEE4 to an Ethernet LAN. 1. Set the 2178HSEE / HSEE4 to be CO mode or CPE mode from the DIP switch at the rear panel. 2.
  • Page 24 RJ-11 Line Cord Phone RJ-11 Line Cord RJ-11 Phone Jack RJ-45 Cat.5 Switch Twisted Pair Cable IP Cam Wireless Laptop IP TV 100Base-TX UTP Telephone wire RJ-11 Phone Wire RJ-11 Phone Wire RJ-11 Phone Jack Phone 2178HSEE4 1 2 3 4 IP Cam IP TV Wireless...

  • Page 25: Chassis Installation And Rack Mounting (2178Hsee)

    3.3 Chassis Installation & Rack Mounting (2178HSEE) To install the Ethernet over VDSL2 Converter in a 10-inch or 19- inch Converter Chassis with standard rack, follow the instructions described below. Step 1: Place your 2178HSEE on a hard flat surface, with the front panel positioned towards your front side.

  • Page 26: Power Information

    4. Power Information The power jack of 2178HSEE / HSEE4 is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Planet’s Media Chassis. Should you have the issue to make the power connection, please contact your local sales representative.

  • Page 27: Troubleshooting

    5. Troubleshooting SYMPTOM: VDSL LNK LED does not light after wire is connected to the VDSL port. CHECKPOINT: 1. Verify the length of the wire connected between two 2178HSEE and 2178HSEE4 is not more than 1.4km. Please also try to adjust the DIP switch or 2178HSEE / 2178HSEE4 to other SNR mode.

  • Page 28: Faq

    6. FAQ Q1: What voltage that 2178HSEE / HSEE4 used? A1: 5V DC, 2A Q2: What is VDSL2? A2: VDSL2 (Very High-Bit-Rate Digital Subscriber Line 2), G.993.2 is the newest and most advanced standard of xDSL broadband wire line communications. Designed to support the wide deployment of Triple Play services such as voice, data, high definition television (HDTV) and interactive gaming, VDSL2 enable operators...
  • Page 29 Ratio, often written SNR, is a measure of signal strength relative to background noise. The ratio is usually measured in decibels (dB). In digital communications, the SNR will probably cause a reduction in data speed because of frequent errors that require the source (transmitting) computer or terminal to resend some packets of data.
  • Page 30 This page is intentionally left blank...
  • Page 31 This page is intentionally left blank...
  • Page 32 This page is intentionally left blank...
