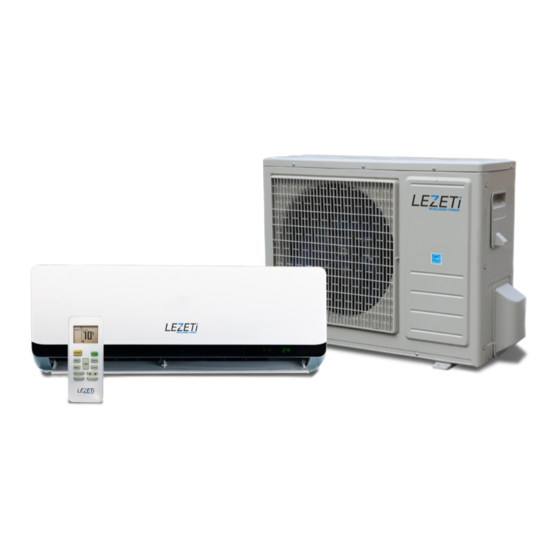

Lezeti ACDC12B Installation Manual

Lezeti ACDC12B Installation Manual

Hide thumbs Also See for ACDC12B:

Advertisement

LEZETI HYBRID ACDC12B_MANUAL_V2.1


INSTALLATION GUIDE
MODEL: ACDC12(B)
© 2015 CLIMA-TEKNOLOGIES, LLC


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACDC12B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lezeti ACDC12B

  • Page 1 LEZETI HYBRID ACDC12B_MANUAL_V2.1     INSTALLATION GUIDE MODEL: ACDC12(B) © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 2: Installation Manual

      ACDC12B Solar Air Conditioner Heat Pump Installation Manual Before installing or using your solar air conditioner, please print and read this manual carefully and keep it for future reference. Notice To Owner/Installer This unit is designed for easy installation by an experienced person. It is legal for a homeowner to install it, however we highly recommend using a licensed HVAC technician for installation.
  • Page 3: Warning

      INSTALLERS, Please read the following warnings to prevent voiding warranties:   W ARNING: Make sure the PV panels are wired in PARALLEL, NOT SERIES. Verify voltage is within range prior to connecting to the ODU DC breaker. WARNING: Voltage from breaker box to ODU disconnect should be 220V (measured between L1 and L2.) See page 16, figure 24.
  • Page 4: Table Of Contents

    Table of Contents SAFETY PRECAUTIONS Warning………………………………………………………………………………………………………. 4 Caution……………………………………………………………………………………………………….. 4 INSTALLATION INSTRUCTIONS Selecting installation location………………………………………………………………………………. 5 Indoor unit installation………………………………………………………………………………………. 5 Outdoor unit installation…………………………………………………………………………………….. 5 REFRIGERANT PIPE CONNECTION Refrigerant pipe connection………………………………………………………………………………... 10 AIR PURGING Air purging with vacuum pump…………………………………………………………………………….. 12 Safety and leakage check………………………………………………………………………………….. 14 RUNNING TEST Running Test…………………………………………………………………………………………………...
  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Read the follow SAFETY PRECAUTIONS carefully before installation. • Installation must be performed in accordance with the requirement of NEC and CEC by • authorized personnel only. Incorrect installation due to ignoring of the instruction will cause harm or damage. •...
  • Page 6: Installation Instructions

    Installation Instructions Select an installation location which is rigid and strong enough to support or hold the unit, and select a location for easy maintenance. Read completely, follow instructions step by step. Indoor Unit Fig. 1 Do not expose the indoor unit to heat or steam. •...
  • Page 7 Rooftop installation: If the outdoor unit is installed on a roof structure, be sure to level the unit. • Ensure the roof structure and anchoring method is adequate for the unit location. Consult local • codes regarding rooftop mounting. Recommended Tools For Installation: Level gauge Hex Wrench R410A Service Port Adaptor...
  • Page 8: Indoor Unit Installation

    Use a stud finder to locate wall studs. Directions A, B, C and D, should be free of obstacles. INSTALLATION INSTRUCTIONS Indoor unit installation 1. Fit the Installation Plate 1. Fit the installation plate horizontally on a structurally sound part of the wall with spaces around the installation plate.
  • Page 9: Caution

    7. For the right-hand piping, remove the pipe cover from the side panel. (Optional) Install the piping as shown. ACDC12b   NOTE: m odel, there a r e l e f t a n d r i g h t side drainage p o r t s .
  • Page 10: Outdoor Unit Installation

    Outdoor Unit installation Outdoor installation precaution Install the outdoor unit on a rigid base to prevent increasing noise level and vibration. Determine the air outlet direction where the discharged air is not blocked. In the case that the installation place is exposed to strong wind such as a seaside, make sure the fan operating properly by putting the unit lengthwise along the wall or using a dust or shield plates.
  • Page 11: Refrigerant Pipe Connection

    Note: Except the above parts provided, the other parts needed during installation must be purchased separately. A condensate drain hose extension can be purchased separately from Home Depot, 7/8 OD, 5/8 ID clear plastic tubing. REFRIGERANT PIPE Drain joint installation CONNECTION If a drain elbow is used, the unit should •...
  • Page 12 3. Cut the pipes a little longer than the measured distance. 4. Cut the cable 1.5m longer than the pipe length. B: Burr removal 1. Completely remove all burrs from the cut cross section of pipe/tube. 2. Put the end of the copper tube/pipe in a downward direction as you remove burrs in order to avoid dropping burrs into the tubing.
  • Page 13 12   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 14: Air Purging

    Air purging Air and moisture in the refrigerant system have undesirable effects as indicated below: Pressure in the system rises. Operating current rises. Cooling or heating efficiency drops. Moisture in the refrigerant circuit may freeze and block capillary tubing. Water may lead to corrosion of parts in the refrigeration system.
  • Page 15 When Using the Vacuum P u m p 1. Completely tighten the flare nuts, A, B, C, and D. Connect the manifold valve charge hose (blue hose) to the charge port of the low-pressure valve, using a R410A adaptor, Fig. 59 2.
  • Page 16: Running Test

    RUNNING   T EST     ( To   b e   r un   a fter   e lectrical   w ork   h as   b een   c ompleted)   Perform   t est   o peration   a fter   c ompleting   g as   l eak   c heck   a t   t he   f lare   n ut   c onnections   a nd   e lectrical   s afety   check.  ...
  • Page 17: Electrical Work

    Electrical work Electric safety regulations for the initial Installation 1. If there is are any safety issues with the power source, the technician should refuse to install the air conditioner and explain the problem to the customer. 2. Power voltage should be in the range of 90%~110% of the rated voltage. 3.
  • Page 18 Connecting the cable to the indoor unit NOTE: Before performing any electrical work, turn off the main power to the system. 1. The inside and outside connecting cable can be connected without removing the front grille. 2. The indoor power cord type is H05VV-F or H05V2V2-F, the outdoor power cord shall be properly sized by a qualified electrician and incorporate a disconnect.
  • Page 19 18   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 20 The following section is a generic guide to installing Photovoltaic panels used with the ACDC12b solar hybrid air conditioner. HotSpot Energy is a manufacturer of high efficiency Mini split air conditioners and is not a manufacturer of PV panels, cabling, or racking systems.
  • Page 21: Installation Of The Solar Photovoltaic System

    ELECTRICAL WORK Installation of the solar photovoltaic system This is a generic guide that contains information regarding the installation and safe handling of • solar photovoltaic module. All instructions should be read and understood before attempting to install. If there is any question, please contact a licensed electrician or NABCEP certified solar installer.
  • Page 22 When disconnecting wires from a photovoltaic module that is exposed to sunlight, an electric arc may result. Such arcs may cause burns, combustion and may otherwise create problems. Therefore, be extremely careful! Photovoltaic solar modules convert light energy to direct-current electrical energy. They are designed for outdoor use.
  • Page 23 Solar modules produce electrical energy when light strikes on their front surface. The DC voltage may exceed 30V. If modules are connected in series, the total voltage is equal to the sum of the individual module voltages. If modules are connected in parallel, the total current is equal to the sum of individual module currents.
  • Page 24 Fig.33 Fig.32 When performing installation in dry conditions, please ensure the tools used a r e dry.                   Fig 34 Abide with the safety regulations for all other components used in the system, including wiring and cables, connectors, charge c o n t r o l l e r s , inverters, storage batteries and rechargeable batteries, etc.
  • Page 25 Selecting the proper racking system • Always observe the instructions and safety precautions included with the support frame to be used with the module. • Never attempt to drill holes in the glass surface of the module, it will void the warranty. •...
  • Page 26 4. Roof mount • When installing a module on a roof or building, ensure that it is securely fastened and cannot fall as a result of wind or snow loads. • Provide adequate ventilation under a module for cooling (3inch minimum air space between module and mounting surface).
  • Page 27 26   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 28: Electrical Installation

    Electrical installation General installation Do not use modules of different configurations in the same system. • The solar photovoltaic array consists of modules connected in parallel, no more • than 3 modules can be used in parallel. Modules in parallel can increase the output current of the solar photovoltaic system, especially for applications requiring high currents, low voltages.
  • Page 29 Shown below, branch connectors are used (BR2). If you want to connect the photovoltaic modules by using the cables purchased by yourself, the following requirements must be complied: Cable installation should comply with all local regional and national regulations. • In some countries, an individual circuit breaker used between the solar panel and air •...
  • Page 30 29   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 31 If you want to use connectors purchased by yourself the following requirements must be complied with: • Use only connectors specially designed for solar electric systems. • Use the recommended or specified tools when installing the connectors. • Do not unplug the connectors when the power is on. •...
  • Page 32: Grounding Principals

    GROUNDING PRINCIPALS     Equipment   g rounding   p rovides   p rotection   f rom   s hock   c aused   b y   a   g round   f ault   a nd   i s   r equired   for  ...
  • Page 33 2 Panel Grounding   Liquid Tight conduit may be used between the DC Rated   Disconnect and the 32 AMP internal breaker in the Outdoor Unit.   32   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 34 3 Panel Grounding Liquid Tight conduit may be used between the DC Rated Disconnect and the 32 AMP internal breaker in the Outdoor Unit. 33   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 35 34   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 36 35   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
  • Page 37 36   © 2015 CLIMA-TEKNOLOGIES, LLC  ...
