Small Size, SFP Based, 10/100 Ethernet Media Converter /
Model Numbers:
FBR-1FE1FX-SFP-MINI – SFP Based, 10/100 Mbps Ethernet Transceiver
© Copyright 2008, Aventura Technologies, Inc.
Instruction Manual
Transceiver
Aventura Technologies
180 Adams Avenue
Hauppauge, NY 11788
(877) 707‐9600
www.aventuratechnologies.com
Advertisement
Table of Contents
Related Manuals for Aventura FBR-1FE1FX-SFP-MINI
Summary of Contents for Aventura FBR-1FE1FX-SFP-MINI

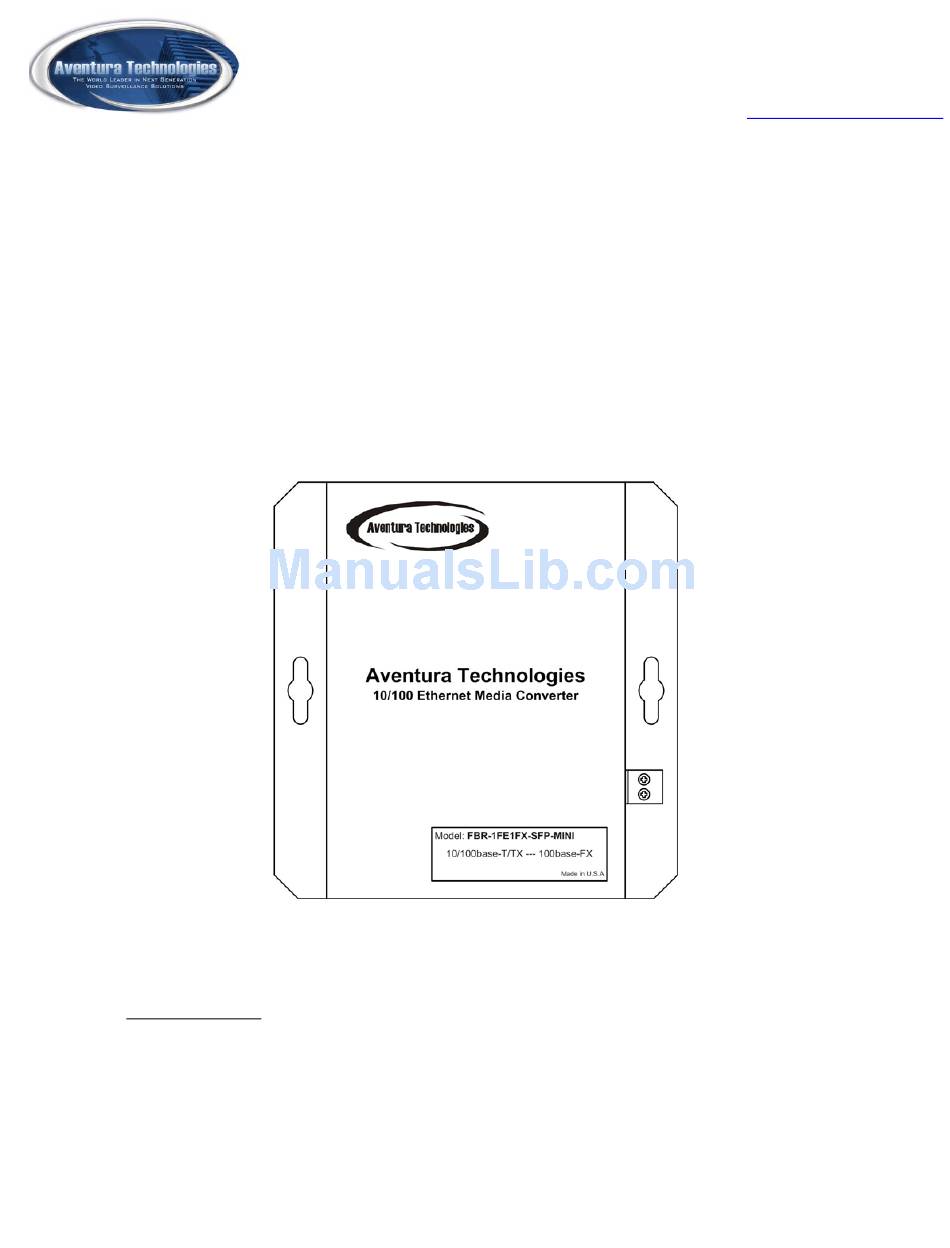

- Page 1 Aventura Technologies 180 Adams Avenue Hauppauge, NY 11788 (877) 707‐9600 www.aventuratechnologies.com Instruction Manual Small Size, SFP Based, 10/100 Ethernet Media Converter / Transceiver Model Numbers: FBR-1FE1FX-SFP-MINI – SFP Based, 10/100 Mbps Ethernet Transceiver © Copyright 2008, Aventura Technologies, Inc.
- Page 2 INSTALLATION AND OPERATION INSTRUCTIONS FUNCTIONAL DESCRIPTION The FBR-1FE1FX-SFP-MINI operates as one half of a transceiver pair for the transmission of bi- directional Ethernet data, over one or two multimode or single-mode fiber/s. The unit uses industry standard Small Form-Factor, Pluggable (SFP) modules for connecting to the fiber media. A proper Aventura Technologies approved SFP module is selected by the customer to accommodate the type and number of fibers, as well as the transmission distance.
- Page 3 OPTICAL LINK INDICATOR A bi-color LED indicator monitors the power of, and proper synchronization with the optical input signal that is being received at the FBR-1FE1FX-SFP-MINI. The Optical Link status associated with this indicator is summarized below. Optical Link Indicator...
- Page 4 Device Compatible With FBR-1FE1FX-SFP-MINI FBR-1FE1FX-SFP-MINI FBR-1FE1FX-SFP FBR-2X1FE1FX-SFP FBR-1FE2FX-SFP Figure 1 – List of Compatible Devices Figure 2 – Physical Outline And Front/Rear Panel Configuration Of Units © Copyright 2008, Aventura Technologies, Inc.
- Page 5 Figure 3 – Surface Mounting Template (1:1) © Copyright 2008, Aventura Technologies, Inc.
- Page 6 Aventura Technologies, Inc. in their original or equivalent packaging, prepay shipping charges, and insure the shipment or accept the risk of loss or damage during shipment. Aventura Technologies, Inc. will ship the repaired or replacement products to you freight prepaid if you use an address in the continental United States, where applicable.
