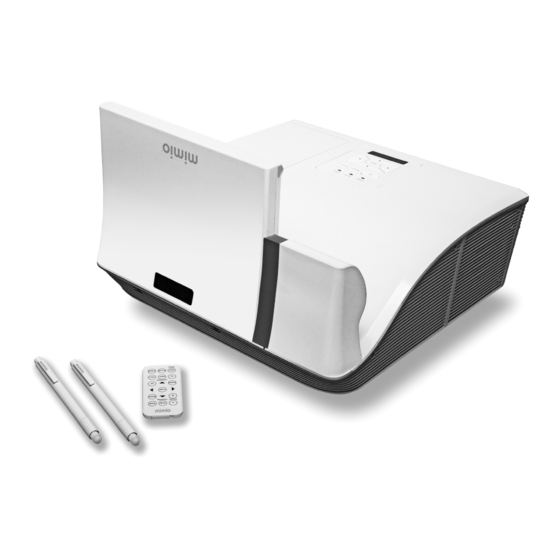

MimioProjector 280, 280I, & 280T
User Guide
mimio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mimio 280

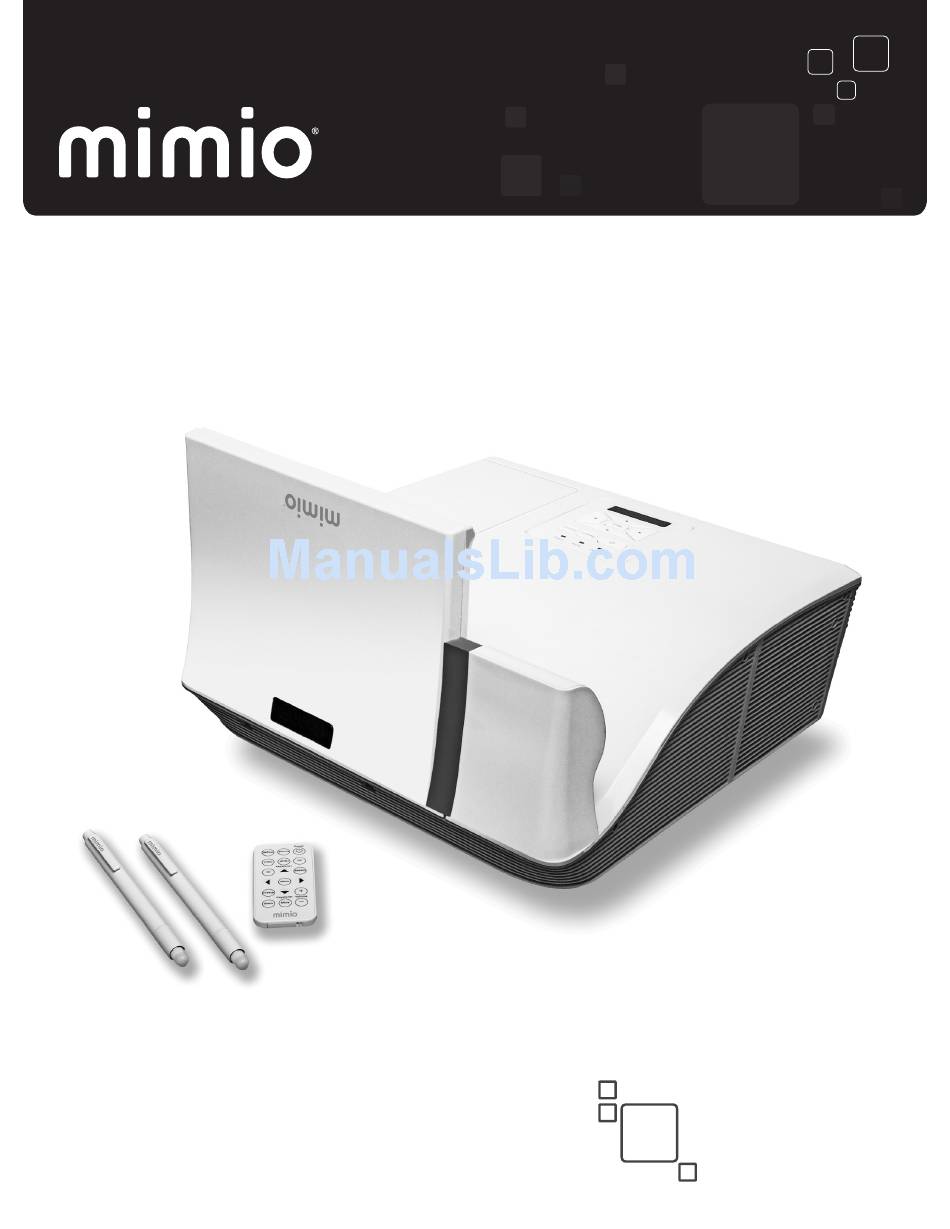

  • Page 1 MimioProjector 280, 280I, & 280T User Guide mimio.com...
  • Page 2 Mimio. Mimio, MimioClassroom, MimioProjector, and MimioStudio are registered marks in the United States and other countries. All other trademarks are the property of their respective holders.
  • Page 3: Table Of Contents

    Contents MimioProjector 280 What's Included About MimioProjector 280 About the Control Panel About the Remote Control About the Connection Ports Getting Started Installing the Projector What's Included Mounting MimioProjector Determining Where to Mount MimioProjector Determining Where to Mount MimioProjector with 280T Accessory Kit...
  • Page 4 Logo Capture Auto Source Input Auto Power Off Lamp Setting Lamp Hours Used (Normal) Lamp Hours Used (ECO) Lamp Life Reminder Lamp Power Mode Clear Lamp Hours Dynamic Black High Altitude Filters Remind Information Adjusting the Picture Color Mode Wall Color Brightness Contrast Sharpness...
  • Page 5 Test Pattern Security Setting the Password Reset Adjusting the Volume Mute Volume Microphone Volume MimioProjector Accessory Kits MimioProjector 280I Accessory Kit: What's Included MimioProjector 280T: What's Included Connecting the IR Module Installing the Laser Curtain Caring for MimioProjector Replacing the Remote Control Battery Replacing the Lamp Cleaning the Dust Filters Getting Help...
  • Page 6 Remote Control Troubleshooting Contacting Mimio Compatibility Modes VGA Analog PC Signal Extended Wide Timing Component Signal HDMI Digital PC Signal Extended Wide Timing Video Signal HDMI 1.4a Mandatory 3D Timing - Video Signal Technical and Environmental Information Usage Notice Warnings Precautions Regulation &...
  • Page 7: Mimioprojector 280

    MimioProjector 280I Interactive Accessory Kit and MimioProjector 280T Accessory Kit can also be added to your configuration, providing even more interactive features. MimioProjector 280 easily connects to your computer and can be used as an interactive projector, touch projector, or alone as a non-interactive, conventional projector.
  • Page 8: What's Included

    The MimioProjector package contains the following items: CR2025 Remote control 5 mm VGA cable Remote control battery 5 mm audio cable Mimio Product Warranty card Projector with lens cap Mimio Battery Warning booklet If you are missing any of the items above, contact Technical Support.
  • Page 9: About Mimioprojector 280

    About MimioProjector 280 About MimioProjector 280 The following figure shows the major components of the MimioProjector 280. Front View Back View Bottom View...
  • Page 10 MimioProjector 280 Focus ring Input/Output connection ports Lens Serial number Control panel Power connector Lamp cover Elevator feet IR receiver Mounting bracket attachment holes IR Module attachment cover Elevator feet spacers Access cover...
  • Page 11: About The Control Panel

    About MimioProjector 280 About the Control Panel The following figure shows the components of the MimioProjector control panel. POWER TEMP LAMP RESYNC SOURCE MENU MENU Navigation keys Navigate through menus and make selections. Power button Turn the projector on and off.
  • Page 12: About The Remote Control

    MimioProjector 280 About the Remote Control The following figure shows the components of the MimioProjector remote control.
  • Page 13 About MimioProjector 280 Source Select an input signal. Resync Automatically synchronize the PC analog timing to the optimized condition. HDMI Switch to HDMI input. Switch to Composite Video or S- Video Video input. Turn on and off the 3D menu. Menu Open the menu screen or exit a menu.
  • Page 14: About The Connection Ports

    MimioProjector 280 About the Connection Ports The following figure shows the connection ports available on the MimioProjector . 14 15 Mini-USB Audio output HDMI Laser curtain VGA output RS232 VGA in 1 Audio in 2 (for VGA in 2) LAN RJ46...
  • Page 15: Getting Started

    Installing the Projector Getting Started Review this chapter to install and start using your MimioProjector. Installing the Projector This section describes how to install and align the MimioProjector and wall mount. What's Included The MimioProjector mount package contains the following items: Wall anchors Hex wrench Flange head cap screw...
  • Page 16: Mounting Mimioprojector

    Getting Started Mounting MimioProjector Before installing the projector wall mount, you must first determine the projected image size. This will determine the placement of the mount on the wall as well as the distance of the projector from the wall. See Determining Where to Mount MimioProjector on page 20 for more information.
  • Page 17 Installing the Projector 6. Align the holes on the wall mount bracket with the holes that you drilled and attach the bracket to the wall using fasteners appropriate to the wall surface type. 7. Feed all projector cables through the mounting arm. 8.
  • Page 18 Getting Started 10. Insert the long socket head cap screw into the hole in the center of the wall bracket, below the mounting arm, and tighten using the included hex wrench. This screw allows for leveling the mounting arm. 11. Align the holes in the projector mounting plate with the holes on the bottom of the projector and screw into place using the machine screws and washers.
  • Page 19 Installing the Projector 13. Slide the projector mounting plate into the mounting arm as shown. 14. Plug the cables into the appropriate ports on the projector. See Connecting the Projector on page 39 for more information. 15. Slide the mounting arm cover onto the end of the mounting arm and push to lock in place..
  • Page 20: Determining Where To Mount Mimioprojector

    To determine where to mount the MimioProjector mounting arm and the placement of the MimioProjector 280 on the mounting arm, refer to the charts on page 22 and on page 23. Select the diagonal (WXGA or XGA) and use the dimensions shown.
  • Page 21 Installing the Projector When centering on your whiteboard, position the lens of the projector at the horizontal center of the board. The wall mount bracket is offset 3 inches (76 mm) from the center of the lens. (B) Bracket Distance Wall Bracket The projector lens needs to be centered to the whiteboard.
  • Page 22 Getting Started...
  • Page 23 Installing the Projector...
  • Page 24: Determining Where To Mount Mimioprojector With 280T Accessory Kit

    Getting Started Determining Where to Mount MimioProjector with 280T Accessory Kit This section describes how to determine where to mount the MimioProjector 280 for use as a touch projector, with the MimioProjector 280T Accessory Kit. Determining Where to Mount MimioProjector 280T with a Standard 78-inch...
  • Page 25 Determining Where to Mount MimioProjector 280T with a Standard 78-inch Diagonal WXGA Viewing Image This section describes how to determine where to mount the MimioProjector 280 for use as a touch projector, with the MimioProjector 280T Accessory Kit and a standard 78-inch whiteboard.
  • Page 26 Getting Started When centering on your whiteboard, position the lens of the projector at the horizontal center of the board. The wall mount bracket is offset 3 inches (76 mm) from the center of the lens. Wall Bracket 31 in. Wall bracket center should be o set 3 in.
  • Page 27 Determining Where to Mount a MimioProjector 280T wit a Standard 87- inch Diagonal WXGA Viewing Image This section describes how to determine where to mount the MimioProjector 280 for use as a touch projector, with the MimioProjector 280T Accessory Kit and a standard 87-inch whiteboard.
  • Page 28 Getting Started When centering on your whiteboard, position the lens of the projector at the horizontal center of the board. The wall mount bracket is offset 3 inches (76 mm) from the center of the lens. Wall Bracket 35 in. Wall bracket center should be o set 3 in.
  • Page 29 Determining Where to Mount MimioProjector with 280T Accessory Kit (Framed Whiteboard) This section describes how to determine where to mount the MimioProjector 280 for use as a touch projector, with the MimioProjector 280T Accessory Kit and a framed non-standard sized whiteboard.
  • Page 30: Placement Of 280T Projector With A Framed Whiteboard

    Getting Started Placement of 280T Projector with a Framed Whiteboard Wall Bracket (H). B rac ket Hei ght This distance is to the top of the whiteboa rd, not to the top of the frame. (D). Distance from Wall Whiteboa rd Frame Laser Curtain Whiteboa rd...
  • Page 31 Installing the Projector When centering on your whiteboard, position the lens of the projector at the horizontal center of the board. The wall mount bracket is offset 3 inches (76 mm) from the center of the lens. Wall Bracket 3 in. from the center of projector lens. The projector lens needs to be centered to the whiteboard.
  • Page 32 Determining Where to Mount MimioProjector with 280T Accessory Kit (Frameless Whiteboard) This section describes how to determine where to mount the MimioProjector 280 for use as a touch projector, with the MimioProjector 280T Accessory Kit and a frameless non- standard sized whiteboard.
  • Page 33: Placement Of 280T Projector With A Frameless Whiteboard

    Installing the Projector Placement of 280T Projector with a Frameless Whiteboard Wall Bracket (H). B rac ket Hei ght This distance is to the top of the whiteboa rd. (D). Distance from Wall Laser Curtain Whiteboa rd (W) D istance of Whi teboa rd Su rface from Wall...
  • Page 34 Getting Started When centering on your whiteboard, position the lens of the projector at the horizontal center of the board. The wall mount bracket is offset 3 inches (76 mm) from the center of the lens. Wall Bracket 3 in. from the center of projector lens. The projector lens needs to be centered to the whiteboard.
  • Page 35 Installing the Projector...
  • Page 36 Getting Started...
  • Page 37: Aligning The Projector

    Installing the Projector Aligning the Projector The projector wall mount allows you to adjust MimioProjector in the following ways: Slide from side to side Rotate horizontally Tilt from front to back Tilt from side to side...
  • Page 38: Focusing The Projected Image

    Getting Started Focusing the Projected Image Use the focus ring to adjust the focus of the projected image. Turn the ring until the image is clear.
  • Page 39: Connecting The Projector

    Connecting the Projector Connecting the Projector You can connect MimioProjector to a computer or other video source. Connecting to a Computer The following figure shows the connection methods available for connecting the MimioProjector to a computer. Notebook Audio output Power outlet +12V output Computer Power cord (included)
  • Page 40: Connecting To A Video Source

    Getting Started Connecting to a Video Source The following figure shows the connection methods available for connecting the MimioProjector to a video source. DVD player, set-top box, HDTV receiver Video output DVD player, set-top box, Audio output S-Video output Power outlet HDTV receiver Power cord (included) Audio cable...
  • Page 41: Setting Up The Remote Control

    Setting Up the Remote Control Setting Up the Remote Control Before using the remote control for the first time, remove the transparent insulation tape. To set up the remote control 1. Press firmly and slide the battery holder out of the battery compartment. 2.
  • Page 42: Turning On The Power

    Getting Started Turning On the Power You can power on the projector using the remote control or the control panel on the projector. To turn the projector on 1. Securely connect the power cord and audio/video cables. When connected, the Power status light turns red. 2.
  • Page 43: Turning Off The Power

    Turning On the Power Turning Off the Power To turn the projector off 1. Press on the control panel or on the remote control. A confirmation message is displayed on the projector screen. 2. Press again to turn the projector off. The Power status light turns red and blinks rapidly.
  • Page 44: Status Lights

    Getting Started Status Lights Lamp status Temperature Power status Power status Message light status light light light Blue Standby Power button ON 0.5 second H (ON) Cooling state 0.5 second L (OFF) flashing Power button OFF Cooling completed; Standby mode Firmware download Thermal sensor error The following message is...
  • Page 45: Changing The Projector Settings

    Navigating the Projector Menu Changing the Projector Settings You can adjust the projector image and change the projector settings using the projector menus. The projector automatically detects the input source. To change the projector settings 1. Press Menu on the control panel or on the remote control to display the projector main menu.
  • Page 46 Changing the Projector Settings Main Menu Submenu Settings SCREEN Aspect Ratio AUTO / 4:3 / 16:9 / 16:10 Phase 0~31 Clock -50~50 H. Position -10~10 V. Position -10~10 Digital Zoom 1~10 V Keystone -15 / +15 Ceiling Mount Front / Front Ceiling / Rear / Rear Ceiling SETTING Language English / Deutsch / Français / Italiano / Español /...
  • Page 47 Navigating the Projector Menu Main Menu Submenu Settings OPTIONS Logo Default / User Logo Capture Auto source Off / On HDMI / VGA-A / VGA-B / S-Video / Input COMPOSITE Auto Power Off (min) 0~120 Lamp Lamp Setting Hours Used (Normal) Lamp Hours...
  • Page 48: Adjusting The 3D Settings

    Changing the Projector Settings Main Menu Submenu Settings AUTO / Off / On 3D Invert Off / On 3D Format Frame Packing / Side-by-Side (Half) / Top and Bottom / Frame Sequential / Field Sequential 1080p @ 96Hz / 144Hz INTERACTIVE Interactive Settings Off / IR Camera...
  • Page 49: Recommended 3D Glasses

    Adjusting the Interactive Settings Recommended 3D Glasses Mimio recommends the use of Optoma ZD301 or Optoma ZD302 3D glasses. For more information, visit the Optoma website at http://www.optomausa.com/accessorydetail.aspx?PC=ZD302. Adjusting the Interactive Settings Use this setting to turn on and off the Interactive function.
  • Page 50: Auto Source

    Changing the Projector Settings Auto Source Select how to handle searching for an input source when the projector loses signal from the current input source. On - the projector searches for signals from other input sources when the current input signal is lost Off - the projector searches only for a signal from the current input connection when the current input signal is lost...
  • Page 51: Clear Lamp Hours

    Adjusting the Options Extreme Dimming - the projector lamp is dimmed 30 percent to reduce power consumption, extending the life of the lamp Clear Lamp Hours Reset the lamp hours counter after replacing the projector lamp. Dynamic Black Use Dynamic Black to display the image with the optimum contrast by automatically providing signal compensation to suit the currently displayed image.
  • Page 52: Information

    Changing the Projector Settings Information Display the following projector information: Model name Software version SNID Color space Source Aspect ratio Resolution Adjusting the Picture Many settings are available for adjusting the picture displayed by the projector.. Color Mode The following optimized color modes are available for viewing various types of images. Brightest - for brightness optimization PC - for viewing meeting presentations Movie - for viewing video content...
  • Page 53: Saturation

    Adjusting the Screen Saturation Adjust the color saturation of the image. The saturation ranges from black and white to fully saturated color. This setting is only supported when Movie is selected as the color mode. Press ◄ to decrease the amount of saturation in the image. Press ►...
  • Page 54: Phase

    Changing the Projector Settings Phase Change the signal timing of the display to match the timing of the graphics card for your computer. If the image appears unstable or flickers, use this setting to correct it. Press ◄ to decrease the signal timing. Press ►...
  • Page 55: Menu Location

    Adjusting the General Settings Menu Location Select the location for the projector menu to display. Top left Top right Center Bottom left Bottom right Closed Caption The following closed caption options are available: CC4. VGA OUT (Standby) You can enable VGA OUT connection to display the projector image on an additional display.
  • Page 56: Test Pattern

    Setting the Password If the password is entered incorrectly 3 times, the projector automatically shuts down. If you forget your password, contact Mimio Technical Support for assistance. To set the password for the first time 1. From the Security menu, select Change Password, and then press ►.
  • Page 57: Adjusting The Volume

    Adjusting the Volume Adjusting the Volume You can adjust the projector volume settings. Mute You can choose to mute the projector audio. You can also press Mute on the remote control to turn mute on and off. Volume Use this setting to increase or decrease the speaker volume. Press ◄...
  • Page 58: Mimioprojector Accessory Kits

    If you are missing any of the items above, contact Technical Support. Pens from the MimioProjector 240 are not compatible with the MimioProjector 280I. MimioProjector 240 pens have a white clip with the Mimio logo engraved; MimioProjector 280I pens have a silver clip with no logo.
  • Page 59: Mimioprojector 280T: What's Included

    MimioProjector 280T: What's Included MimioProjector 280T: What's Included The MimioProjector 280T Accessory Kit includes the following items: x  2 x  2 Laser curtain module 3M double-sided tape Power cord Screws MimioStudio Software download USB cable card Laser curtain mounting bracket IR module Alignment stickers Styli (x2) If you are missing any of the items above, contact Technical Support.
  • Page 60: Connecting The Ir Module

    MimioProjector Accessory Kits Connecting the IR Module You can update your MimioProjector to an interactive projector for pens using the IR module included in the MimioProjector 280I or for touch using the IR module included with the MimioProjector 280T Accessory Kit. Once the IR module is connected, you will need to turn on the Interactive function in the projector settings.
  • Page 61: Installing The Laser Curtain

    Installing the Laser Curtain Installing the Laser Curtain You can update your MimioProjector to a touch projector using the laser curtain and IR modules. Once the laser curtain module is installed and the IR module is connected, you will need to turn on the Interactive function in the projector settings.
  • Page 62 MimioProjector Accessory Kits 4. Place the laser curtain module at the top of the board, centered with the projector lens, and press in place. x = x 5. Plug the power cord into the power connector on the laser curtain module and run the cord through the cableway.
  • Page 63 Installing the Laser Curtain 8. To align the laser curtain, press the button above the blue light. The blue light will turn red and flash indicating two laser beams are visible for alignment. 9. Turn the gray knob on the laser curtain module clockwise until the two red laser marks are centered on the board.
  • Page 64 MimioProjector Accessory Kits 10. Turn the black knob on the laser curtain module clockwise, lowering the laser marks, until the two laser marks are no longer visible on the board. 11. Fold one alignment sticker as shown and affix the sticker to the bottom-left edge of the board.
  • Page 65 Installing the Laser Curtain 13. Turn the black knob on the laser curtain module clockwise until the red laser marks are visible in the gray strip area of each alignment sticker. 14. Once both lasers are aligned on the alignment stickers, press the button above the bliniking red light on the laser curtain module.
  • Page 66: Caring For Mimioprojector

    Caring for MimioProjector Caring for MimioProjector Replacing the Remote Control Battery To ensure safe operation, please observe the following precautions : Use only CR2025 type battery. Using the incorrect battery type may cause explosion. Avoid contact with water or liquid. Do not expose the remote control to moisture or heat.
  • Page 67: Replacing The Lamp

    The projector automatically detects the lamp life. When the lamp is nearing the end of life, a warning is displayed on the screen. When the warning appears, contact Mimio Technical Support to order a replacement lamp as soon as possible. Make sure the projector is off and has cooled down for at least 60 minutes before changing the lamp.
  • Page 68: Cleaning The Dust Filters

    Caring for MimioProjector To insert the new lamp module 1. Slowly and carefully slide the lamp module into the lamp compartment (do not force) and push the lamp handle down. 2. Using a screwdriver, tighten the two screws on the lamp module. 3.
  • Page 69 Cleaning the Dust Filters 4. Use a vacuum to clean the dust filters. Do not wash filters. Filters do not need to be replaced. 5. Slide the dust filters back into the projector. 6. Plug the power cord into a wall outlet. 7.
  • Page 70: Getting Help

    Getting Help Getting Help Review this chapter if you encounter a problem with your projector. If you are unable to solve a problem, this chapter also describes how to contact Mimio Technical Support. Status Lights The status lights on the projector control panel visually show the status of the MimioProjector.
  • Page 71: General Troubleshooting

    General Troubleshooting POWER TEMP LAMP Message Blue Flash ON/OFF Flash ON/OFF Flash ON/OFF Power Plug 100ms 100ms 100ms Standby Power button ON 0.5 sec (ON) Cooling state 0.5 sec (OFF) flashing Power button OFF; Cooling completed; Standby Mode Firmware Download Thermal Switch error (lamp over temperature);...
  • Page 72: Image Troubleshooting

    Getting Help Image Troubleshooting No image is displayed Ensure all cables and power connections are correctly and securely connected as described in Connecting the Projector on page 39. Ensure the pins of connectors are straight and not broken. Ensure that the projection lamp is securely installed. For more information, refer to Status Lights on page 70.
  • Page 73: A Partial, Scrolling, Or Incorrect Image Is Displayed

    Image Troubleshooting A partial, scrolling, or incorrect image is displayed Press ReSync on the remote control or on the projector control panel. If you are using a computer as the input source, do the following: 1. Verify that the display resolution setting for your computer is set at 1080p or lower. Refer to the documentation for your computer for information about changing the display resolution for your computer.
  • Page 74: Image Is Stretched When Displaying 16:9 Dvd Image

    Getting Help Image is stretched when displaying 16:9 DVD image When you play anamorphic DVD or 16:9 DVD, the best image is displayed when the projector is set to use 16: 9 format. If the image is still stretched, verify that the format setting on your DVD player is set correctly.
  • Page 75: Remote Control Troubleshooting

    When calling Mimio Technical Support, please have your product serial number available. The serial number for your MimioProjector is located near the input/output connection ports on the back of your projector. Visit the Support section of our Web site at www.mimio.com to contact us by email.
  • Page 76: Compatibility Modes

    Compatibility Modes Compatibility Modes VGA Analog PC Signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 640x480 61.9 720x400 31.5 SVGA 800x600 35.1 800x600 37.9 800x600 48.1 800x600 46.9 800x600 53.7 800x600 77.4...
  • Page 77: Extended Wide Timing

    VGA Analog Modes Resolution V. Frequency [Hz] H. Frequency [Hz] Apple, MAC II 1152x870 68.7 SXGA 1280x1024 64.0 1280x1024 77.0 1280x1024 80.0 QuadVGA 1280x960 60.0 1280x960 75.2 SXGA+ 1400x1050 65.3 UXGA 1600x1200 75.0 Extended Wide Timing Modes Resolution V. Frequency [Hz] H.
  • Page 78: Component Signal

    Compatibility Modes Component Signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 480i 720x480(1440x480) 59.94(29.97) 15.7 576i 720x576(1440x576) 50(25) 15.6 480p 720x480 59.94 31.5 576p 720x576 31.3 720p 1280x720 45.0 1280x720 37.5 1080i 1920x1080 60(30) 33.8 1920x1080 50(25) 28.1 1080p 1920x1080 23.98/24 27.0...
  • Page 79: Hdmi Digital

    HDMI Digital HDMI Digital PC Signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 640x480 61.9 720x400 31.5 SVGA 800x600 35.1 800x600 37.9 800x600 48.1 800x600 46.9 800x600 53.7 800x600 77.4 Apple, MAC II 832x624...
  • Page 80: Extended Wide Timing

    Compatibility Modes Modes Resolution V. Frequency [Hz] H. Frequency [Hz] Apple, MAC II 1152x870 68.7 SXGA 1280x1024 64.0 1280x1024 77.0 1280x1024 80.0 QuadVGA 1280x960 60.0 1280x960 75.2 SXGA+ 1400x1050 65.3 UXGA 1600x1200 75.0 Extended Wide Timing Modes Resolution V. Frequency [Hz] H.
  • Page 81: Video Signal

    HDMI Digital Video Signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 480p 640x480 59.94/60 31.5 480i 720x480(1440x480) 59.94(29.97) 15.7 576i 720x576(1440x576) 50(25) 15.6 480p 720x480 59.94 31.5 576p 720x576 31.3 720p 1280x720 45.0 1280x720 37.5 1080i 1920x1080 60(30) 33.8 1920x1080 50(25) 28.1...
  • Page 82: Technical And Environmental Information

    This chapter contains technical information for the MimioProjector. For product specifications and compliance information, visit the Documentation section of the Support area of our Web site at www.mimio.com. Usage Notice Follow all warnings, precautions, and maintenance as recommended in this user guide.
  • Page 83: Regulation & Safety Notices

    Regulation & Safety Notices Do not do the following Block the ventilation slots and openings on the unit. Use abrasive cleaners, waxes, or solvents to clean the unit. Use under the following conditions: In extremely hot, cold, or humid environments. Ensure that the ambient room temperature is between 5°C - 40°C (41°F - 104°F).
  • Page 84: Notice: Canadian Users

    Do not install the product in an area subject to direct exposure to bright light; doing so may cause eye fatigue when viewing the projected image. Do not modify any accessory or use broken parts. Contact Mimio Technical Support with any questions.
  • Page 85: Documentation Feedback

    We also welcome your suggestions for additional topics you would like to see covered in the documentation. Send email feedback to: documentation@mimio.com Please keep in mind that this email address is only for documentation feedback. If you have a technical question, please contact Mimio Technical Support.
