Summary of Contents for Xiamen RP80VI

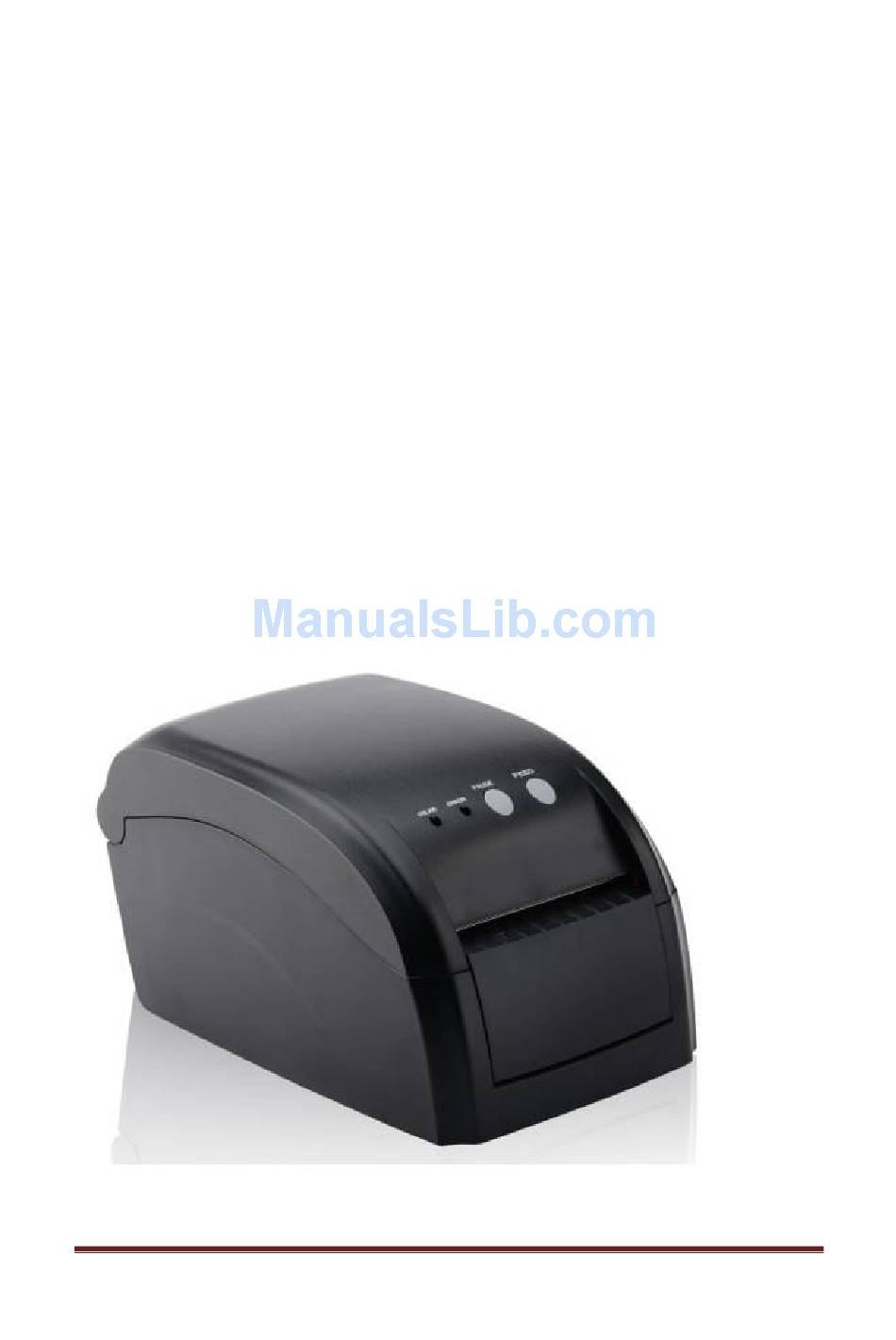

- Page 1 Thermal Label Printer RP80VI User Manual...
-
Page 2: Table Of Contents
Content CONTENT..............ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА. 1．INSTRUCTION ............ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА............................ 3 SAFTY WARNINGS ..............................3 NOTICES 2．SUMMARISATION ..........ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА............................4 MAIN FEATURES 3．SPECIFICATIONS ..........ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА. 4. PRINTER INSTALLATION AND OPERATINGОШИБКА! ЗАКЛАДКА... -
Page 3: Safty Warnings
10. THE FRIVER OF THE PRINTER ..... ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА. 1. Instructions RP80VI series is thermal barcode printer with high performance and reliability. It is with high quality and competitive price and easy to use, so it is widely used in the factory, logistics, restaurant, tea shop, etc. -
Page 4: Summarisation
(5) If long time not uses printers, should disconnect the adapter power. (6) Don't disassemble the printer for overhaul or transformation. (7) Please only use the adapter, which is together with printer (8) To ensure the quality and lifetime of printer, we recommend to use high-quality thermal paper and ribbon. - Page 5 3. Technical parameters ● Printing method: Direct thermal printing ● Resolution: 203DPI ● Printing width: 80MM （max） ● Printing speed: 150mm/s (max); 127mm/s (normally) ● Memory: DRAM: 8M FLASH: 4M ● Interfaces USB interface: General USB interface (standard type B). Serial interface: DB9 female interface, baud rate of 4800bps, 9600bps, 19200bps or 38400bps optional (via DIP switch adjustments), data structures for no parity, 8 data bits, 1 stop bit, supports RTS / CTS and XON / XOFF handshaking...
- Page 6 RP80VI-UP: Power port Cash drawer Parallel interface RP80VI-US: Power port Cash drawer Serial interface RP80VI-USE: Power port cash drawer Ethernet interface Serial interface ● Barcode: 1D code: CODE128、 EAN128、 CODE39、 CODE93、 EAN13、 EAN8、 CODABAR、 UPCA、UPCE、MSI、MSIC、I25 2D code: QRCODE ● Medium...
-
Page 7: The Dismantle Of The Printer
Paper width: 16mm-82mm Diameter of the outside paper roll: 85mm Max Paper-out method: automatically stripped or peeled off ● Power adapter of the printer: Adapter input voltage: AC 110V/220V，50〜60Hz Adapter output voltage: DC 24V/2.5A Printer input voltage: DC 24V/2.5A ● Weight of the Printer: 1.36kg (paper roll not included) ●... -
Page 8: The Connectopm Of The Printer
printer power adapter power cord paper roll cable 4.2 The connection of the printer (1) Make sure that the printer and PC are turned off, connect the cable to printer and the interface (Serial/Parallel/USB/Ethernet) of the equipment. (2) If the automatic cash drawer is available, then connect the RJ-11 of the cash drawer to the cash drawer port of the printer.(the specification of the cash drawer must coincide with the driver of the printer’s cash drawer) (3) Connect the dedicated adapter of the printer... -
Page 9: The Loading Of The Paper
Attention: (1) First plug the DC24V power cord of the printer, and then plug the AC220V power, at last turns the power switch. Do not do that opposite way, or it will do harm to the printer. (2) Inappropriate use of the power adapter will lead to bad quality printing, or even do harm to the printer. -
Page 10: Printer Initialization
1. new printer 2. change label 3. Printer initialization This function is for testing sensitivity of interval sensor. When users change paper of different specification or initialize printer, it needs to set up the interval sensor adjusting. Please follow up the steps below to adjust interval sensor: 1. -
Page 11: Indicators
5.1 Indicator Status Function Declaration Power light normally on, error light off Normal Power light normally on, error light on Error and refer to fault code 5.2 Fault Code Code Buzzer Hint Function 1 beep when printer is on Initialization is finished 2 beep successively Mechanism disconnect 3 beep successively... - Page 12 6. Printer Serial interface RP80VI Printer Serial interface is RS-232 standard,communication baud rate is 4800bps、 9600bps、19200bps or 38400bps optional (you can adjust it by DIP switch),8 data bits,without odd and even number validation,one stop bit,support RTS/CTS and XON/XOFF Handshake Protocol.
- Page 13 Printer By resistance to pull high level Ground connection,logic low level 18-25 ----- Printer ERROR singal NError(nFa Priner ult) 8. Printer Ethernet Port The Ethernet interface socket of RP80VI is RJ45-8P, supporting 10M/100M network, and the transmission speed is adaptive.
- Page 14 Description Instruction Send differential line+ Send differential line - Receive differential line+ No function No function Receive differential line - No function No function 9. Printer Cash Drawer Port The printer cash drawer port is with standard RJ-11, 6-wires socket, output DC 24V/1A and work by power signal.
- Page 15 Empty Empty 10、Printer driver Two types of drive for RP80VI Series: one is to install driver program directly under Windows9x/ ME/ 2000 /XP, the other is to install drive through Serial, Parallel, USB or Ethernet. (1) Install driver under Windows Add printer in the Windows, and appoint the driver documents in the driver disk to Windows.
