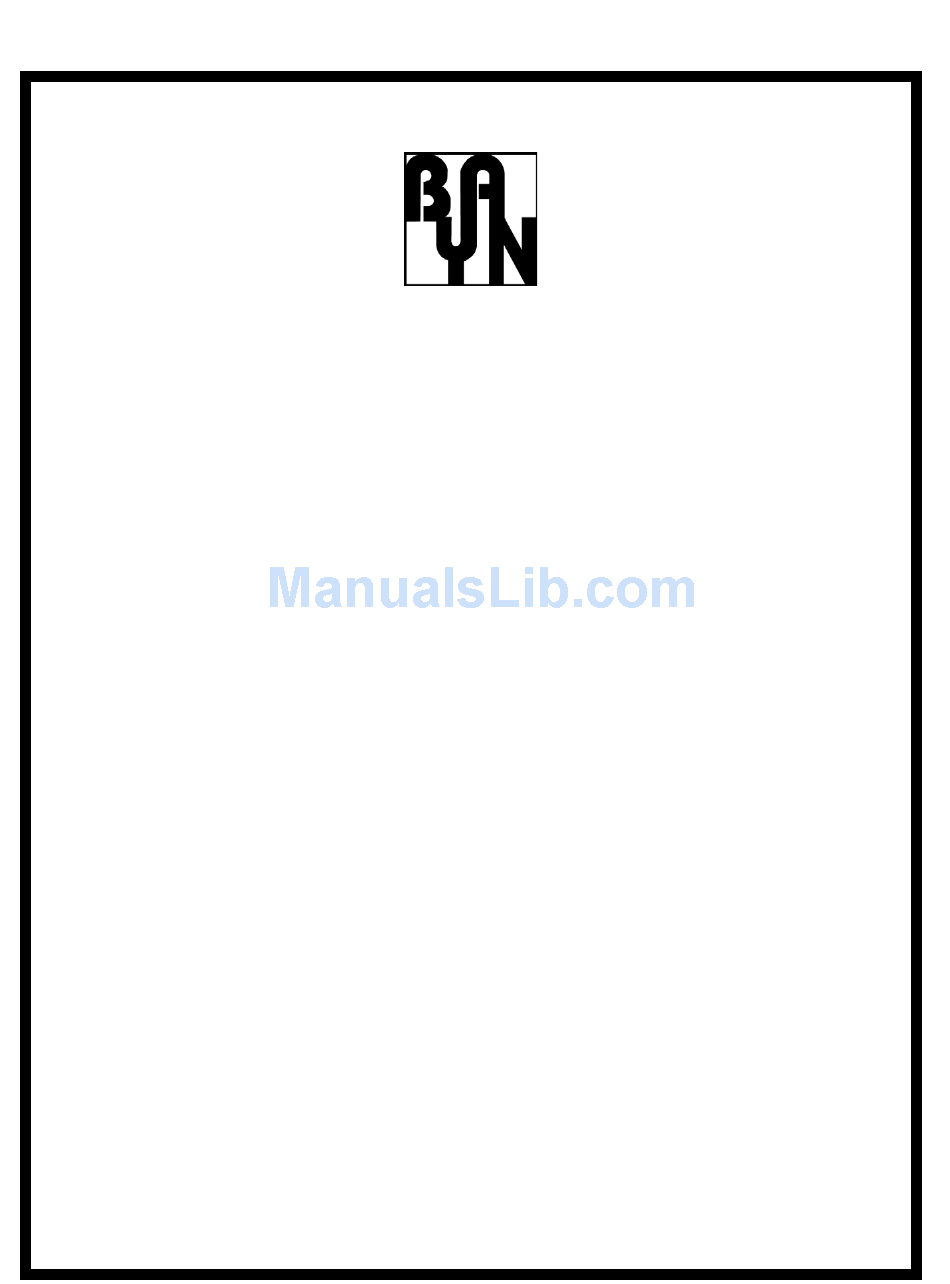

MODEL 500A/500B SERIES
VEHICULAR SWING
GATE OPERATOR
INSTALLATION AND TECHNICAL MANUAL
BYAN SYSTEMS, INC. OF LUSK, WYOMING, DEMANDS THAT YOU AS AN INSTALLER
INFORM YOUR CUSTOMER OF ALL SAFETY EQUIPMENT THAT SHOULD BE INSTALLED
ON EACH JOB SITE. THIS IS IN ACCORDANCE WITH YOUR LEGAL LIABILITY TO YOUR
CUSTOMER. ENSURE THAT THE PROTECTION AND WARNING SIGNALING DEVICES ARE
OPERATIONAL AND VISIBLE. THESE STEPS WILL AID IN YOUR DEFENSE SHOULD YOU
BECOME INVOLVED IN LITIGATION REGARDING INJURY OR DAMAGE.
ATTENTION: ALL INSTALLERS EXPERIENCED OR NOT PLEASE REVIEW
PAGES 4 AND 9 BEFORE YOU INSTALL THIS ACTUATOR.
P.O. BOX 1384
FAX (307) 334-2028

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500A series and is the answer not in the manual?

Questions and answers

Related Manuals for Byan 500A series

Summary of Contents for Byan 500A series

  • Page 1 GATE OPERATOR INSTALLATION AND TECHNICAL MANUAL BYAN SYSTEMS, INC. OF LUSK, WYOMING, DEMANDS THAT YOU AS AN INSTALLER INFORM YOUR CUSTOMER OF ALL SAFETY EQUIPMENT THAT SHOULD BE INSTALLED ON EACH JOB SITE. THIS IS IN ACCORDANCE WITH YOUR LEGAL LIABILITY TO YOUR CUSTOMER.

  • Page 2: Table Of Contents

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products TABLE OF CONTENTS DESCRIPTION PAGE NO. USAGE CLASSES FOR VEHICULAR GATES TECHNICAL DATA ABOUT THE OPERATOR BEFORE YOU INSTALL DURING INSTALLATION PROCEDURES INSTALLATION COMPLETION/FOLLOW UP INSTALLING THE OPERATOR ADJUSTING THE OPERATOR...

  • Page 3: Usage Classes For Vehicular Gates

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products USAGE CLASSES FOR VEHICULAR GATES CLASS I – RESIDENTIAL VEHICULAR GATE OPERATOR A VEHICULAR GATE OPERATOR (OR SYSTEM) INTENDED FOR USE IN A HOME OF ONE TO FOUR SINGLE FAMILY DWELLING, OR A GARAGE OR PARKING AREA ASSOCIATE THEREWITH.

  • Page 4: Technical Data About The Operator

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 500 SERIES TECHNICAL DATA MODEL 500: 115 VAC SINGLE PHASE ELIMINATOR SERIES BUILT-IN THERMAL OVERLOAD CAPACITOR RATING: 40UF / 10UF STANDARD WORKING PRESSURE: 1350 PSI MAXIMUM WORKING PRESSURE: 1750 PSI PUMP: SPUR GEAR .50 LTR/MIN.

  • Page 5: Before You Install

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products BEFORE INSTALLATION 1. VERIFY THE GATE POST IS PLUM AND GATE LEAF SWINGS FREELY. 2. PERFORM ANY REQUIRED MAINTENANCE BEFORE CONTINUING. 3. VERIFY THE COMMERCIAL POWER CIRCUIT BREAKERS ARE ISOLATED AND RATED FOR THE SPECIFIC LOAD.

  • Page 6: Installation Completion/Follow Up

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products INSTALLATION COMPLETION 1. “REMOVE” ALL DEBRIS AND OBSTRUCTIONS FROM THE TRAVEL PATH OF THE GATE LEAF(S). 2. TURN ON AND LABEL THE COMMERCIAL POWER CIRCUIT BREAKER AND REMOVE THE “USED” TAG YOU INSTALLED AT THE BEGINNING OF THE PROJECT.

  • Page 7: Installing The Operator

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products INSTALLING THE OPERATOR ! ADVISORIES! A. THIS LINEAR ACTUATOR MUST ME MOUNTED SO THE PISTON FULLY EXTENDS AND FULLY RETRACTS. WHEN FULLY RETRACTED THERE SHOULD BE INCH PISTON LEFT OUT OF THE FRONT.

  • Page 8: Adjusting The Operator

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 13. ATTACH AN 18/4 STRANDED S.O. CORD APPROVED FOR OUTDOOR USE AS PER THE STRAIN RELIEF ASSEMBLY TO THE OPERATOR PER THE ELECTRICAL CONNECTION DETAILS. NOTE: IT IS HELPFUL TO INSTALL A SINGLE GANG WEATHER PROOF BELL BOX ON THE GATE POST ACROSS FROM THE OPERATOR.

  • Page 9: Manual Bypass

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products BYAN SYSTEMS OPERATORS US A “SHELL OIL PRODUCTS” TELLUS T-15, THIS FLUID HAS A RELATIVELY LOW VISCOSITY SO IT WILL START TO FLOW QUICKLY ON COLD DAYS. WHEN THE FLUID RISES TO OPERATING TEMPERATURE, THERE IS NO RUSH OF THIN FLUID CAUSING POOR HYDRAULIC PERFORMANCE, OR WORSE YET, EXCESSIVE PUMP WEAR, FAILURE AND EXPENSIVE DOWNTIME.

  • Page 10: Mounting Geometry

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...

  • Page 11: Mounting Bracket Location

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...

  • Page 12: Mounting Dimensions

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products MOUNTING DIMENSIONS 500A I/O SERIES GATE OPERATOR USING A 2” GATE LEAF INWARD SWING DEGREE 5-1/2 3-1/4 3-1/2 2-3/4 4-3/8 3-3/4 2-3/4 3-3/4 2-1/2 3-3/4 3-5/8 2-1/4 100* 3-1/8 3-7/8 2-1/2 (*) THAT AN INSERT WILL HAVE TO BE USED IF THE HINGE POINT IS ON THE CENTERLINE OF THE GATE POST.

  • Page 13: Wiring The Control And Accessories

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products RECOMMENDED WIRE SIZES HIGH VOLTAGE A.C. 14 AWG TO 400 FEET 12 AWG TO 650 FEET 10 AWG TO 1000 FEET 8 AWG TO 1650 FEET 6 AWG TO 2650 FEET LOW VOLTAGE A.C.
  • Page 14 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products G2M CONTROL BOARD DESCRIPTION G2M-115V/220V SINGLE PHASE MICRO CONTROLLED BOARD THIS ELECTRONIC CONTROL UNIT IS SUITABLE FOR SINGLE-PHASE MOTORS, AND CAN DRIVE UP TO TWO DIFFERENT MOTORS. THERE IS LEAF DELAY INCORPORATED WITH THE USE OF A PLUG IN CARD.
  • Page 15 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products CLOSING BUTTON: USED ONLY TO CLOSE THE GATE. STOP BUTTON: (NORMALLY CLOSE CONTACT), STOPS THE GATE IN OPENING/CLOSING. THREE ADJUSTABLE TIMES BLUE TIMER: OPENING TIMER ONLY CONTROLS THE OPENING TIME BETWEEN 3 TO 30 SECONDS.
  • Page 16 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products DIP SWITCH ASSEMBLY OPERATION MODE SELECTION; OPTION REVERSING STROKE FUNCTION ACTIVE INACTIVE (OPERATOR FIRST WILL CLOSE FOR 1 SECOND) STEP-BY-STEP FUNCTION* ACTIVE INACTIVE AUTOMATIC CLOSING FUNCTION ACTIVE INACTIVE REVERSING BUTTON IS NOT...
  • Page 17 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products SELECTABLE OPTIONS SWITCH S3 OPTION EXTENDS RUN OPENING AND CLOSING OPENING AND CLOSING TIME TIME (30 SECONDS TO 1 TIME (3 SECONDS TO 30 MINUTE) SECONDS) REPOSITIONING ACTIVE INACTIVE THE DOOR *...
  • Page 18 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products CONTROL CONTACT TERMINAL DESCRIPTION ENTRAPMENT ALARM OUTPUT ENTRAPMENT ALARM OUTPUT 24VAC OUTPUT @ 1 AMP MAX 24VAC OUTPUT @ 1 AMP MAX. ELECTRIC LOCK RELEASE 12VDC ELECTRIC LOCK RELEASE 12VDC ENTRAPMENT ALARM RESET...

  • Page 19: Connecting The Operator

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products POWER & MOTOR CONNECTION TERMINAL DESCRIPTION COMMERCIAL POWER SUPPLY 115V NEUTRAL (WHITE) [220V LINE (BLACK)] COMMERCIAL POWER SUPPLY 115V LINE (BLACK) [220V LINE (RED)] MOTOR # 1 CLOSE DIRECTIONAL (BLACK) MOTOR #1 OPEN DIRECTIONAL (BLACK...
  • Page 20 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products SECOND MOTOR CARD T2M CHARACTERISTICS: THIS CARD IS SUITABLE FOR DRIVING A SECOND MOTOR THROUGH THE CONTROL UNIT, SELECTING THE OPENING DELAY TIME AND THE CLOSING DELAY TIME BETWEEN THE TWO MOTORS.

  • Page 21: Loop Connection

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products LOOP DETECTOR CONNECTIONS THE MOLLEX CONNECTOR HAS 11 WIRE LEADS 12 INCHES LONG. THE PIN OUT IS AS FOLLOWS: - POWER B+ BLACK - POWER B- BLUE - RELAY A COMMON (PULSE OR PRESENCE)
  • Page 22 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products TO THE INSULATION? THE OUTER DIAMETER IS 0.115” FOR 14 GA. WIRE AND 0.013” FOR 16 GA. WIRE. WHEN INSTALLED IN A ” (0.250) SLOT, AS IS OFTEN DONE, THE TURNS OF WIRE CAN LAY SIDE BY SIDE IN THE SLOT AND THE TURNS TWIST UNDER THE PRECEDING TURNS AND NOT STACK SNUGLY IN A SINGLE LAYER, AS THEY SHOULD BE.
  • Page 23 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...

  • Page 24: Overview

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...
  • Page 25 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 413 Linden • Lusk, WY 82225 • (800) 223-2926...

  • Page 26: Warranty

    Some states do not allow how long an implied warranty lasts, so this limitation may not apply to you. This warranty by Byan Systems, Inc. is in lieu of all warranties expressed or implied.

  • Page 27: End User Safety Handout

    BYAN SYSTEMS, INC. Automatic Gate and Access Control Products END USER SAFETY “THE GATE AUTOMATION AND ACCESS CONTROL MANUFACTURER” HAS NO CONTROL OVER THE GATE SYSTEM YOU HAVE AUTOMATED. THE WORD “SYSTEM” HEREIN REFERS TO THE GATE POST, GATE LEAF, HINGING, ALL AUTOMATION EQUIPMENT, ACCESSORY DEVICES, THE CONSTRUCTION AND INSTALLATION THEREOF.
  • Page 28 BYAN SYSTEMS, INC. Automatic Gate and Access Control Products 6. SECURE AND LABEL POWER CABINETS OR EQUIPMENT COVERS. 7. IF THE GATE HAS AN OPEN ROLLER, EACH MUST HAVE A GUARD SUITABLE TO PROTECT PERSONS, PETS AND CLOTHING, WHICH COULD BE ENTRAPPED, NO MATTER HOW UNLIKELY IT MAY APPEAR AT FIRST GLANCE.

  • Page 29: Customer Acknowledgment

    IT IS THE RESPONSIBILITY OF THE PURCHASER, DESIGNER AND INSTALLER, THAT THE TOTAL SYSTEM IS SAFE FOR THE PARTICULAR APPLICATION. WE ARE PLEASED YOU HAVE SELECTED “BYAN SYSTEMS” ROQUET OPERATORS FOR YOUR VEHICULAR GATE AUTOMATION. ON BEHALF OF OUR DISTRIBUTION AND DEALER NETWORK, MAY I EXTEND TO YOU OUR GRATITUDE AND COMMITMENT TO FUTURE SUPPORT.
