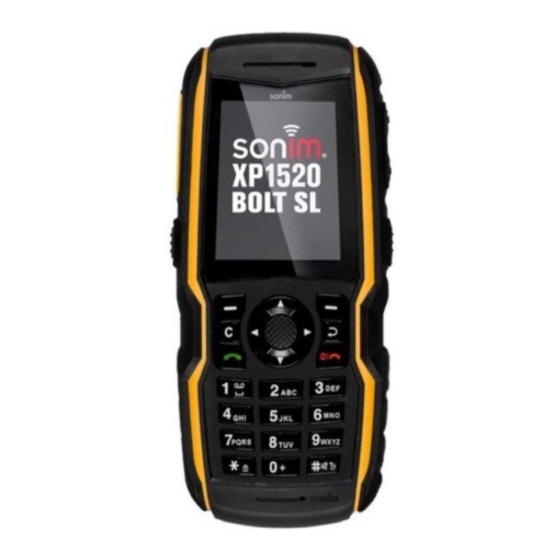

Summary of Contents for Sonim XP1520 BOLT SL

  • Page 1 USER GUIDE 1520 SONIM XP BOLT SL English...
  • Page 2 Copyright © 2013 Sonim Technologies, Inc. SONIM and the Sonim logo are trademarks of Sonim Technologies, Inc. Other company and product names may be trademarks or registered trade-marks of the respective owners with whom they are associated. Disposal of Old Electrical and Electronic Equipment...
  • Page 3 Call Waiting Child Safety Caller ID Emergency Calls Call Forwarding SAR Information Fixed Dial Advanced Settings Getting Started with XP1520 BOLT SL——————— Receive a Call — 14 Record a Call Battery Usage Call Restrictions Inserting the Battery Removing the Battery Managing Phone Settings————————...

  • Page 4: Table Of Contents

    Managing Connectivity———————— 41 Managing Profiles———————— 61 Sending Data via Bluetooth Sound Settings Receiving Data via Bluetooth Tools———————— 63 Java Settings Calendar Managing Your Files———————— 45 Alarm Calculator Managing Contacts———————— 47 Unit Converter Add a New Contact World Clock View the Contact Details Sound Recorder Sending a Message from Contacts Notes...
  • Page 5 Managing PTT Messages Setting Presence Status Viewing Location Status Sending SOS Alerts Viewing PTT Details Managing Multimedia Files———————— 76 Camera Camera Options Media Player Using Memory Card———————— 79 Inserting Memory card into the Phone End User License Agreement———————— 80 Our Warranty Comprehensive 3 Year Warranty Our Warranty What We Will Do...
  • Page 6 • Please register your phone within 30 days at www.sonimtech.com/register, to receive product information and updates. For more information related to the warranty, please refer to “Our Warranty” on page...
  • Page 7 2 and the alphabets “ABC”. SELECT Means to either press the Left or Right This user guide covers Sonim XP1520 BOLT SL model Selection Key to apply the command XP1520-A-R6. The model names can be read on the indicated at the bottom of the screen.
  • Page 8 Means to press the Left Selection Key SELECT BACK KEY Use this key to display the MENU to select the Menu option or press the previous screen. Menu key (centre) for the same result. A MENU Means more options are available but ITEM only one has been mentioned in the SUFFIXED...
  • Page 9 Avoid using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids. Use only SONIM XP1520 BOLT SL approved charging equipment to charge your phone and avoid damage to your phone. The symbol of the crossed-out wheeled bin indicates that this product, and any enhancements marked with this symbol, can not be disposed as unsorted waste but must be taken to separate collection at their end-of-life.
  • Page 10 Ensure that only qualified personnel install or repair your phone. The Sonim XP1520 BOLT SL is water-proof and can be submerged to 2 metres for 30 minutes. • Ensure to close the rubber cover of the charging connector and the audio connector properly.
  • Page 11 When the talk and standby times are noticeably shorter with the skin or eyes. In the event of leak or a hazard than normal, replace the battery with an original Sonim seek medical help immediately. battery. If a replacement battery is being used for the first...
  • Page 12 SAR Information performed in positions and locations (that is, by the ear and worn on the body) as required by the FCC for each The Sonim XP1520 BOLT SL has been certified in model. compliance with the Government’s requirements for exposure to Radio Waves.
  • Page 13 1.5 cm from the body, or with the original Sonim accessory intended for this phone and worn on the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
  • Page 14 This section provides information on using your Sonim Inserting the Battery XP1520 BOLT SL phone. The list of items in the Sonim XP1520 BOLT SL phone box are: Unscrew Cover • Sonim XP1520 BOLT SL phone To open the battery cover, rotate both the battery cover •...
  • Page 15 Close Cover Insert Charger Close the battery cover. Rotate the battery Insert the charger plug into a power outlet cover screws in clockwise direction. You can use the screwdriver provided to tighten the screws. Ensure not to overtighten the screws. Connect to Phone The charger port is located on the left side Removing the Battery...
  • Page 16 Set Battery Alert When you set the battery alert, every time the battery Place SIM Card charge is low you hear an alarm. To set the battery alert Place the SIM card by pushing it select Menu > Settings > Profiles > any profile (currently upward in the designated slot located activate in the phone) >...
  • Page 17 Remove SIM Card Remove the SIM card by pushing it downward from the slot. Lock Cover Reinsert the battery and the cover.
  • Page 18 1520 BOLT SL Parts of the SONIM Phone The Sonim XP1520 BOLT SL keypad has 11 function keys and 12 alphanumeric keys. The left side of the phone has one key and the right side of the phone has three keys.
  • Page 19 1520 BOLT SL Parts of the SONIM Phone Flashlight Volume keys Headset port Camera Charger/ Loud speaker USB port Camera Battery (short press) cover Push-to-talk Flashlight screws (long press) Battery cover * Lone Worker is available in XP1520 BOLT SL. It requires separate provisioning.
  • Page 20 1520 BOLT SL SONIM Keypad The following figure represents different keys in the phone keypad. Menu key Navigation arrow keys (Up/Down/Left/Right) Left Selection Key (LSK) Right Selection Key (RSK) Back Key Clear Key Power On/Off/End call Call/Accept/Send Press and hold to turn...
  • Page 21 Switching On Key Shortcuts in Home Screen Press and Hold the Power ON/OFF key for 2 seconds to The following shortcuts can be accessed from the home Power ON the phone. screen. When the phone is switched on, it tries to register with the network.
  • Page 22 Keypad Functions The following table displays the various keys and the corresponding functions they perform: Keypad key Operations • Press to end a call. • Press and hold to switch on or switch off the mobile phone. Press when in Menu or Edit modes to return to Standby mode. •...
  • Page 23 Keypad key Operations Present at the centre of the navigation keys. Press while in standby mode to enter the main menu. • • Press when required to be used as a toggle key to select or clear a checkbox. • Press to perform similar tasks as the Left Selection Key.
  • Page 24 • Press and hold in standby mode to access your Voice mail. • When entering text, press to enter space. Press and hold to set access Tone settings. Press and hold to access the Profiles. Press and hold to set the alarm. Press and hold to access the flashlight.
  • Page 25 The above preset functions of number keys (from 2 to 9) can also be changed to the speed dial functionality. For more information refer, “Managing Speed Dial Numbers” on page 36 Press and hold to display ‘+’ used for dialing an international number, while in standby •...
  • Page 26 NFC Back cover is not included in the box content. To Use NFC feature, NFC back cover must be connected. NFC Specifications In NFC active or reader mode, Sonim XP1520 BOLT SL can detect the following card types: • Mifare •...

  • Page 27: Tools

    This model is a bar type phone with a single LCD screen. Home Screen Indicators The graphic field of the screen is 240 (w) and 320 (h) The home screen indicators are visible when the phone pixels. The TFT technology used displays 262K colours. is in standby mode.
  • Page 28 The following table describes the display indicators on E icon indicates that the the top bar of the home screen in the Sonim XP1520 phone is attached to 2G BOLT SL phone. These icons depend on the selected network and EDGE feature theme.
  • Page 29 Indicates that the Both Indicates that the phone Call call forward function is Vibration performs both vibration Forward enabled. and Ringing and ringing. Display Name Description Indicates that SD card Indicators SD Card is mounted on the phone. Indicates that there are Unread unread messages in the Message...

  • Page 30: Calendar

    The following table describes the display indicators on Missed Call Indicates a missed call. the call screen in the Sonim XP1520 BOLT SL phone: Key Operations without Your SIM Card Display Name Description Indicators...
  • Page 31 This section provides information on managing calls. During a voice call such as an IVR call, if you enter any number /DTMF tone, the numbers Dial a Number remain on the screen even after the call is terminated. To clear the screen: Use the numeric keys to enter the number and press Press RSK to clear one digit at a time.
  • Page 32 Call Timers Long pressing (press and hold) the Power on/ off key during a call will only end the call • To view the total time spent on the last call, select and not switch off the phone. Menu > Calls > Call history > Options > Advanced >...
  • Page 33 not have a PIN2. Call Forwarding You can forward your incoming calls to a number in Advanced Settings the Contacts or a new number, provided your network operator supports this service. To access call forward Auto Redial settings, select Menu > Calls > Call settings > Call Forwarding.
  • Page 34 speaking, enable the call waiting feature for calls. Restrict • Allow all - allows all outgoing calls Select Menu > Calls > Call settings > Call waiting outgoing > Activate. • Allow contacts - allows outgoing calls restricted only to numbers in the phonebook contact list.
  • Page 35 This section provides information on the various settings Select Disable to disable this feature. for the phone. To access, select Menu > Settings > Phone settings. Language Settings Time and Date Settings You can change the phone’s interaction language by selecting your preferred language.
  • Page 36 2. Select Options to activate the selected theme, Power Saving Settings update the theme automatically after set time You can set the backlight level and duration. Select Menu period, and set the theme display order. > Settings > Phone settings > Power saving > LCD backlight.
  • Page 37 New search: Search the network for the phone • hearing aid device. to connect when you are selecting the network manually. Sonim XP1520-A-R6 has been tested for hearing aid device compatibility and complies with the Federal...
  • Page 38 • Select Network: Select the network connection information. automatically or you can do it manually. You can add, view, edit and delete the accounts. You can • Selection Mode: Select Automatic to set the edit the following information in the accounts: Account phone to automatically select a cellular network Name, APN, Username, Password, Authentication type, available in your area, or select Manual to set...
  • Page 39 To prevent unauthorized use of your phone, you can set If the phone lock is enabled, you will be requested the PIN protection. to enter the password, when ever you power on the phone. To change the phonelock password, select PIN Protection Menu >...
  • Page 40 The default password for safeguard is 1234. Certificate Manager You can view key usages and authorized certificates and user certificates. Restore Factory Settings Select to reset the settings to the original factory settings. Please note that this can remove changes you have made to your settings.
  • Page 41 Yes and information. The Sonim XP1520 BOLT SL is compliant with Bluetooth If you select Yes, the other device can send any file specification BT 3.0 supporting the following profiles: via bluetooth without your confirmation.
  • Page 42 Select Menu > Settings > Connectivity > Prior to pairing the devices, ensure that the Bluetooth > My device. visibility settings for the pairing devices are activated. To activate the visibility settings, Select the paired device. select Menu > Settings > Connectivity > Select Options >...
  • Page 43 My devices screen displays the paired My name Select this option to change the devices. To send a data to an unpaired name of your device. device, select Search new device. Select Storage the unpaired device of your choice. Enter the Select the storage location.
  • Page 44 USB cable, the following two options are displayed: • Mass storage: Select this to use this phone as mass storage device to transfer and synchronize data between the Sonim XP1520 BOLT SL phone and your computer. • COM port: Select this to use the phone with...
  • Page 45 Using the My files, you can store and manage audio, Create a new folder. video files, image files, .jar files, .jad files and .txt files. folder You can preview the files, view their details and delete files. The internal storage capacity is approximately 99 Rename Rename the image.
  • Page 46 Use as Use the audio as ring tone for incoming call. Create a new folder. folder Rename Rename a file. Delete Delete the audio file. Sort by Sort the audio files by name, type, time, or size. Mark Select all the audio files or select one by several one.
  • Page 47 You can use the phonebook to maintain phone numbers Sending a Message from Contacts of your contacts. This feature enables you to add, delete, You can send SMS and MMS messages to the contacts. dial phone numbers, send SMS and MMS messages. To access the contacts, select Menu >...
  • Page 48 screen, select Menu > Phonebook. Select the contact. Send Contact by SMS Select Options > Edit. Select Menu > Phonebook. Select the contact. Delete Contact Select Options > Send business card > As text To delete a contact, select Menu > Phonebook. Select message.
  • Page 49 recipient, to whom a blind copy of the e-mail Selecting Multiple Contacts has to be sent. To select multiple contacts, select Menu > Phonebook > • Subject: You can enter the subject of the Options > Mark several. To select the contacts, scroll to e-mail.
  • Page 50 Caller Groups Group settings You can rename the group, assign a ring tone to the You can create a new group, add a new contact to the group, and add a picture to group, and manage the groups. the group. •...
  • Page 51 numbers stored in the SIM. Memory status: You can view the number of • contacts stored in the SIM, phone and number of groups. • Copy contacts: You can copy all the selected records from SIM card to phone memory and from phone memory to SIM card.
  • Page 52 SMS and MMS are convenient and inexpensive means When you add a multimedia attachment, of communication. You can send a text message to the message is automatically converted other people via SMS service. MMS allows you to send to a multimedia message. MMS charges messages by including multimedia content such as will apply, based on the operator.
  • Page 53 MMS Messages Add video You can add a video to the To write a MMS message select Menu > Messages message. You can also capture a new Video from camera by > Write message. selecting Record video option. Enter the message in the text pane. The text input mode is displayed at the top left of the screen.
  • Page 54 Details You can add a picture to the message. You can view the details of the message picture You can also capture a new Image from such as from, message type, received camera by selecting Take picture option. date and storage for SMS messages and from, to, cc, number of recipients, You can add a sound to the message.
  • Page 55 Delete all: You can delete all the messages. Save to Phonebook: You can save the • When an MMS is received from a non-Sonim numbers to the phonebook. This option is device, it is displayed as MMS with attachment displayed only if SMS/MMS is received from an (Picture/Video, vCard).
  • Page 56 • Mark several: You can select multiple card to phone memory. messages, one by one. Details: You can view the details of the • • Advanced: You can copy and move messages multimedia or text message. from phone memory to SIM card or from SIM Press the Menu key to view the message.
  • Page 57 number of recipients, and storage. 28 e-maill accounts are pre-configured. For Gmail, Yahoo, Hotmail etc. pre-configured Press the Menu key to view the message. settings are available. This can be accessed with just User name & password. The SMS messages are saved in Sent Enter the e-mail address and password and select messages , only if it is activated in Messages >...
  • Page 58 Select a data account and select Options > Next. attachments. • Priority: You can set the priority for the Enter the incoming server address and select Options > Next message. Enter the outgoing server address and select • Save to Drafts : You can save the e-mail to Options >...
  • Page 59 press the Menu key. Press the Menu key to view the message. Select Options > Send, to reply to the message. Press Options > Edit to edit and send the message. Broadcast Messages Email Outbox Messages that were undelivered to the recipient due to Broadcast messages are sent by the network operator, some reason are stored in Outbox.
  • Page 60 • Profile settings: View and edit the profile name, Settings Function SMSC address, and type of message. Compose You can set the slide time, creation • Voicemail Server: Configure the voicemail server. mode, picture size and select to • Common settings: Set the following options: insert signature automatically.
  • Page 61 You can activate and modify various settings on your • Outdoor: Here both the vibrate and ring modes are Sonim XP1520 BOLT SL phone using Profiles. enabled. Parameters in this mode can be changed. Select Menu > Settings > Phone settings >...
  • Page 62 profile. The following sound settings are displayed: Tone settings: You can set the tone for incoming calls, messages, and keypad. Volume: You can set the volume for ringtone and keytone. Alert Type: You can set the alert type for incoming calls and messages.
  • Page 63 This section contains miscellaneous features supported changes. Select Done and Save. by the handset. Alarm Calendar You can set alarm for a particular time. Select Menu > Tools > Alarm. The calendar enables you to set appointments, schedule reminders when required, set alerts and repeat specific To set a simple alarm, select Menu >...
  • Page 64 Kg to Pound. Navigation Key Operation Scroll down and enter the value in Kg slot or Pound + (Addition) slot, for example, 10 Kg and select OK. The Weight 10 Kg is converted to pounds and is Down - (Subtraction) displayed in the Pound slot.
  • Page 65 Sound Recorder SIM Services Select Menu > Tools > Sound recorder. You can access certain services provided by the operator using this menu. This feature can be accessed via Menu To record an audio file, select Options > New > Tools > SIM services. record.

  • Page 66: Data Account And Java Settings

    You can download Java applications via WAP, Bluetooth or SD Card. Data Account and Java Settings To use the applications requiring internet service, the Java settings must be set. Select Menu > Settings > Connectivity > Java Settings. Select the required data account and save. Installing Java Application from WAP Configure WAP as described in “WAP Browser”...

  • Page 67: Wap Browser

    Non-WAP (or full-fledged) web page resolution Recent Pages: View web pages which you have • will not match with the Sonim phone’s screen viewed previously. Click on them to open the pages. size. To navigate such Web pages, use the scroll •...

  • Page 68: Activating The Push-To-Talk (Ptt) Service

    connect to the PTT service automatically. Activating the Push-to-talk (PTT) service Enter the phone number and select Yes. You can access PTT services only if you You will be logged in to the PTT service and the PTT subscribe to PTT from your service provider. homescreen is displayed.

  • Page 69: Ptt Home Screen

    Power off/ contact list. • Return to the home screen when End call the phone is in any other screen. PTT Related Key Functions • Ends a PTT call. PTT related keys present in your XP1520 BOLT SL phone are:...

  • Page 70: Ptt Display Icons

    active PTT call. You can also press the # key to PTT Display Icons turn On/Off the speaker. The common PTT display icons are: • Login automatically: Enable this option to login to PTT service automatically when TELUS Link Icon Description application is started.

  • Page 71: Managing Ptt Calls

    update. You can make PTT calls from conversation history by scrolling to the an entry in the list and pressing the PTT button. Managing PTT Calls The Search screen is activated by touching any key on A user can make or receive a one-to-one call or one-to- the dial pad.

  • Page 72: Calls From Ptt Group Tab

    Select the required contacts to whom you want to Press and release the PTT button or select Menu > TELUS Link. Select Contacts tab. call. You can add up to 10 contacts to initiate an ad-hoc group call. Select an online contact and press Press and release the PTT button.

  • Page 73: Manage Ptt Groups

    are displayed. Manage PTT Groups • Send message : Send a message to the selected To access the PTT groups, press and release the PTT contact. button or select Menu > TELUS Link. Select Groups tab. The Groups tab contains the list of groups with contacts •...

  • Page 74: Managing Ptt Messages

    from the selected group. • New text chat: intiates a new chat session with the selected contact/group. • Edit group name: Change the name of the selected group. • Clear all history: Clears all chat history. • Remove group: Delete the selected group from the •...

  • Page 75: Viewing Ptt Details

    Viewing PTT Details To view the PTT software details, press and release the PTT button or select Menu > TELUS Link. Select Menu > About.

  • Page 76: Camera

    Camera mode, to shoot a video Camera or take photographs, or select Photo Album to Sonim XP1520 BOLT SL has a VGA camera for taking view the saved images. Select an image and click pictures. The pictures can then be saved in your phone.

  • Page 77: Media Player

    • Time stamp: You can add time stamps to the Network You can select and edit the network images. settings profile required for streaming audio files. • Shutter sound: You can select the shutter My Playlists sound from the provided options. Anti-Flicker : You can set the frequency of •...
  • Page 78 • Delete: You can delete a playlist. Rename: You can rename a playlist. • • Storage: You can store the playlist in phone/ memory card (if present on the phone). You can play .mp3, .wav, .amr, and .aac audio files. You can play MPEG and 3GP video files.

  • Page 79: Inserting Memory Card Into The Phone

    You cover screws clockwise to lock the battery cover. can perform the following functions on the memory card. When the Sonim XP1520 BOLT SL phone is • Formatting of the memory card.

  • Page 80: Comprehensive 3 Year Warranty

    Device. If you fail to comply with any of the terms and of Sonim, with the same or better model in the same or conditions set out in this license, it will terminate with better condition as detailed below: immediate effect.

  • Page 81: Phone Care

    Product due to normal wear and tear, or due to Phone Care misuse or abuse, including but not limited to use Each Sonim phone has a designated IP class for dust and in other than the normal and customary manner, in water protection, according to the IEC Ingress Protection accordance with the Sonim device specifications (IP) Standard 60529.
  • Page 82 MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SONIM OR ITS LICENSORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS;...

  • Page 83: Conditions

    The Sonim XP1520-A-R6 devices comply with part 15 of instructions, may cause harmful interference to radio the FCC rules. Operation is subject to the following two communications.
  • Page 84 Calendar 63 Editing events 63 Activating PTT service 68 Flight mode 61 Call accept/Send key 20 Add a new PTT contact 73 Call history/list 31 Add a new PTT Group 74 Call Restriction 34 Homepage 67 Add new contact 47 Calls on hold/waiting 32 Ad-Hoc Group PTT Call 71 Camera...
  • Page 85 Login and Logout of PTT Service PTT Settings 70 USB function 44 Recording a call 34 Voicemail Memory card 79 Server settings 60 Restricting incoming calls 34 Insert 79 Messages Broadcast 59 Drafts 55 Security Settings 39 Address 67 e-mail 54 Service inbox 67 Send a PTT call me alert 72 Inbox 54...
