Rustibus 25 AIR Operation Manual

Miniblaster
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERAtiON MANuAL
025-3000
Rustibus® 25 AiR
Miniblaster

Advertisement

loading
Need help?

Need help?

Do you have a question about the 25 AIR and is the answer not in the manual?

Questions and answers

Related Manuals for Rustibus 25 AIR

Summary of Contents for Rustibus 25 AIR

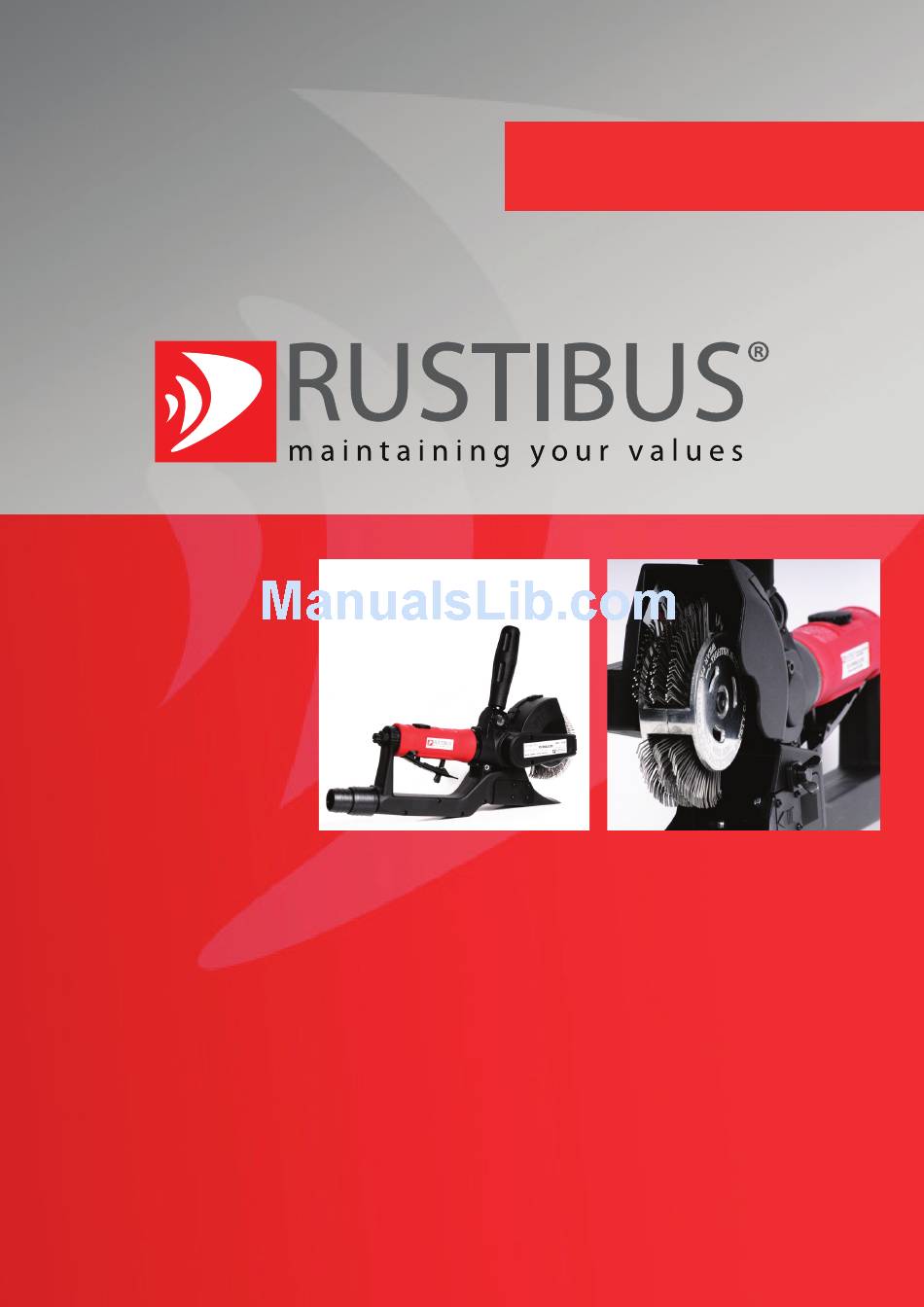

  • Page 1 OPERAtiON MANuAL 025-3000 Rustibus® 25 AiR Miniblaster...
  • Page 2 February 1, 2015 issue 1.0 Specifications subject to changes without notice! If you have any questions, please contact us: Rustibus INC (DSS) 2901 West sam Houston Pkwy, North suite e-325 Houston, tX 77043 usA Email: houston@rustibus.com...
  • Page 3 +1 832 203 7170. GENERAL DEsCRiPtiON the Rustibus® 25 Miniblaster is an easy to handle, light weight surface preparation tool with a lot of power. this versatile piece of equipment utilizes a variety of abrasives from wire brushes, coating removal discs to erasers for removal of adhesive products.
  • Page 4 HELPFuL iDENtiFiERs in addition to information on installation and operation, this instruction manual may contain WARNiNGs and CAutiONs pertaining to user safety, and NOtEs on important, useful operating guidelines. A WARNiNG indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury.
  • Page 5 Respiratory protection should be considered depending on material being removed. before starting Rustibus® 25, be sure all hoses and fittings are the correctly sized and secured. Never attempt to de-scale areas when its mechanical integrity is in doubt, according to applicable codes and standards.
  • Page 6 PLEAsE READ tHE WARNiNGs bEFORE OPERAtiON WARNINgS: When connecting, changing, or repairing the Rustibus® 25, the air supply Must ALWAYs be disconnected. IMPoRTANT: Do not push down on your machine. This only damages the tool, it does not improve results.
  • Page 7 sAFEtY PRECAutiONs tO FOLLOW • Always install, operate, inspect and maintain this product in accordance with all applicable standards and regulations (local, state, country, federal, etc.). • Compressed air models always use clean, dry air at 90 psi (6.2 bar/620 kPa) maximum air pressure at the inlet.
  • Page 8 sAFEtY PRECAutiONs tO FOLLOW • Always wear protection when operating or performing maintenance on this tool. • Always wear hearing protection when operating this tool. • Always use Personal Protective Equipment appropriate to the tool used and material worked. this may include dust mask or other breathing apparatus, safety glasses, ear plugs, gloves, apron, safety shoes, hard hat and other equipment.

  • Page 9: Using The Tool

    usiNG tHE tOOL • to avoid accidental starting – ensure tool in “off” position before applying air pressure. Avoid throttle when carrying, and release throttle with loss of air. • Ensure work pieces are secure. use clamps or vises to hold work piece whenever possible. •...
  • Page 10 usiNG tHE tOOL • Never disconnect a pressurized air hose. Always turn off the air supply and bleed the tool before disconnecting a hose. • use only proper cleaning solvents to clean parts. use only cleaning solvents which meet current safety and health standards.
  • Page 11 OPERAtiNG tHE Rustibus® 25 the Rustibus® 25 is easy to operate and leaves the surface clean to st 3 +++. this tool is used for the removal of rust, corrosion, mill scale, protective coatings, body filler, adhesive labels, etc. 1. ALWAYs use suitable sealing material to fasten the connection of the pneumatic hose to the Rustibus®...

  • Page 12: Replacing The Brush

    REPLACiNG tHE bRusH Plastic ring is optional. For Coating removal wheel only step 7. through 9.

  • Page 13: Service / Troubleshooting

    Rustibus technician. improper use of service of the Rustibus® 25 can also result in injury or damage to the machine. unauthorized parts or services of the Rustibus® 25 will void the warranty.
  • Page 14 PARts AND sPAREs WHeN CoNNeCTINg, CHANgINg, oR RePAIRINg THe RuSTIBuS® 25, THe PoWeR SuPPLy MuST ALWAyS Be DISCoNNeCTeD. RuSTIBuS® 25 MINIBLASTeR GENERAL OVERViEW 025-3000 Rustibus® 25 MINIBLASTER Incl. 23mm Hub and 23 mm Steel bent belt, coarse (installed on machine)
  • Page 15 MAiN CONsuMAbLEs - Rustibus® 25 AiR 025-0400 R25 11 mm HUB assembly 025-0401 R25 23 mm HUB assembly 025-0405 R25 Replaceable eraser 025-0406 R25 Eraser wheel assembly 025-0410 R25 Coating removal wheel assembly 025-0413 R25 11 mm steel bent belt, coarse...
  • Page 16 PARts - Rustibus® 25 AiR *To locate the part on the schematic, please take the last 2 digit of the part#. 025-0008 R25 O-Ring (3,5 *1,4) 025-0009 R25 Air inlet 025-0012 R25 Cone muffler 025-0013 R25 Protecting rubber 025-0014 R25 Housing...
  • Page 17 PARts - Rustibus® 25 AiR 025-0030 R25 Idler gear pin (3 pcs) 025-0031 R25 Gear plate 025-0032 R25 Sliding key 025-0033 R25 Bearing (6200ZZ) 025-0034 R25 Clamp nut 025-0035 R25 Bevel gear 025-0036 R25 Washer 025-0037 R25 Screw (M4*6) 025-0038...
  • Page 18 Dalseide Shipping Services cannot be held liable for any damages (to Rustibus® machines or personnel) as a result of use of non genuine parts. We reserve the right to refuse any claims on parts or Rustibus® machinery unless it can be proven that genuine parts only have been used on Rustibus® machines.

  • Page 19: Contact Information

    2140 Antwerpen Belgium Ph: + 32 3227 2096 Fax: + 32 3227 2097 e-mail: antwerp@rustibus.com SINgAPoRe: Rustibus PTe LTD 18 Boon Lay Way #08-145 TradeHub 21 Singapore 609966 Ph: +65 62 62 52 26 Fax: +65 62 66 69 55 e-mail: singapore@rustibus.com...
