Page 1

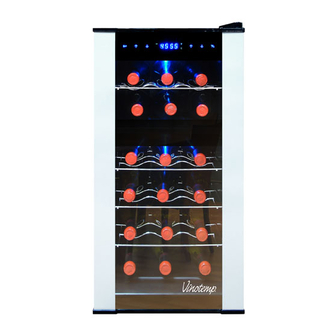

A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y 1 8 - B o t t l e D u a l - Z o n e T h e r m o e l e c t r i c W i n e C o o l e r V T - 1 8 P T E D - 2 Z ( 1 8 b o t t l e )
Page 2
Y o u r W i n e C e l l a r This unit can be used for storage and/or service. The unit has a glass door and soft interior light that you can leave on to elegantly display your wine. S e r v i n g W i n e s Storing wines at the proper temperature is important.
Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged. Contact our customer service at 1-800-777-8466 or info@vinotemp.com. Please read and follow all safety rules and operating instructions before using.
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS .................... 5 ELECTRICAL CONNECTION ...................... 6 PARTS & SPECIFICATIONS ....................... 7 TECHNICAL DATA .......................... 7 INSTALLATION .......................... 8 OPERATING YOUR WINE COOLER .................... 8 CARE AND MAINTENANCE ...................... 9 PROBLEMS WITH YOUR WINE CELLAR .................. 10 TROUBLESHOOTING GUIDE ...................... 10 TERMS OF SALE AND WARRANTY .................... 11 SERVICE & IMPORTANT NOTICE .................... 12 W W W . V I N O T E M P . C O M...
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions: • Do not operate this or any other appliance with a damaged cord. • Do not operate if housing is removed or damaged. •...
ELECTRICAL CONNECTION For your protection, this unit is equipped with a 3-conductor cord set that has a molded 3-prong grounding-type plug and should be used in combination with a properly connected grounding-type outlet. It is strongly recommended that you do not use an adapter or an extension cord with this unit.
PARTS & SPECIFICATIONS 1. Wire Shelf 4. Hinge Cover 2. Control Panel 5. Seamless Glass Door 3. Leveling Leg 6. Interior Light Button TECHNICAL DATA Model No. VT-18PTED-2Z Capacity 18 Bottles Volume 52 liters Voltage AC 110V Frequency 60HZ Input Power 130W Power Consumption (kWh/24h) Upper Zone: 45°-54°F...
INSTALLATION • Remove all packing material before using your cooler. Check to be sure all parts are included and that the cooler is in good condition. • IMPORTANT: Before connecting the unit to a power source, let it stand upright for approximately 24 hours.
CONTROL PANEL LOCK Used to lock or unlock the control panel. LIGHT To turn the light on and/or off, press the interior light button. SETTING A TEMPERATURE • The interior control range is 45°-64°F. • The lower zone temperature can be set between 54° and 64°F and the upper zone temperature can be set between 45°F and 54°F.
PROBLEMS WITH YOUR WINE CELLAR You can solve many common wine cellar problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before contacting Vinotemp at info@vinotemp.com.
Any claim for damages incurred during shipment by the carrier of the goods are insured and handled directly with the carrier and must be noted at time of delivery. Any damages due to manufacture defects will be handled directly with Vinotemp International, subject to the limited warranty.
Rancho Dominguez, CA 90221 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
