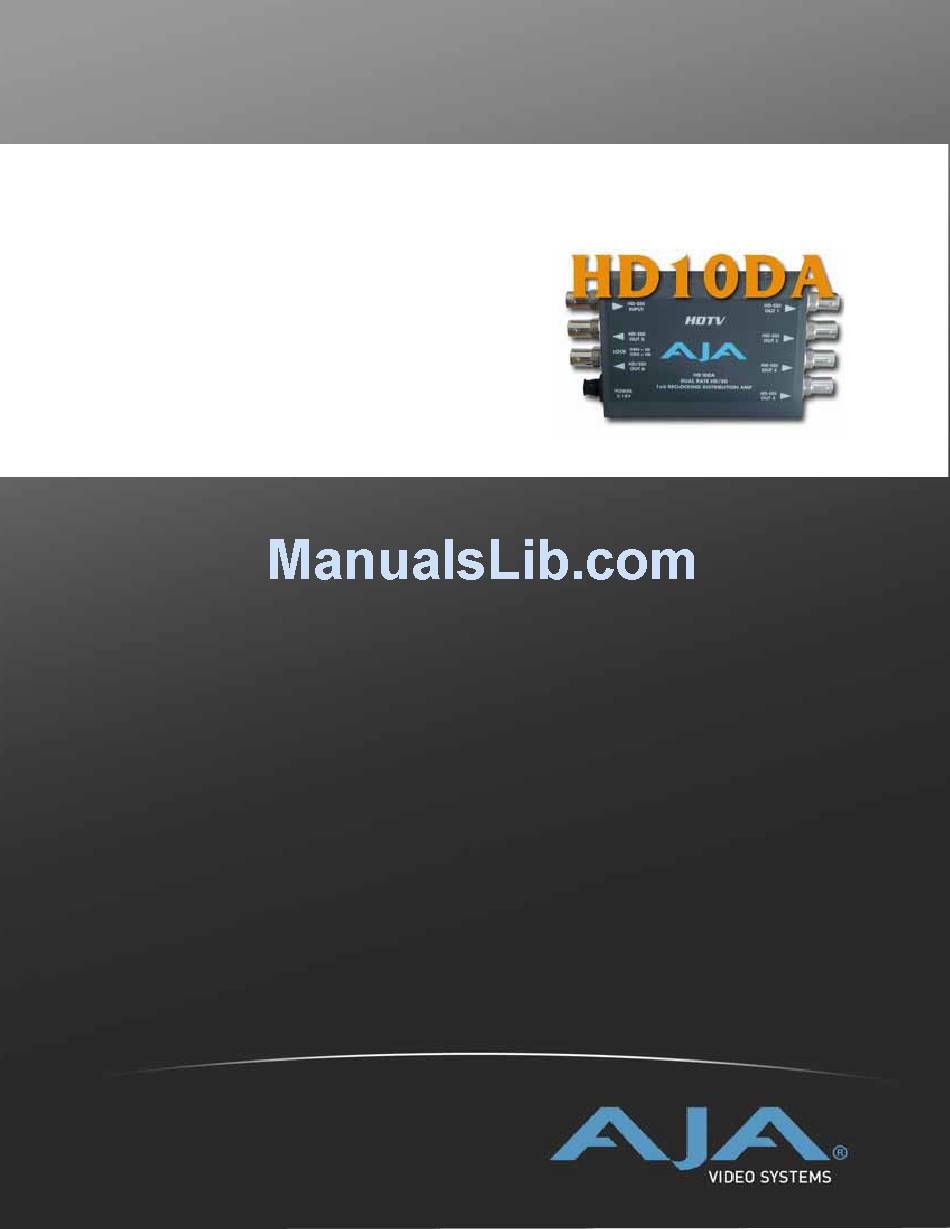

- Page 1 HD10DA HD/SD 1x6 Distribution Amplifier Published: 12/04/12 Installation and Operation Guide B e c a u s e m a t t e r s .
-
Page 2: Contacting Support
AJA Video warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. -
Page 3: Block Diagram
AJA HD10DA 1x6 HD/SD Distribution Amplifier User Manual — Introduction Introduction The HD10DA is a miniature, low-cost 1x6 SD/HD (dual-rate) re-clocking distribution amplifier. Featuring six separately buffered HD-SDI outputs, the HD10DA provides automatic input cable re-clocking and equalization to 125 meters. -
Page 4: Installation
Installation Typically, HD10DA installation consists of the following: 1. disconnect +5VDC from the convertor 2. connect video equipment to the BNCs 3. apply +5VDC power to the converter Specifications Item Specification Input SDI or HD-SDI auto-sensing All ancillary data will be passed to outputs... -
Page 5: Appendix A: Safety & Compliance
AJA HD10DA 1x6 HD/SD Distribution Amplifier User Manual — Federal Communications Appendix A: Safety & Compliance Federal Communications Commission (FCC) Compliance Notices Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. - Page 6 Declaration of Marking by this symbol indicates compliance with the Essential Requirements of the EMC Directive of the European Union 2004/108/EC. Conformity This equipment meets the following conformance standards: Safety: CB- IEC 60065:2001 + A1:2005 NRTL - UL 60065:2003 R11.06, CSA C22.2 NO. 60065:2003 + A1:06 GS - EN 60065:2002 + A1 Additional licenses issued for specific countries available on request.
-
Page 7: Korea Kcc Compliance Statement
AJA HD10DA 1x6 HD/SD Distribution Amplifier User Manual — Korea KCC Compliance Statement Korea KCC Compliance Statement Taiwan Compliance Statement This is a Class A product based on the standard of the Bureau of Standards, Metrology and Inspection (BSMI) CNS 13438, Class A. - Page 8 Before operating your unit, please read the instructions in this document Warning! Read and follow all warning notices and instructions marked on the product or included in the documentation. Avertissement ! Lisez et conformez-vous à tous les avis et instructions d'avertissement indiqués sur le produit ou dans la documentation.
- Page 9 AJA HD10DA 1x6 HD/SD Distribution Amplifier User Manual — Before operating your unit, please Warning! Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Avertissement ! N'installez pas l'appareil près d'une source de chaleur telle que des radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils (amplificateurs compris) qui produisent de la chaleur.
