Page 1: Table Of Contents
Service manual Type: WM60 Contents Introduction..............................3 Product.overview............................4 Programme..............................5 Programme.selection,.options.and.making.settings..................6 Programme.selection...........................6 Selecting.Options..........................8 Making.settings..........................10 Service.menu...............................13 Production.test.............................17 In-store.demonstration.programme......................17 Fault.indications............................18 Components.and.measurement.values.......................20 Measurement.values.thermistor........................20 Technical.data.............................21 Wiring.diagram............................22 Rehanging.the.door.............................23 Replacing.panels.and.detergent.compartment....................26 Replacing.front.plate,.door,.covering.plate.and.the.hinges................28 How.to.use.the.emergency.opener.for.door.lock..................29 Appendix:.Timer.diagram...
Page 2 Service.manual.WM60 Updates Revi- Date Description Signa- sion ture 2007-11-27 Updated.the.”Show.room.program”./In-store.demonstration.programwith.a. description.for.machines.manufactured.week.737.and.later.
Page 3: Introduction
Service.manual.WM60 Introduction You.are.holding.the.service.manual.for.WM60.3.type.washing.machines. It.should.be.easy.to.service.a.washing.machine..It.is.important.that.you,.as.a.service.technician,.are.given. the.conditions.to.be.able.to.carry.out.work.in.an.efficient.and.satisfactory.way..Our.hope.is.that.this.service. manual.is.a.useful.tool.for.your.daily.work. The.type.designation.can.be.found.on.the.machine.plate.located.by.the.door.catch.on.the.inside.of.the.front. plate.(see.image.below).. Type designation Product number Year Week Serial number...

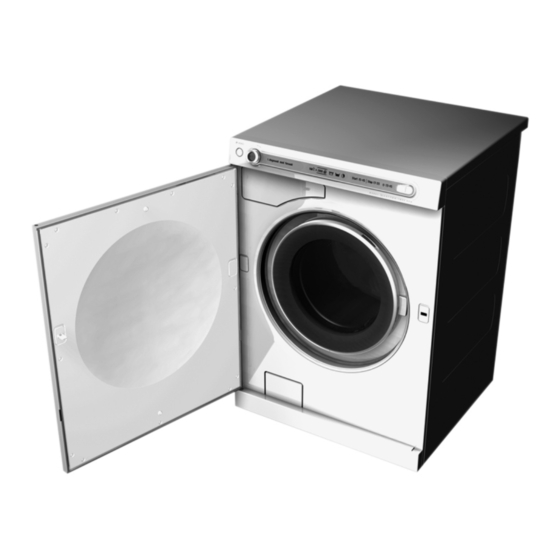

Page 4: Product.overview
Service.manual.WM60 Product overview WM60.3 Programmes: 14,.where.one.consists.of.the.menu.for.settings.(Programme.14) Options: Settings: WM60.3 (Integrated) Programmes: 14,.where.one.consists.of.the.menu.for.settings.(Programme.14) Options: Settings:...
Page 5: Programme
Service.manual.WM60 Programme WM60.3, with 5 rinses Water. Energy. Programme. Tempe- Tempe- Max. Pre-. Main. Max. Rinses. consumption. consumption. time. rature. Programme rature. speed. wash wash load (number) (approx.. (approx.. (approx.. °F °C (rpm) litres) kWh). min) Programme.1 Programme.2 30-180 Long 1600 Programme.3...
Page 6: Programme.selection,.Options.and.making.settings
Service.manual.WM60 Programme selection, options and making settings Super.rinse Normal.rinse Economy.rinse Programme.1 2000 2000 Programme.2 Clock Door.opening Delayed.Start 95°C 95°C 1900 1900 Programme.3 1800 1800 80°C 80°C Programme.4 1700 1700 70°C 70°C Programme.5 1600 1600 60°C 60°C 10.20 09.20 Programme.6 1400 1400 50°C...
Page 7 Service.manual.WM60 White,.White,.White,.Snabb.vittvätt,.Hurtig. Normally-soiled.sheets,.pillowcases.and.towels.will.come.clean. hvidvask,.Hvit,.Normaalipesu,.Intensif,. at.60.°C/140.°F. Kochwäsche, Capi resistenti, Pesado, Бeлoe, Witte.was Colour,.Color,.Colour,.Kulörtvätt,.Kulørt. Clothes.worn.next.to.the.skin.should.be.washed.at.60°C/.140. vask,.Kulør,.Päivittäispesu,.Blanc/couleurs,. °F..Lightly-soiled.laundry.can.be.washed.at.40°C..Most.modern. Buntwäsche,.Bianchi/colorati,.Normal.Plus,. detergents.are.effective.even.at.40°C. Цвeтнoe, Bonte was Quick,.Quick,.Quick,.Kvicktvätt,.Kvikvask,. Lightly.soiled.laundry.that.only.needs.freshening.up.can.be. Hurtig,.Pikapesu,.Rapide,.Schnell,.Rapido,. washed.for.a.short.time.at.40°C. Rápido, Быстрaя стиркa, Kort programma Synthetics,.PermaPress,.Synthetics,. This.programme.is.suitable.for.shirts.and.blouses.made.of. Syntettvätt,.Syntetisk.vask,.Syntet,.Siliävät/ synthetic.and.blended.material..Wash.white.items.at.60°C/.140. Synteettiset,.Synthétique,.Pflegeleicht/ °F.and.coloured.items.at.40°C/.104.°F. Fein, Sintetici, Perma Press, Синтeтикa, Synthetische.was...
Page 8: Selecting.options
Service.manual.WM60 Selecting Options The.options.are.displayed.in.the.order.they.occur.in.LCD2..All.display.text.language.versions.are.displayed. LCD 2 Comments/instructions Press/ turn Temperature. 95°C,.205.°F Selection.of.temperatures.between.Cold.and.95°C..Cold.is.the.same. 80°C,.175.°F as.the.incoming.water.temperature..For.programme.8.and.9,.the. maximum.temperature.is.40°C,.for.programme.10,.the.maximum. 70°C,.160.°F temperature.is.60°C. 60°C,.140.°F 50°C,.120.°F 40°C,.105.°F 30°C,.85.°F Cold,.Cold,.Cold,.Kalt,.Kold,.Kald,.Kylmä,.Froid,. Kallt, Freddo, Fría, Дoп.пoлoскaниe, Koud .Spin 2000 ..Option.of.choosing.spin.speed.between.400.and.2000.rpm..Spinning. 1900 ..at.400.–.800.rpm.signifies.a.short.spin. Programme.8,.9.and.10.cannot.be.selected.at.speeds.greater.than. 1800 ..800.rpm..Programme.2.has.a.maximum.speed.of.1600.rpm. 1700 ..
Page 9 Service.manual.WM60 Rinse. Economy.Rinse,.Economy.Rinse,. Economy.Rinse,.Lätt.sköljning,. The.rinse.programme.can.be.selected.in.programme:.3,.4,.5,.6,.7,.8,. Økonomi.skyl,.Økonomi.skylling,. 9.and.10 Ekohuuhtelut,.Rinçage.économique,. Eco.Spülen,.Risciacquo.economico,. Enjuague económico, Hoрм. -.Economy.rinse.(reduces.the.number.of.rinses,.used.for.lightly.soiled. пoлoскaниe, Eco spoelen laundry) -.Normal.rinse.(recommended.number.of.rinses.during.normal.soiled. Normal.Rinse,.Normal.Rinse,.Normal. laundry.) Rinse,.Normal.sköljning,.Normalt.skyl,.. -.Super.rinse.(adds.rinses,.maximum.7) ,.Normaalihuuhtelut,.Rinçage.normal,. Normal.Spülen,.Risciacquo.normale,. Number.of.rinses.varies.depending.on.programme. Enjuague normal, Hoрм.пoлoскaниe, Normaal.spoelen Super.Rinse,.Super.Rinse,.Super. Rinse,.Supersköljning,.Superskyl,. Superskyll,.Superhuuhtelut,. Super.rinçage,.Super.Spülen,. Risciacquo.super,.Superenjuague,. Супeрпoлoскaниe, Super spoelen High.water.level Normal.water.level,.Normal.Water. Level,.Normal.water.level,.Normal.
Page 10: Making.settings
Service.manual.WM60 Making settings The.setting.options.below.are.shown.in.the.order.they.occur.in.LCD2.(Programme.14.under.the.programme.menu.is,.however,.shown. in.LCD1)..All.display.text.language.versions.are.displayed..If.no.choices.is.done.within.2.minutes.the.display.will.be.set.in.Stand-by. mode. LCD 2 LCD3 Comments/instruc- Press/ Press/ tions turn turn Settings,.Settings,.Settings,. In.the.programme.menu:.Scroll. Inställningar,.Indstillinger,. to.Programme.14.(Settings) Innstillinger,.Asetukset,. Réglage,.Einstellungen,. Programme.14.is.shown.in. Impostazioni,.Ajustes,. LCD1. Haстрoйки, Instellingen You.will.now.enter.the.Settings.menu.. Presoak,.Presoak,.Presoak,. Förblötning.,.Iblødsætning,. Bløtlegging.,.Liotus,. Trempage,.Einweichen,. On,.On,.On,.På,.Til,.På,.Päällä,.On,.An,. The.laundry.will.soak.in.cold. Ammollo,.Remojar,. On, encendido, Bкл., Aan water.for.two.hours.before.the. Зaмaчивaниe, Inweken programme.starts.
Page 11 Service.manual.WM60 Audible.volume,.Buzzer. Volume,.Audible.volume,. Ljudsignal.volym,.Lydsignal,. Lydsignal,.Hälytysääni,. Off,.Off,.Off,.Av,.Fra,.Av,.Poissa,.Off,.Aus,. No.buzzer Volume.buzzer,.Tonsignal,. Off, apagado, Bыкл., Uit Volume.allarme,.Volumen. timbre, Грoмкoсть сигнaлa, Low,.Low,.Low,.Låg,.Lav,.Lav,.Matala,. Buzzer.that.indicates.the.end.of. Geluidssignaal Faible, Niedrig, Bassa, Bajo, Hизкaя, a.programme.or.error.. Laag Normal,.Normal,.Normal,.Normal,.Normal,. Buzzer.that.indicates.the.end.of. Normal,.Normaali,.Normal,.Normal,. a.programme.or.error.. Normale, Normal, Hoрмaльнaя, Normaal High,.High,.High,.Hög,.Høj,.Høy,.Korkea,. Buzzer.that.indicates.the.end.of. Elevé,.Hoch,.Alta,.Alto,.B??o?a?,.Hoog a.programme.or.error.. Saves.the.setting.and.returns.to.the.programme.menu,.Programme.14. Child-safe,.Child- safe,.Barnsäker,.
Page 12 Service.manual.WM60 Language,.Language,. Language,.Språk,.Sprog,. Språk,.Kieli,.Langue,.Sprache,. Lingua, Idioma, Язык, Taal US.English English Default svenska dansk norsk suomi Francais Deutsch Italiano espanol Русский nederlands Saves.the.setting.and.returns.to.the.programme.menu,.Programme.14. Temperature.,.F°.or.C°. Setting,.Temperature.,. Temperatur,.Temperatur. enhed,.Temperaturenhet,. Celsius Lämpötilayksikkö,. Unités.de.température,. °C Temperatureinheit,. Unità.temperatura,. Unidad.de.temperatura,. Fahrenheit Шкaлa тeмпepaтур, °F Temperatuurweergave Saves.the.setting.and.returns.to.the.programme.menu,.Programme.14. Return,.Return,.Return,.
Page 13: Service.menu
Service.manual.WM60 Service menu This is how to enter the service menu If.the.machine.is.on:.First.switch.the.power.off.and.then.on.via.the.main.power.switch. Press.the.programme.selector.(S1).at.the.same.time.as.the.Main.power.switch. Press.the.programme.selector.button.3.times.within.5.seconds..You.are.now.in.the.service.menu.(shown.in. LCD.2..See.instructions.below.for.navigating.the.service.menu. Programme selector 1..Press.the.programme.selector.button.to.scroll.between.the.various.service.menus.. 2..Turn.the.programme.selector.button.to.make.a.selection.between.the.menus.(e.g..set.a.certain.water.inlet)... Confirm.the.selection.and.go.to.the.next.menu.by.pressing.the.programme.selector.button.(1). 3..Press.the.Start/Stop.button.to.confirm.the.settings.and.exit.the.service.menu. Programme selector button for integrated machines 1..Press.the.programme.selector.button.to.scroll.between.the.various.options.. 2..Press.the.small.arrows.to.make.a.selection.between.the.options.(e.g..set.a.certain.water.inlet)...Confirm.the. selection.and.go.to.the.next.option.by.pressing.the.programme.selector.button.(1). 3..Press.the.Start/Stop.button.to.confirm.the.settings.and.exit.the.service.menu.
Page 14: Service Menu
Service.manual.WM60 Service menu The.options.below.are.displayed.in.the.order.they.occur.in.LCD.2..All.display.text.language.versions.are.displayed.. LCD 2 Comments/instructions Press/ turn DataSerialNo,.Data.Ser.Num,.DataSerialNo,. Date.for.programming.the.software.(Year_Week) DataSerialNo,.Serienummer,.Serienummer,. Dataversio.Nro,.N°.de.série,.Seriennummer,. Num. di serie, N° de serie, Сeрийный нoмeр, Serienummer CU.date.code,.CU.Date.Code,.CU.date.code,. Control.unit’s.date.of.manufacture.(Year_Week) CU.datum.kod,.CU.dato.kode,.Styrekort.prod. dato,.CU.pvm.koodi,.Code.date.CU,.CU. Datumscode,.Codice.data.CU,.Código.fecha. CU, Кoд дaты БУ, CU datacode Software,.Software,.Software,.Mjukvara,. Software.version.number.. Software,.Software.ver.,.Ohjelmisto,.Logiciel,. Software, Software, Software, Beрсия пpoг., Software No..of.cycles,.Number.of.Cycles,.No..of.cycles,.
Page 15 Service.manual.WM60 Test.motor,.Testing.Motor,.Test.motor,. The.motor.is.running.at.normal.action.(49.rpm) Motortest,.Tester.motor,.Test.av.motor,. Moottoritesti,.Essai.moteur,.Motor.testen,.Test. motore, Test motor, Teст мoтoрa, Test motor Test.drain,.Testing.Drain,.Test.drain,. Drain.pump.is.on...Pressure.sensor.value.is.shown.in.LCD.2. Tömningstest,.Tester.udpumpning,.Test. av.tømming,.Tyhjennyspumpputesti,.Essai. vidange,.Abfluss.testen,.Test.scarico,.Test. drenaje, Teст нaсoсa, Test afvoerpomp Test.spin,.Testing.Spin,.Test.spin,. A.Spin.sequence.is.performed,.the.drain.pump.is.running..Unbalance. Centifugeringstest,.Tester.centrifugering,.Test. value.is.shown.in.LCD.2. av.sentrifugering,.Linkoustesti,.Essai.essorage,. Schleudern.testen,.Test.centrifuga,.Test. centrifugado, Teст oтжимa, Test centrifugeren Test.door,.Testing.Door,.Test.door,.Dörrtest,. Door.lock.is.activated,.the.door.is.then.opened. Tester.luge,.Test.av.dørlås,.Luukun.lukon.testi,. Essai.porte,.Luke.testen,.Test.sportello,.Test. puerta, Teст зaмкa двeрцы, Test deurslot Press..
Page 16 Service.manual.WM60 Reheat.Off,.Reheat.Off,.Reheat.Off,. Deactivate.the.function.. Återvärmning.Av,.Genopvarmning.Fra,. Oppvarming.Av,.Uudelleenlämmitys.Poissa,. Réchauffage.Off,.Erneut.heizen.Aus,. Riscaldamento.Off,.Recalentamiento.apagado,. Haгрeв Bыкл, Opnieuw verwarmen Uit Reheat.On,.Reheat.On,.Reheat.On,. Activate.the.function Återvärmning.på,.Genopvarmning.Til,. Oppvarming.På,.Uudelleenlämmitys. Päällä,.Réchauffage.On,.Erneut.heizen. An,.Riscaldamento.On,.Recalentamiento. encendido, Haгрeв Bкл., Opnieuw verwarmen Press..to.exit.the.service.menu. 1500.rpm Setting.maximum.speed..Maximum.rpm.is.either.1800.or.2000.rpm. depending.on.model. 1600.rpm 1700.rpm 1800.rpm 1900.rpm 2000.rpm Press..to.exit.the.service.menu. Reset Reset displayed by LCD.
Page 17: Production.test
Service.manual.WM60 Production test Starting the production test If.the.machine.is.on:.First.switch.the.power.off.via.the.main.power.switch..Then.press.and.hold.the. door.opeing.button.at.the.same.time.as.the.main.power.switch. Press.the.Start/Stop.button.5.times. To.facilitate.troubleshooting.in.the.event.of.a.fault.occurring,.the.machine.can.be.tested.by activating.“Production.test”.which.takes.approx...20.minutes.and.tests.the.different.functions.of the.machine.. 1..The.machine.takes.in.water.until.normal.water.level..Push.the.DOOR.OPENING.BUTTON.to.confirm.the. selection.and.go.on.to.the.following.steps.(see.below). 2..The.heating.element.is.activated;.the.CU.checks.that.an.adequate.rise.in.temperature.(20 .is.achieved. °.C) within.a.set.time.. 3..The.motor.is.activated.as.if.a.washing.programme.had.been.started.. 4..The.machine.is.emptied.by.activating.the.drain.motor;.the.pressure.sensor.should register.that.the.draining.is.complete.within.a.given.time.. 5..When.the.machine.is.empty.of.water,.the.motor.is.tested.by.activating.the.spin.programme,.and.at.the. same.time.as.the.drainage.pump. 6..The.Production.test.is.finished.-.the.door.opens..If.the.CU.detects.any.faults.during.the.test.programme. the.test.sequence.will.be.stopped.and.a trouble.code.is.shown.on.the.display..For.a.detailed.description,.see.the.Service.Manual. In-store demonstration programme 1. Activating the In-store demonstration programme (for machines manufactu- red up to week 736) If.the.machine.is.on:.First.turn.off.the.power.at.the.main.power.switch..
Page 18: Fault.indications
Service.manual.WM60 Fault indications The.below.faults.are.indicated.in.plaintext.in.LCD.1..The.table.shows.the.indication.in.all.languages.and. language.variations.. LCD 1 Cause Action Service.action: Over.flow.fault,.Overflow.Fault,.Over. Too.much.water.in.the.machine flow.fault,.Överfyllnad,.Overløbsfejl,. Check.the.machine’s.level.system,.inlet.valve.and.drain. Overflom,.Ylitulviminen,.Trop.plein,. pump..Make.sure.that.there.is.no.leaks. Überfüllt,.Troppo.pieno,.Desborde,. Пeрeлив вoды, Te veel water Service.action: The.drain.pump.is.on,.without. any.water.in.the.machine. The.overflow.protection.at.the.bottom.of.the.machine. is.activated.(not.all.models)..Make.sure.that.there.is.no. leaks.(water.on.the.machines.base) Customer.information: Water.outlet.fault,.Water.Outlet.Fault,. 1.. The.drain.pump.has.been. Water.outlet.fault,.Uttömningsfel,. activated.more.than.3. 1.. Check.that.no.objects.are.stuck.in.the.drainage.hose. Udpumpningsfejl,.Vannutløp,. minutes..There.is.still.water. outlet. Vedenpoistovika,.Défaut.,.
Page 19 Service.manual.WM60 LCD 1 Cause Action Service.action: Temperature.fault,.Temperature. The.temperature.is.raised.<.5. Fault.,.Temperature.fault,. °F. °C/41 within.10.minutes..The. Check.the.heater,.cables,.thermistor.and.level.system. Temperaturstoppfel,.Temperatur. wash.cycle.continues.to.next. fejl,.Temperaturstopp,.Ei.lämmitä. step. vettä,.Défaut.,.Temp.-stoppfehler,. Errore arresto , Fallo , Teмпeрaтурa, Temperatuurstop (Note:.Is.only.shown.in.the.Service. menu) Service.action: Wash.motor.fault,.Wash.Motor.Fault. Indicated.if.the.tacho.generator. ,.Wash.motor.fault,.Motorfel,.Motor. is.overloaded.or.control.signal. Check.signal.from.the.MCU.and.cables.between.motor. fejl,.Motorfeil,.Moottorivika,.Défaut.,. is.missing.(from.the.tacho. and.MCU. Motorfehler,.Motore.lavaggio.,.Fallo.,. generator.or.MCU). Moтoр, Motorstoring Service.action:...
Page 20: Components.and.measurement.values
Service.manual.WM60 Components and measurement values Item number Component Measurement value Comments 80.658.33 CIM-motor Resistances: Pin 1-3 stator 3.7 Ω Pin 1-2 stator 3.6 Ω Pin 2-3 rotor 3.6 Ω Pin 4-5 tacho 178 Ω 80.617.06 Värmeelement. 28,4 Ω 2000.W 80.761.02 Thermistor 6.1-3.8.k...
Page 21: Technical.data
Service.manual.WM60 Technical data Height: 850.mm Width: 595.mm Depth: 585.mm Weight: 75.kg./.80.kg.(with.outer.door) Cylinder.volume: 50.l Max..washing.capacity: 6,0.kg Spin.speed: 400-2000.rpm. Connection: 1.fas.10.A Element.power: 2000W,.230V.(See.type.designation) Water.pressure: 0,1.–.1.MPa.,.1.–.10.kp/cm2,.10.–.100.N/cm2 Wash.drum.and.liquid.compartment. Stainless.steel material: Outer.casing.material: Powder-coated.and.hot-galvanized.sheet.steel.or.stainless.steel Set-up: Stationary.on.four.adjustable,.rubber-clad.feet Water.connection: 1.5.m.PEX.tubing,.3/4”.–.3/4”.or.3/4”.–.1/2” Drain: 1.7.m.polypropylene.tubing Protection.class:: IP.X4 Water.consumption: 54.l.(3.rinses),.<69.l.(5.rinses) Energy.consumption. 1,02.kWh Enegry.consumption.StandBy:...
Page 22: Wiring.diagram
Service.manual.WM60 Wiring diagram...
Page 23: Rehanging.the.door
Service.manual.WM60 Rehanging the door Some.machines.in.the.WM60-series.is.supplied.with.a.door.-.is.that.the.case.the.door.is.hung.on.the.left-hand.side...It.is,.however,. possible.to.re-hang.it.according.to.the.instructions.below..Take.care.not.to.damage.the.paint.when.carrying.out.work.with.tools.. Required tools Flathead.screwdriver Torx.size.20 Fixed.spanner.size.8 Instructions Image 1..Remove.the.plinth.by.carefully.pulling. it.out. 2..Remove.both.screws.for.the.lower. hinge..Use.Torx. 3..Push.the.door.upwards.with.care.and. angle.outwards..If.necessary,.carefully. press.the.lower.hinge.to.detach.the.door.. 4...Slacken.off.the.lower.and.upper.hinge. pins.using.a.fixed.spanner.
Page 24 Service.manual.WM60 5..Remove.the.plastic.plugs.covering. the.holes.for.the.hinge.pins.and.switch. location Method for removing plastic plugs, lock and catch loca- ted on the machine and the door: Carefully.push.the.plug,.catch.or.lock. upwards.with.a.flat.screwdriver..as.the. picture.shows.. 6..Carefully.remove.the.catch.and. plastic.plug.on.the.door.(according. to.the.method.above).and.switch. location. 7..Carefully.remove.the.lock.and. plastic.plug.on.the.machine.(according. to.the.method.above).and.switch. location.. 8..Screw.the.hinge.pins.securely.into. place.on.the.corresponding.side.of.the. machine. 9..Slacken.off.the.screws.for.the.lower. hinge.on.the.corresponding.side.of.the. machine..This.must.be.done.to.hang. the.door.
Page 25 Service.manual.WM60 10..Align.the.door.in.the.upper.hinge.. Carefully.push.the.lower.hinge.down.if. necessary.and.align.the.door. 11..Screw.the.lower.hinge.into.place. securely..Use.Torx. 12.Press.the.plinth.into.place..The. door.has.now.been.re-hung.
Page 26: Replacing.panels.and.detergent.compartment
Service.manual.WM60 Replacing panels and detergent compartment Instructions Image 1..Unscrew.the.top.cover. 2..Carefully.press.the.catches.that.secure. the.panel.at.the.front.beam..Release. the.catches.from.the.front.member.by. working.the.panel.outwards.. 3..Detach.the.panel.by.angling.and.pulling. it.carefully.outwards.at.the.lower.edge.. Note:.Do.not.damage.the.wiring! 4...Carefully.disconnect.the.wiring.from. the.control.unit. 5..When.removing.the.detergent. compartment,.first.slacken.off.the. screw.on.the.front.member.and.then. the.two.screws.holding.the.detergent. compartment.in.the.side.panel. 6..Lift.the.detergent.compartment..Then. remove.the.hose.clamps.for.all.hoses,. which.are.secured.in.the.detergent. container..Then.detach.the.hoses.from. the.detergent.compartment..
Page 27 Service.manual.WM60 Instructions Image 7..If.necessary:.Replace.the.decor.panel. for.the.detergent.compartment..Detach. the.decor.panel.by.pressing.according.to. image.1..Install.the.decor.panel.by.first. placing.the.decor.panel.in.the.grooves. on.the.detergent.container.and.then. snapping.it.into.place.as.illustrated.in. image.2. 8..Install.the.detergent.compartment.by. first.pressing.all.hoses.into.place.and.then. securing.them.using.the.hose.clamps.. 9.Screw.the.detergent.compartment.into. place.using.the.three.screws.(one.in.the. front.panel.and.two.in.the.frame) 10...Install.all.wiring.in.the.relevant. locations.on.the.control.card. 11..Install.the.panel..Angle.the.panel. outwards.and.place.the.mounting.plates. in.the.relevant.grooves.in.the.front.frame.. Angle.the.panel.downwards.and.secure.it. with.the.catches 12..Screw.the.top.cover.into.place.
Page 28: Replacing.front.plate,.Door,.Covering.plate.and.the.hinges
Service.manual.WM60 Replacing front panel, door, cover plate and the hinges Instructions Image 1..Unscrew.the.screws.in.the.hooks. holding.the.front.panel..Then.carefully.pull. off.the.drainage.hose.that.is.secured.in. the.door.for.the.drainage.pump.. Note! Water.is.poring.out.when.the.drainage. hose.is.pulled.off. 2...Unscrew.the.screws.holding.the.front. panel..Then.remove.the.front.panel.by. carefully.pulling.it.out.at.the.lower.edge. 3..Unscrew.the.two.screws.holding.the. glass.door..Use.Torx. 4..Unscrew.the.three.screws.that.hold.the. cover.plate.to.the.container..Use.Torx. 5..Unscrew.the.four.screws.securing.the. hinge.to.the.container..Use.Torx..After. removing.the.four.screws,.remove.the. cover.plate.and.hinge.
Page 29: How.to.use.the.emergency.opener.for.door.lock
Service.manual.WM60 How to use the emergency opener for door lock Instructions Image 1..The.emergency.opener.is.in.the. documentation.kit. 3..Push.the.emergency.opener.into.the. slot.beside.the.glass.door. 4..Push.the.emergency.opener.upwards.. and.the.door.will.open. 80.813.75.Rev.03.Service.manual.WM60.EN...
Page 30 Service.manual.WM60...
Page 31 Service.manual.WM60...
Page 32 Service.manual.WM60 Notes...
