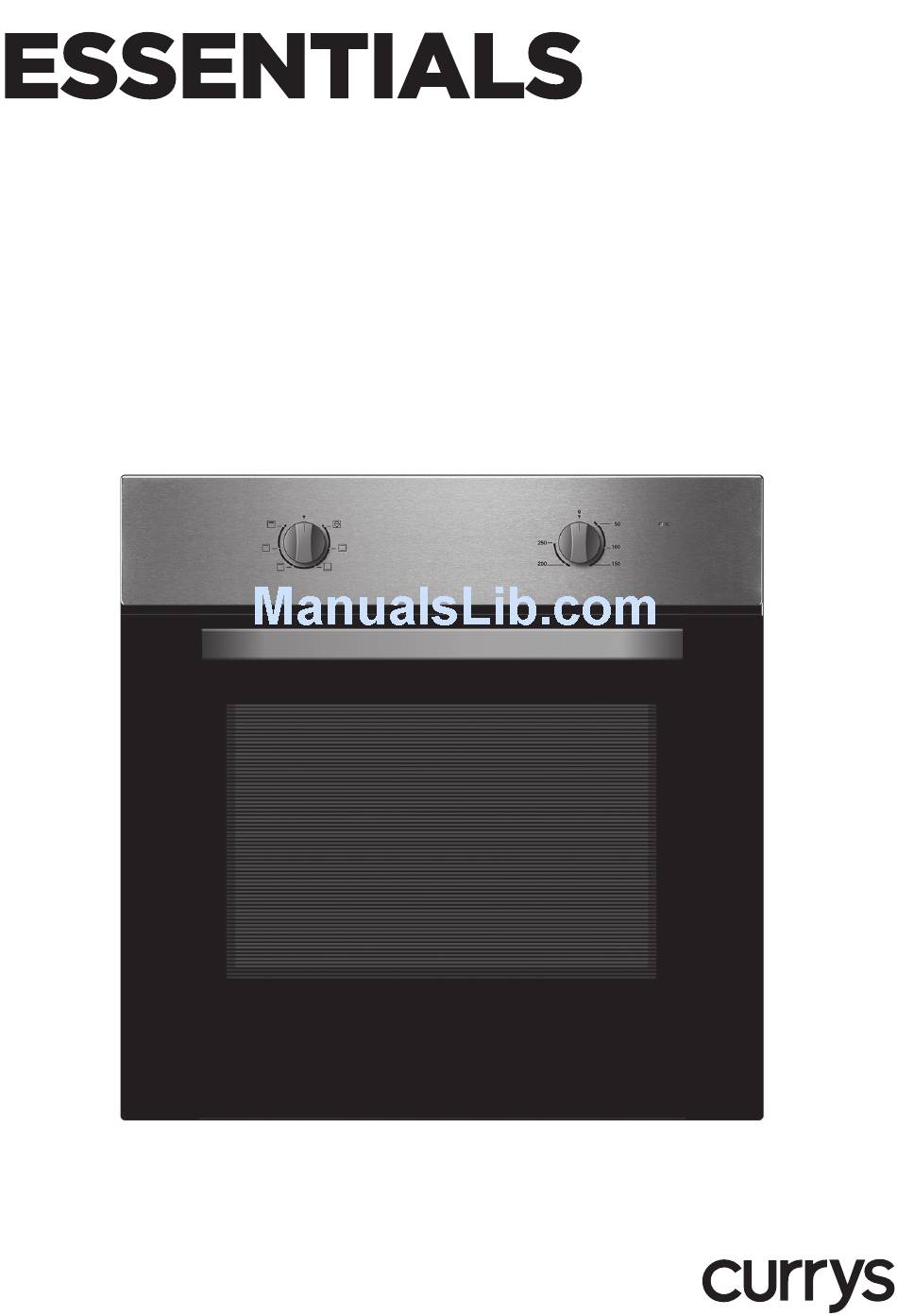

- Page 1 INSTRUCTION MANUAL ELECTRIC OVEN CBCONX14...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 7 Product Overview ......................... 8 Front View ...................................8 Control Panel ................................8 Connecting to the Mains ......................9 First Time Use of the Oven ......................9 Using the Oven ..........................9 Baking ...................................9 Roasting Meat ................................9 Settings of the Function Control .................... -
Page 4: Safety Warnings
Safety Warnings Installation • The appliance must be installed by a competent person or a qualified electrician in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. • Before using the appliance, ensure that all packing materials are removed from the appliance. • In order to avoid any potential hazard, the enclosed installation instructions must be followed. • Ensure that all specified vents, openings and air spaces are not blocked. • The panels adjacent to the oven must be made of heat-resistant material. • Cabinets with a veneer exterior must be suitable for use with Built-in Ovens. if the built-in appliance is installed in a cabinet with a cabinet door, the cabinet door must be kept open while the appliance is in use. • Keep combustible materials, such as: curtains, drapes, furniture, pillows, clothing, linens, bedding, paper, etc., at least 3 feet(0.9 meters) from the front sides and rear of the oven. Do not use this unit in areas where gasoline, paint or other flammable liquids or their associated vapours may be present. • To reduce the risk of fire, do not place or install this unit in areas where the ventilation or circulation ducts may become blocked. • The unit’s mains power cable must be connected to a properly earthed and protected, 220-240V electrical outlet. Always use ground fault protection where required by the electrical regulations. To reduce the risk of fire, avoid running the mains cable under rugs, carpets, etc. Keep the mains cable away from high traffic areas where it may pose a tripping hazard. • Do not use an extension cable, which may overheat and cause a fire. • When transporting or storing the unit, keep it in a dry location, free from dust, excessive vibration or other factors, which may damage the unit. • Do not operate any oven with a damaged mains cable or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return the oven to an authorized service facility. • Only authorized personnel should carry out servicing. (Certificate of Compliance to be retained) • This appliance must be earthed. - Page 5 General Warnings • If the mains power cable is damaged, it must be replaced by a qualified electrician, manufacturer’s service agent or similarly qualified persons in order to avoid a hazard. • This product has not been designed for any uses other than those specified in this booklet. • This appliance must not be used as a space heater. • In order to avoid fire, the appliance must be kept clean and the vents unobstructed. • Do not use steam cleaner for cleaning. • Do not spray aerosols within the vicinity of the appliance during operation. • Do not store flammable materials in or under the appliance, e.g. aerosols. • Do not line the bottom of the oven with foil or cookware. • Always use oven gloves when handling hot items inside the oven. • Always turn the grill off immediately after use as fat left behind may catch fire. • Do not leave the oven unattended when grilling. Oils and fats may catch fire due to overheating. • Do not rest cookware, lean or stand on the opened oven door. • Do not use the oven in the event of a technical fault. Any faults must be repaired by an appropriately qualified and authorized person. • In the event of any incident caused by a technical fault, disconnect the mains power and report the fault to a service centre to be repaired. • The rules and provisions contained in this instruction manual should be strictly observed. • Do not allow anybody who is not familiar with the contents of this instruction manual to operate the cooker. • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall...
- Page 6 the glass to shatter. • The glass oven door uses toughened glass and is designed to break into many ‘ nugget’ size pieces if it breaks. These pieces will still have sharp edges, please handle broken glass with care. Oven • During use the appliance becomes hot. Care should be taken to avoid touching the hot surfaces inside the oven. Keep children away. • Switch the appliance off before removing the oven lamp protective cover for lamp replacement. Replace the protective cover in accordance with the instructions. • To avoid an accident, ensure that oven shelves and fittings are always inserted into the appliance in accordance with the instructions. • Do not use the door as a shelf. • Do not push down on the open oven door. • Accessible parts may become hot during use. Keep children away. • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. • The glass oven door uses toughened glass and is designed to shatter into many ‘ nugget’ sized pieces if it breaks. These pieces will have sharp edges, please handle broken glass with care. Grill • Do not cover the grill insert with foil, as fat left there may catch fire. • Always keep the tray clean as any fat there may catch fire. • Do not leave the grill on unattended. • To avoid fire, ensure that grill pans and fittings are always inserted into the appliance in accordance with the instructions. • Do not place thick portions of food on a grill that is using the top shelf position. Foods may curl, catch and ignite fire.
-
Page 7: Unpacking
Thank you on the purchase of your new Currys Essentials Oven. We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference. -
Page 8: Product Overview
Product Overview Front View Control Panel Oven Door Handle Oven Door Control Panel Function Indicator Thermostat Control Dial Function Control Dial Thermostat Indicator... -
Page 9: Connecting To The Mains
Connecting to the Mains When you first connect the oven to the mains supply, the unit will be in Standby Mode. Function symbols will not be lit and dials will be inactive. First Time Use of the Oven Unpack the oven. Remove any insert cards or plastic bags and all accessories. Use a damp cloth to carefully wipe the interior and exterior of the oven. -
Page 10: Settings Of The Function Control
Settings of the Function Control Symbol Function Description Oven Light Switches on the top fan and the internal light. (During cooking the interior light will automatically turn on.) Upper & Lower Heating Function Switches on the oven’s thermostat, indicator lights, fan and lower and upper heating elements. -
Page 11: Using The Grill
Using the Grill In order to switch on the grill you need to: • Set the Function Control Dial to one of the following positions: Grill , Double Grill • Set the Thermostat Control Dial to the desired temperature. • Heat the oven for approximately 10 minutes (with the oven door shut). • Move the wire shelf to the desired shelf position. -
Page 12: Questions And Answers
Questions and Answers In the event of unexpected operation, you should: • Switch off the oven and if possible, disconnect it from the mains supply. Make sure all control knobs are set to the “0” position. • Call the customer support centre. • Some minor faults can be fixed by referring to the instructions given in the table below. -
Page 13: Replacement Of The Oven Lamp
Replacement of the Oven Lamp Ensure that the oven is switched off from the mains socket before replacing the lamp to avoid the possibility of electric shock. • Set all control knobs to the ”0” position. • Allow the oven to completely cool down. • Turn the lamp cover anti-clockwise to unscrew. - Page 14 Slightly close the door and lift. The notch on the bottom of the hinge will disengage. Now pull the door forward off the oven. Releasing both hinge sections from the slots. To replace the door, repeat the above steps on reverse order.
-
Page 15: Specifications
Specifications Model CBCONX14 Voltage Rating 220 - 240V Power Rating 3000W (MAX) Cooker Dimensions H/W/D 59.5 (H) x 59.5 (W) x 57.5 (D) cm Usable Capacity of the Oven 65 L Energy Efficiency Class Forced Air : 0.99kwh Energy Consumption Convectional : 0.99kwh... - Page 16 The mains connection for this product must have an all pole disconnection provided in the fixed wiring in accordance with the local wiring regulations. To avoid any potential hazard, you must follow these instructions when you install your appliance. Cabinet 1 • The kitchen area should be dry and equipped with sufficient ventilation.
-
Page 17: Electrical Connection
Electrical Connection Fitting Guidelines The oven is manufactured to work with single-phase alternating current (230V – 240V/50Hz). The connection diagram is also found next to the cover of the connection box. • All electrical work should be carried out by a suitably qualified and authorised electrician. -
Page 18: Wiring Instructions
Wiring Instructions This connection is only for cables 4mm – 6mm thick. To connect to a mains power supply of 220-240~V, follow the instructions below: a. Unscrew the cable bracket. b. Connect the LIVE wire to L. c. Connect the NEUTRAL wire to N. d. - Page 20 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
