Hearth & Home Heat-Zone 240V Installation And Operation Instructions

Air duct kit

Advertisement

Heat-Zone
240V Air Duct Kit
®
Operation INSTRUCTIONS

Approvals

The Heat-Zone
240V air duct kit is approved for use on
®
Heat & Glo Models XLR-AU, XLR-PLUS, XLR-CE, RED40-
AU, 6TRSI-AUD, MEZZO-AU, 6000, 350 and 550 series
gas heaters.

Introduction

The Heat-Zone
240V accessory kit conveys warm air
®
from the heater through air duct(s) to remote locations in
the same room or other rooms of the building. See Figure
1. One or two Heat-Zone
the heater.

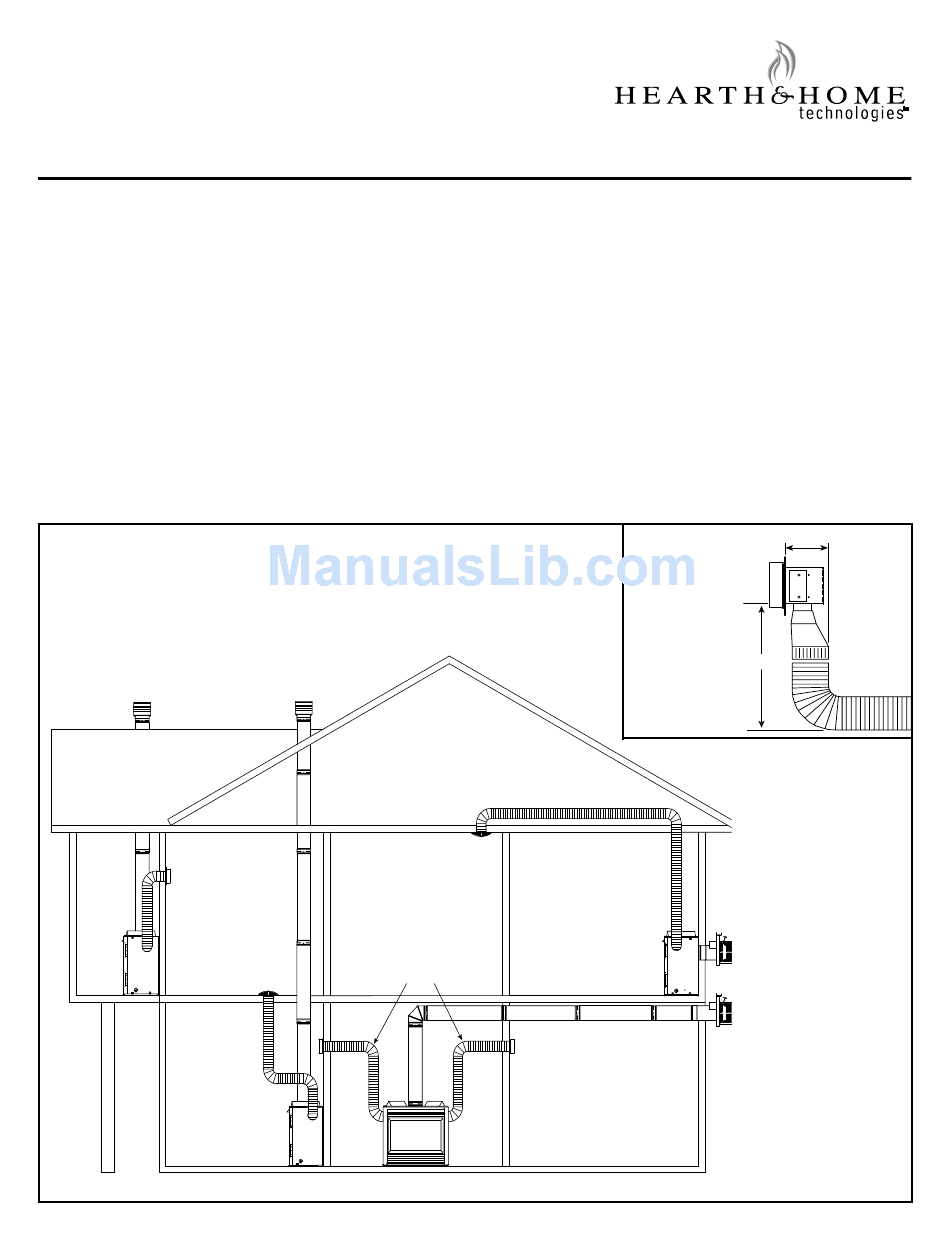

Possible Air Duct Runs/Locations
WALL REGISTER
FLOOR REGISTER
Figure 1
240V kits can be installed on
®
CEILING REGISTER
TWO DUCT KITS
WALL
REGISTER
Hearth & Home Technologies • Heat-Zone-240V Air Duct Kit • 299-900 Rev. H • 11/15

Preliminary Preparation

Contents of kit:
• 6 meters of 152 mm Round Duct
• Fan Housing Assembly
• Junction Box
• Air Register
• Heater Duct Collar
• Duct Adapter - (round to oval)
• Hardware Bag
• IPI Plus Auxiliary Jumper
NOTICE! If any parts are missing or damaged, contact your
dealer before starting installation. DO NOT install a damaged kit.
MINIMUM SPACE
REQUIRED FOR
90 DEGREE BEND
WALL
REGISTER
171 mm
457 mm
