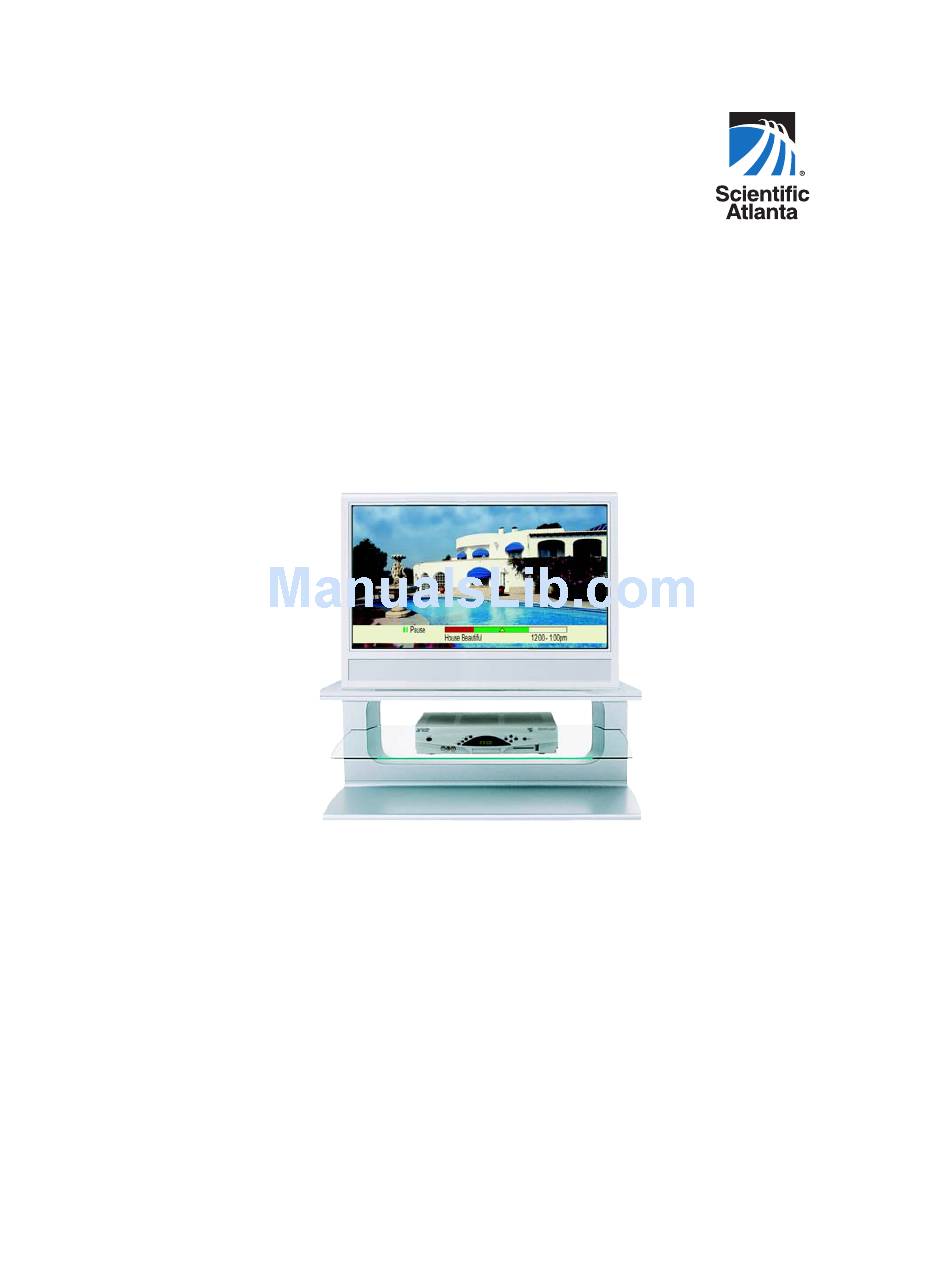

Getting Started With The
Explorer
8300
and
®
™
8300HD
DVR
™
Record your favorite programs when you're busy
Record one program and watch another
Record two live programs while watching a third program you recorded
earlier
Record and store up to 50 hours of standard-definition programs on the
8300 DVR, or up to 20 hours of high-definition programs on the 8300HD DVR
Pause live TV for up to 1 hour without missing a minute
Use instant replay any time you want
Watch two programs at the same time with the Picture-in-Picture feature on
any TV you have
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Explorer 8300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scientific Atlanta Explorer 8300

Summary of Contents for Scientific Atlanta Explorer 8300

  • Page 1 Getting Started With The Explorer 8300 ® ™ 8300HD ™ Record your favorite programs when you’re busy Record one program and watch another Record two live programs while watching a third program you recorded earlier Record and store up to 50 hours of standard-definition programs on the 8300 DVR, or up to 20 hours of high-definition programs on the 8300HD DVR Pause live TV for up to 1 hour without missing a minute Use instant replay any time you want...

  • Page 2: Control Live Tv

    Watch two TV programs at the same time PIP is built into the Explorer 8300 DVR, so you can watch two live programs at the same time on any make or model TV that is connected to your DVR.

  • Page 3: Using Your Remote Control

    Using Your Remote Control Use the keys on the AllTouch Remote Control to access the DVR and PIP features of your DVR. This guide describes the keys used to access the DVR and PIP features. For descriptions of the other key functions, refer to the user’s guide for your remote control model: •...
  • Page 4 Preparing the Explorer 8300HD DVR to Work With Your High-Definition TV First make sure that your DVR is properly connected to your HDTV television and other electronic devices. Use the component (PrPbY) or HDMI™ ports to connect the DVR to your HDTV. For more information, refer to the connectivity guide for your DVR model: •...

  • Page 5: Easy Setup Instructions

    Easy Setup Instructions 1. Press to select the type of TV Standard or Widescreen screen you have. The setup is complete. 2. Press Power to begin watching TV. Press if your TV has a standard screen (4:3) Notes: Press if your TV has a widescreen (16:9) •...

  • Page 6: Select Picture Mode For Normal Viewing

    Select Picture Mode for Normal Viewing After you use the HDTV Setup Wizard to select all the HDTV picture formats you want to use, you need to choose a General Settings picture mode for normal viewing. If you do not have your HDTV connected to the HDMI connector on the back of the 8300HD DVR, then Pass-Through mode is recommended for normal viewing.
  • Page 7 Important Note Regarding the HDMI Interface The High-Definition Multimedia Interface (HDMI) is an all-digital audio and video interface. HDMI provides a digital interface between any audio and video source. HDMI supports standard, enhanced, or high-definition video, plus digital audio. Some HDTVs do not contain circuitry to decode Dolby ®...

  • Page 8: Controlling Live Tv

    Controlling Live TV Control a Live Program You Are Watching Use the following remote control keys to control the live program in the Main screen: The Pause, Rewind, Fast-Forward, Play, Instant Replay, and Live keys on the remote control are used to control the live program in the Main screen.

  • Page 9: Using The Program Guide

    Using the Program Guide Find a Program to Watch 1. Press Guide . The Program HDLN Guide appears and lists the next 7 Headline News days of programs. 4:00-5:00pm Up-to-the-minute coverage of the Wed 6/18 4:02pm latest events. CHANNEL 4:00pm 4:30pm 5:00pm 2.

  • Page 10: Recording Tv Programs

    Recording TV Programs Record a TV Program You Are Watching 1. Press Record 2. While in the Confirm Recording Confirm Recording screen, choose your recording options "Design On A Dime" and press . The Record Indicator is Tue: 11/13 Save: 14 days lit on the front panel of the DVR.

  • Page 11: Watching Your Recordings

    Watching Your Recordings Access and Play Back Your Recorded Programs Anytime Recorded List "Design On A Dime" 1. Press List Save: Until erased 2. Use the arrow keys to choose the program you want to play back. Title Date Time Length World Soccer Wed 11/10...

  • Page 12: Copy Recordings From Your Dvr To A Vcr Tape

    Copy Recordings From Your DVR to a VCR Tape The Copy to VCR feature lets you copy recordings from your DVR to a VCR tape. Warning: Avoid electric shock. Unplug all electronic devices before connecting or disconnecting any device cables to the DVR. Verify that the OUT 2 CABLE OUT 1...
  • Page 13 Copy a Recording to a VCR Tape 1. Connect the VCR to the OUT 2 connection on the back of the Explorer DVR. See page 12 for more information. 2. Make sure that a tape is in your VCR and that the VCR is set to record. 3.

  • Page 14: Using Picture-In-Picture

    Using Picture-In-Picture Activate PIP on Your TV Main While watching a program, press PIP On/Off Screen Screen to activate the PIP screen. Notes: • To pause or record the video in the PIP screen, you must first swap it to the Main screen.

  • Page 15: Use Power-Save Mode

    Use Power-Save Mode To maximize the life of your DVR, you should power-down the DVR when it is not in use. Simply press CBL and then Power on your remote control, or press Power on the front panel of the DVR. The Power light turns off; but, because the DVR is still plugged in, your scheduled recordings still occur.

  • Page 16: Frequently Asked Questions

    Frequently Asked Questions How far back can I rewind live TV? The length of time you can rewind live TV depends on how long you have been tuned to a single channel. Each time you change channels, a new copy is automatically stored to the built-in recorder.
