Summary of Contents for Triton Blue WALLY 3715Z

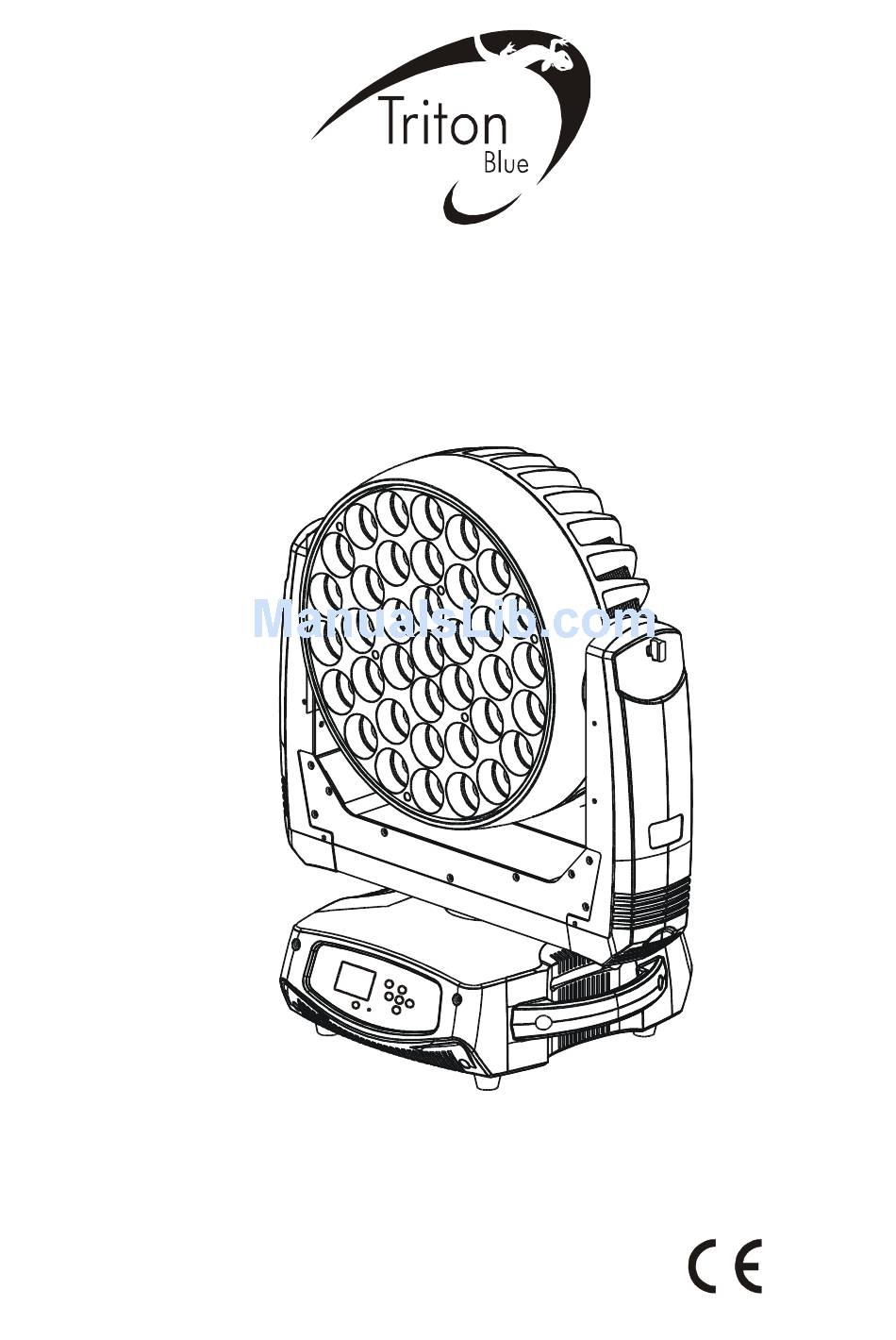

  • Page 1 PROFESSIONAL MOVING HEAD USER MANUAL WALLY 3715Z KEEP THIS MANUAL FOR FUTURE NEEDS...
  • Page 2: Table Of Contents

    Contents 1. Features ................................2 2. Fixture Overview .............................. 3 3. SAFETY INSTRUCTIONS ..........................3 3.1) Important safety warns ......................... 3 3.2) GENERAL GUIDELINES ........................4 4. INSTALLATION INSTRUCTIONS ......................5 4.1) Mounting the device ..........................5 5. DMX-512 control connection ........................... 8 6.
  • Page 3: Features

    Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
  • Page 4: Fixture Overview

    2. Fixture Overview 1: Leds 2: Display 3: DC Switch 4: Microphone 5: Left-button 6: Down-button 7: Right-button 8: Mode/Esc-button 9: Up-button 10: ENTER-button 11: 3-Pin DMX in 12: 3-Pin DMX out 13: 5-Pin DMX in 14: 5-Pin DMX out 15: Fuse 16: Power supply 17: Power switch...
  • Page 5: General Guidelines

    This device falls under protection-class I. Therefore it is essential that the device be earthed. If protection screen,lens or ultraviolet screen in the fixture is apparently damaged or is damaged to exceed their own effective degree, such as cracked and gashed, it must be replaced. The electric connection must carry out by qualified person.
  • Page 6: Installation Instructions

    If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device.
  • Page 7 Before mounting make sure that the installation area can hold a minimum point load of 10 times the device’s weight. Connect the fixture to the mains with the power plug. Installation via the Omega holders a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket.
  • Page 8: Dimensional Drawings

    Dimensional Drawings: XM787-V1.0.0-NR...
  • Page 9: Dmx-512 Control Connection

    Layout Drawings: Mounting points Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.
  • Page 10: Dmx-512 Connection With Dmx Terminator

    Address 1 Address 36 Address 71 6. DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.
  • Page 11: Control Board

    8. Control Board The Control Board offers several features: you can simply set the starting address , run the pre-programmed program or make a reset. The main menu is accessed by pressing the -button until the display starts flashing. Browse through the menu by pressing the -button , -button , -button or...
  • Page 12: Function

    Shutoff Time 02~60m 05m Display shutoff time Display Reverse ON/OFF Reverse 180 degree Display Setting Key Lock ON/OFF Key Lock Disp Flash ON/OFF No Signal Flash Celsius Temperature switch Temperature C/F Fahrenheit between Initial Status PAN =XXX Initial effect position Reset Default ON/OFF Restore factory set.
  • Page 13: Dmx Value

    8.1.2 Dmx Value With this function you can display the DMX 512 value of each channel. The display automatically shows the channel with a value changing. 1. Access the main menu. 2. Tap the <Up/Down>button until“Dmx Value”is displayed. 3. Press ENTER, the display will show “Dmx Value”. 4.
  • Page 14 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Total Run Time With this function, you can display the running time of the device. The display shows “XXXX”, “XXXX” stands for the number of hours. 1.
  • Page 15: Temperature Info

    8.2.2 Temperature Info Head Temperature. With this function you can display the temperature on the display board of the base (near CMY-filter) in Celsius. 1. Tap <MODE/ESC>button,access the main menu,Tap the <Up/Down>button until “Information” is displayed. Press ENTER, the display will show “Information” . Tap the <Up/Down>button until “...
  • Page 16 Pan Reverse With this function you can reverse the Pan-movement. 1. Tap <MODE/ESC>button,access the main menu,Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. Tap the <Up/Down>button until the display will show “Status settings” . Press ENTER, the display will show “Status settings”.
  • Page 17: Service Setting

    the <Up/Down>button until the display will show “Status settings” . Press ENTER, the display will show “Status settings”. 2. Press <Up/Down>, the display will show“Movement Speed”. 3. Press< ENTER>, the display will show“Movement Speed”. 4. The display show “Speed 1”,Press <Up/Down>, the display will show “Speed 2”, “Speed 3”, “Speed 4”.
  • Page 18: Fans Control

    RDM ready and conventional DMX devices can be operated in one DMX line. The RDM protocol sends own packages in the DMX512 data feed and does not influence conventional devices. If DMX splitters are used and RDM control is to be used, these splitters must support RDM. The number and type of RDM parameters depend on the RDM controller being used.
  • Page 19: Temperature C/F

    Displ Flash With this function you can the entire display to be flipped by 180˚ to allow for better view when the fixture is hung from truss or a ceiling. This function is disabled as default. 1.Tap <MODE/ESC>button,access the main menu,Tap the <Up/Down>button until “Personality”is displayed.
  • Page 20: Effect Adjust

    8.5 Effect Adjust 8.5.1 Test channel With this function you can test each channel on its (correct) function. 1.Tap <MODE/ESC>button,access the main menu,Tap the <Up/Down>button until “Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”. 2.Press <Up/Down>, the display will show “Test Channel”. 3.Press<...
  • Page 21: Edit Program

    8.7 Edit program 8.7.1 Select programs With this function, you can select the program for the Program Run. 8.7.2 Edit program With this function, you can edit the internal programs. 8.7.3 Edit scenes With this function, you can edit the scenes of the internal programs. 8.7.4 Rec.
  • Page 22 • Press the Enter button to confirm. • Select “Select programs” by turning the encoder. • Press the Enter button to confirm. • Turn the encoder to select “Auto Pro Part 1”, “Auto Pro Part 2” or “Auto Pro Part 3”, and thus select which Slave program is to be sent.
  • Page 23: Instructions On Use

    9. INSTRUCTIONS ON USE: DMX channel´s functions and their values (49 DMX channels): Mode/Channel Value Function Red LED -all arrays 0-255 Red ( 0-Black , 255-100% Red ) Red LED Fine-all arrays : 0-255 Fine control for Red adjustment Green LED-all arrays 0-255 Green ( 0-Black , 255-100% Green ) Green LED...
  • Page 24 0-255 Fine control for Green adjustment Blue LED -array 2 0-255 Blue ( 0-Black , 255-100% Blue ) Blue LED Fine-array 2 0-255 Fine control for Blue adjustment White LED -array 2 0-255 White ( 0-Black , 255-100% White ) White LED Fine -array 2 0-255...
  • Page 25 TILT Movement 8bit : 0-255 Tilt Movement Speed Pan/Tilt movement: 0-225 max to min speed 226-235 blackout by movement 236-255 no function Shutter, strobe: 0-31 Led trun off 32-63 Led turn on 64-95 Strobe effect slow to fast 96-127 Led turn on 128-159 Pulse-effect in sequences 160-191...
  • Page 26 95-99 Orange 100-104 Straw 105-109 Pale Lavander 110-114 Pink 115-119 RED/WHITE 120-124 GREEN/RED 125-129 BLUE/RED 130-134 WHITE/RED 135-139 WHITE/PINK 140-144 WHITE/TURQUOISE 145-149 SMALL RED/WHITE 150-255 Reserved Color Presets Dimmer: 0-255 Dimmer 100 to 0% Chase Patterns: 1--14 Led trun off 15-30 Chase 1 31-46...
  • Page 27: Error Message

    80-84 All motor reset 85-87 Scan motor reset 88-90 no function 91-93 Edit and store white balance enabled 94-96 no function 97-99 Others motor reset 100-119 Internal program 1 (secne1~8 of EEPROM) 120-139 Internal program 2 (secne9~16 of EEPROM) 140-159 Internal program 3 (secne17~24 of EEPROM) 160-179 Internal program 4 (secne25~32 of EEPROM)
  • Page 28: Cleaning And Maintenance

    11. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
