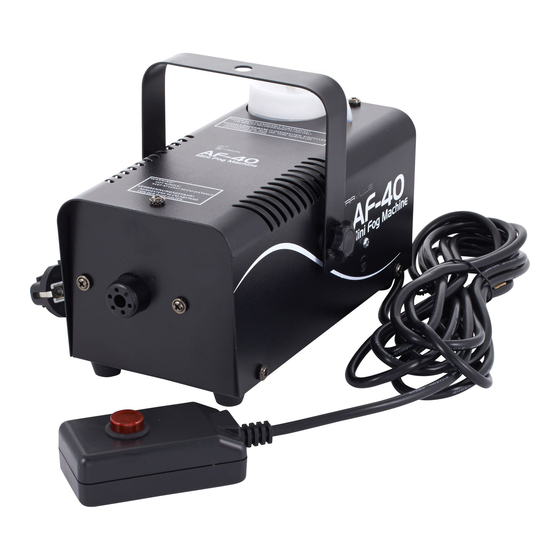

thomann Straville AF-40 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AF-40
fog machine
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Straville AF-40 and is the answer not in the manual?

Questions and answers

Related Manuals for thomann Straville AF-40

Summary of Contents for thomann Straville AF-40

  • Page 1 AF-40 fog machine user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 10.05.2013...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 Safety instructions............................. 8 Features............................... 14 Installation..............................15 Connections and operating elements................... 16 Operating..............................21 Technical specifications........................23 Troubleshooting............................24 Cleaning............................... 25 Protecting the environment......................27 AF-40...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.
  • Page 5 General notes Symbols and signal words This section provides an overview of the symbols and signal words used in this user manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
  • Page 6 General notes Warning signs Type of danger Warning – high-voltage. Warning – flammable substances. Warning – hot surface. Warning – suspended load. Warning – harmful or irritating substances. fog machine...
  • Page 7 General notes Warning signs Type of danger Warning – danger zone. AF-40...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used to produce artificial fog by vaporising fog fluid. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire.
  • Page 10 Safety instructions WARNING! Risk of burns from flammable liquids The use of flammable liquids in this device may cause severe burns and damage to property. Always use approved fog fluids. Never fill flammable liquids into the tank of the device. WARNING! Risk of burns The generated fog at the fog nozzle is hot and can cause burns.
  • Page 11 Safety instructions WARNING! Risk of slipping caused by condensation Fog machines can produce condensation. Do not direct the fog to floors. Floors and surfaces can become slippery by condensed fog. Check at regular intervals whether it is possible to walk on the floors without a slipping hazard, and, if necessary, remove the condensation.
  • Page 12 Safety instructions CAUTION! Possible respiratory problems The device can be operated safely only with the approved fog fluid. The use of other fluids can release toxic gases. Claims for damages caused by the use of non- approved fluids shall be excluded. Do not create fog in closed or poorly ventilated areas.
  • Page 13 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 14: Features

    Features Features This fog machine is suitable for use in clubs, bars, discotheques and on stages. Special features of the device: Remote control included Suitable for mobile use due to compact design fog machine...

  • Page 15: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 16: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel fog machine...
  • Page 17 Connections and operating elements 1 Fog nozzle. 2 Fog fluid container with screw-cap. 3 Carrying handle and bracket for hanging. 4 Tommy screws to adjust the bracket. AF-40...
  • Page 18 Connections and operating elements Rear panel fog machine...
  • Page 19 Connections and operating elements 2 Fog fluid container with screw-cap. 3 Carrying handle and bracket for hanging. 4 Tommy screws to adjust the bracket. 5 CONTROLLER INPUT Remote control cable. 6 FUSE Fuse holder. 7 ON/OFF Main switch to turn the device on or off. 8 POWER Mains power cable for operating voltage supply.
  • Page 20 Connections and operating elements Remote control 10 Press this button to trigger a fog blast. The integrated pilot lamp indicates that the unit has reached the required oper‐ ating temperature for fog generation. fog machine...

  • Page 21: Operating

    Possible damages caused by unsuitable fog fluid Fog liquids not approved by the manufacturer may permanently damage the unit. Only use the fog fluids listed on www.thomann.de and follow their instructions for use. First, make sure that the unit is disconnected from the power grid.
  • Page 22 Operating Turning the unit on NOTICE! Fire hazard Do not operate the machine unattended. Connect the device to the power grid and turn it on with the main switch. The unit is heating As soon as the required operating temperature is reached, the LED on the remote control lights up.

  • Page 23: Technical Specifications

    Technical specifications Technical specifications Heater power 400 W Fog output approx. 85 m /min Fluid container capacity 0.25 l Warm-up time approx. 5 min Operating supply voltage AC 230 V , 50 Hz Fuse 3.15 A Power consumption 400 W Dimensions (W ×...

  • Page 24: Troubleshooting

    2. Switch the device off and check the hose that leads into the fluid container for unobstructed flow. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. fog machine...

  • Page 25: Cleaning

    Possible damages caused by unsuitable cleaning agents Cleaners not approved by the manufacturer may permanently damage the unit. Only use the fog machine cleaners listed on www.thomann.de and follow their instructions for use. Clean the appliance after every 30 operating hours, or if it was not in use for a longer period of time.
  • Page 26 Cleaning Keep the remote control button pressed and release fog for about 20 seconds. Put the suction hose back into the fluid container of the fog machine and release fog for another 20 seconds. This rinses the pipes. ð The cleaning is completed. fog machine...

  • Page 27: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 28 Notes fog machine...
  • Page 29 Notes AF-40...
  • Page 30 Notes fog machine...
  • Page 32 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
