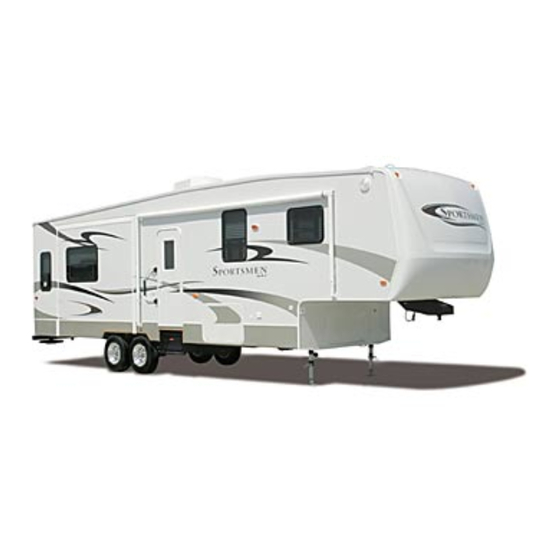

KZ SPORTSMEN Service Manual
  1. Manuals
  2. Brands
  3. KZ Manuals
  4. Motorhomes
  5. SPORTSMEN
  6. Service manual

KZ SPORTSMEN Service Manual

Hide thumbs Also See for SPORTSMEN:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
RV Products by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPORTSMEN and is the answer not in the manual?

Questions and answers

Related Manuals for KZ SPORTSMEN

Summary of Contents for KZ SPORTSMEN

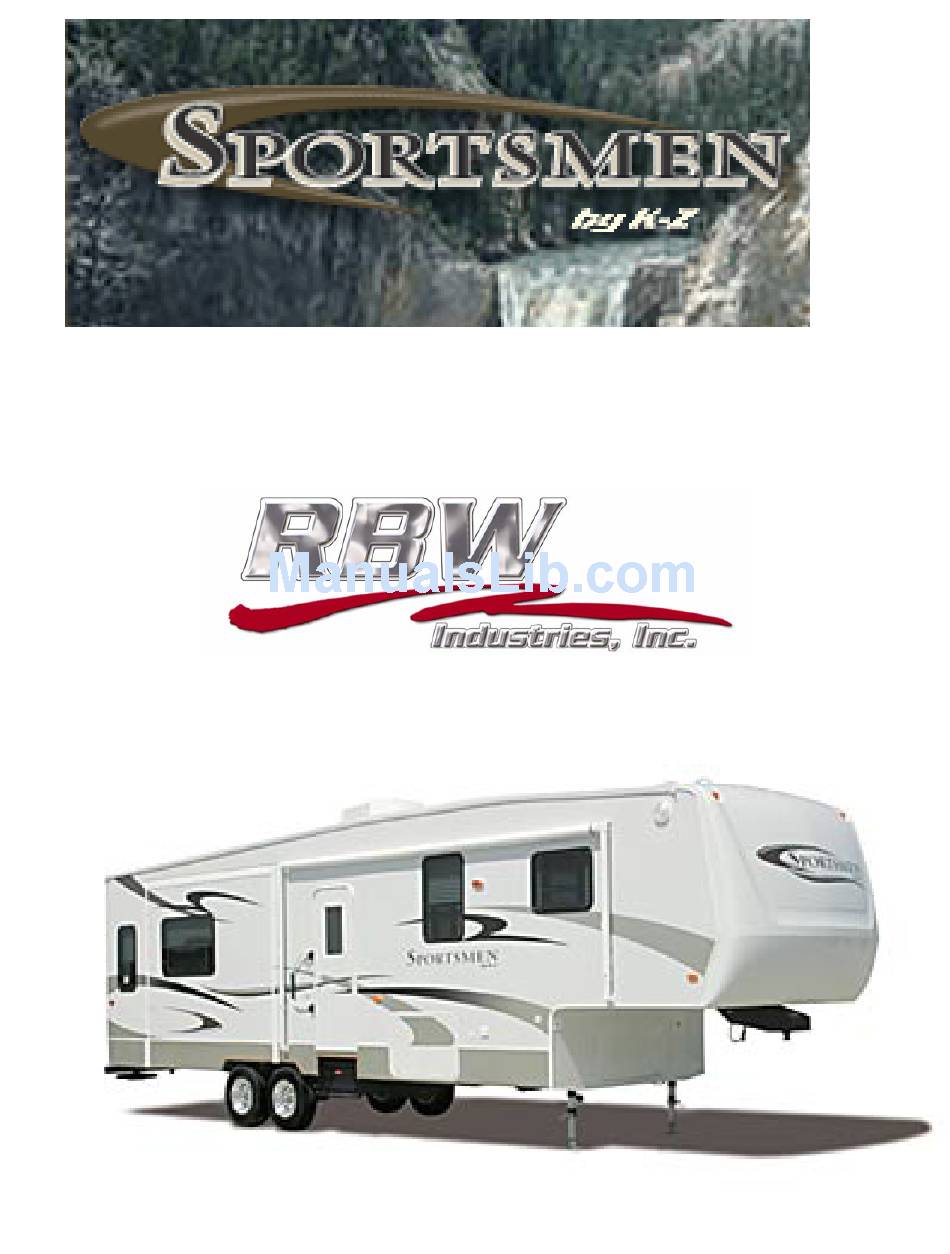

  • Page 1 RV Products by...
  • Page 2 CONTENTS Identifying Slide Outs And Slide Out Components KZ Sportsmen Deck Mounted RV Products by RBW Industries 2006 Calendar Year Slide Out Systems Main Room Slide Outs Standard Floor Outboard Motor Main Room Slide Outs Standard Floor Inboard Motor Main Room Slide Outs...
  • Page 3 Identifying Slide Outs And Slide Out Components...
  • Page 4 Identifying Slide Outs And Slide Out Components Deck Mounted System Standard Floor System Flush Floor System Inboard vs. Outboard Systems Center Drive vs. Attached Motor...
  • Page 5 1. Deck Mounted Slides ROOM SLIDE COACH DECK COACH CHASSIS TIRE AXLE Deck mounted slides are typically attached to the flooring, or deck, of the coach. These slides are installed late in the production process. The most common application is on Bed slides or Wardrobe slides. However, small Sofa slides mounted around or over the wheel well are also common.
  • Page 6 2. Standard Slide Outs ROOM SMALL STEP COACH DECK ROOM MOUNT COACH CHASSIS INNER RAIL OUTER RAIL MOTOR TIRE AXLE Standard slide outs are attached (usually welded) to an ‘I’ beam or tube chassis. The chassis manufacturer typically installs these slides. The most common application is for Galley slides, some Sofa Dinette slides, and other medium sized rooms that do not require a flat (flush) floor interface between the room and the coach...
  • Page 7 3. Flush Floor Slide Outs ROOM NO STEP, FLUSH FLOOR COACH DECK COACH INNER RAIL OUTER RAIL CHASSIS ROOM MOTOR MOUNT TIRE AXLE Flush floor slide outs are attached (usually welded) to and ‘I’ beam or tube chassis. The chassis manufacturer typically installs these slides. The most common application is for Sofa/Dinettes and other large rooms that require the interface between the slide out room floor to be level, or “flush”, with the coach floor.
  • Page 8 4. Inboard vs. Outboard Systems (Standard and Flush Floor Systems) COACH DECK COACH CHASSIS MOTOR TIRE AXLE An Inboard System is built with the motor in between the chassis rails COACH DECK COACH CHASSIS MOTOR TIRE AXLE An outboard system is built with the motor outside the chassis rails.
  • Page 9 5. Center Drive vs. Attached Motor (Standard and Flush Floor Systems) TOP VIEW OUTER RAIL MOTOR CROSS TUBE CROSS TUBE INNER RAIL CENTER DRIVE SYSTEM OUTER RAIL FOLLOWER SIDE DRIVE (OR POWERED) SIDE CROSS TUBE INNER RAIL ATTACHED MOTOR SYSTEM...
  • Page 10 Deck Mounted Slide Out Systems...
  • Page 11 Deck Mounted Slide Out Systems 2006 Calendar Year Parent Part Number QDS-100-29 QDS-100-29B QDS-100-29BT Service Kit Complete System Views KZ-06B-01 Exploded View KZ-06B-02 Motor Assembly KZ-06B-03 P-209-17A P-209-17B P-209-17C Motor Only KZ-06B-04 Motor Brake KZ-06B-05 P-209-18 Motor Wiring KZ-06B-06 Gear/Shaft Kit...
  • Page 25 Main Room Slide Outs Standard Floor Outboard Motor...
  • Page 26 Main Room Slide Outs Standard Floor – Outboard Motor Parent Part Number GSO-28709BT GSO-28709 Service Kit Complete System Views KZ-06M-01 KZ-06M-30 Exploded View KZ-06M-02 Motor Assembly KZ-06M-03 P-209-01 KZ-06M-22 Motor Only KZ-06M-04 KZ-06M-23 Motor Brake KZ-06M-05 Motor Wiring KZ-06M-06 Drive Gear Kit...
  • Page 41 Main Room Slide Outs Standard Floor Inboard Motor...
  • Page 42 Main Room Slide Outs Standard Floor – Inboard Motor Parent Part Number GSO-26609BT GSO-26609B GSO-26609 GSO-28609 Service Kit Complete System View KZ-06M-11 KZ-06M-40 KZ-06M-50 KZ-06M-20 System Exploded View KZ-06M-12 Leader Exploded View KZ-06M-13 KZ-06M-41 KZ-06M-51 Follower Exploded View KZ-06M-14 KZ-06M-21...
  • Page 65 Main Room Slide Outs Flush Floor Outboard Motor...
  • Page 66 Main Room Slide Outs Flush Floor – Outboard Motor Parent Part Number GSO-48709 GSO-68709 GSO-68709BT Service Kit Complete System View KZ-06M-60 KZ-06M-70 KZ-06M-80 Follower Exploded View KZ-06M-61 KZ-06M-71 Motor Drive Exploded View KZ-06M-22 KZ-06M-03 Motor Only KZ-06M-23 KZ-06M-04 Motor Brake...
  • Page 83 Main Room Slide Outs Flush Floor Inboard Motor...
  • Page 84 Main Room Slide Outs Flush Floor –Inboard Motor Parent Part Number GSO-46629 Service Kit Complete System View KZ-06M-90 Leader Exploded View KZ-06M-91 KZ-GR-466XX Follower Exploded View KZ-06M-92 Motor Only KZ-06M-93 Motor Brake KZ-06M-05 Motor Wiring KZ-06M-06 Cross Tube Kit KZ-06M-94...
