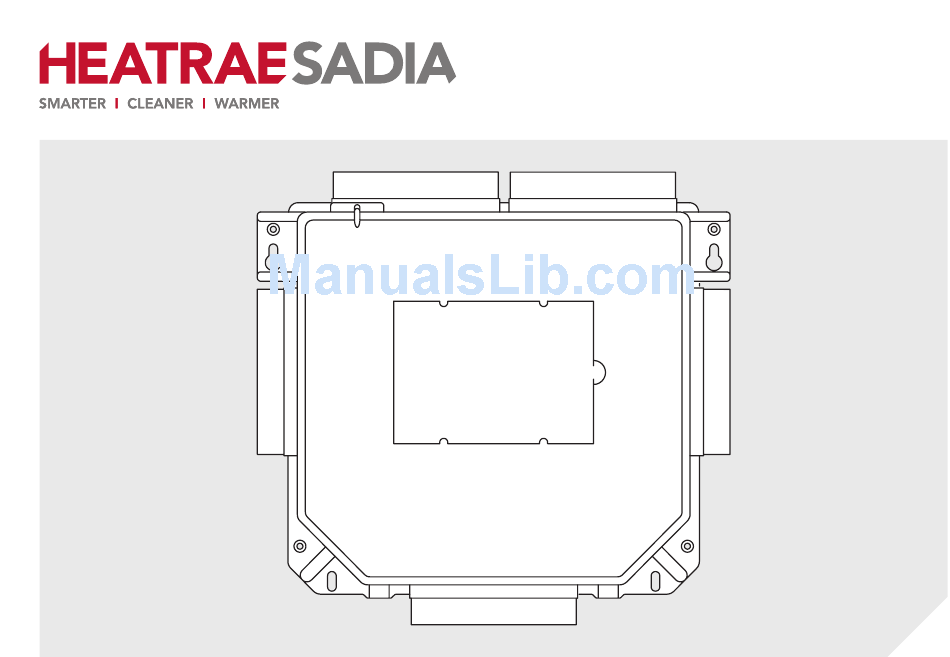

  • Page 1 CVE ECO 2 Installer and user manual...
  • Page 2 Safety • Do not operate the appliance in the presence of inflammable substances or vapours (alcohols, insecticides, petrol, etc). Caution Warning The following general instructions are important: • Do not use this appliance for functions other than • Follow the safety instructions to prevent fan those described in the booklet damage and personal injuries. • After removing the appliance from its packaging, • Maintenance instructions must be followed to ensure that it is complete and undamaged. In prevent damage and/or excessive wear and tear.
  • Page 3 • The appliance must only be installed by a grilles free to ensure optimum airflow at all times. professionally qualified person. • Ensure that the electrical system to which the Electronic components appliance is connected complies with applicable standards. The Heatrae Sadia CVE ECO 2 RFT fan contains parts • Use a multi-polar switch with a minimum contact which may be live. Consult a professionally qualified gap of 3 mm to install the appliance. installer in the event of an alleged fault. All repairs •...
  • Page 4 Maintenance Sharp edges of the ducts The ventilation unit should be inspected regularly for The valves in your home should also be cleaned contamination. Electrically discharge the unit before regularly. These can be removed from the wall or carrying out any work on it. First isolate the unit from ceiling. the mains supply and make sure that the unit is not re- Beware of protruding duct sections. These can be very connected to the supply socket by yourself or anyone sharp. else before you have completed the work.

  • Page 5: Table Of Contents

    Contents 1 Introduction ..............6 2 Why is ventilation important?........9 3 Individual ventilation system ........11 4 The CVE ECO 2 RFT central-ventilation unit ..... 12 5 The Components of the CVE ECO 2 RFT ....13 6 How to operate the unit ..........16 7 Maintenence and warranty ........18 8 Information for the installer ........20 9 Manufacturer’s statement .......... 23 10 EC Declaration of Conformity ........25 11 ErP Technical Data ............ 26...

  • Page 6: Introduction

    1 Introduction Interior comfort and energy efficiency are becoming Compliance with Building Regulations increasingly important considerations in building. More and more equipment is being developed to The 2010 Edition of the U.K. Building Regulations control the climate within the home while meeting the Approved Document F1: Means of Ventilation requirements for comfort and energy efficiency. One of (applicable in England and Wales) details 4 clearly these devices is the Heatrae Sadia CVE ECO 2 RFT defined systems of ventilation to dwellings. System extractor unit which is the heart of the whole house...
  • Page 7 added to the extract rate. The system provides quiet, The current Building (Scotland) Regulations refers to uninterrupted extract ventilation from the dwelling, continuously operating mechanical extract ventilation removing warm stale air via all of the “wet” rooms, in accordance with the guidance in BRE (Building creating a permanent air path through the property Research Establishment) Digest 398, a paper based from the “dry” habitable rooms.
  • Page 8 To achieve the three highest levels of reduction of carbon emissions, the air leakage of the dwelling must be improved so significantly that continuous ventilation becomes the only appropriate method. In addition, it must be demonstrated that the ventilation system itself must be energy efficient. The Heatrae Sadia CVE ECO 2 RFT with its low energy D.C. motor and innovative impeller, has been independently tested by the Building Research Establishment (BRE) to the ¹...

  • Page 9: Why Is Ventilation Important

    2 Why is ventilation important? Ventilation is necessary Moisture content of the home Incorrect use of the ventilation system by the resident In the past people built houses which were not air-tight, in combination with today’s well-insulated homes gives which leaked air for example, at the connection point humidity an open field. The moisture content in the of the wall and the floor or roof. Cracks were always home increases and can cause health, humidity and visible around windows and doors. All these openings mould problems. A family of four persons produces ensured that large volumes of air moved in and out of 14 to 20 litres of moisture per day just by breathing, the buildings. When the wind was blowing the complete...
  • Page 10 The correct use of the ventilation system Research has proven that fighting moisture in homes greatly contributes to the decrease of allergic reactions is important of people with an airway disorder. The correct use and maintenance of your ventilation system makes this Ventilation requires energy. The correct use of the possible. ventilation system can limit energy loss as much as possible. An individual ventilation system has been built into your home. This self-contained system allows you to Your home has a Heatrae Sadia CVE ECO 2 RFT adjust your individual ventilation system. The system system. This system can contribute extensively to a...

  • Page 11: Individual Ventilation System

    3 Individual ventilation system How the individual ventilation system works. The extractor unit ventilates several rooms in the home through ducts fitted in the kitchen, the bathroom, the WC and all other ‘wet rooms’. These are connected to the central extractor fan system. To ensure there is a good distribution of air, valves are fitted to the openings of the ventilation ducts in the rooms to be ventilated. Air is extracted from the rooms through these valves, while fresh air from outside enters the home through openings, such as grilles in the walls and windows of living rooms and bedrooms.

  • Page 12: The Cve Eco 2 Rft Central-Ventilation Unit

    4 The CVE ECO 2 RFT central-ventilation unit The CVE ECO 2 RFT was developed to maintain a of the fan is also new. The air is now circulated through comfortable climate within the home by means of an the fan by cone-shaped blades. This results in more energy- efficient and convenient technology. efficient propulsion of the air and thus to greater energy efficiency.

  • Page 13: The Components Of The Cve Eco 2 Rft

    5 The Components of the CVE ECO 2 RFT Housing The housing of the CVE ECO 2 RFT is constructed to allow easy replacement of the parts, which makes maintenance and cleaning very simple. The unit can be mounted on the wall or ceiling using the mounting brackets provided. The unit has five air connections. The right port on the unit (1) [see diagram p.14] is the outlet funnel for air extracted and blown outside. The other four ports (2) [see diagram p.14] are for the removal of the air from the home. They are located as follows:...
  • Page 14 Front cover To permit installation of the RFT set receiver or other work, such as maintenance, the unit’s front cover can be removed with a screwdriver. Insert the screwdriver horizontally in the space provided on the top left and press open the cover. You can then remove the cover by hand. Note: Disconnect the unit from the mains supply before removing the front cover. The blue covers on the unit close off the unused air inlets to prevent leakage of air and ensure that maximum capacity is used.
  • Page 15 Service module Electronics If there is a fault with the motor or electronics, the The electronics are also an important part of the technician can easily fix the unit by replacing the unit. When you change settings with the switch, the service module.

  • Page 16: How To Operate The Unit

    6 How to operate the unit Individual CVE ECO 2 RFT ventilation systems can be switches the ventilation unit to low mode after the time controlled either by a three speed hard wired switch or has elapsed. by a wireless three speed RFT. The length of time set for the timer is determined by the Radio frequency (RF) operation switch user. Press the timer button once to set the ventilation unit to high mode for 10 minutes. Press the timer button twice to set the ventilation unit to high mode for The RFT (radio frequency) operation switch 20 minutes. Press the timer button three times to (transmitter) can be used as a 3-position mode switch set the ventilation unit to high mode for 30 minutes. with timer feature for the CVE ECO 2 RFT ventilation unit. This operation switch can be used to set the If the operation switch is used by choosing mode 1, 2 or...
  • Page 17 Hard wired 3 position switch The CVE ECO 2 RFT can be operated using the 3 position switch HRS-3. Step one is used at night, step two during the day when there are people at home and step three when cooking, showering or bathing.

  • Page 18: Maintenence And Warranty

    7 Maintenence and warranty Maintenance side. • If the fan is set in motion by hand, it should only Technical maintenance of the CVE ECO 2 RFT is not rotate a few times and then come to a standstill with a few jolts. necessary. However, the unit will need to be cleaned • This is a characteristic of a direct current fan and once every three to four years depending on the is completely normal. accumulation of dust. You can check yourself whether the extractor unit is very dirty, but it must be cleaned by • Depending on the outcome of the inspection, the fan should be cleaned and/or made ready a qualified technician. for use.
  • Page 19 Each valve should be placed back in the same duct opening in the same room from which it was removed. Cleaning valves Valves without a filter can be removed from the duct opening. The foam ring (if applicable) should be removed before cleaning the valve in warm water (and washing- up liquid). Replace the valve in the duct opening after cleaning. The valve should always be placed in the same duct opening it was removed from.

  • Page 20: Information For The Installer

    8 Information for the installer Installation • Fans and ducting in or passing through unheated voids or loft spaces should be insulated to reduce the possibility of condensation forming. • The CVE ECO 2 RFT can be used in various types of homes, both in new building as well as The unit can be connected in various ways. renovation projects. The unit can be installed at different places in the home, for example, in a loft space, store room or cupboard. • The extractor unit can be installed in all positions using the mounting eyes provided against a wall, on the ceiling and also on sloping surface. • The CVE ECO 2 RFT should be installed following the general and local safety and installation regulations and the instructions in this manual.
  • Page 21 Setting the basic printed circuit board Potentiometer settings: The basic printed circuit board has two potentiometers to adjust the ventilation unit. The potentiometers can be adjusted to set the minimum and/or maximum capacity. Potentiometer 1 adjusts the low setting for the unit. This potentiometer is limited on the lower side, so there can never be too little ventilation. The factory setting is ³ 75 m /h. This potentiometer should be adjusted to achieve the minimum rate as defined in ADF. If the minimum rate cannot be achieved at low speed then The CVE ECO 2 RFT unit is controlled using the radio the medium speed should be set to the ADF minimum...
  • Page 22 ³ Removal of motor chassis with motor/fan This potentiometer has a factory setting of 225 m /h. assembly The high speed should be adjusted to the high rate ³ as defined in ADF. The available range is 175 m /h to ³ 325 m /h (at 150 Pa). There are three slots on the motor chassis. The clamps in the slots are released by inserting a (flat-blade) When setting up the system if more ventilation screwdriver into the motor chassis and pulling the is needed, open the valves more fully to obtain screwdriver handle towards the motor chassis. After the required capacity before adjusting the speed.

  • Page 23: Manufacturer's Statement

    9 Manufacturer’s statement Mechanical extract unit type: CVE ECO EC declaration of conformity According to Low Voltage Directive 2006/95/EC and 2 RFT the EMC Directive 2004/108/EC Is in conformity with the following EC Council Directives: Declaration of Incorporation • Low Voltage Directive 2006/95/EC According to Annex IIB of the Machinery Directive • EMC Directive 2004/108/EC 2006/42/EC, and Applied Harmonised Standards: Heatrae Sadia Heating Hurricane Way • EN60730-1 Norwich • EN61000-3-2 Norfolk • EN61000-6-1 NR6 6EA • EN61000-6-3 • RoHs / Weee hereby declare under our sole responsibility that the following products: and must be regarded as partly completed machinery and is intended to be incorporated in a machine or to be assembled with other machines into a single machine or system to which the Machinery Directive 2006/42/EC applies.
  • Page 24 We want to alert you that the product is designed to be incorporated in a ventilation system and that the partly completed machine must not be put into service until the final machinery into which it is to be incorporated is in conformity with the provisions of Machinery Directive 2006/42/EC for which the most important instructions can be found in the manual. We explicitly state that the CE marking on the product only refers to the Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC After the submission of a declaration according to Annex IIA of the Machinery Directive for the entire installation, the CE marking on the device also refers to the Machinery Directive 2006/42/EC.

  • Page 25: Ec Declaration Of Conformity

    10 EC Declaration of Conformity According to Annex II of the Machinery Directive 2006/42/EC. We: Name of installer: Full address and country: Hereby declare under our own responsibility, to have installed the following product with type designation: Mechanical extract unit type: CVE ECO 2 RFT to which this declaration refers. We declare the entire installation (being a single machine) in conformity with the Machinery Directive. Place: Date: Name: Position: Signature: Company Stamp:...
  • Page 28 HEATRAE SADIA HEATING Hurricane Way, Norwich NR6 6EA www.heatraesadia.com SERVICE 01603 420100 EMAIL itho@heatraesadia.com 36006183_issue_03...
