M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
S
ee the label attached on the product and give the information to your
dealer when you ask for service.

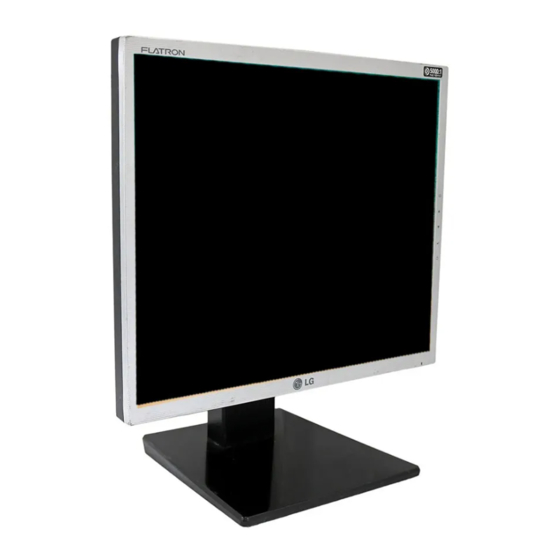

User's Guide
L1753H
L1953H
L1753HM
L1953HM
L1753HR
L1953HR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG L1753H
Summary of Contents for LG L1753H
- Page 1 User’s Guide L1753H L1953H L1753HM L1953HM L1753HR L1953HR ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference. ee the label attached on the product and give the information to your...
-
Page 2: Important Precautions
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. - Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
-
Page 4: Connecting The Speaker
Connecting the speakers - The feature is only for speaker models - L1753HM, L1953HM Connecting the speaker Place the monitor with its front facing downward on a soft cloth. Insert the protruding hook of the speaker in the direction of the slot in the back of the product. Slot Hook Audio DC-In... -
Page 5: Connecting The Display
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand Place the monitor with its front facing downward on a soft cloth. Assemble the Stand Body into the product in the correct direction as shown in the picture. - Page 6 Connecting the Display To remove the Stand: Put a cushion or soft cloth on a flat surface. Place the monitor face down on the cushion or soft cloth. The Head part The Stand base part Hold the product as it follows and lift up the Stand slightly. Change your hold on the product as it follows and turn the Stand Base in the arrow direction until you hear a "click."...
- Page 7 Connecting the Display To remove the Stand Base: Hold the body of the Stand as it Press the two latches at the same follows. time as it follows. Pushing Latch inside, Take the stand The body of the Stand and the Stand base from stand body.
-
Page 8: Positioning Your Display
Adjust the position of the panel in various ways for maximum comfort. Tilt Range: -5˚~20˚ Swivel : 358˚(The feature is not available for all countries) L1753H / L1753HR / L1953H / L1953HR Height Range : maximum 3.94 inch (100 mm) 100 mm Warning:... - Page 9 Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display L1753HM / L1953HM Height Range : maximum 2.36 inch (60 mm) 60 mm Note: When you use speakers, be sure to set up the stop cover first as shown.
-
Page 10: Using The Computer
Connecting the Display Using the Computer Place the monitor in a convenient, well-ventilated location near your computer. Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. Connect the power cord into a proper power outlet that is easily accessible and close to the display. -
Page 11: Using The Speakers
Using the speakers - The feature is only for speaker models - L1753HM, L1953HM Side Jack Headphone/Earphone Input Automatically mutes the speaker volume when the headphones are plugged in. Rear Audio Input Connects to the *LINE OUT jack of the PC sound card. -
Page 12: Front Panel Controls
Control Panel Functions Side Front Panel Controls Control Function Use this button to enter or exit the On Screen Display. MENU Button OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. - Page 13 Control Panel Functions Control Function Use this button to enter a selection in the On Screen AUTO/SET Display. Button AUTO IMAGE ADJUSTMENT When adjusting your display settings, always press the AUTO/SET button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).
-
Page 14: On Screen Display (Osd) Control Adjustment
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD. - Page 15 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu Reference BRIGHTNESS To adjust the brightness, PICTURE contrast and gamma of the CONTRAST screen GAMMA To customize the color of sRGB COLOR PRESET...
-
Page 16: On Screen Display(Osd) Selection And Adjustment
On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears. - Page 17 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE To adjust the brightness of the screen. BRIGHTNESS P I C T U R E To adjust the contrast of the screen. CONTRAST Set your own gamma value. : -50/0/50 GAMMA On the monitor, high gamma values display whitish images and low gamma...
- Page 18 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description TRACKING CLOCK To minimize any vertical bars or stripes T R A C K I N G visible on the screen background. The horizontal screen size will also change. PHASE To adjust the focus of the display.
-
Page 19: Flatron F-Engine
On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the button on the right side of the monitor. Menu Name Icons Sub-menu Name FLATRON F-ENGINE Screen when applied Screen when not applied When you execute F-ENGINE, two tones will appear on the screen as shown. -
Page 20: Troubleshooting
Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet. Is the power indicator •... - Page 21 Troubleshooting Display image is incorrect ● Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.
-
Page 22: Display Image Is Incorrect
Troubleshooting Display image is incorrect ● The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video card is properly inserted in the slot. -
Page 23: Specifications
Specifications L1753H / L1753HR Display 17 inches (43.2 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 17 inches viewable 0.264 mm pixel pitch Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Sync Input Digital : 30 - 71 kHz (Automatic) Vertical Freq. - Page 24 Specifications L1753HM Display 17 inches (43.2 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 17 inches viewable 0.264 mm pixel pitch Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Sync Input Digital : 30 - 71 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate TTL, Positive/Negative...
- Page 25 Specifications L1953H / L1953HR Display 19 inches (48.19 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 19 inches viewable 0.294 mm pixel pitch Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Sync Input Digital : 30 - 71 kHz (Automatic) Vertical Freq.
- Page 26 Specifications L1953HM Display 19 inches (48.19 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 19 inches viewable 0.294 mm pixel pitch Horizontal Freq. Analog : 30 - 83 kHz (Automatic) Sync Input Digital : 30 - 71 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate TTL, Positive/Negative...
-
Page 27: Preset Modes (Resolution)
Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.469 640 x 350 31.468 720 x 400 31.469 640 x 480 VESA 37.500 640 x 480 VESA 37.879 800 x 600 VESA 46.875 800 x 600 49.725 832 x 624 48.363... -
Page 28: Signal Connector Pin Assignment
Specifications Signal Connector Pin Assignment DVI-D Connector Signal(DVI-D) Signal(DVI-D) T. M. D. S. Data2- Hot Plug Detect T. M. D. S. Data2+ T. M. D. S. Data0- T. M. D. S. Data2/4 Shield T. M. D. S. Data0+ T. M. D. S. Data4- T. -
Page 29: Installing The Wall Mount Plate
Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Place the monitor with its front facing downward on a soft cloth. Separate the stand after firstly separating 6 screws by using a driver as figure. Install the Wall mount plate. - Page 30 Digitally yours...
