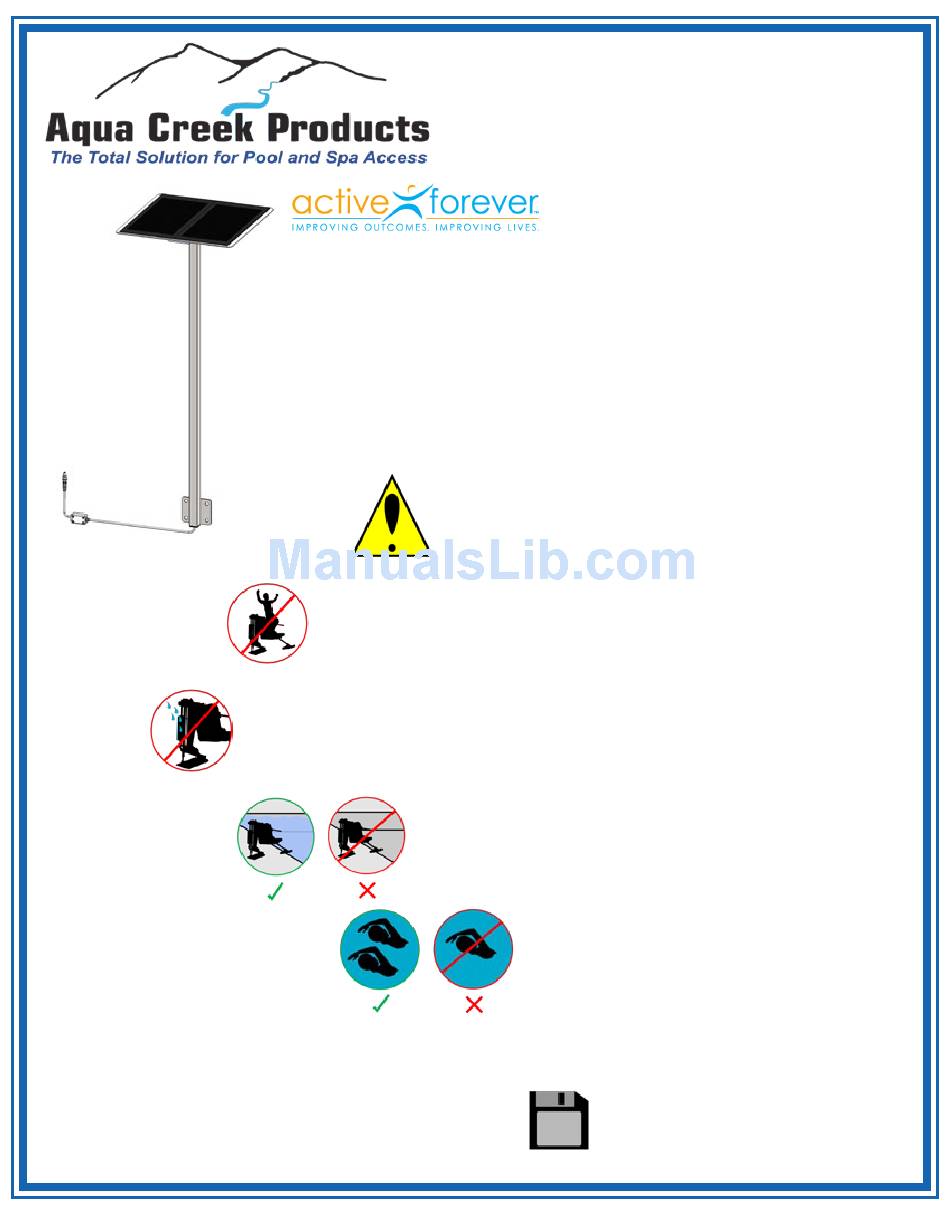

24V Solar Charger
Instructions
PART #: F-045SCH
(For use with Revolution, Scout and Titan)
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
Read & follow all instructions
Lift safety can only be ensured if the lift is installed
and operated according to these instructions
NEVER permit children to play on or around the lift
Do not allow children to use the lift without adult supervision
NEVER apply direct water pressure to the electronics
NEVER use the lift with a dry pool
For safety reasons, NEVER swim alone
9889 Garrymore Ln
Missoula, MT 59808
SAVE a copy of these instructions
888-687-3552 | +1-406-549-0769
aquacreek.com
1
Copyright © 2015 Aqua Creek Products All Rights Reserved
Revised 5/1/15
Advertisement
Related Manuals for Aqua Creek F-045SCH
Summary of Contents for Aqua Creek F-045SCH
- Page 1 NEVER use the lift with a dry pool For safety reasons, NEVER swim alone 9889 Garrymore Ln Missoula, MT 59808 SAVE a copy of these instructions 888-687-3552 | +1-406-549-0769 aquacreek.com Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
-
Page 2: Unpacking And Installation
The control box connector plugs directly into the control box as shown above and on the next page. Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15... - Page 3 “TORX” T20 DRIVER FOR OPENING CONTROL-BOX TO OPEN THE CONTROL BOX USE A TORX T20 DRIVER REMOVE THE FOUR (4) SCREWS FROM THE TOP OF THE CONTROL BOX: LEAVE SCREWS IN HOLES Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
- Page 4 REMOVE THE COVER AND PLACE ON TABLE RIGHT-SIDE UP: NOTE POSITION OF EMERGENCY-SWITCH CAP USE A “TORX” T10 DRIVER TO REMOVE THE THREE (3) SCREWS FROM THE CONTROL BOARD Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
- Page 5 Control Box Modification Instructions REMOVE THE CONTROL BOARD FROM THE CONTROL BOX USE SCREWDRIVER, AND MALLET IF NECESSARY, TO PUNCH-OUT AND REMOVE PLASTIC-DISC ON 24V INPUT/OUTPUT PORT Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
- Page 6 PLACE THE CONTROL BOARD BACK IN PLACE INSIDE THE CONTROL BOX RETURN THE THREE (3) SCREWS TO SECURE REPLACE THE EMERGENCY-SWITCH CAP WITH THE CONTROL BOARD BACK IN PLACE “ARROW” POINTING DOWN AS SHOWN Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
- Page 7 Control Box Modification Instructions PUT COVER ON AND REINSTALL SCREWS TEST EMERGENCY-SWITCH WITH DRIVER, LISTEN FOR “CLICK” Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
- Page 8 When installed properly the battery will charge as the lift operates simultaneously. Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
-
Page 9: Charge Controller
The 24V Solar Charger will continue to charge the battery, even as the lift is being used. So once the 24V Solar Charger has been installed it will function without any need for adjustment. The user should check the indicators periodically to make sure it is working. Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15... - Page 10 BOLT, 1/4-20 X 1 3/4 BHSCS BOLT, 316 SS, 1/4-20 X 1 3/4 BHSCS FLAT WASHER, 1/4 SS WASHER, FLAT, 1/4, 316 SS NYLOCK, 1/4-20 SS NUT, 316 SS, NYLOCK, 1/4”-20 Copyright © 2015 Aqua Creek Products All Rights Reserved Revised 5/1/15...
- Page 11 Aqua Creek, all warranties are void. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect.
