Sandstorm SSBT12 Instruction Manual

Bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
Bluetooth Soundbar
SSBT12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSBT12 and is the answer not in the manual?

Questions and answers

Related Manuals for Sandstorm SSBT12

Summary of Contents for Sandstorm SSBT12

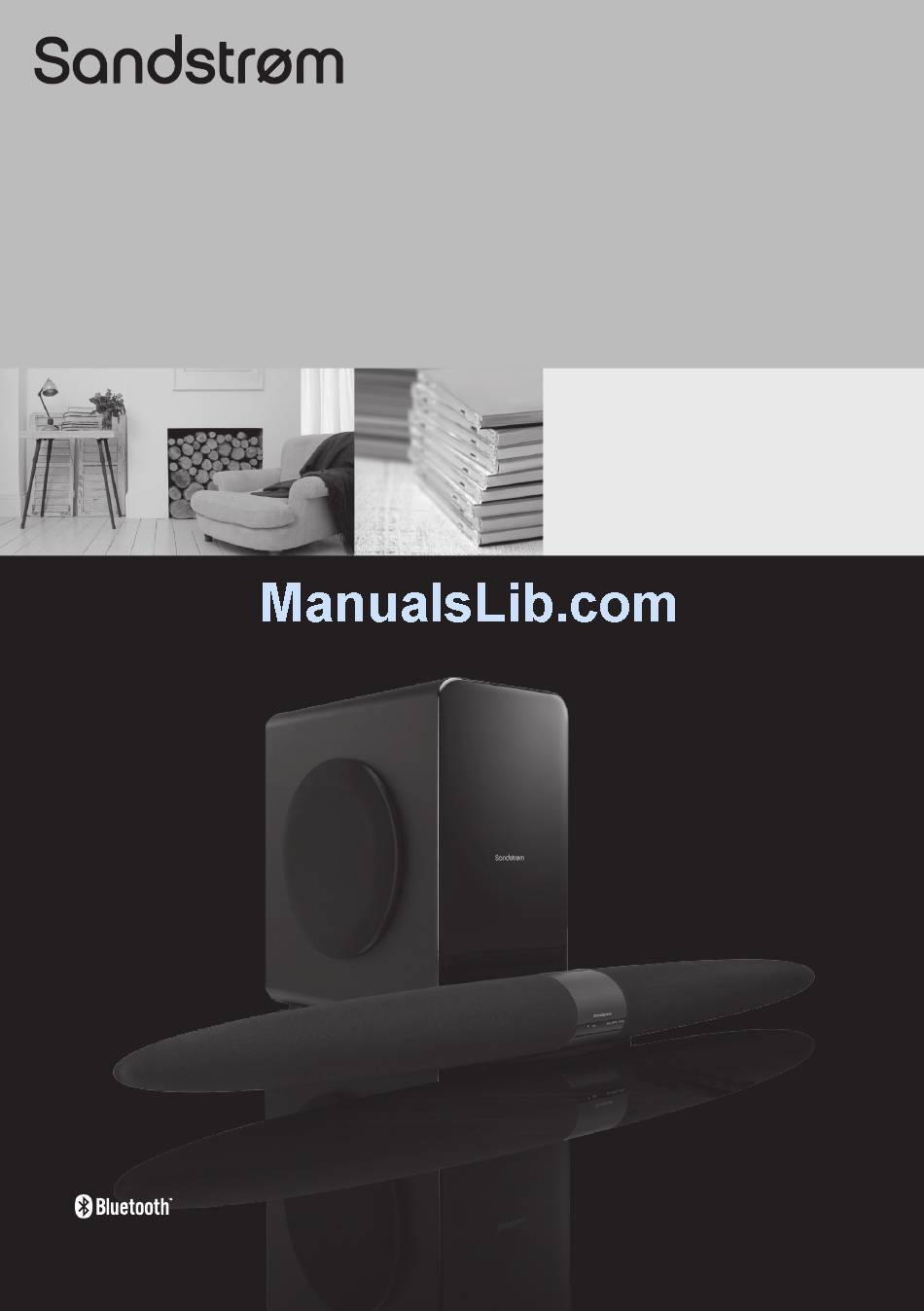

  • Page 1 Instruction Manual Bluetooth Soundbar SSBT12...

  • Page 3: Table Of Contents

    Contents Unpacking ..........................4 Product Overview .........................5 The Main Unit ..............................5 Rear View of Subwoofer ..........................6 Remote Control ........................6 Operating Your Remote Control ..................7 Handling the Battery ...........................8 Handling the Remote Control .........................8 Remote Control Operation Range ..................8 Wall Mounting ........................9 Installing / Removing the Base Stand ................12 Connections ........................13 Connecting the Main Unit and the Subwoofer ................

  • Page 4: Unpacking

    Thank you for purchasing your new Sandstrøm Soundbar. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

  • Page 5: Product Overview

    Product Overview The Main Unit Front View AUX 1 AUX 2 COAXIAL OPTICAL Speakers LED Indicators Indicators light up blue to show which Standby LED Indicator function is active. Indicator lights up red when the unit is in STANDBY mode. Remote Control Sensor Receives signal from the remote control.

  • Page 6: Rear View Of Subwoofer

    Rear View COAXIAL TO SUBWOOFER AUX 2 AUX 1 OPTICAL Screw Holes OPTICAL Socket Wall bracket attachment slots. AUX 2 Socket COAXIAL Socket AUX 1 Socket TO SUBWOOFER Socket Rear View of Subwoofer TO MAIN SET Cable AC~ Power Socket TO MAIN SET Remote Control Button...

  • Page 7: Operating Your Remote Control

    Operating Your Remote Control The remote control requires a CR2032, 3V Lithium battery (included). Use the appropriate screw driver to unscrew the battery compartment cover at the rear of the remote control. Pull the battery cover in the direction of the arrow.

  • Page 8: Handling The Battery

    Handling the Battery • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property. • Install the battery correctly in the battery compartment. Normally the battery’s positive polarity (+) will face up. • When the battery is exhausted, the remote control will not function.

  • Page 9: Wall Mounting

    Wall Mounting Assembly is required. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). The supplied wall brackets are only for use on vertical walls constructed from solid brick, solid concrete, solid wood, and solid wooden battens.
  • Page 10 Use an electronic stud finder to check the wall type before drilling and mounting. Drill 2 parallel holes (Ø 3-8 mm each according to wall type) in the wall. The distance between the holes should be 210 mm. Solid wall ø8mm 50mm ø3mm...
  • Page 11 Insert 1 screw C into each dowel. Be sure to leave a 5 mm gap between the wall and the screw’s head. 5 mm Screw C Dowel Wall (Side view) Lift the main unit with the attached wall brackets over the heads of the screws and slot into place.

  • Page 12: Installing / Removing The Base Stand

    Installing / Removing the Base Stand Ensure all cables to the main unit are disconnected before installing or removing the base stand. Screw A Stand Support Screw B Metal Base Plastic Base Stand Support...

  • Page 13: Connections

    Connections Connecting the Main Unit and the Subwoofer Connect the subwoofer’s cable from the back of the subwoofer to the main unit’s TO SUBWOOFER socket. Subwoofer Main unit TO MAIN SET COAXIAL TO SUBWOOFER AUX 2 AUX 1 OPTICAL Playing Music from an Audio or Visual Device Using the COAXIAL Connection Use a coaxial cable (not included) to connect the audio or visual device’s COAXIAL OUT socket to the main unit’s COAXIAL socket.

  • Page 14: Using The Bluetooth Connection

    Using the OPTICAL Connection Use an optical cable (not included) to connect the visual device’s OPTICAL OUT socket to the main unit’s OPTICAL socket. COAXIAL TO SUBWOOFER AUX 2 AUX 1 OPTICAL Optical cable (not included) Visual device Using the Bluetooth Connection Use bluetooth to connect the Bluetooth device.

  • Page 15: General Operation

    General Operation • During STANDBY mode, the STANDBY indicator will light up red. Press the STANDBY button on the main unit or the button on the remote control to turn the unit on. • Press the STANDBY button to switch the unit back to STANDBY mode. • Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

  • Page 16: Maintenance

    Press the SOURCE button repeatedly to select Bluetooth mode. Bluetooth indicator will flash until it pairs. Turn on the Bluetooth function on your device. Search for other Bluetooth devices, then select “SSBT12” in the pairing list. Enter default password “0000”. Some Bluetooth devices may not require password pairing.

  • Page 17: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Menu Description No power. • Ensure the mains cable is connected securely at both ends. • Make sure that the ON mode is selected. The remote control • Use the remote control near the unit.

  • Page 18: Specifications

    Specifications Model SSBT12 Power Supply 220-240V ~ 50/60Hz Operation Power Consumption ECO Standby Power < 0.5W Soundbar (with rubber base) Output Power 50W x 2 Frequency Response 100Hz, -10dB 20kHz, -3dB Bluetooth Bluetooth 2.0 (A2DP) Signal to Noise Ratio > 70dB AUX Input 800mv ±...

  • Page 19: Safety Warnings

    Safety Warnings • Read all the instructions carefully before Ventilation using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not obstruct the ventilation vents.
  • Page 20 Batteries • Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous. • Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
  • Page 21 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England IB-SSBT12-120911V1...
