Ruige TL-S701HD User Manual

Ruige TL-S701HD User Manual

Thin type hd field monitor

Advertisement

Model number: TL-S701HD/TL-S701HDA
Over view
Ruige Thin Type HD LCD monitors can work with all brands of HDSLR and HDV, like Nikon, Canon
5D MARKII, Canon 7D cameras, and Sony, Panasonic video cameras which with HDMI output.
Ruige Thin Type HD LCD monitors possess high brightness, high picture quality and high contrast
features. Clear and sharp picture and exact color temperature correction represent the real color of the
original signals. Multi-professional functions possessed can meet different professional needs.
Applications

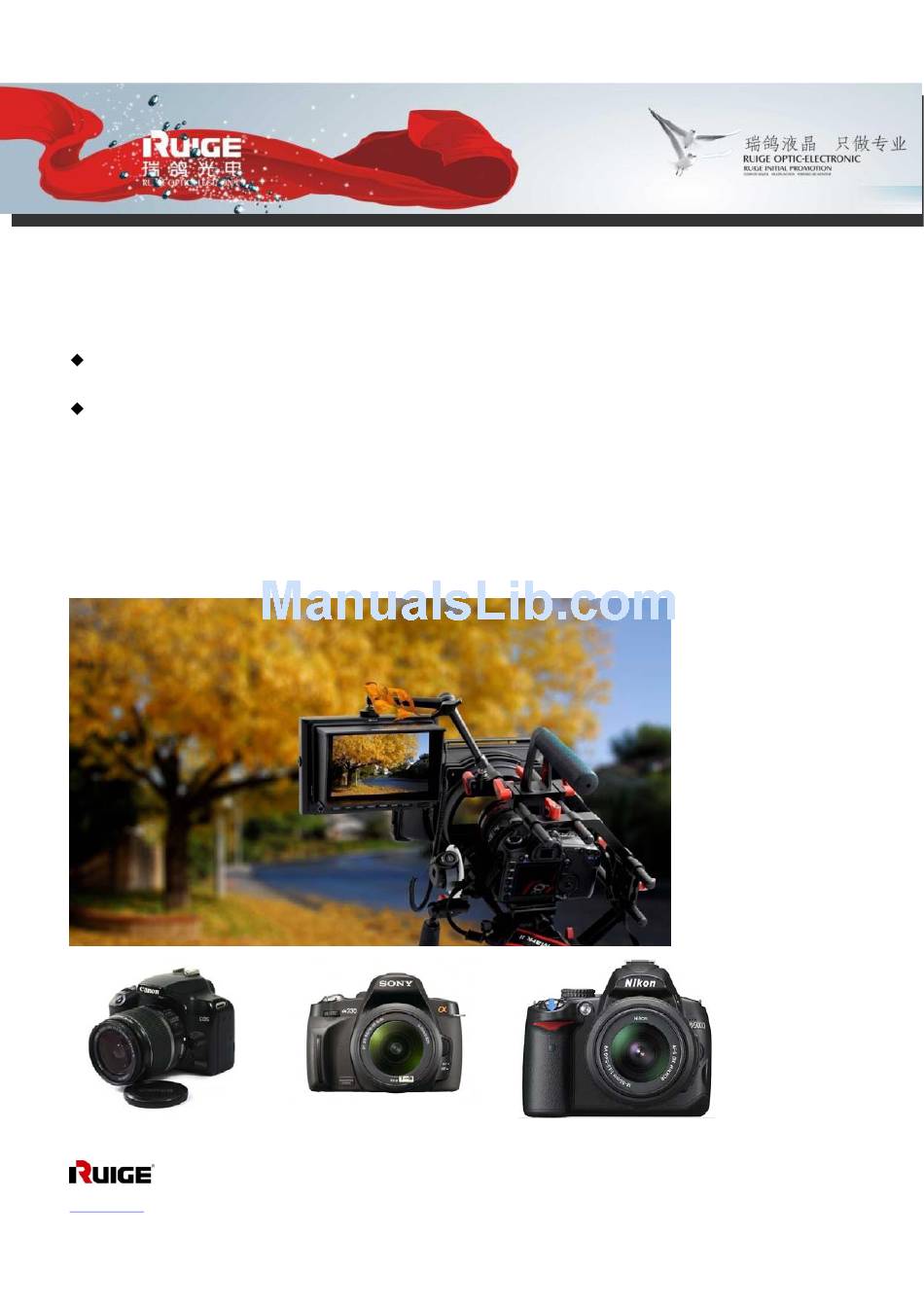

Work with HDSLR camera
Following application is Canon EOS 5D MARK II)
Cannon 7D
RUIGE OPTIC-ELECTRONIC
www.ruige.com
Thin Type HD Field Monitor
Sony:α 900
Page 1 of 11
Nikon: D7000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL-S701HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruige TL-S701HD

  • Page 1 Model number: TL-S701HD/TL-S701HDA Over view Ruige Thin Type HD LCD monitors can work with all brands of HDSLR and HDV, like Nikon, Canon 5D MARKII, Canon 7D cameras, and Sony, Panasonic video cameras which with HDMI output. Ruige Thin Type HD LCD monitors possess high brightness, high picture quality and high contrast features.
  • Page 2 Work with HDSLR video cameras (Following application is Panasonic 103 video camera) Other Video cameras as Sony: NEX-FS100 HXR-NX301 HVR-Z5C PMW-F3 Panasonic: AG-AF103MC AG-HMC153MC Canon: XF305 XF300 XF105 XF100 XLH1S XLH1A GY-HM100EC GY-HD111EC GY-HD201EC RUIGE OPTIC-ELECTRONIC Page 2 of 11 www.ruige.com...
  • Page 3: Product Details

    Switch among Sharpness-Saturation-Contrast-Brightness 6. Vol-/Value down adjustment Volume Down Value down when adjust monitor parameters 7. Vol+/Value up adjustment Volume Up Value up when adjust monitor parameters 8. Built-in speaker 9. Convertible Sun hood RUIGE OPTIC-ELECTRONIC Page 3 of 11 www.ruige.com...
  • Page 4: Back View

    BACK VIEW TL-S701HDA HDMI input and output HDMI Plug Lock (Optional) (Patent application number 201120010975.4 /US patent Application number 13/068,528) 7.2V DV Battery Plate (Optional) Compatible with Sony, Canon, Panasonic, JVC batteries RUIGE OPTIC-ELECTRONIC Page 4 of 11 www.ruige.com...
  • Page 5: Side View

    SIDE VIEW Left side Linear zoom trigger (Optional) (Patent application number: 201120010973.5/ US patent application number: 13/066,406) Right side Headphone Jack (Φ3.5mm) Headphone Jack (Φ3.5mm) RUIGE OPTIC-ELECTRONIC Page 5 of 11 www.ruige.com...
  • Page 6 Black /White (Monochrome) Switch between B/W and color. The Usage of monochrome Easy for focusing, reduces color disturb and easy to watch the lightning effects Photo Flip RUIGE OPTIC-ELECTRONIC Page 6 of 11 www.ruige.com...
  • Page 7 96%. Volume It has built- in speaker and headphone jack. can mode Standard: Original image Under scan: 105% of original image Over scan: 95% of original image RUIGE OPTIC-ELECTRONIC Page 7 of 11 www.ruige.com...
  • Page 8 Menu 3 Color temperature options: D65, D93, User define 3 Scan mode options: Standard, over scan, under scan 3 Menu language options: Chinese, English, Japanese RUIGE OPTIC-ELECTRONIC Page 8 of 11 www.ruige.com...
  • Page 9 ZOOM key first time enters 1:1 pixel zoom in, second press enters peak focus status, third press returns normal size and status. This makes focus easier and faster, which solved off-focus problem in HD video shooting RUIGE OPTIC-ELECTRONIC Page 9 of 11 www.ruige.com...
  • Page 10 Canon, Sony, Panasonic and JVC DV batteries. Rubber Protective Cover(Optional) Unique innovation design, We use the environmental and friendly rubber protective housing to protect the monitor avoid dropping and any impacting trouble RUIGE OPTIC-ELECTRONIC Page 10 of 11 www.ruige.com...
  • Page 11: Specification

    Voltage range 6.5V~36V Installation way Hot shoe adapter (L)200 × (H)137× (D)30.5mm Outer size Net weight 600g Packing size 27x10x9.5cm Gross weight Input/output TL-S701HD TL-S701HDA Remark √ √ HDMI input 1 Line × √ HDMI output 1 Line √ √...

This manual is also suitable for:

Tl-s701hda
