Summary of Contents for Braven 570
-
Page 2: Table Of Contents
CONTENTS GET TO KNOW YOUR BRAVEN ................3 CHARGING YOUR BRAVEN ..................4 TURN ON & SYNC ....................5 CHARGING EXTERNAL DEVICES ................6 SPEAKERPHONE ..................... 7 DEVICE CONTROL & DAISY-CHAINING ..............8 TROUBLESHOOTING ....................9 DEVICE SPECIFICATIONS ..................10 WARNINGS &... -

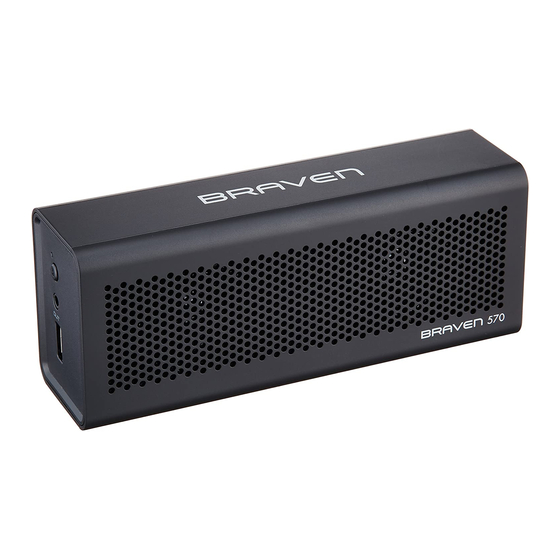

Page 3: Get To Know Your Braven
GET TO KNOW YOUR BRAVEN PHONE/PAIRING/PAUSE BUTTON BATTERY INDICATOR LIGHT POWER SWITCH BATTERY CHECK BUTTON POWER/SYNC STATUS LIGHT 3.5 MM AUDIO-OUT JACK BRAVEN CHARGING PORT (daisy-chain) EXTERNAL USB CHARGING PORT VOLUME UP/SKIP TRACK 3.5 MM AUDIO-IN JACK VOLUME DOWN/SKIP BACK... -
Page 4: Charging Your Braven
CHARGING YOUR BRAVEN CHARGE INDICATOR LIGHTS: • Before using your BRAVEN speaker for the first To check your BRAVEN’s battery charge level time, charge it until the Power/Sync Light turns off, press the Battery Check Button located on the indicating a full charge (typically 2 to 4 hours). -
Page 5: Turn On & Sync
8 devices it has paired with. 3. Press and hold the Pairing Button on NOTE: If the BRAVEN does not have an active the BRAVEN speaker until the Sync Bluetooth connection and is left on, it will shut Status Light begins to flash rapidly ®... -
Page 6: Charging External Devices
(most cell phones & mp3 players. Tablets and BRAVEN speaker can charge external devices to other 2A devices cannot be charged by your BRAVEN speaker) the following approximate levels: using the full-sized USB port on the left side of the speaker. -
Page 7: Speakerphone
BRAVEN speaker. You may need to manually select the When the BRAVEN is synced via Bluetooth with your BRAVEN speaker as the audio source to use it as the ® phone and a call comes in, the speaker will beep. -
Page 8: Device Control & Daisy-Chaining
BRAVEN speaker. • Using the included 3.5mm audio cable, connect Pause: Press the Phone/Pairing/Pause Button the line-out of your paired BRAVEN speaker to the line-in port of another BRAVEN speaker. for 0.5 seconds. Press again to resume playback. •... -
Page 9: Troubleshooting
® independently, both on the speaker and the that obstruct the BRAVEN from a clear path to the Bluetooth source device. Check the volume levels playing device to which it is paired. Ensure that your ®... -
Page 10: Device Specifications
DEVICE SPECIFICATIONS PLAY TIME 10 hours* DRIVERS 6W (3W per channel) DECIBEL RATING 95 dB at 0.5m FREQ. RESPONSE 180Hz - 13kHz +/- 3dB POWER ADAPTER Output: DC 5V 1A SIZE 15.9cm x 6.4cm x 4.5cm WEIGHT 11 oz. (312g) BLUETOOTH RANGE 10m/33 ft. -
Page 11: Warnings & Cautions
WARNINGS & CAUTIONS To reduce the risk of fire or electric shock, do not expose the BRAVEN to rain or moisture. The BRAVEN should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on or near it. Do not use near bathtubs, washbowls, kitchen sinks, laundry tubs, in a wet basement, near a swimming pool, or anywhere else that water is present. -
Page 12: Legal Information
LEGAL INFORMATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 13 ONLINE: www.braven.com TUTORIALS: www.braven.com/tutorials SUPPORT: www.braven.com/support EMAIL: support@braven.com PHONE: 1-877-9 BRAVEN (1-877-927-2836) TWITTER: @bravenproducts FACEBOOK: facebook.com/bravenproducts...
