X8 Paediatric
Tilt in Space Wheelchair
www.aktiv-wheelchairs.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the X8 and is the answer not in the manual?

Questions and answers

Related Manuals for Aktiv X8

Summary of Contents for Aktiv X8

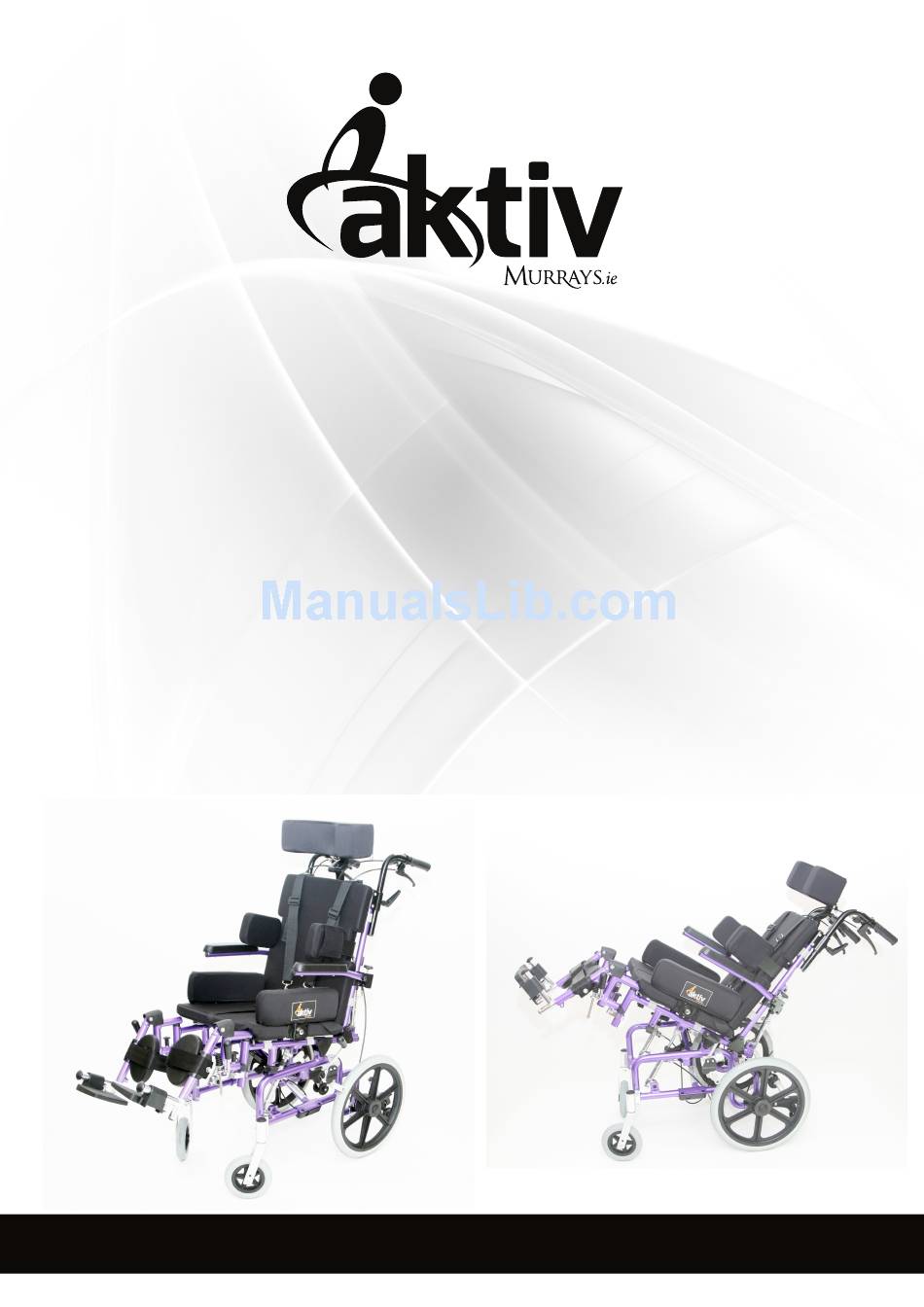

  • Page 1 X8 Paediatric Tilt in Space Wheelchair www.aktiv-wheelchairs.com...
  • Page 2 2.0 General operational instruction and operation 2.1 Seat installation and operation 2.1.1 There are four clips under the seat. Please click the clips into the seat tubes then use the hooks to holds the seat tubes in place and tighten the screw.(Refer to Fig.1) 2.1.2 There is a knob under the seat and it is for the adjustment of pommel support.
  • Page 3 2.2 Back and headrest installation and operation 2.2.1 There are four clips under the back. Please click the clips into the back tubes then use the hooks to holds the seat tubes in place and tighten the screw.(Refer to Fig.4) 2.2.2 There are two chest supports stays on the backrest.
  • Page 4 2.3 Armrest operation 2.3.1 The wheelchair is with flip back armrest. 3.2 The armrest slope can be adjusted through the knob. When tighten the knob the and slope can be increased.(Refer to Fig.7) Fig. 7 Armrest slope adjusting knob 2.3 Elevating leg-rest operation(Refer to Fig.8) 2.4.1 Lift the leg-rest tube to suitable position when you need elevate the leg position.
  • Page 5 2.4 Tilt and recline operation(Refer to Fig.9) 2.4.1 Reclining function: Press the left side small level and pull backward / push forward the back to the comfort reclining position for the user. 2.4.2 Tilt function: Press the right side small level and pull backward / push forward the back to the comfort tilting position for the user.

  • Page 6: Maintenance

    Maintenance To keep the wheelchair in its best condition, please proceed with the following maintenance: 1. Before using the wheelchair and during the first month of use, check all the screws if they are tightened. If any loosen situation appears, please tighten immediately to assure the safety of the user. Under normal use, please proceed with routine inspection every 3 months to assure all the parts are in good condition, to check all the screws and nuts are tightened (specially the fixing nuts of rear wheels and the brake system).
  • Page 7 Client Murrays Medical Equipment Ltd Test Item Test ISO 7176/19 Wheelchair Millbrook Report No. 12/0401 Millbrook Project No. CR0224-001-01 Millbrook Test No. S12092 Oliver King Author: Engineer Kieran Forinton Approved: Principal Engineer Date: 10th May 2012 This test report shall not be reproduced, except in full, without written approval of Millbrook...

  • Page 8: Warranty

    Warranty claims will not be accepted without proof of purchase. This warranty does not extend to freight charges incurred to return the wheelchair to the dealer or to Aktiv Wheelchairs for repair or replacement.
  • Page 9 Murray’s Medical Equipment Airton Park - Airton Rd - Tallaght - Dublin 24 TEL: 01 8555 696 - service@murrays.ie www.aktiv-wheelchairs.com...
