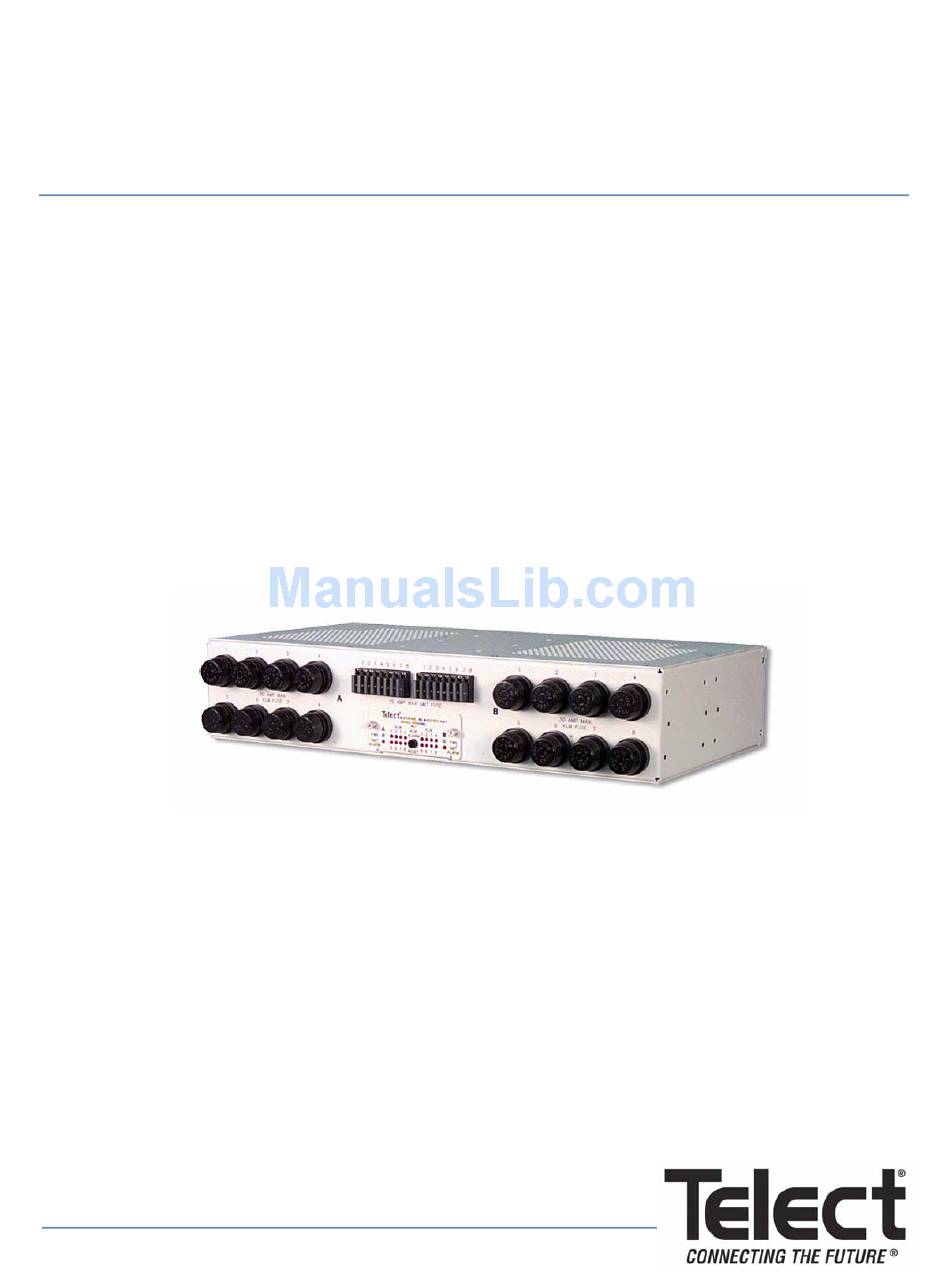

- Page 1 8x8 KLM / GMT Power Distribution Panel Model 009-8004-0208 Installation Guide...
- Page 2 1730 N Madson St., Liberty Lake, Washington Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights nor the patent rights of others. This document and the products described herein are subject to change without notice.
-
Page 3: Table Of Contents
1.9.2 Out-Of-Warranty Service .................... 12 1.10 Accessories and Kits ......................12 1.11 Reference Schematic ......................14 1.12 Physical Attributes ......................15 Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page iii... - Page 4 Figure 4 - Test Guide ........................6 Figure 5 - Connecting Output Cables ..................7 Figure 6 - Fuse Alarm Card ......................9 Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page iv...
-
Page 5: Introduction
EIA or WECO rack. The panel is configured at the factory for extended mounting in a 19" rack. ETSI mounting kits are also available; contact Telect or your distributor. Model 009-8004-0208 is UL Listed, File E139903, and NEBS Certified. - Page 6 25A max. continuous load per KLM position. 12A max. 80% interruption device rating continuous load per GMT fuse position. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 2...
-
Page 7: Inspection
Immediately report any shipping damage, defects, or missing parts to Telect at 1-800-551-4567. Keep all documentation that comes with your shipment. Telect is not liable for shipping damage. If the product is damaged, notify the carrier and call Telect’s Customer Service Department at 1-800-551-4567 (domestic only) or 1-509-926-6000 for further recourse. -
Page 8: Installation
7. Label the front and the rear of the panel according to the labeling conventions specified in Telect‘s Wire Sizing and Label Chart (117995). Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 4... -
Page 9: Connecting Input Power
BATT and RTN terminals. Secure the input cables to the lugs. 10. Re-install the terminal block covers. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 5... -
Page 10: Connecting To The Power Bays
Ohmmeter reads: Black probe: C ~ Ohms (open load) Red probe: NO Black probe: C 0 ohm Red probe: NC Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 6... -
Page 11: Connecting Output Cables
6. If required by the operating company’s installation procedures, Output Cables use anti-oxidant compound between the compression lugs and the BATT and RTN terminals. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 7... -
Page 12: General Guidelines For Installing Fuses
ESD mitigation procedures when replacing fuses or alarm cards. Install KLM fuses with a forward, clockwise-rotating motion. Insert “phoney” fuses in unpowered circuits. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 8... -
Page 13: Installing Gmt Fuses
If the red KLM Alarm LED does not illuminate, a. Verify that the fuse is absent or a “phoney” fuse is present. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 9... -
Page 14: Powering The Load Equipment
ALERT ALERT! Do not use fuses as disconnect devices for powered equipment! Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 10... -
Page 15: Replacing The Alarm Card
6. Use a No. 1 Phillips screwdriver to secure the card’s captive screws just beyond finger-tightness. 7. If desired, test the alarm card according to the alarm testing procedures above. Telect alarm cards are factory-tested. Replacement testing may not be advisable if it affects office system service. -
Page 16: Service
The procedure for out-of-warranty service is the same as for in-warranty service, except that Telect charges a processing fee, and you must submit a purchase order along with a Return Material Authorization (RMA) before returning equipment. Call a Telect customer service representative at 1-800-551-4567 for help getting these forms. - Page 17 004013 102435-15 Green 004014 102435-16 7 1/2A Black/white 004010 102435-17 Red/white 004015 102435-18 Yellow/green 102287 102435-19 Red/blue 102288 102435-20 Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 13...
-
Page 18: Reference Schematic
KLM ALARM 8 KLM 1 KLM 2 KLM 3 KLM 4 KLM 5 KLM 6 KLM 7 KLM 8 Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 14... -
Page 19: Physical Attributes
Front View 3.47 in. (8.81 cm.) Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice. - Page 20 This page intentionally left blank. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 117200-4 A0 Page 16...
