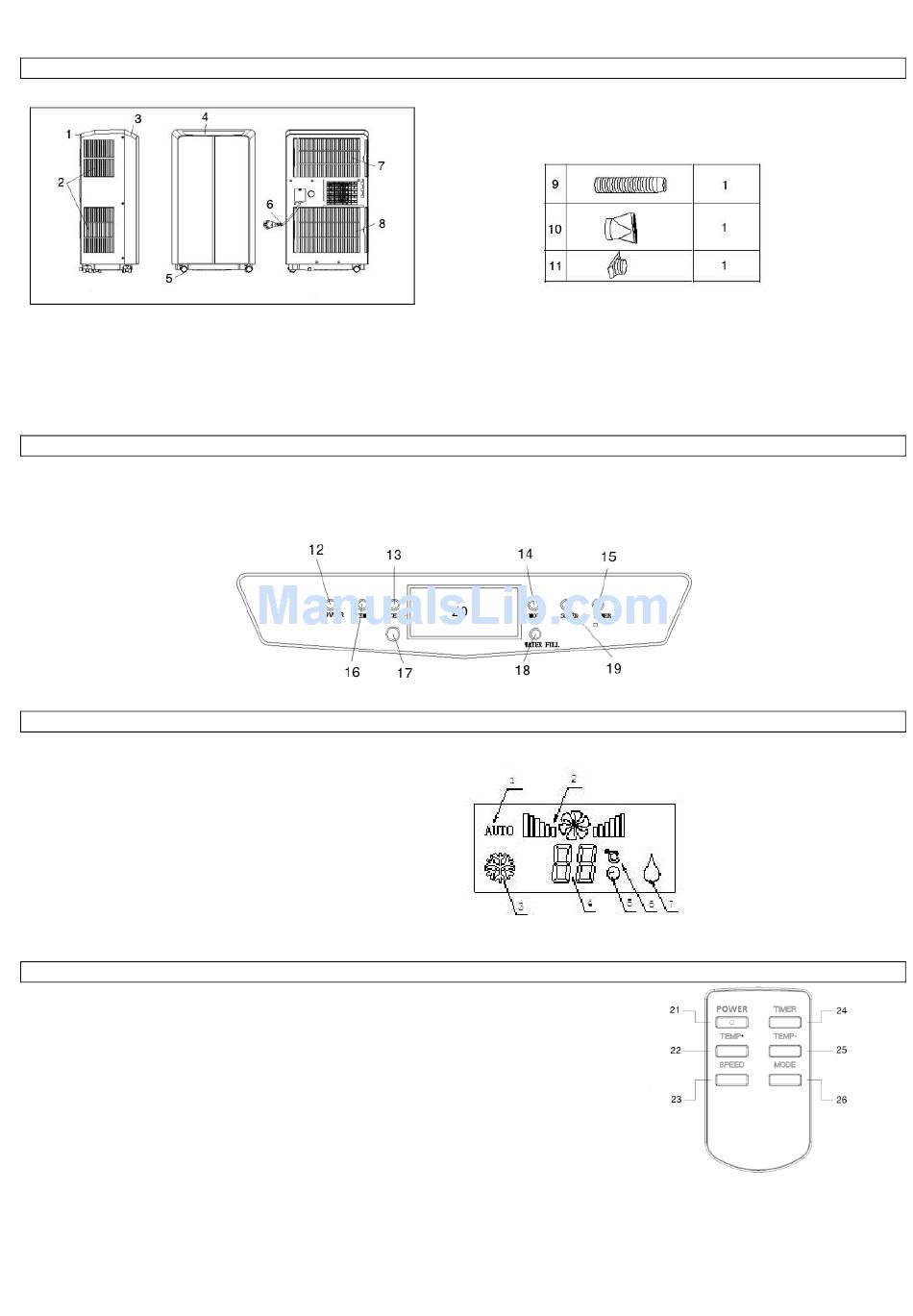

Name of Parts, Figure 1
1. rear cover 5. caster
2. air inlet 6. power line
3. front cover 7. air inlet
4. operation panel 8. air inlet
Appearance and Function of Control Panel, Figure 3
12. POWER Button
13. temperature – button
14. operation mode button
Operation Display, Figure 4
1. Auto Mode Icon
2. Fan Speed
3. Cooling Mode
4. Temp. and Timer Setting
5. Timer on
6. Temperature °C
7. Dry Mode Icon
Appearance and Function of Remote Controller, Figure 5
21. POWER Button; press this button will turn the machine on or off
22. Temperature setting button; this button is used to set the room temperature.
Each key press increases the room temperature about 1°C.
23. Speed Button; Press this button will choose high, middle or low ventilation speed.
24. Timer button; press to set the timer on or off
25. Temperature setting button; this button is used to set the room temperature.
Each key press reduces the room temperature about 1°C.
26. Mode Button; press this button will choose the function auto cooling, cooling, or dry.
15. timer POWER button
16. temperature + button
17. signal receiver window
Spare Parts, Figure 2
9. exhaust pipe
10. flat fixing clip
11. square fixing clip
18. water full indicator lamp
19. fan speed adjustment button
20. LED Window
