Summary of Contents for TECshow iON 230B

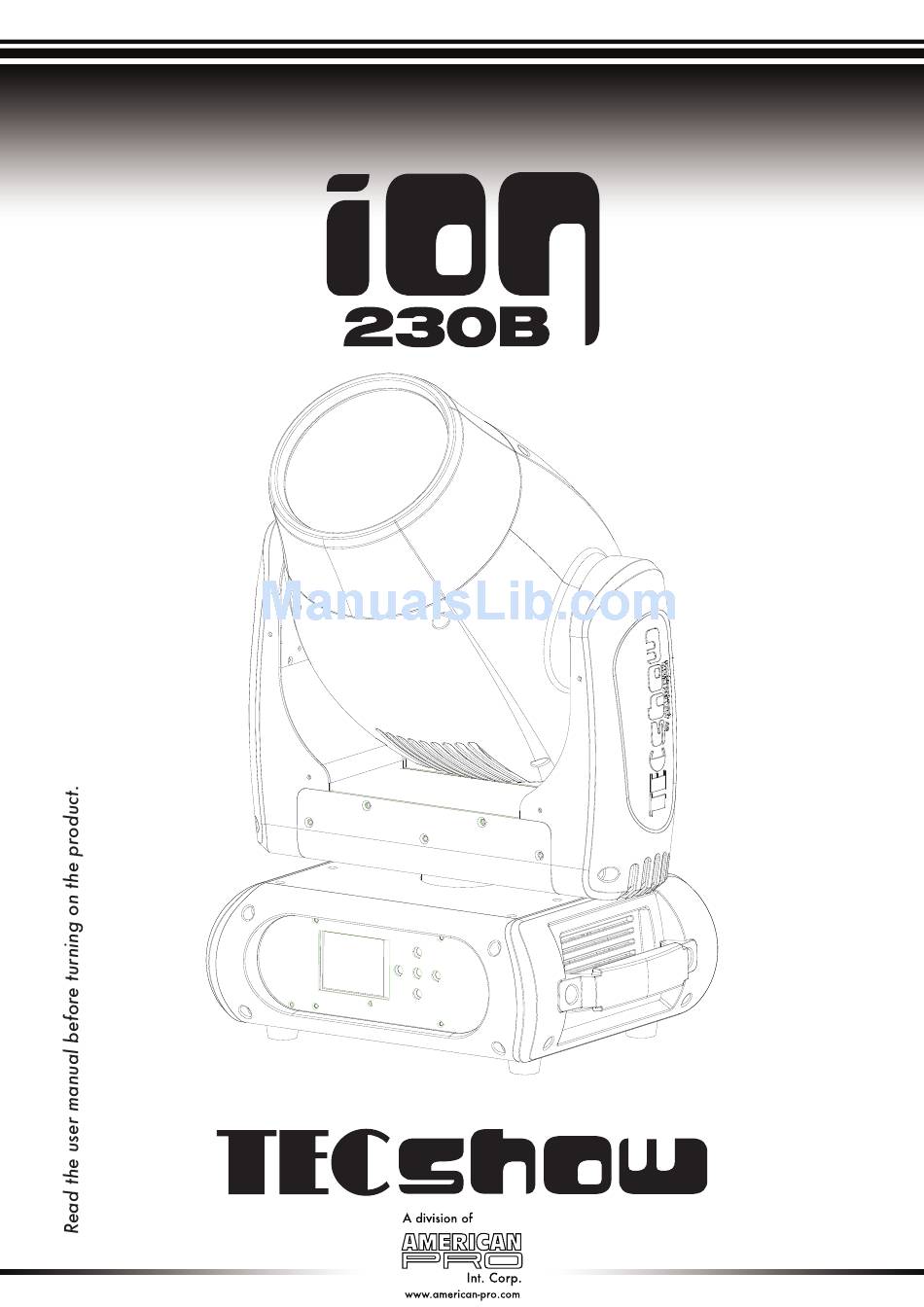

  • Page 1 USER MANUAL...

  • Page 2: Safety Instructions

    For your own safety, please read this user manual carefully before you initially start-up. INTRODUCTION Thanks for choosing a TECSHOW product. ION Series is built to satisfy the most demanding users. We are confident that our excellent products and service will satisfy you.
  • Page 3 2     If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages.

  • Page 4: Operating Determinations

    3     OPERATING DETERMINATIONS This device is a moving-head lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 100-240 V, 50/60 Hz and was designed for indoor use only. This device is designed for professional use, e.g.

  • Page 5: Description Of The Device

    4     Never   r emove   t he   s erial   b arcode   f rom   t he   d evice   a s   t his   w ould   m ake   t he   g uarantee   v oid. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void.
  • Page 6 5       Overview Objective lens     Base   Handle Wireless indicator   Display Microphone Left button Down buttom (10) Enter button (11) Up button   (12) Right button                  ...
  • Page 7 6     INSTALLATION Inserting/Exchanging gobos DANGER! Install the gobos with the device switched off only. Unplug from mains before! If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged, please follow the instructions below: CAUTION! Never unscrew the screws of the rotating gobo...
  • Page 8 7     The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time. The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.
  • Page 9 8     For overhead use (mounting height >100 cm), always install an appropriate safety bond. Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be followed that this manual can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.
  • Page 10 9     The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions! Install the safety bond by inserting the quick link in the hole on the bottom of the base. Pull the safety bond over the trussing system etc.
  • Page 11 10     DMX-512 connection / connection between fixtures Projector 1 Projector 2 Projector 3 Starting address 1 Starting address 20 Starting address 39 120 Ohms DMX-512 Controller The wires must not come contact with each other, otherwise the fixtures will not work at all, or will not work properly. Please note, the starting address depends upon which controller is being used.
  • Page 12 11     Connection with the mains Connect the device to the mains with the enclosed power supply cable. The occupation of the connection-cables is as follows: Cable International Brown Live Blue Neutral   Yellow/Green Earth The earth has to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
  • Page 13 12     Note: After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX-input, the display will flash. This situation can occur if: - the XLR plug (cable with DMX signal from controller) is not connected with the input of the device. - the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.
  • Page 14 13       Normal Shutter Functions Close Strobe Rate (slow to fast) Open Pulse-effect Forward Close Strobe Rate (slow to fast) Open Shutter Pulse-effect Reverse Close Strobe Rate (slow to fast) Open Random Strobe Close Strobe Rate (slow to fast) Open Dimmer Dimmer(Close to Open)
  • Page 15 14       Indexed & Indexed With BackOut&Color Bounce Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Position 9 Position 10 Color Position 11 Position 12 Position 13 Position 14 Position 15 Forward Spin Stop to fastest...
  • Page 16 15       Continuous Forward Spin Reverse Spin Gobo Forward Animate Rotate Forward Animate Rotate With Backout Function Reverse Animate Rotate Reverse Animate Rotate With Backout Continuous Positioning from 0-360 degrees Forward Spin Stop to fastest Reverse Spin Gobo Stop to fastest Forward Animate Rotate &...
  • Page 17 Control Board The Control Board offers several features: you can simply set the starting address, run the pre-programmed program or make a reset. The main menu is accessed by pressing Enter until the display is lit. Browse through the menu by pressing the arrow buttons (up, down, left, right).
  • Page 18 Reset Reset all Pan&Tilt Reset Pan&Tilt Colors Reset Colors Gobos Reset Gobos Shutter Reset Shutter Others Reset Others Movment Pan Reverse ON/OFF Pan Reverse Tilt Reverse ON/OFF Tilt Reverse Pan Degree 630/ 540 Choose Pan Degree Encoders ON/OFF Encoder wheel on/off Pan/Tilt Mode Stand/Smooth Choose pan/tilt mode...
  • Page 19 Play DMX Reveice DMX Receive Slave Reveice Slave Reveice 1,2,3 Choose slave position Sequence Master / Alone Run Sequence Music Master / Alone Music mode Select Chase Chase Part 1 Chase 1 ~ 8 Chase 1 Select Chase Part 2 Chase 1 ~ 8 Chase 2 auto program Chase Part 3...
  • Page 20   19   Time information Current With this function, you can display the temporary running time of the device from the last power on. The display shows “XXXX”, “X“ stands for the number of hours. The counter is reset after turning the device off.
  • Page 21 With this function you can flip the display by 180° for a better view when the fixture is hung from the truss or a ceiling. Brand Show With this function you can show or hide the brand name 'TECshow' on the display during menu operation, but still show it after reset. Key lock With this function you can lock the keys of the Control Board to e.g.
  • Page 22   21   With this function you can call up various submenus via RDM. This device is RDM ready. RDM stands for "Remote Device Management" and makes remote control of devices connected to the DMX-bus possible. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol.
  • Page 23   22   Program Play Slave Revice With this function, you can define the device as slave. You can choose one of three different Slave programs. For further information see „Edit Chase”. Sequence With this function, you can run the internal program. You can select the desired program under “Select Chase”.
  • Page 24   23   3. Program for Select Chase • Select “Edit Chase” by pressing Up or Down. • Press the Enter-button to confirm. • Select “Select Chase” by pressing Up or Down. • Press the Enter-button to confirm. • Press Up or Down to select “Chase Part 1”, “Chase Part 2” or “Chase Part 3”, and thus select which Slave program is to be sent.

  • Page 25: Error Messages

      24   Error Messages When you turn on the fixture, it will make a reset first. The display may show an error message while there are problems with one or more channels. The error message stands for the channels equipped with a testing sensor.

  • Page 26: Cleaning And Maintenance

      25   CLEANING AND MAINTENANCE The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.

  • Page 27: Technical Specifications

      26   Should you have further questions, please contact your dealer. TECHNICAL SPECIFICATIONS Power supply: 100-240 V AC, 50/60 Hz ~ Power consumption: 300 W/215 VA DMX control channels: 16/18/19 DMX512 connection: 3-pin XLR Sound-control: via built-in microphone Type of sources: Osram Surius 230w HID lamp Beam angle: approx.
  • Page 28 THANK YOU FOR YOUR TRUST www.american-pro.com AMERICAN PRO develops & improve products constantly. For this reason, the speci cations and consigned information in the present user manual can me modi ed without notice...
