Elkay Energy sense Operating Instructions

pushbutton
touch
time
push button/touch timer fitting & operating instructions
The push button/touch timer are part of the Elkay familk of switches,timers
and detectors which save energy and increase convenience in and around your
home,garden or premises.
MOUNTING AND INSTALLATION
please note that it is essential that the Live In
Important
wire and switch Live Out is identified prior to
commencing installation.Turn off mains supply for
installation.Your Elkay unit is compatible with a single
gang,25mm deep,British Standard accessory plate.please
ensure that the top and bottom lugs are removed,if
fitted,from metal wall boxes prior to fitting.Ensure that
there is adequate space for wiring.

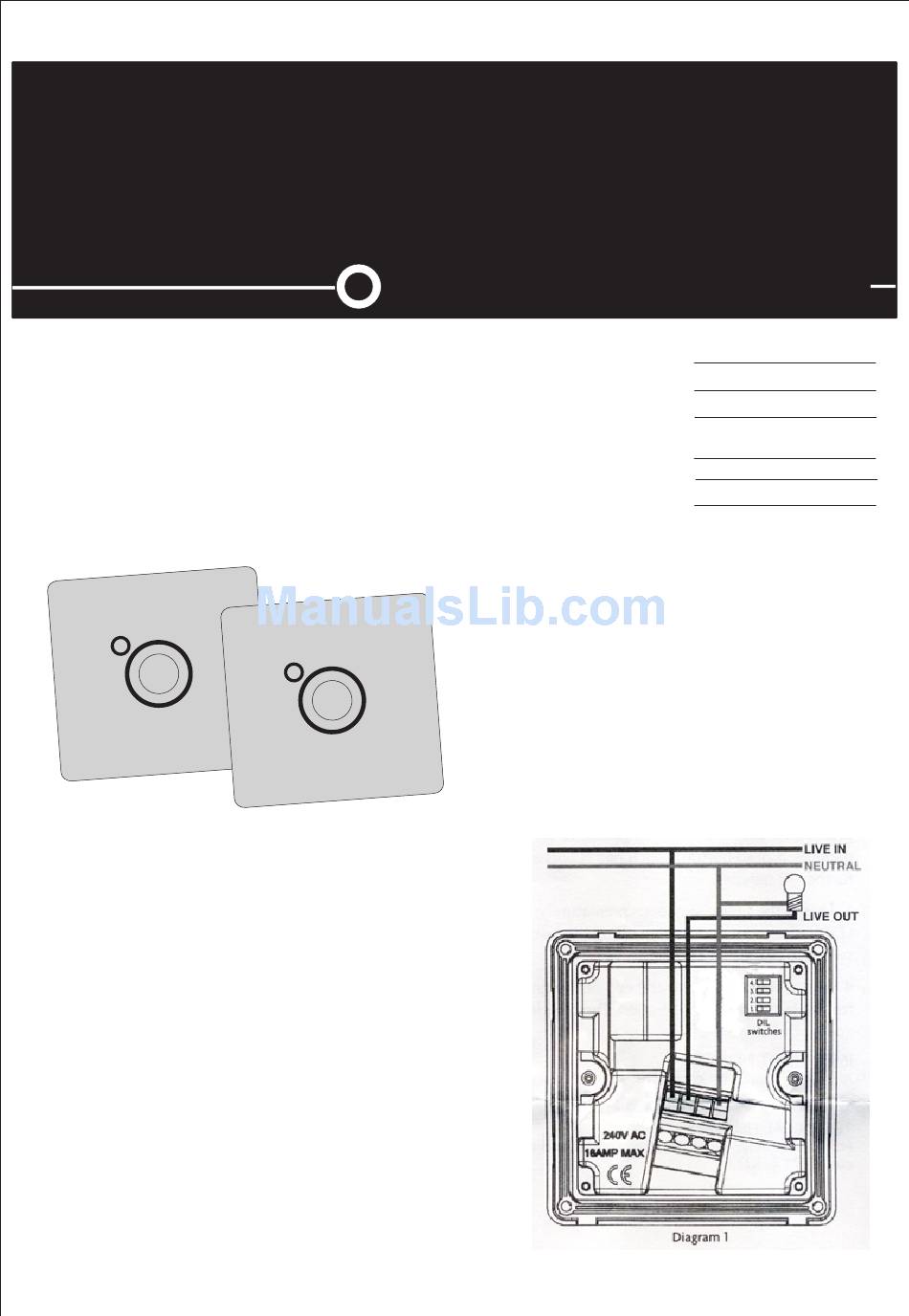

Step 1 place the Live In wire,as per diagram,into the left
hand position of tha connector,the switched Live Out
wire into the seccond from left position of connector.(see
diagram1)
Step 2 To set time, as per timing table, use switches one
through four. Depending on required time available from
2 minutes to 2 hours. E.g 10 minutes = switch one - off,
switch two - on, switch three - off, switch four - off.
(see diagram 2)
timer
energy
energy
energy
USAGE
The push button/touch timers are general
purpose time controls.Applications for
suitable use include lighting,heating and
ventilation. The timers can be used
independently or as a master unit when
using slave trigger switches .
sense
style
outdoor
RATING AT 240V AC
Incandescent 16A
Fluorescent 16A
Compact 16A
Fluoescent
Resistive 16A
TimeDelay
2mins-2hours.
