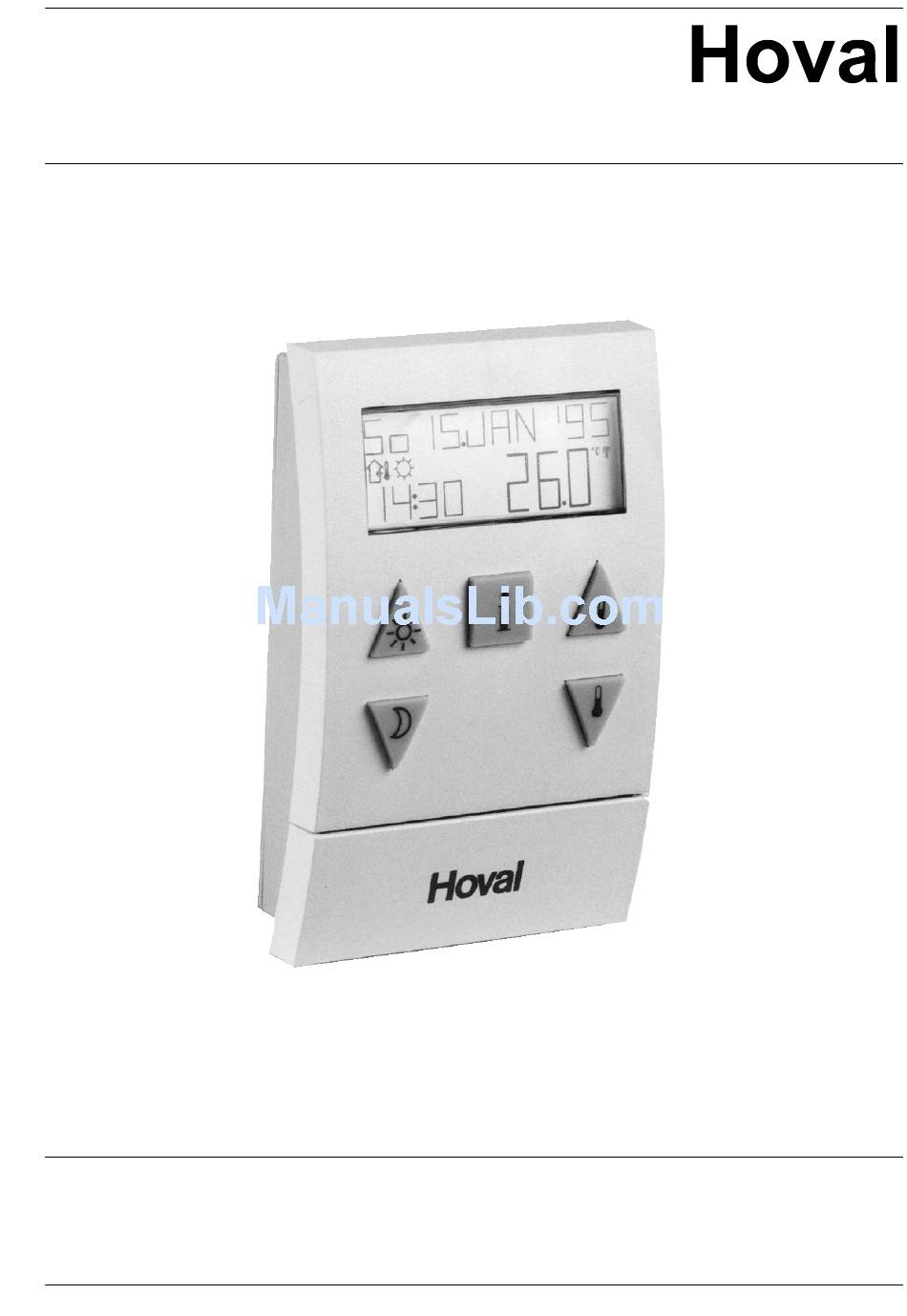

User Instructions
®
For TopTronic
RS-30
430294ENG-Jun02
Hoval Ltd
Northgate
Newark
Nottinghamshire NG24 1JN
Phone 01636 672711
Fax 01636 673532

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TopTronic RS-30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hoval TopTronic RS-30

  • Page 1 User Instructions ® For TopTronic RS-30 430294ENG-Jun02 Hoval Ltd Northgate Newark Nottinghamshire NG24 1JN Phone 01636 672711 Fax 01636 673532...
  • Page 2: Table Of Contents

    Index 430294ENG-Jun02 Introduction Introduction ............................Controls............................. Display .............................. User instructions Key function table..........................Switching on the room station ......................Additional information........................Automatic program selection ......................Room temperature ..........................Heating program ..........................Calorifier charging ..........................Advanced user instructions Language ............................10 Clock setting............................
  • Page 3: Introduction

    Introduction 430294ENG-Jun02 The RS-30 has the most modern technology and serves as a weather / room temperature regulator with integrated hot water control and remote operating functions for the UltraGas or Topgas boilers. With the most up to date micro electronics exclusive functions can be activated which guarantee the highest level of comfort with the minimum energy usage.
  • Page 4: User Instructions

    User Instructions 430293ENG-Dec01 Key Function table (User Level) Adjust with keys / Function Enter with keys Page No. range Room temperature correction 5…30 Heating (day) with room temperature 5…30 Reduced (night) room with temperature 5…30 Information press and hold Party function 0.5…10h Continuous press and hold...
  • Page 5: Additional Information

    User Instructions 430294ENG-Jun02 Attention: Fault Indications · The RS-30 room station has a comprehensive During summer switch off the following fault indication system which has priority over all symbols are not shown other indications and remain active until the fault ·...
  • Page 6: Room Temperature

    User Instructions 430294ENG-Jun02 Changing between Automatic Programs press By using the keys and following procedure it is possible to change between the automatic programs heating. Display for reduced operation. Press Simultaneously The following will be displayed for the default press setting of program 2: Display for heating temperature.
  • Page 7: Heating Program

    User Instructions 430294ENG-Jun02 press For example: At 20.15 the heating needs to be extended by 3 hours (to 23.15). Display for heating press to increase operation. to decrease Adjustment range 0.5…10h It should be noted that the adjustment is from the time of alteration and not an extension of the automatic program 1, 2 or 3.
  • Page 8 User Instructions 430294ENG-Jun02 To cancel heating program The continuous heating program can be cancelled using the following procedure: press and hold The default display will return after 4 seconds. D - Reduced This program is used to switch to reduced continuously.
  • Page 9: Calorifier Charging

    User Instructions 430294ENG-Jun02 E – Heating Off This program enables the heating operation to be switched off without any danger of frost. With outside temperature below the set frost protection limit the heating cycle is regulated according to the minimum room temperature.
  • Page 10: Advanced User Instructions

    Advanced User Instructions 430294ENG-Jun02 Language - Month The room station is programmed in three Change with: languages English, German and French. To to increase change the language press to decrease for 5 seconds. Once the language appears the Setting Range: keys can be used to change languages.
  • Page 11: Time Clock Programming

    Advanced User Instructions 430294ENG-Jun02 Room temperature correction for PARTY and Press key HEATING with variable temperature parameter enabled. Boiler circuit Works setting For operating types: program 2 PARTY HEATING The room temperature is set to automatic works Boiler circuit setting of 20ºC or the corrected value which has Room level set to been set in the user level.
  • Page 12 Advanced User Instructions 430294ENG-Jun02 By pressing the key in quick succession Next cycle the programmed cycles can be called up in series the values noted and corrected if Cycle 3 Monday necessary. Time clock level can be exited by pressing the key.
  • Page 13 Advanced User Instructions 430294ENG-Jun02 Skipping Cycles If a called up cycle shows 00:00 the next cycle is Press Simultaneously skipped. Heating Cycles which overlap midnight If a programmed heating time overlaps midnight Cycle cancelled e.g. switch on time 6.00pm switch off time 2.00am the cycle must be programmed separately on both days as shown below.
  • Page 14: Block Programming

    Advanced User Instructions 430294ENG-Jun02 Block programming In order to simplify the programming of the time clocks it is possible to copy the time clock settings in various ways. A – Complete automatic programs It is possible to copy complete heating or hot water programs to other programs for example heating program 1 to heating program 3.
  • Page 15 Advanced User Instructions 430294ENG-Jun02 B – Day to day or week Time programs can also be copied from day to the whole week or from day to day for example Tuesday to Wednesday. Day to week While in the time clock see page 13 the key followed by the key can be used to copy the current day to the whole week.
  • Page 16 Advanced User Instructions 430294ENG-Jun02 Room temperature corrections with individual temperature cycle programs When individual temperatures have been entered for each heating cycle, the desired room temperature can be altered via the correction keys for one of the cycles. This change will then effect all other heating cycles as shown in the below example: Original cycle temperatures Cycle 2...
  • Page 17 Advanced User Instructions 430294ENG-Jun02 Program 1 settings Standard Program 1 - Heating Standard Program 1 - Calorifier Calorifier temperature - 55 Setting 1 Setting 2 Setting 3 Setting 1 Setting 2 Setting 3 From Temp From Temp From Temp From From From 6.00...
  • Page 18 Advanced User Instructions 430294ENG-Jun02 Program 2 settings Standard Program 2 - Heating Standard Program 2 - Calorifier Calorifier temperature - 55 Setting 1 Setting 2 Setting 3 Setting 1 Setting 2 Setting 3 From Temp From Temp From Temp From From From 6.00...
  • Page 19 Advanced User Instructions 430294ENG-Jun02 Program 3 settings Standard Program 3 - Heating Standard Program 3 - Calorifier Calorifier temperature - 55 Setting 1 Setting 2 Setting 3 Setting 1 Setting 2 Setting 3 From Temp From Temp From Temp From From From 6.00...
  • Page 20: Room Level

    Advanced User Instructions 430294ENG-Jun02 3 - Room Level Burner hours run At this level, the parameters relevant to the Works setting: heating requirements of the building and its 000000.00h characteristics can be displayed and changed. Range: 0 … 99999999 Hot water temperature Hot water operation Burner hours run Number of burner...
  • Page 21 Advanced User Instructions 430294ENG-Jun02 Cancellation of holiday program Program 3 Change with A complete holiday program can, before With this parameter it is possible to change commencement be cancelled by pressing between the three clock programs for hot water, see pages 17 to 19 for settings. Holiday Begin Boiler circuit clock program...
  • Page 22 Advanced User Instructions 430294ENG-Jun02 Note: The room station should be placed in the room that most accurately represents the temperature of the building. Thermostatic radiator valves when fitted properly should only serve to deregulate foreign heat sources and Room temperature therefore should be fully open.
  • Page 23: Room Level Parameters Table

    Room Level Parameters 430294ENG-Jun02 Parameter Function Range Factory Setting Current Setting 1. Hot water temp C – Max setting 2. Hot water operation Off, On 3. Burner hours run 000000.00 – 000000.00 999999.59 4. Burner starts 00000000 – 00000000 99999999 5.
  • Page 24: Advanced Parameter Table

    Advanced Parameter Table 430294ENG-Jun02 Parameter Factory Current Parameter Function Range Function Setting Setting First Commissioning date Room Sensor Off - On Influence of room temp 0…250% Auto Adaption Off - On Variable room temp Off - On Derivative action time 0…6 h Heating maximum temp 40…90...
  • Page 25: Installation / Technical

    Installation / Technical Data 430293ENG-Dec01 Installation Positioning – without room sensor If there is no room sensor or the room sensor has not been activated the unit can be placed as desired. Positioning – with room sensor When used with the unit sensor activated the unit must be placed at a height of approximately 1.20 to 1.50 m in a place representing the temperature of all rooms.
