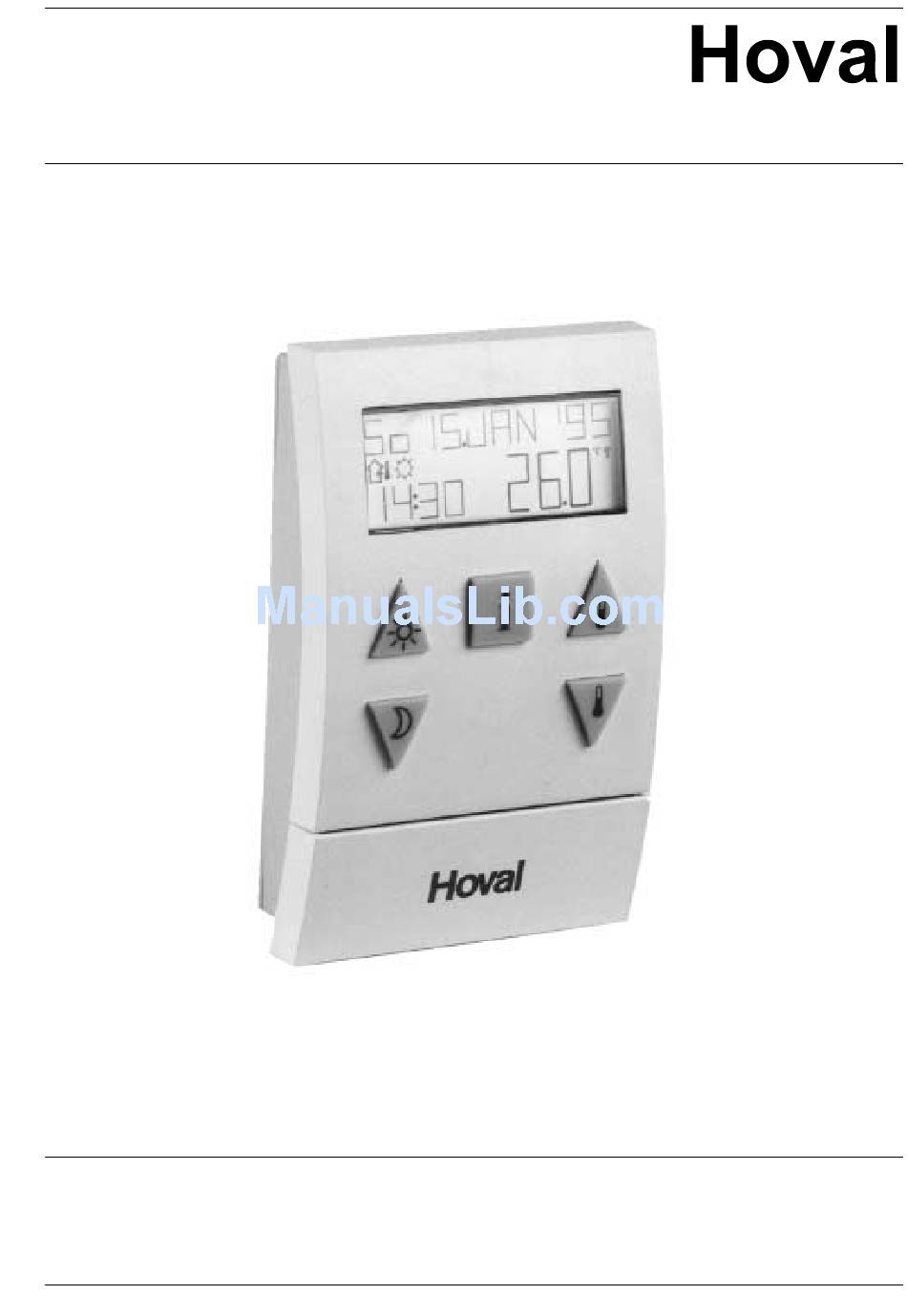

User Instructions
®
For TopTronic
RS-10
430293ENG-Dec01
Hoval Ltd
Northgate
Newark
Nottinghamshire NG24 1JN
Phone 01636 672711
Fax 01636 673532

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TopTronic RS-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hoval TopTronic RS-10

  • Page 1 User Instructions ® For TopTronic RS-10 430293ENG-Dec01 Hoval Ltd Northgate Newark Nottinghamshire NG24 1JN Phone 01636 672711 Fax 01636 673532...
  • Page 2: Table Of Contents

    Index 430293ENG-Dec01 Introduction Introduction ............................Controls............................. Display .............................. User instructions Key function table..........................Switching on the room station ......................Additional information........................Automatic program selection ......................Room temperature ..........................Heating program ..........................Calorifier charging ..........................10 Advanced user instructions Language ............................11 Clock setting............................
  • Page 3: Introduction

    Introduction 430293ENG-Dec01 The TopTronic RS-10 room station serves as a decentralized information center with remote interrogation and remote operating functions and can be used with all equipment versions of the TopTronic system. With the most up to date micro electronics exclusive functions can be activated which guarantee the highest level of comfort with the minimum energy usage.
  • Page 4: User Instructions

    User Instructions 430293ENG-Dec01 Key Function table (User Level) Adjust with keys / Function Enter with keys Page No. range Room temperature correction 5…30 Heating (day) with room temperature 5…30 Reduced (night) room with temperature 5…30 Information press and hold Party function 0.5…10h Continuous press and hold...
  • Page 5: Additional Information

    User Instructions 430293ENG-Dec01 Additional Information The following additional information on the central TopTronic can be obtained by pressing button (only if the relevant sensors are Boiler return fitted): temperature. Default display. External heat source temperature. External sensor 1 temperature. Default display. External sensor 2 temperature.
  • Page 6: Automatic Program Selection

    User Instructions 430293ENG-Dec01 If the room station is connected to a TopTronic 1B or 133B faults concerning the firing unit must 2 – Program 2 be rectified in accordance with operating manual instructions. Circuit Time If any of the following fault displays are shown Boiler Mo –...
  • Page 7: Room Temperature

    User Instructions 430293ENG-Dec01 Default screen Room Temperature automatically returns after 4 seconds. By using the program keys and the increase / decrease value keys the room B – Reduced (night room temperature) temperature can be changed for heating and If in reduced operation as indicated by on the reduced (night time).
  • Page 8: Heating Program

    User Instructions 430293ENG-Dec01 C – Holiday (room minimum temperature) It should be noted that the adjustment is from the When in holiday mode follow the procedure time of alteration and not an extension of the below to set the minimum room temperature: automatic program 1, 2 or 3.
  • Page 9 User Instructions 430293ENG-Dec01 To cancel heating program The continuous heating program can be cancelled using the following procedure: press and hold The default display will return after 4 seconds. D - Reduced This program is used to switch to reduced continuously.
  • Page 10: Calorifier Charging

    User Instructions 430293ENG-Dec01 Calorifier Charging With this program it is possible to switch the calorifier on for a fixed three hour period. press simultaneously The default display will return after 4 seconds. To Cancel program: The default display will return after 4 seconds. Attention: The calorifier will be heated up to its press simultaneously maximum permissible temperature.
  • Page 11: Advanced User Instructions

    Advanced User Instructions 430293ENG-Dec01 Language - Month The room station is programmed in three languages English, German and French. To Change with: change the language press to increase for 5 seconds. Once the language appears the to decrease keys can be used to change languages. Setting Range: 1 …...
  • Page 12: Time Clock Programming

    Advanced User Instructions 430293ENG-Dec01 or (if present) Room temperature correction for PARTY and HEATING with variable temperature Mixer circuit 2 parameter enabled. Works setting: 2 For operating types: Change with keys PARTY HEATING With the keys all of the heating circuits together with the hot water circuit can be The room temperature is set to automatic works called up and are available for programming.
  • Page 13 Advanced User Instructions 430293ENG-Dec01 After programming the last heating cycle TEMP (Sunday – cycle 3) the first heating cycle (only when set in (Monday – cycle 1) will follow. service level parameters) By pressing the key in quick succession Change with the programmed cycles can be called up in Next cycle series the values noted and corrected if...
  • Page 14: Block Programming

    Advanced User Instructions 430293ENG-Dec01 Canceling of individual heating cycles Restore standard program To restore a customized program to a works If necessary individually created cycles can be standard program select the program as cancelled. After selecting the required cycle by described on page 12 (entering time clock level).
  • Page 15 Advanced User Instructions 430293ENG-Dec01 Boiler Circuit Mixed Circuit 1 Mixed Circuit 2 Hot Water Program 1 Program 1 Program 1 Program 1 Program 2 Program 2 Program 2 Program 2 Program 3 Program 3 Program 3 Press to enter clock program Heating circuit * only if present Source program...
  • Page 16 Advanced User Instructions 430293ENG-Dec01 Enter from heating cycle program Day to copy (source day) Press Day copying Week Copying Press again to Press to copy select target day Target day to Day copied to Copy to whole week Press to copy Beginning of Source day copied week now...
  • Page 17: Custom Program

    Advanced User Instructions 430293ENG-Dec01 Program 1 settings Standard Program 1 Custom Program 1 Setting Setting Setting Setting Setting Setting From Temp From Temp From Temp From Temp From Temp From Temp 6.00 8.00 16.00 22.00 20 6.00 8.00 16.00 22.00 20 6.00 8.00 16.00 22.00 20...
  • Page 18 Advanced User Instructions 430293ENG-Dec01 Program 2 settings Standard Program 2 Custom Program 2 Setting Setting Setting Setting Setting Setting From Temp From Temp From Temp From Temp From Temp From Temp 6.00 22.00 20 6.00 22.00 20 6.00 22.00 20 Thur 6.00 22.00 20...
  • Page 19 Advanced User Instructions 430293ENG-Dec01 Program 3 settings Standard Program 3 Custom Program 3 Setting Setting Setting Setting Setting Setting From Temp From Temp From Temp From Temp From Temp From Temp 6.00 23.00 20 6.00 23.00 20 6.00 23.00 20 Thur 6.00 23.00 20...
  • Page 20: Room Level

    Advanced User Instructions 430293ENG-Dec01 Works setting: 00000000 3 - Room Level Range: 0 … 99999999 At this level, the parameters relevant to the heating requirements of the building and its characteristics can be displayed and changed. Burner hours run on Hot water temperature stage Burner hours run...
  • Page 21 Advanced User Instructions 430293ENG-Dec01 The heating will Mixed circuit 2 clock remain off from 30.3 program 00.00 hrs to 14.4 Works setting: 00.00 hrs. This will be Program 2 the default display until the heating is started Options: Program 1 again on 14.4.
  • Page 22 Advanced User Instructions 430293ENG-Dec01 Works setting: 1.4 Room temperature Range: 0.20 … 3.5 compensation Change with With this parameter it is possible to change the slope of the heating curve for the boiler circuit (see graph). The heating curve gives the (boiler and / or Works setting: 0.0K mixed circuit) flow temperature / outdoor Range: -2.5K …...
  • Page 23: Room Level Parameters Table

    Room Level Parameters 430293ENG-Dec01 Factory Current Parameter Function With TopTronic Range Setting Setting 1. Burner hours run 1B, 133B 000000.00 – 000000.00 2B, 23B, 233B 999999.59 223B, 2233B 203B 2. Burner starts 1B, 133B 00000000 – 00000000 2B, 23B, 233B 99999999 223B, 2233B 203B...
  • Page 24: Advanced Parameter Table

    Advanced Parameter Table 430293ENG-Dec01 Factory settings Parameter Function Adj. Range 133B 233B 2233B 223B 203B Current Setting 1 Frost Protection -20°C...10°C 2 Summer switch-off Aus, 10°C...30°C 17°C 17°C 17°C 17°C 17°C 17°C 17°C 17°C 17°C 3 Minimum outdoor temperature -20...0 4 Maximum flue gas temperature 70°C...250°C 250°C...
  • Page 25 Advanced Parameter Table 430293ENG-Dec01 Factory settings Parameter Function Adj. Range 133B 233B 2233B 223B 203B Current Setting Mixed circ 2 auto adaption 2MK2 0: Off 1: On 42 Mixed circ 2 minimum temp MK2 0...95°C (90°C Gas) 43 Mixed circ 2 maximum temp MK2 80°C 80°C 80°C...
  • Page 26 Advanced Parameter Table 430293ENG-Dec01 Factory settings Parameter Function Adj. Range 133B 1B 233B 2233B 223B 203B Current Setting Pump seizure protection 0: Off 1: On C/return protect during Blr turnon 0: Off 1: On 71 Extended burner operation time 0...20 min 10 min 10 min 10 min...
  • Page 27: Installation / Technical

    Installation / Technical Data 430293ENG-Dec01 Installation Positioning – without room sensor If there is no room sensor or the room sensor has not been activated the unit can be placed as desired. Positioning – with room sensor When used with the unit sensor activated the unit must be placed at a height of approximately 1.20 to 1.50 m in a place representing the temperature of all rooms.
