3One data 7212 User Manual

I I I I ntroduction ntroduction ntroduction ntroduction: : : :
MODEL7212 bridge provides easy conversion from ITU-T G.703
E1 channel to Ethernet interface. Can used widely in connecting
between WAN and LAN, monitoring, etc. The Ethernet interface is
10/100Mbps auto negotiation and can be full/half duplex. The E1 is
transparent and in full rate, which can support the E1 unframed
mode, including fractional E1 per request. A pair of MODEL7212
offer a cost effective solution for using existing E1 leased lines for
transparent Ethernet

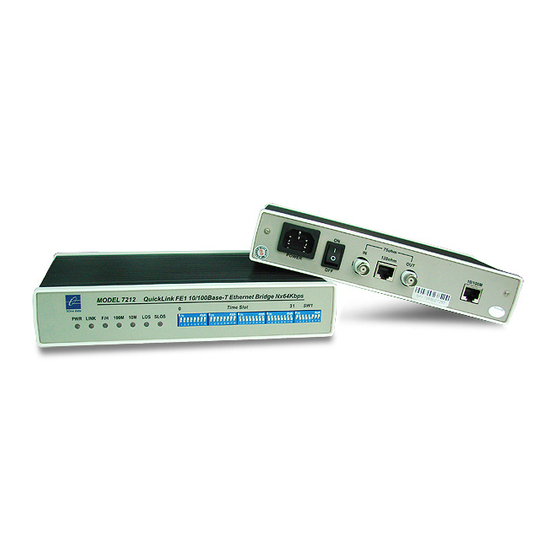

MODEL7212 Converter is provided via DIP switches. Front panel
LEDs monitor the G.703 link, Ethernet LAN and serial ports for
status and Loss of Sync. MODEL7212 compact G.703 Access
Converter provides E1/2.048 Mbps Network Termination as well as
serial or Ethernet LAN interface conversion in a standalone or rack
mount package. MODEL7212 terminates the G.703 Telco interface
and converts the data for transmission to a user-oriented
10/100BaseT(X) interface.
Packing Packing L L L L ist ist ist: : : :
Packing Packing ist
MODEL7212 is shipped with following items.
1. MODEL7212×1
2. 220V power line ×1
3. User manual ×1
F F F F eatures: eatures:
eatures: eatures:
1. Using E1 line transparent transfer Ethernet data
2. Support N×64Kbps(N=1~32) rate
3. Support local clock and line clock
4. Support pretend random coding loop test
5. E1(G.703)interface support 120ohm(RJ-45)and 75ohm(BNC
double coaxial)
10/100M Ethernet Ethernet to to to to FE1
10/100M 10/100M Ethernet 10/100M Ethernet
service.
Your Serial and Data Communications Expert
MODEL7212
MODEL7212
MODEL7212 MODEL7212
FE1 Bridge
FE1 Bridge FE1 Bridge User Bridge
Local management
Shenzhen 3onedata Technology Co.,Ltd
User Manual
User Manual User Manual Manual
of the
