- Page 1 I n s t r u c t i o n M a n u a l f o r I K R 1 2 2 4 D A B ...
-
Page 2: Safety Precautions
Safety Precautions To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate the unit, this will assure you years of faithful, trouble free performance and listening pleasure. Important Notes •... -
Page 3: Safety Information
Safety Information Some Do’s and Don’ts on the safe use of equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. -
Page 4: Table Of Contents
Table of Contents Safety Precautions ....................2 Package Content ....................5 Front Overview ......................6 Right Side Overview ..................... 7 DAB MODE ......................8 Change to another DAB/DAB+ Station ................8 Update Stations List ..................... 8 View Station Information ..................... 8 To Show the Signal Strength .................. -
Page 5: Package Content
Package Content Main Unit Adapter Instruction booklet... -
Page 6: Front Overview

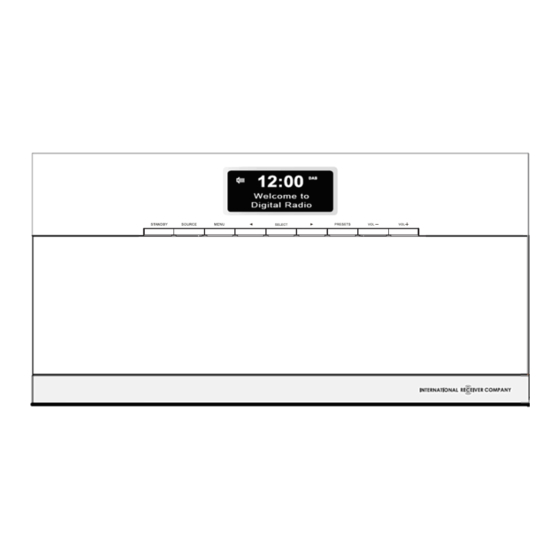

Front Overview Control mode Press to turn on/off Radio STANDBY When alarm is coming, press to turn alarm off SOURCE Press to shift to another mode MENU Press to Main menu and system settings Press or to cycle through options. Press SELECT confirm FM mode: while frequency is showing up, press SELECT to auto- SELECT... -
Page 7: Right Side Overview
Right Side Overview Note: upgrade socket is for radio technician handle only. UNIT BACK VIEW AUX IN socket: For connection of the external audio device Power cord socket: For connection of power adaptor... -
Page 8: Dab Mode
DAB MODE Turn on 1. Extend the antenna found on the back of radio, press STANDBY to switch on radio. 2. For initial use, radio will make a full scan and store all detected stations into memory. Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order. -
Page 9: To Show The Signal Strength
To Show the Signal Strength During play a DAB/DAB+ program, the path for showing current station’s signal strength is pressing MENU Display Signal strength, press SELECT to confirm. The LCD screen display will show a signal bar with the strength of the current station. The indicator on the signal bar shows the minimum acceptable signal level. -
Page 10: Dab/Dab+ Menu Tree
DAB/DAB+ Menu Tree... -
Page 11: Fm Mode
FM MODE Tune in FM Mode 1. Press SOURCE to switch your radio from DAB mode to FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station should be selected. 3. -
Page 12: View Station Information
View Station Information Note: It is possible to view more information that is displayed on the second line of the display. 1. Press MENU, and it will show ‘Display’, press SELECT to confirm. 2. Press or to check through the options: ‘Radio text’, ‘Program Type’, ‘PS’ (currently program name), ‘Audio info’... -
Page 13: General Operation
GENERAL OPERATION Set Station Presets Note: this function is for DAB/DAB+ and FM mode use only. 1. While playing your favourite station, press and hold PRESETS, and then press or to cycle through the preset stations store numbers1-10. ... -
Page 14: System Setup
System setup The way to enter System Setup 1. Press MENU, and then press or to < System >, press SELECT to confirm. 2. Press or to cycle through the System Menu options: ‘Sleep’, ‘Alarms’, ‘Time’, ‘Equaliser’, ‘Backlight’, ‘Language’, ‘Factory Reset’... -
Page 15: Set Alarm
Set Alarm Note: Setting Alarm, make sure Clock time is set at first. 1. It can be activated from ‘System’ ‘Alarms’, press SELECT to confirm. 2. Press or to your target alarm: ‘alarm 1’ or ‘alarm 2’. 3. -
Page 16: Set Equaliser
Set Equaliser Note: Equaliser is a user-defined setting through Bass and Treble: Treble : +3,+2,+1,0,-1,-2,-3 level. Bass : +3,+2,+1,0,-1,-2,-3 level. 1. It can be activated from < System > < Equaliser >. Press SELECT to confirm. 2. -
Page 17: Specification
Specification ITEMS DESCRIPTION Specifications: DAB/DAB+ and FM Digital Radio Audio Output: 5Wrms x 2 FM: 87.5-108MHz Frequency Ranges: DAB/DAB+: 174 – 240MHz LCD Display: High resolution display AC Power Input: 100-240VAC, 50/60Hz Power Supply: Output: 9VDC, 1A (please use our provided adapter) Dimension: 328mm x 38mm x 214mm This symbol on the product or in the instructions means that your electrical and electronic equipment...
