Xstream AC1511B Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

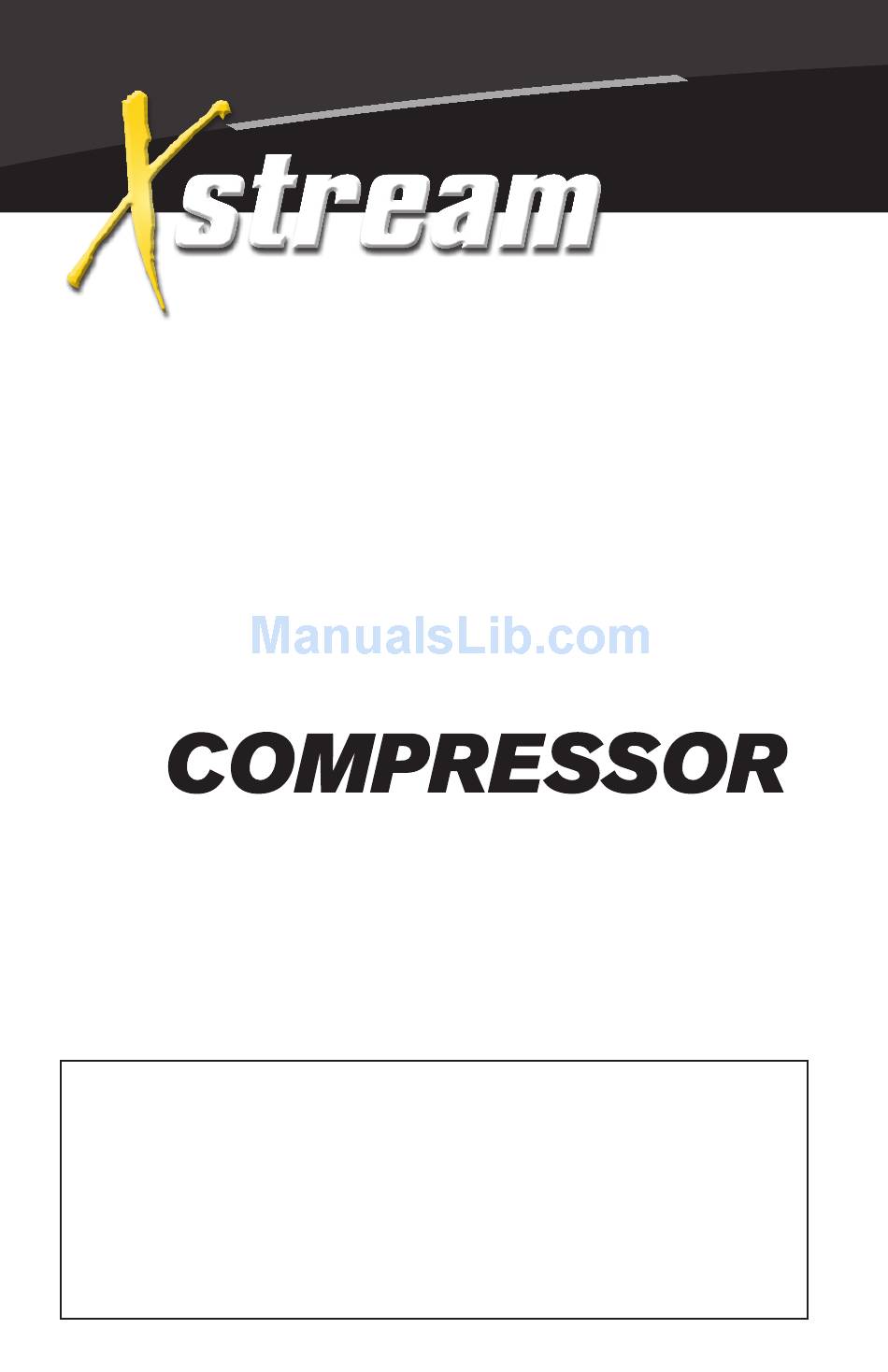

AC1511B
operation manual
CAUTION READ THIS MANUAL CAREFULLY before operating or servicing this
air compressor, to familiarize yourself with the proper safety, operation, and standard
operating procedures of this unit. FAILURE TO COMPLY WITH INSTRUCTIONS IN
THIS MANUAL COULD RESULT IN THE VOIDING OF YOUR WARRANTY, AND
PERSONAL INJURY, AND/OR PROPERTY DAMAGE. THE MANUFACTURER
OF THIS AIR COMPRESSOR WILL NOT BE LIABLE FOR ANY DAMAGE
BECAUSE OF FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.
By following the instructions and recommendations in this manual you will ensure a
longer and safer service life of your air compressor.

Advertisement

Table of Contents
loading

Related Manuals for Xstream AC1511B

Summary of Contents for Xstream AC1511B

  • Page 1 AC1511B operation manual CAUTION READ THIS MANUAL CAREFULLY before operating or servicing this air compressor, to familiarize yourself with the proper safety, operation, and standard operating procedures of this unit. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN THE VOIDING OF YOUR WARRANTY, AND PERSONAL INJURY, AND/OR PROPERTY DAMAGE.

  • Page 2: Table Of Contents

    table of contents Introduction Using the Operator’s Manual Specifications Product Identification Record Identification Numbers Safety Receipt and Inspection Safety Instructions Hazard Symbols and Meanings Air Tank Warning Fire Warnings Breathable Air Warning Electric Shock Warning Air Tools and Accessories Warning General Safety Information 10 Spraying Precautions 10 Hose Precautions...

  • Page 3: Introduction

    The manufacturer reserves the right to make improvements in design and/or changes in specifications at any time without incurring any obligation to install them on units previously sold. SPECIFICATIONS Item Data Model AC1511B Power 1Kw/1.5HP Voltage 100V/110V/120V Frequency 60HZ Motor Poles...

  • Page 4: Product Identification

    product identification Record Identification Numbers COMPRESSOR If you need to contact an Authorized Dealer or Customer Service line (1-866-770-1711) for information on servicing, always provide the product model and identification numbers. You will need to locate the model and serial number for the machine and record the information in the places provided below.

  • Page 5: Safety

    safety Receipt and Inspection Before signing the delivery receipt, inspect for damage and missing parts. If damage or missing parts are apparent, make the appropriate notation on the delivery receipt, then sign the receipt. Immediately contact the carrier for an inspection. All material must be held in the receiving location for the carrier’s inspection.

  • Page 6: Hazard Symbols And Meanings

    safety Save these Instructions SAFETY RULES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards.

  • Page 7: Air Tank Warning

    safety WARNING AIR TANK WARNING: Drain liquid from air tank daily, or after each use, using the drain valve located on the bottom of the lower air tank. Failure to properly drain liquid from the tank will cause rust from moisture buildup, which weakens the tank and could lead to a violent tank explosion, Periodically inspect the tanks for unsafe conditions such as corrosion.

  • Page 8: Air Tools And Accessories Warning

    safety WARNING ELECTRIC SHOCK WARNING: When using electric powered tools, machines or equipment, basic safety precautions should always be followed to minimize the risk of electrical shock or personal injury to yourself and others. This air compressor is powered by electricity and should never be used without properly grounded electrical connections.

  • Page 9: General Safety Information

    safety General Safety Information Do not operate unit if damaged during shipping, handling or use. Damage may result in bursting and cause injury or property damage. Since the air compressor and other components (filters, lubricators, hoses, etc.) used, make up a high pressure pumping system, the following safety precautions must be observed at all times: 1.

  • Page 10: Spraying Precautions

    safety 12. Never attempt to repair or modify a tank! Welding, drilling or any other modification will weaken the tank resulting in damage from rupture or explosion. Always replace worn or damaged tanks. Drain liquid from tank daily. 13. Tanks rust from moisture build-up, which weakens the tank. Make sure to drain tank daily and inspect periodically for unsafe conditions such as rust formation and corrosion.

  • Page 11: Operation & Installation

    operation & installation Operation & Installation 1) This appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet.
  • Page 12 operation & installation 5) The solvents Trichloroethane and Methylene Chloride can chemically react with aluminium used in paint spray guns, paint pumps, etc, and cause an explosion. If you are using these solvents, use only stainless steel spray equipment. This does not affect your air compressor, but may affect the equipment being used.

  • Page 13: Maintenance

    maintenance Maintenance Instructions WARNING DISCONNECT POWER AND RELEASE ALL PRESSURE FROM THE SYSTEM BEFORE ATTEMPTING TO INSTALL, SERVICE, RELOCATE OR PERFORM ANY MAINTENANCE. 1) Drain the moisture from the tank on a daily basis. A clean, dry tank will help prevent corrosion. 2) Pull the pressure relief valve ring daily to ensure that the vale is functioning properly, and to clear the valve of any possible obstructions.

  • Page 14: Troubleshooting

    troubleshooting Troubleshooting Chart Trouble Possible Cause Corrective Action No start condition Fuse blown or circuit Check for cause of blown breaker tripped fuse or breaker and replace or reset Loose electrical Check wiring connections connections Overheated motor Press reset button or wait for automatic reset.

  • Page 15: Grounding

    grounding Grounding Instructions This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug.

  • Page 16: Parts

    parts Parts Chart...
  • Page 20 If you need assistance with the assembly or operation of your Compressor please call 1-866-770-1711...
