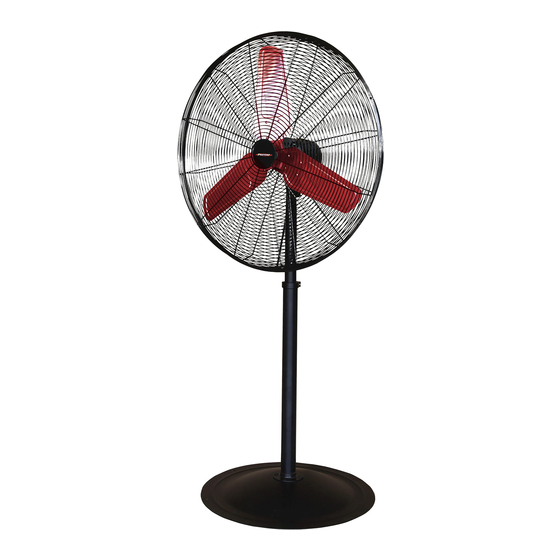

Protemp PT-18W-DDF-A User's Manual And Operating Instructions

Hide thumbs Also See for PT-18W-DDF-A:

User's manual and operating instructions (20 pages)

page of 40

/ 40
Bookmarks

Available languages

Quick Links

Download this manual

Model Numbers: PT-18W-DDF-A, PT-20F-DDF-B,

PT-20S-DDF, PT-24O-DDF, PT-24-DDF-B,

IMPORTANT: Read and understand all of the instructions in this manual before assembling,

starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for

future reference.

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive

CAUTION

Materials And Vapors. Never use the fan in spaces which contain products such as

gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown

chemicals.

This product meets and exceeds the requirements of OSHA 1910.212(a)(5), the standard which

regulates electric fan blade safety.

Please note the serial number of your fan, and write it on the back of this User's Manual for future reference.

668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free: (800) 641-6996

Fax: (215) 891-8461 • Web: www.protemp.us • Email: info@pinnacleint.com

PT-30-DDF-B, PT-30P-DDF-B

READ AND SAVE THESE INSTRUCTIONS

User's Manual and

Operating Instructions

950451001-14

Need help?

Do you have a question about the PT-18W-DDF-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Protemp PT-18W-DDF-A

Page 1 Please note the serial number of your fan, and write it on the back of this User’s Manual for future reference. © 2015, Pinnacle Products International, Inc. 668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free: (800) 641-6996 Fax: (215) 891-8461 • Web: www.protemp.us • Email: info@pinnacleint.com 950451001-14...
Page 2 Table of Contents Safety Information..........................3 Notes Page............................4 Troubleshooting Guide........................19 Warranty..........................Back Cover 17-18 24” Barrel Fan 30” Pedestal Fan 18” Wall Fan PT-30P-DDF-B PT-18W-DDF-A PT-24-DDF-B 12-13 20” Floor Fan 24” Omni Fan PT-20F-DDF-B PT-24O-DDF 8-10 14-16 20” Shop Fan 30” Floor Fan...
Page 3 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE Safety Information IMPORTANT: READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY, SERVICE OR USE OF THIS FAN. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY AND / OR PROPERTY DAMAGE. THIS IS A FAN - NOT A TOY! Installation work and electrical WARNING...
Page 4 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
Page 5 2. Be sure Upper Bracket (Item #6) is attached to a is able to support 50 pounds continuously. suitable beam when hanging. Tools Needed: - 10mm Adjustable Wrench. Exploded View 10 11 12 Figure 1: Exploded View of PT-18W-DDF-A Replacement Parts Item # Description Part Number Item # Description...
Page 6 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 20” FLOOR FAN: PT-20F-DDF-B Installation 1. Place the fan on level ground in a safe, desired position then connect to an approved power source. 20” FLOOR FAN - OPTIONAL WALL MOUNT Wall Mount Installation 1.
Page 7 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 20” FLOOR FAN CONTINUED Exploded View Figure 4: Exploded View of PT-20F-DDF-B Replacement Parts Item # Description Part Number Front Guard 95-032-2000 Fan Blade Assembly 95-003-2005 Rear Guard 95-032-2001 Power Switch...
Page 8 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 20” SHOP FAN: PT-20S-DDF Installation and Assembly 1. Remove Knob Screw (Item #15*) and Wing Nut (Item 5. Place the fan on level ground in a safe, desired position #14*) from top of Post.
Page 9 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 20” SHOP FAN CONTINUED - OPTIONAL CEILING MOUNT Figure 5: Figure 6: Optional Ceiling Mount Optional Ceiling Mount Figure 7: Figure 8: Optional Ceiling Mount Optional Ceiling Mount ©...
Page 10 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 20” SHOP FAN CONTINUED Exploded View 10 11 Figure 9: Exploded View of PT-20S-DDF Replacement Parts Item # Description Part Number Item # Description Part Number Logo Plate 95-043-0420 Power Switch...
Page 11 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 24” BARREL FAN: PT-24-DDF-B Installation and Assembly 1. Place the fan on level ground in a safe, desired position then connect to an approved power source. NOTE: This model CAN NOT be wall mounted.
Page 12 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 24’’ OMNI DIRECTIONAL FAN: PT-24O-DDF Installation and Assembly 1. Place the fan on level ground in a safe, desired position then connect to an approved power source. Exploded View Figure 11: Exploded View of: PT-24O-DDF Replacement Parts...
Page 13 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 24” OMNI FAN - OPTIONAL WALL MOUNT Wall Mount Installation The installer MUST be WARNING certain that the support bracket is 1. Attach Wall Mount (Item #17* in Figure 12) to wood mounted to a minimum of a 2x4”...
Page 14 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 30” FLOOR FAN: PT-30-DDF-B Installation and Assembly NOTE: This fan uses a folding wheel design. For quick assembly, simply swing the wheels out and snap to 1.
Page 15 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 30” PEDESTAL FAN: PT-30P-DDF-B Installation and Assembly 1. Place the base on level ground Tools Needed: 2. Mount the support pole to the base. Make Pliers sure the holes line up.
Page 16 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE 30” PEDESTAL FAN Exploded View Figure 20: Exploded View of PT-30P-DDF-B Replacement Parts Item # Description Part Number Item # Description Part Number Front Guard 95-032-2030 Upper Support Pole 95-017-2020 Fan Blade Assembly...
Page 17 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE Troubleshooting Guide Problem Possible Cause Corrective Action Inspect power cord for damage. Be sure unit is 1. No power plugged in and turned on Fan does not operate 2.
Page 18 PROVIDED BELOW TO LIST THIS INFORMATION: Model #: ____________________ Serial #: ______________________ Date of Purchase: _________________ © 2015, Pinnacle Products International, Inc. 668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free: (800) 641-6996 Fax: (215) 891-8461 • Web: www.protemp.us • Email: info@pinnacleint.com...
Page 19 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
Page 20 NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
Page 21 Veuillez noter le numéro de série de votre ventilateur, et l’inscrire au dos de ce guide pour référence ultérieure. © 2015, Pinnacle Products International, Inc. 668 Stony Hill Road #302 Yardley, PA 19067 USA Numéro gra tuit: (800) 641-6996 Télécopie : (215) 891-8461 • Site internet : www.protemp.us • Courriel : info@pinnacleint.com 950451001-14...
Page 22 Table des matières Informations de sécurité........................3 Page Remarques............................4 Dépannage............................19 Garantie......................Quatrième de couverture 17-18 Ventilateur Baril 24” Ventilateur Sur Ped 30” Ventilateur Mural 18” PT-30P-DDF-B PT-18W-DDF-A PT-24-DDF-B 12-13 Ventilateur Omni Ventilateur Au Sol 20” Directionnel. 24” PT-20F-DDF-B PT-24O-DDF 8-10 14-16 Ventilateur D’Ateliar 20”...
Page 23 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION Informations de Sécurité IMPORTANT: LIRE ATTENTIVEMENT LES INSTRUCTIONS AVANT LE MONTAGE, L’ENTRETIEN OU L’UTILISATION DE CE VENTILATEUR. L’INOBSERVATION DE CES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES GRAVES ET / OU DES DOMMAGES MATÉRIELS. IL S’AGIT D’UN VENTILATEUR Le travail d’installation et le –...
Page 24 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION REMARqUES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
Page 25 UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR MURAL 18”: PT-18W-DDF-A Installation et Montage L’installateur doit être certain que 1. Fixez le ventilateur au mur ou au plafond avec un le support est monté sur un mon- Support Supérieur.
Page 26 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR AU SOL 20”: PT-20F-DDF-B Installation Placez le ventilateur sur un sol plat dans une position désirée et sûre, puis le brancher à une source d’alimentation électrique approuvée.
Page 27 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR AU SOL 20” CONTINUÉ Vue Éclatée Figure 4: Vue Éclatée du PT-20F-DDF-B Pièces de Rechange Item # Description Part Number Grille Avant 95-032-2000 Montage Pale de Ventilateur 95-003-2005 Grille Arrière...
Page 28 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR D’ATELIER 20”: PT-20S-DDF Installation et Montage 1. Retirez la vis à tête et l’écrou papillon du haut de la 4. Placez le ventilateur sur un sol plat dans une posi- barre.
Page 29 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR D’ATELIER 20” - FIxATION DE PLAFOND OPTIONNELLE. Figure 5: Figure 6: Fixation de Plafond Optionnelle Fixation de Plafond Optionnelle Figure 7: Figure 8: Fixation de Plafond Optionnelle Fixation de Plafond Optionnelle ©...
Page 30 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR D’ATELIER 20” CONTINUÉ Vue Éclatée 10 11 Figure 9: Vue Éclatée du PT-20S-DDF Pièces de Rechange N° Élem Description N° Élem Description Numéro de pièce Numéro de pièce Bouton de Mise Sous Plaque du logo...
Page 31 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR BARIL 24”: PT-24-DDF-B Installation et Montage REMARQUE: Ce modèle ne PEUT PAS être monté au 1. Placez le ventilateur sur une surface plane à l’endroit désiré...
Page 32 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR 60 cm OMNI DIRECTIONNEL: PT-24O-DDF Installation et Montage 1. Placez le ventilateur sur un sol plat dans une position désirée et sûre, puis le brancher à une source d’alimentation électrique approuvée.
Page 33 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR 60 cm OMNI DIRECTIONNEL - La Fixation Murale Optionnelle I’installation de la Fixation Murale L’installateur doit être certain que le support est monté sur un mon- 1.
Page 34 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR AU SOL 30”: PT-30-DDF-B Installation et montage REMARQUE : Ce ventilateur utilise une conception roues pliantes. Pour un montage rapide, il suffit 1. Placez le ventilateur sur un sol plat dans une position de déplier les roues et de les enclencher pour les désirée et sûre, puis le brancher à...
Page 35 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR SUR PIED 30”: PT-30P-DDF-B Installation et montage 1. Placez la base au niveau du sol. OUTILS NÉCESSAIRES: 2. Montez le poteau de soutien sur la base. Pinces Assurez-vous que les trous s’alignent.
Page 36 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION VENTILATEUR SUR PIED 30” Vue éclatée Figure 6: Vue éclatée du PT-30P-DDF-B Pièces de rechange Item # Description Part Number Item # Description Part Number Tige de support Grille Avant 95-032-2030...
Page 37 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION Guide de Dépannage Problème Cause probable Action corrective Inspectez le cordon d’alimentation. S’assurer que 1. Pas d’alimentation Le ventilateur ne l’appareil soit branché et allumé. fonctionne pas 2.
Page 38 Série n° : ______________________ Date d’achat : _________________ © 2015, Pinnacle Products International, Inc. 668 Stony Hill Road #302 Yardley, PA 19067 USA Numéro gra tuit: (800) 641-6996 Télécopie : (215) 891-8461 • Site internet : www.protemp.us • Courriel : info@pinnacleint.com...
Page 39 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION REMARqUES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
Page 40 NE JAMAIS LAISSER UN VENTILATEUR SANS SURVEILLANCE PENDANT L’UTILISATION OU TOUT EN ÉTANT BRANCHÉ SUR ALIMENTATION REMARqUES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
