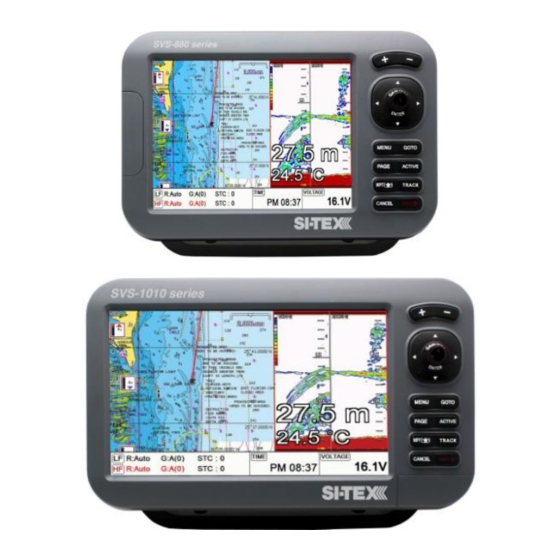

SVS-880/1010
OPERATION MANUAL
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVS-880 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Si-tex SVS-880

Summary of Contents for Si-tex SVS-880

  • Page 1 SVS-880/1010 OPERATION MANUAL - 1 -...
  • Page 2 Pictorials This manual uses the following symbols for easy understanding safety instructions. Always follow these instructions carefully. Always follow this safety instruction to prevent death or WARNING injury. Follow this safety instruction to avoid possible injury or damage to your property. CAUTION Symbol “△”...
  • Page 3 WARNING <For System Operators> Always follow this instruction to prevent death or personal injury. Turn power If smoke or a small of burning occurs, a fire or an electrical short circuit may result. Turn the power switch OFF and shut down the power supply immediately. Never try to During repair the system yourself.
  • Page 4 Installation Cautions <For service Personnel> Follow installation instructions to avoid personal injury and system malfunction. Mount your SVS-1010/880/770 on a rigid frame or base to prevent your Installation in rigid location. unit from working loose. Use the installation materials provided in the standard accessory pack Use correct Installation only.

  • Page 5: Maintenance Cautions

    Maintenance Cautions<For Maintenance Personnel> Use the following safety precaution internal inspection. Discharge High voltage may be retained in the capacitors if the high-tension circuits several minutes after you have turned the power switch off. capacitors. To prevent an electrical injury due to erroneous power switching, make Check that sure that the main power supply and the system power switch are both in the off position.
  • Page 6 Operation Notes <For operators> Observe the following operation notes, otherwise the system failure or deterioration can result. And periodical inspection and maintenance are required for keeping the system in an optimum condition. The waypoint and other registered data may become Backup important unreadable by unexpected failure.
  • Page 7 SVS-1010/880/770 Series Welcome The SVS-1010/880/770 Series Color LCD Chart plotter & Fishfider Systems employs the latest in proven technology to provide accurate fish & bottom information. The Plotter functions of SVS- 1010/880/770 series are totally dependent upon the capability of the navigation source to provide accurate position information.
  • Page 8 INDICATION NOTICE *: It is important or warning notice on front of article #: It is only functions for the SVS-1010CF/SVS-880CF/SVS- 770CF on front of article. [ ]: Keyboard. - 8 -...

  • Page 9: Display Unit Installation

    SVS-1010/880/770 series Introduction Fix Text Below, so that Words Do Not Separated Strangely at End of each Line. For centuries, sailors have been searching for a reliable and precise method of travelling the world’s waterways. From celestial navigating to the modern navigation techniques as Loran, Decca navigator, Omega or Transit Satnav, each system has had its problems with weather, range and reliability.
  • Page 10 through the mounting surface. Place large flat washers on the opposite side of the mounting surface from the bracket and then install lock washers and nuts. Tighten securely. Install the display unit into the mounting bracket. Check alignment and operation of the pivots and security of the mounting.
  • Page 11 [SVS-1010 series Flush Mounting] [SVS-770/880 series Flush Mounting] - 11 -...
  • Page 12 SVS-1010/880/770 series Introduction HOW GPS WORKS Currently, the GPS constellation consists of 26 orbiting satellites (including 3 spares), but this number will increase in the future. The GPS receiver computes an accurate position by calculating the distance to the GPS satellites that orbit the earth.
  • Page 13 SVS-1010/880/770 series Introduction [The GPS position calculation] As illustrated in the previous figure, the position is calculated as the meeting point of three Spheres, which are drawn around the three satellites with diameters d1, d2 and d3. Position Fixing Accuracy: HDOP The GPS fix accuracy is due to the locations of 3 satellites in the sky.
  • Page 14 SVS-1010/880/770 series Introduction #Sonar - How it works- The SVS-1010/880/770CF sonar consists of a transceiver display unit and a dual frequency transducer. An electronic signal pulse is generated in the transmitter section of the display unit. When coupled to the transducer, this signal is converted into an ultrasonic signal and is transmitted toward the bottom.
  • Page 15 Installation of GPS ANTENA The installation of the GPS ANTENNA. The GPS ANT must be installed at the highest area of the boat and the easiest place to receive the signal from the satellites. If there are obstacles around the GPS ANT, it isn't able to receive all signals. The receiving time could be longer or the receiving power would be weaker.
  • Page 16 Installation of the Transducer A careful installation will assure maximum performance from your new SVS- 1010/880/770 series. Display Unit Location Select a location for your Display unit that provides easy viewing from all likely operators’ positions. The display unit is designed to be mounted on either a console or from an overhead surface. The Display unit is also designed for flush mounting using six threaded holes on the rear panel.
  • Page 17 Installation of the Transducer Drill a 1/4 in. diameter hole at each marked location. Mount the Display unit bracket using bolts through the mounting surface. Place large flat washers on the opposite side of the mounting surface from the bracket and then install lock washers and nuts. Tighten securely. Install the display unit into the mounting bracket.
  • Page 18 SVS-1010/880/770 Transducer Options Model # Beam Angles Type Hole Size 45º @ 50kHz Plastic transom mount w/ 250/50/200ST-CX 11º @ 200kHz depth, spd, temp. 45º @ 50kHz Bronze thru hull depth & 1700/50/200T-CX 7/8" 11º @ 200kHz temp. 45º @ 50kHz Bronze thru hull depth, 500/50/200ST-CX 2"...
  • Page 19 Secure the cable in place using Nylon Wire Ties. Coil the extra cable and tie it out of the way. 4th) If transducer cable is not long enough, 15 & 30 foot extension cables are available from SI-TEX When you attach the extension cable, be sure that the connections are tight and watertight. Use Dow Corning DC-4 or an equivalent sealing compound to protect the connector assemblies.
  • Page 20 Installation of the Transducer Installing the Power Cable- ) The 6-foot power cable supplied with the display unit should reach the source of DC power. Connect the power leads directly to the main battery isolation switch or breaker, or route the power leads to the DC power distribution panel.
  • Page 21 Installation of the Transducer Installing a Thru-Hull Transducer Follow these instructions if you are installing the thru-hull transducer. ) Once you have decided where to install the transducer, drill the hole for the part. Begin by drilling a small pilot hole (1/8" or 3mm) from the inside of the hull. (This small hole can be filled easily if the mounting location is not suitable.) Before you drill the hole, be sure you will be able to reach the large nut on the top of the transducer, once it has been mounted.
  • Page 22 Installation of the Transducer ) Go to the inside of the hull and slide the hex nut over the end of the cable. Fit the hex nut over the end of the transducer and tighten it. (On a vessel with a wooden hull, do not tighten the nut completely right away.
  • Page 23 Installation of the Transducer Positioning the Transom-Mount Transducer Follow these instructions if you are installing the transom-mount transducer. Begin by finding the best location for the mounting bracket. Here are the rules: If your boat has one propeller (outboard or inboard-outboard), mount the transducer about 18"(455mm) to the side of the centerline of the boat.
  • Page 24 Installation of the Transducer Mounting the Transom-Mount Transducer Follow these instructions if you are installing the transom-mount transducer. ). On a boat with a fiberglass hull, the leading edge of the transducer should extend 1/8""(3.2mm) to 1/4""(6mm) below the bottom edge of the hull. See picture 1-3. On an aluminum hull, the transducer should extend a bit more - 1/4"(6mm) to 3/8"(9mm).
  • Page 25 Installation of the Transducer ) Tilt the transducer in the brackets until it is positioned as illustrated in Picture 1-3 ) Once the bracket is in the correct position, you can tighten the screws. - 25 -...

  • Page 26: Getting Started

    Getting Started 1. The Keyboard 1.1. Model: SVS-1010C/SVS-880C/SVS-770C Description use this to select menu items, move the on-screen cursor Rotary: use this to select menu items Button: push the end of the everything to confirm a selection or entry Change the chart of scale Open the menu Select the Goto function Select the configuration &...
  • Page 27 1.2 Model: SVS-1010CF/SVS-880CF/SVS-770CF Description use this to select menu items, move the on-screen cursor and Choosing the frequency Rotary: use this to select menu items and Adjustment of gain & STC level with turning. Button: push the end of the everything to confirm a selection or entry Change the chart of scale and Setting up the depth range Open the menu Select the Goto function...
  • Page 28 1.3.2 Turn off Keep pressing to switch off. 1.3.3. Adjust brightness Pressing (Fig.1.1) and controlling the brightness with [◀] [▶]. 1.3.4. Use day/night mode Pressing (Fig.1.1) and changing the day and night with [▲][▼]. - 28 -...

  • Page 29: Specification Of The Connectors

    2. Specification of the connectors - 29 -...

  • Page 30: Screen Overview

    3. Screen Overview 3.1. Chart plotter page ① ③ ② ⑤ ⑥ ④ ① Vessel icon The present position. ② Cursor Showing the cursor icon. ③ AIS target Showing the received AIS target. ④ Data bar Showing various data on the top or bottom. ⑤...
  • Page 31 3.2. Sonar page ① ② ③ ④ ⑤ ⑥ ⑦ ① Palette Showing the chosen colors. ② Depth bar The current depth. ③ Low Frequency Showing 50KHz. ④ High Frequency Showing 200KHz. ⑤ LF INFO The information of Low Frequency, 50KHz. ⑥...
  • Page 32 3.3. Navigation Data page 3.3.1. Navigation Data Type1 3.3.2. Navigation Data Type2 - 32 -...
  • Page 33 3.4. Highway page ⑥ ① ② ③ ④ ⑤ ① WPT name The current WPT name. ② Direction of steer The best direction of the steering. ③ WPT icon The remaining distance of the WPT. ④ Vessel The out of the range from the best. ⑤...
  • Page 34 3.5. Steering page ④ ① ② ③ ① WPT name Name of the WPT. ② Direction of steer The best direction of the steering. ③ WPT icon Showing the WPT and the bearing ④ Navigation Data Information of the various data. - 34 -...
  • Page 35 3.6. GPS Status page ④ ① ② ③ ① Receiver status The current GPS status. ② Position of SAT. Position of the satellites. ③ SNB Graph Showing the WPT and the bearing. ④ Navigation Data Information of the various data. * Colors of the GPS status Black: Tracked, but no signal...
  • Page 36 4. Data bar Showing various data on the top or bottom. 4.1. Mode ▶[MENU]->Advance->Setup->Customizing->Data bar->Mode Data bar has three meanings as below. 4.1.1. GPS Showing the largest LAT/LON. 4.1.2. HY Showing the LAT/LOT, SOG, COG and user data. 4.1.3. NAV You can view detailed information about the navigation data.
  • Page 37 (Fig.1.2.1) The data bar is coming as (Fig.1.2.1), and choose the frame with [◀][▶]. Four frames are available as (Fig 1.2.2). (Fig.1.2.2) When choosing the frame, setting up in each box as (Fig.1.2.3). (Fig.1.2.3) - 37 -...
  • Page 38 When finishing the set up, press to exit. (*Please, refer “Customizing” for further question.) 4.2. Display ▶[MENU]->Advance->Setup->Customizing->Data bar->Display Setting the data bar, “Shown/Hidden”. 4.3. Position ▶[MENU]->Advance->Setup->Customizing->Data bar->Position Setting the data bar position on the top or bottom. 5. Cursor 5.1. Calling the cursor Press [◀][▶][▼][▲] on the chart, the cursor comes out.
  • Page 39 ② Range Distance between the cursor and the present position. ③ Bearing Bearing from the present position to the cursor. 5.5. Cursor information window shown/hidden ▶MENU->Advance->Setup->Customizing->INFO window->Cursor Cursor information window “Shown/Hidden”. 6. Page ▶ [PAGE] Choosing the various pages that set up pages or customized. Move the red box to choose the page.
  • Page 40 (* In Flip mode, modifying the order is available.) 6.2. Modify After choosing the page in (Fig1.3), keep pressing until the window comes out as (Fig.1.3.1). (Fig.1.3.1) Choosing the frame with [◀][▶]. Two frames as (Fig 1.3.2). (Fig.1.3.2) After choosing the box, choose the page as (Fig.1.3.3). (Fig.1.3.3) When finishing, press to exit.
  • Page 41 7. Active ▶[ACTIVE] When pressing [ACTIVE], the red box moves to chart plotter or sonar. (*All key functions change to chart plotter or sonar) Selected (red color) - 41 -...

  • Page 42: Navigation Data

    8. Navigation Data Navigation data is available in Navigation data page, Steering page, Highway page as (Fig.1.5). (Fig.1.5) 8.1. Type ▶[MENU]->Advance->Setup->Customizing->Navigation data->Type Two types of Navigation data pages. 8.1.1. Type1 Large LAT/LON as (Fig.1.6.1). (*Editing the LAT/LON is unavailable) 8.1.2. Type2 Various data as (Fig.1.6.2).
  • Page 43 (Fig.1.6.3) - 43 -...
  • Page 44 9. MOB If a person or missing an object overboard and you need to get present position, use the MOB function. 9.1. Inputting until the window comes out as [Fig.10.1] and then “MOB” comes out with Keep pressing alarm. 9.2. Exiting the alarm When alarming, press to cancel the alarm.

  • Page 45: Memory Card

    10. Memory Card 10.1. SVS-1010 series Inserting the SD & micro SD as (Fig.1.7.1). (Fig.1.7.1) 10.2. SVS-880/770 series Inserting the SD & micro SD as (Fig.1.7.2). (Fig.1.7.2) - 45 -...

  • Page 46: Save User Data

    11. Save User data ▶[MENU]->User data->Save User data User data is stored in the external Micro SD. So if you want to save the user data, a micro SD must be inserted in the slot. (*User data is in “...\HY\User Data\”) 11.1.
  • Page 47 User Line can be stored in a micro SD. When storing, give it a name and you will be able to store many user lines in the micro SD. 11.5. User Name User Name can be stored in a micro SD. When storing, give it a name and you will be able to store many user names in the micro SD.
  • Page 48 12. Load User data ▶[MENU]->User data->Load User data User data loads from the stored micro SD. If you need to load the user data, the stored micro SD must be inserted in the slot. (*User data is in “...\HY\User Data\”) 12.1.
  • Page 49 12.3.Track 12.3.1. Type1 Track loads from the stored micro SD. All of track in the micro SD show on the list. Choose one of them and it will show. 12.3.2. Type2 Track loads from the stored micro SD. Index will be a standard in Type2. After choosing the index, stored it. 12.4.
  • Page 50 Chart plotter getting started 1. GOTO 1.1. Goto type1 1.1.1. Setting ▶[MENU]->Navigation->Goto type->type1 Setting GOTO and creating a route at the same time. Move the cursor to the position where you want to go and press [ENTER]. (*While navigating, WPT can be added in the route) 1.1.1.2.
  • Page 51 2. WPT 2.1. List ▶[MENU]->User data->WPT->List Editing, creating, erasing and navigating are available on the WPT list. ① ⑤ Selected (blue color) ⑥ ⑧ ⑦ ② ③ ④ ⑨ ① List Showing all of the stored WPT. ② Name Name of the WPT. ③...
  • Page 52 Selected (red color) Choose the symbol and press [ENTER]. The chosen symbol will show when inputting WPT. 2.3. Setting WPT Color ▶[MENU]->WPT Color Selected (red color) Choose the color and press [ENTER]. The chosen color will show when inputting WPT. 2.4.
  • Page 53 (*When adding, LAT/LON shows the present position and current symbol/color show for the WPT) 2.4.1. Inputting on the chart Call the cursor and move the position where you want, and press (*The current symbol/color show for the WPT) 2.5. Erasing 2.5.1.
  • Page 54 2.6 Erasing all of WPT ▶[MENU]->User data->WPT->List->[PAGE] On the WPT list, press 2.7. Moving the WPT 1. Call the cursor and move it on the WPT, and press [ENTER]. 2. Choose “Move”. 3. Move the WPT to the position where you want to move, and press [ENTER]. 2.8.
  • Page 55 2.9. Sorting ▶[MENU]->User data->WPT->List->[MENU] Sorting the order of WPT’s on the list. - 55 -...
  • Page 56 2.10. Editing ▶[MENU]->User data->WPT->List Editing the WPT on the list. WPT Selected (Blue color) Edit Selected (green color) 1. Choose the WPT as the blue and press [ENTER]. 2. Choose the item as the green and you may begin to edit. 3.
  • Page 57 3. Route 3.1. List ▶[MENU]->User data->Route->List ④ ⑤ ① ⑥ ⑦ ⑧ ③ ② ① List Showing the stored WPT ② Name Name of the route ③ Number of WPT Number of WPT in the route ④ Total distance Total distance of the route ⑤...
  • Page 58 3.2. Route detail ▶[MENU]->User data->Route->List->[PAGE] ⑤ ① ⑥ ⑦ ⑧ ⑨ ③ ② ④ ① List Showing the stored WPT ② Name Name of the WPT ③ Symbol Symbol of the WPT ④ Color Color of the WPT ⑤ Latitude/Longitude LAT/LOT of the WPT ⑥...
  • Page 59 3.3. Creating Two ways to create route The first uses “GOTO type1” and the second is “Creating new route” on the list. 3.3.1. Using “GOTO” Use “GOTO type1” and create a route. Press [ENTER] to start. to exit and choose “Store” if needed. Press 3.3.2.
  • Page 60 3.4. Edit ▶MENU->User data->Route->List Choose the route on the list to edit. 3.5. Detail edit ▶[MENU]->User data->Route->List->[PAGE] Choose the route on the list and press . The window of Route detail shows. 3.5.1. Adding WPT Two ways to add WPT 3.5.1.1.
  • Page 61 3.5.2.1. Adding new WPT Press on Rout detail and you may add new WPT. 3.5.3. Erasing WPT Choose the WPT and press 3.6. Navigating ▶[MENU]->User data->Route->List->[GOTO] Choose the route on Route list and press 3.7. Erasing Choose the route and press 4.
  • Page 62 4.2.4. Setting the distance interval ▶[MENU]->User data->Track->Track Setup->DIST Interval Setting the distance interval. 4.3. Setting the thickness ▶[MENU]->User data->Track->Track Setup->Thickness Setting the track thickness. 4.4. Track Color ▶[MENU]->Track Color Selected (red color) Choose the color and press [ENTER]. (* The number next the color shows the number point of the track color) 4.5.
  • Page 63 Choose the color and press [ENTER]. (*The number next the color shows the number point of the track color.) 4.5.1.2. Erasing all of track ▶[MENU]->User data->Track->Erase Press 4.5.2. Type2 ▶[MENU]->User data->Track->Track Setup->Type2 4.5.2.1. Select index ▶[MENU]->User data->Track->Select Index Five sections in the index. The maximum is 10,000 points in each section. In Type2, storing, loading and erasing are available to manage in each section.
  • Page 64 ② Number of Point Total track point in the track room ③ Date Time Date and time of the track room when stored ④ Color Color of the track room ⑤ On/Off Shown the track On/OFF. ⑥ Display Show/Hidden the track room ⑦...
  • Page 65 5. Measuring the distance and bearing Measuring two points, “A” and “B”. 1. Call the cursor and move it on the point, “A”. 2. Move the cursor on the point, “B”. 3. The cursor windows provide the distance and bearing between A and B. 4.

  • Page 66: Start Point

    Start point 7. User Name Adding a place name directly on the chart. 1. Call the cursor and move it to the point. 2. Press [ENTER] and choose “User Name”. 4. Inputting letters with [◀][▶][▼][▲]. 5. Press to exit. 8. Correction Offset When the chart position is wrong, making it correct.
  • Page 67 (* The maximum range of Correction Offset is 5nm.) - 67 -...

  • Page 68: Map Orientation

    Chart plotter operation 1. Map Orientation ▶[MENU]->Advance->Map Setup->Map Orientation 1.1. True Motion ▶[MENU]->Advance->Map Setup->Map Orientation->True motion The True Motion is in the way the vessel position is presented. In True Motion mode, the vessel icon moves over the map while the map remains stationary. (* It is not available to operate on Course up and Head up.) 1.2.

  • Page 69: Map Setup

    2. Map setup ▶[MENU]->Advance->Map Setup 2.1. Map orientation 2.1.1. True motion You can select “True motion” (☞ the default setting is OFF.) 2.1.2. Up mode You can select “Map Orientation” (☞ the default setting is North Up.) 2.2. User Data Display setting up shown/hide the user data on the display.
  • Page 70 2.6. LAT. Modification Though GPS information is accurate, there could be an error in the chart at latitude. The error can be modified in the chart latitude modification. 2.7. LON. Modification Though GPS information is accurate, there could be an error in the chart at longitude. The error can be modified in the chart longitude modification.
  • Page 71 As the upper side of the map is more compressed than the lower side, a wider map area is visible. The perspective view allows showing more chart information immediately ahead and around the cursor. (☞ the default setting is off.) 2.9-1.5.
  • Page 72 2.9-2.1.3. Dynamic Tide & Current The electronic charts may allow animation of the tide information tide stations. Animated current information is available in the chart application wherever a diamond-shaped symbol with a "T" or “C” is displayed: This symbol identifies tide stations and the availability of tide & current information for the location. When you select a tide station symbol the chart context menu is displayed, which provides the animate option.
  • Page 73 Other numeric depth values: The areas with depths up to value selected are displayed in shades going from darker blue (for lower depths) to lighter blue (for higher depths). The areas whose depths are over the selected value, and therefore navigable under safety conditions, will be displayed in white. The dry line areas are displayed in green.
  • Page 74 The size of the present position is adjustable from 0 to 9. The biggest size is ‘0’. (☞ the default setting is 9.) 3.2. Heading Line The length of the heading line is adjustable from 50 until 300. The bigger the number, the longer the line.
  • Page 75 It is to adjust the range of the off course. (☞ the default setting is 0.25nm.) 5.2. Anchor 5.2.1. Anchor Alarm: It is necessary when your vessel anchors. (☞ the default setting is OFF.) 5.2.2. Anchor Radius: If you vessel is out of the range of the anchor, it gives you notice with alarm. (☞...

  • Page 76: What Is Ais

    AIS getting started 1. What is AIS? AIS is an Automatic Identification System. It has been introduced to improve the safety of navigation by assisting in the efficient operation of ship to ship, ship reporting and VTS applications. The system should enable operators to obtain information from the ship automatically, requiring a minimum of involvement of ship’s personnel, and should have a high level of availability.
  • Page 77 to red color. Target Sleeping Target located outside the Activation Range. Sleeping target is represented by a small oriented triangle. Target Lost Target When the AIS info is not received from that vessel. The presentation will be marked X on the target. 3.

  • Page 78: Quick Info On Ais Target

    4. Quick INFO on AIS target Choose “AIS information window” on (Fig.3.1) and AIS data shows under the AIS target. (*Up to four kinds of data is available to choose in Quick INFO) - 78 -...

  • Page 79: Ais Operation

    AIS operation ▶[MENU]->AIS 1. AIS On/Off Turns the display of AIS targets overlay on the screen on or off. (☞ the default setting is on.) 2. List Selected (blue color) 2.1. List ① ② ③ ④ (Fig.3.2) ① Name Name of the AIS target ②...
  • Page 80 2.2. Detail Choose the AIS target and press [ENTER]. 2.3. Goto Choose the AIS target and press - 80 -...

  • Page 81: Display Radius

    2.4. Sort Press to choose how to sort on (Fig.3.2). 3. Display radius Displays range rings centered on your current position. (☞ the default setting is OFF.) 4. AIS target size Choose the size of AIS target. (☞ the default setting is Large.) 5.
  • Page 82 display. 6. Display vessels by Type Different types of AIS transmissions can be selected to display different types of icons on the chart display. 7. Filter AIS types This function allows you to turn on or off reception from different types of AIS transmissions, for instance if you only wanted to view Class B vessels on the chart display then select Class B On and all the others Off.
  • Page 83 If you want the alarms to ignore vessels that are travelling at less than a particular speed then switch 8.8. Speed less than The values allowed are from 0.1kt to 9.9kt. 9. Set up AIS outs etc 9.1. Mark vessels as lost after Setting the time for “Lost target”.
  • Page 84 viewing. If the “Status” shows “Test” then no further action is required as it is just a test transmission. If the “ Status” shows “Active” it will also show the MMSI, Name and position, the SART icon should now be displayed on your chart screen at that location. Monitor your VHF radio on Channel 16 and establish whether any other station has received this SART message, if not take the appropriate action.
  • Page 85 - 85 -...

  • Page 86: Choosing The Frequency

    #Sonar getting started 1. Choosing the frequency In dual frequency mode, choose the frequency with the [▲][▼]. (*The chosen frequency shows in red) Selected 2. Auto/Manual Gain Press [ENTER] to choose” AUTO/Manual” of Gain. 3. Gain/STC Choose “Gain” and “STC” with [◀][▶]. 4.
  • Page 87 5. Controlling STC 1. Choose the frequency. 2. Choose the STC. 3. Twisting the rotary key to control the STC. 6. Mode ▶[MENU]->Mode Choose one of Three Sonar Modes 6.1. Normal Normal mode (with Auto Range active) displays the sounder image with the surface at the top of the screen and the sea bottom in the lower part of the screen.
  • Page 88 distance. The sea bottom contour is displayed and additional contour lines are added at intervals above the sea bottom to aid in determining distances of echoes near the bottom. Use the Sounder Menu to set the magnified Bottom Range from 2.5 to 20m (10 to 60ft.). Default setting is 10m (40ft.). If the depth Range is set manually, the setting must place the sea bottom echo in the lower portion of the screen for Bottom Zoom to be effective.
  • Page 89 zoom or lock. 7. VRM ▶ [WPT] The VRM (movable marker) shown by the green line can be moved up and down. It is convenient to measure the depth by aligning with the target such as school of fish. - 89 -...

  • Page 90: Sonar Operation

    [Fig.2.1] #Sonar operation 1. Menu ▶ [MENU] 1.1. User data It is same as Chart plotter. PLS refer the Chart plotter operation manual. 1.2. Deep Depth Range Smart4/5 selects the best condition for measuring the depth automatically in the environment of the sea.

  • Page 91: Advanced Menu

    When there are other boats around you, your Fish finder could receive interference. The steps of the function are from off to level 2. The bigger number, the more rejection. (☞ the default setting is OFF.) 1.9. Noise Rejection Your Fish finder could be disturbed by the engine noise. This function can reject the noise from the engine or other machinery instruments.
  • Page 92 (☞ the default setting is hidden.) 2.1.7. TEMP Font Select the temperature font size on the screen. (☞ the default setting is Large.) 2.1.8. Image Filtering This function is reduction of the noise. (☞ the default setting is on.) 2.2. Color 2.2.1.
  • Page 93 2.5.1.1. Deep Depth Alarm It alarms when the set deep depth is out of the range. (☞ the default setting is OFF.) 2.5.1.2. Deep Depth Range Setup the range of deep depth alarm (☞ the default setting is 0M.) 2.5.1.3. Shallow alarm It alarms when the set shallow depth is out of the range.
  • Page 94 display is shown) (☞ the default setting is 50m.) 2.5.3.4. Alarm Interval If the the alram is on, It is available to setup the alarm interval. (☞ the default setting is middle) 2.5.3.5. Color Level If the alarm is on, you are able to choose the color level. 2.6.
  • Page 95 - 95 -...

  • Page 96: General Operation

    General operation 1. GPS It is available to control and confirm information in GPS receiver. 1.1. Coordinate System It sets coordinate system of GPS or Loran. (☞The default setting is GPS.) 1.2. Datum It shows GPS Datum. WGS-84, which is the worldwide standard, is only available. (☞...
  • Page 97 (☞ the default setting is incorrect every the country.) 1.8. LAT/LON Unit It is to select the number of the unit for Lat/Lon. (☞ the default setting is 4 units.) 1.9. Receiving Port It is to select Inter receiver Internal, External and AIS. (☞...
  • Page 98 2.2.2. Variation There could be a difference between the magnetic compass and the GPS compass. An error depends upon your area. 2.3. Time & Date 2.3.1. Reference Available to adjust the correct local time by UTC time from the GPS. (☞...
  • Page 99 DESCRIPTIONS CONTENTS OF DATA FIELD DEFAULT $GPGGA Global Positioning System Fix Data $GPVTG Course and Ground Speed $GPZDA Time and Date $GPRMB Recommended minimum navigation information $GPRMC Recommended Minimum Specific GPS/TRANSIT DATA $GPAPB Heading/track controller (Autopilot) sentence B $GPXTE Cross-track error, measured $GPBOD Bearing, origin to destination $GPBWC...
  • Page 100 It customizes the data bar information. 2.4.5.1.4 Mode It is available to set up the data bar. - Customizing: It is selectable and modifiable the data bar by user. - Fix mode: It is fixed data bar by default. It is not available selectable and modifiable the data bar by user.

  • Page 101: Maintenance

    2.4.5.5.3 Position Setup Choose the position of Information window. (☞ the default setting is Auto.) 2.4.5.6. User data 2.4.5.6.1. WPT 16 kinds of symbol and color. Choose the symbols and the colors. 2.4.5.6.1.1. Symbol Setup In 16 kinds of the symbols, you can choose as many as you want, and those will show on the WPT symbol window.
  • Page 102 It contains the version of the chart, the datum and the number, which is necessary for maintenance and upgrade 3.4. Simulator It is necessary for an indoor demonstration. The simulations of GPS, Fish finder or AIS in the memory... 3.5. Language Select the language.
  • Page 103 - 103 -...

  • Page 104: General Specification

    SVS-1010C General specification 1. Display Screen: 5inch 10.2inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 480 pixels) 3. Power Supply: DC 12V~36V (+-10%) 5W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112 (73) 6. Option: MicroSD, External GPS Antenna GPS Receiver specification 1.
  • Page 105 Standard Equipment Configuration List Display unit External GPS ANT(option) Manual Protector Mounting Bracket Knobs Fuse & Bolt Power cable Dimension - 105 -...
  • Page 106 SVS-1010CF General specification 1. Display Screen: 5inch 10.2inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 480 pixels) 3. Power Supply: DC 12V~36V (+-10%) 7W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112 (73) 6. Option: MicroSD, External GPS Antenna, Transducer GPS receiving specification 1.
  • Page 107 Sonar specification 1. Display Mode: Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, and A- scope 2. Frequency: 50 and 200 KHz (single or dual) 3. Output Power: 600W 4. Range speed: 600W: 2.5m ~ 600m 5. Image speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop 6.
  • Page 108 SVS-880C General specification 1. Display Screen: 8 inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 600 pixels) 3. Power Supply: DC 12V~36V (+-10%) 10W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112 (73) 6. Option: MicroSD, External GPS Antenna, Remote control GPS Receiver specification 1.
  • Page 109 Standard equipment configuration List Display unit External GPS ANT(option) Manual Protector Mounting Bracket Knobs Fuse & Bolt Power cable Dimension - 109 -...
  • Page 110 SVS-880CF General specification 1. Display Screen: 8 inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 600 pixels) 3. Power Supply: DC 12V~36V (+-10%) 13W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112 (73) 6. Option: MicroSD, External GPS Antenna, Transducer, Remote control GPS Receiver specification 1.
  • Page 111 Sonar specification 1. Display Mode: Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, and A- scope 2. Frequency: 50 and 200 KHz (single or dual) 3. Output Power: 600W 4. Range speed: 600W: 2.5m ~ 600m 5. Image speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop 6.
  • Page 112 SVS-770C General specification 1. Display Screen: 7 inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 480 pixels) 3. Power Supply: DC 12V~36V (+-10%) 7W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112 (73) 6. Option: MicroSD, External GPS Antenna, Remote control GPS Receiver specification 1.
  • Page 113 Standard equipment configuration List Display unit External GPS ANT(option) Manual Protector Mounting Bracket Knobs Fuse & Bolt Power cable Dimension - 113 -...
  • Page 114 SVS-770CF General specification 1. Display Screen: 7 inch Color LCD with LED backlight 2. Resolution: WVAG (800 X 480 pixels) 3. Power Supply: DC 12V~36V (+-10%) 9W 4. Operating Temperature: -15°C~+50°C 5. Performance Standard: IMO Resolution MSC.112 (73) 6. Option: MicroSD, External GPS Antenna, Transducer, Remote control GPS Receiver specification 1.
  • Page 115 Sonar specification 1. Display Mode: Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, and A- scope 2. Frequency: 50 and 200 KHz (single or dual) 3. Output Power: 600W 4. Range speed: 600W: 2.5m ~ 600m 5. Image speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop 6.
  • Page 116 Customizing items LAT/LOT of the present position. (Red: out of GPS service/Black: GPS on service/Blue: SBAS or DGPS on service) (Speed Of Ground) Boat speed. (Course Of Ground) Boat direction. DATE Date of today. TIME Present time. HDOP Horizontal Dilution Of Precision. PDOP Position Dilution Of Precision.
  • Page 117 - 117 -...
  • Page 118 - 118 -...
  • Page 119 - 119 -...

  • Page 120: Certificate Of Limited Warranty

    Defects will be corrected during normal working hours by an authorized SI-TEX Marine Electronics Inc. dealer, service center, or at the SI-TEX office in Riverhead, NY. There will be no charge for labor for a period of one year from the date of purchase, except as provided below under Limited Warranty Exceptions.
  • Page 121 VHF radio are items excluded from the two-year warranty and are covered by warranty for a period of one year for both parts and labor. SI-TEX Marine Electronics Inc. will not, at any time, assume any costs or labor charges for checkout or external line fuse replacement or problems not found to be at fault in equipment itself.
  • Page 122 If you encounter problems during the installation or operation of this product, or cannot find the information you need, please contact SI-TEX Customer Service. The contact numbers and e-mail address for SI-TEX Customer Service are: SI-TEX Main Office…….………..+1-631-996-2690 SI-TEX Fax...………………….…..+1-631-996-2693 SI-TEX Service E-mail address: service@si-tex.com...
