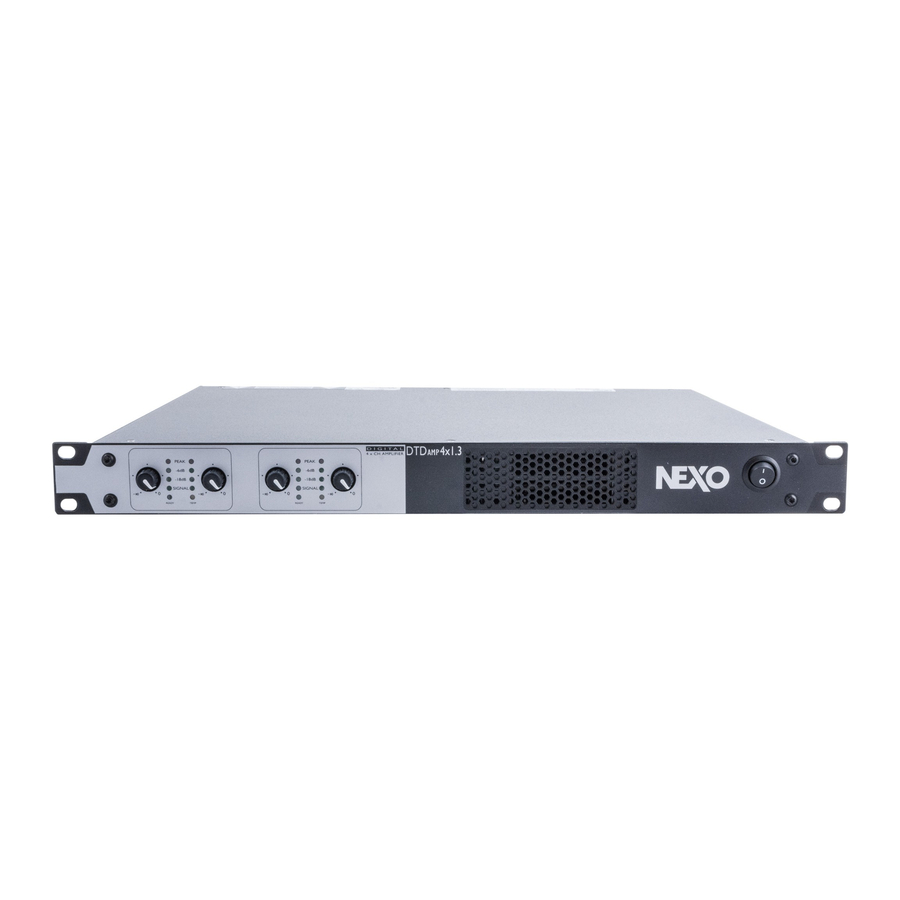

  • Page 1 Amplifiers 4x0.7 4x1.3 User M anual v1.1...

  • Page 2: Fcc Information (U.s.a.)

    • To disconnect this device from the mains, unplug the power cord. • Always turn the power off when the device is not in use. The above statements apply ONLY to those products distributed by NEXO-S A or its subsidiaries.

  • Page 3: Important Notice For The United Kingdom

    IMPORTANT NOTICE FOR THE UNITED KINGDOM • Do not use the device for a long period of time at a high or uncomfortable Location • Before moving the device, remove all connected cables. volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.
  • Page 4 DTDAMP INTRODUCTION Note that the outputs of the DTD are connected to the DTD-T, while its integrated front panel patch is used to connect to the introduction speakers. With the DTD-I, power output of the DTD will have to be spit in two (one side used for DTD-I feedback, the other one going Welcome to the DTD manual.

  • Page 5: Maintenance

    DTDAMP SETUP When used with a DTD-I, DTD S P4 outputs are split into: Front panel LE Ds displa y  The DTD-I back panel (S ub sensing connector), to ensure proper feedback of the DTDAMP output to the Controller for 20 LE Ds will report the status of the DTD to the user.
  • Page 6 DTDAMP OUTPUT WIRING Output wiring 4 x channel mode to DTD-T 2 x bridged channel mode to DTD-T PAGE 6 OF 8...

  • Page 7: Specifications

    SPECIFICATIONS S pecifications DT D 4x0.7 DT D 4x1.3 Power specifications Number of channel 4 x amplifiers channel, 2 by 2 bridgeable Max. output voltage (no load) 4 x 85 Volts 4 x 135 Volts Max. output power (4 x 8 Ohms) 4 x 360 Watts 4 x 750 Watts Max.

  • Page 8: Drawings And Dimensions

    DRAWINGS AND DIMENSIONS Drawings and dimensions 480 mm Declaration of conformity (DoC) NEX O S.A. ZA du Pre de la Dame J eanne 60128 Plailly France Declare under our sole responsibility that the products Professional Audio E quipment Model: 4x0.7, DTD 4x1.3 Manufacturer name: NEX O S.A.
