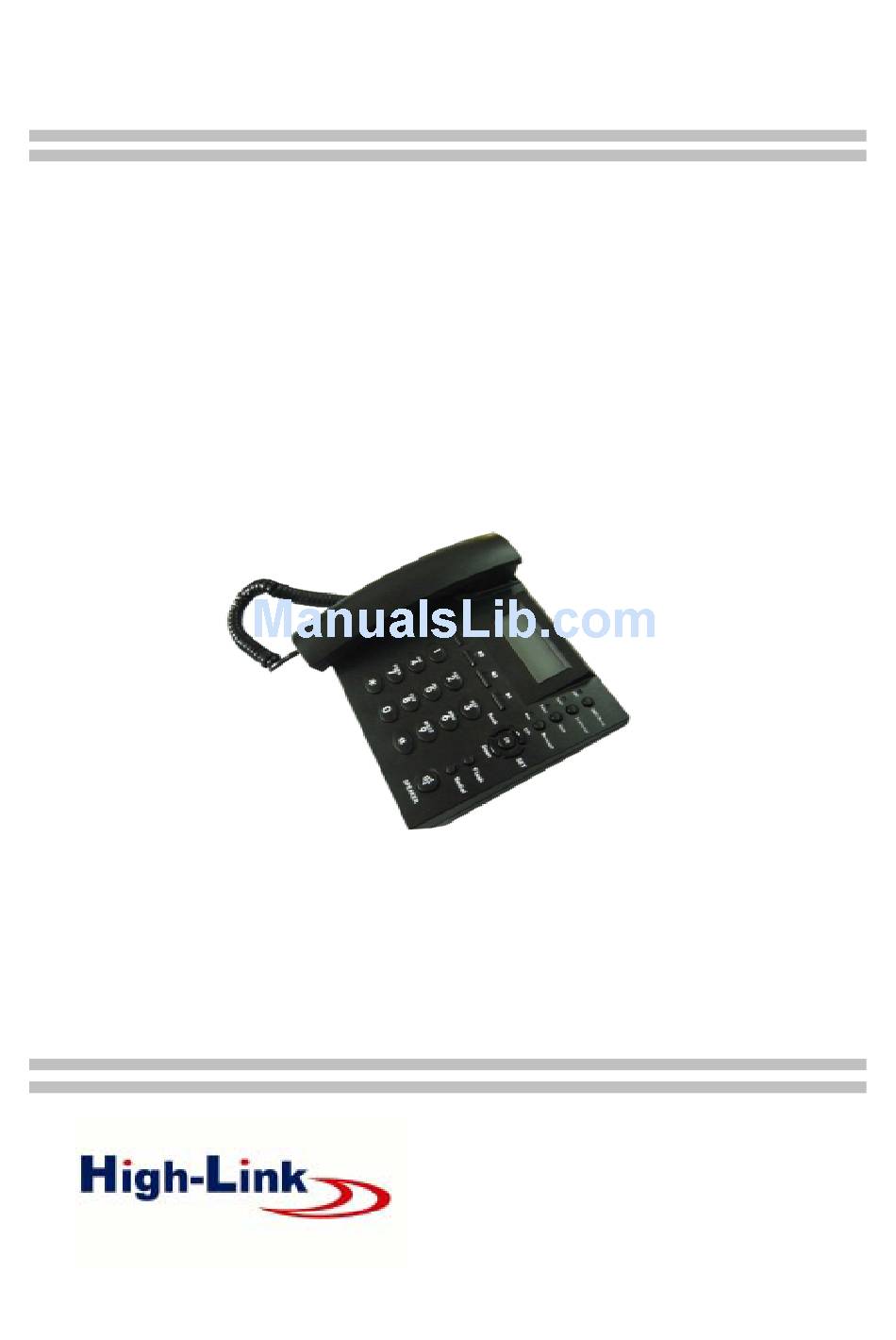

High Link Co.,Ltd
VOIP PHONE
SIP and IAX2
GF302 User Guide
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GF302 and is the answer not in the manual?

Questions and answers

Related Manuals for High Link GF302

Summary of Contents for High Link GF302

  • Page 1 High Link Co.,Ltd VOIP PHONE SIP and IAX2 GF302 User Guide Version 1.1...

  • Page 2: Table Of Contents

    Content 1.Introducing 1.1 Hardware Overview 1.2 LED and Interface Description 1.3 Keypads Description 2. Installing Guide 3.Configuration with Web Browser 3.1 Settings Menu 3.1.1 Network Settings 3.1.2 Voice Settings 3.1.3 SIP settings 3.1.4 IAX2 settings 3.1.5 Dial Plan Setting 3.1.6 System Settings 3.2 Phonebook Settings 3.3 Upgrade Firmware 4.
  • Page 3 6.9 Mute 6.10 Don’t Disturb (DND) 6.11 Checking Message 6.12 RESTORE FACTORY CONFIGURATION 7. HTTP Auto-Provisioning 7.1 Settings file and firmware file 7.2 Preparing firmware file 7.3 Set server address and port 7.4 Auto-upgrade settings file and firmware file 8. Digit Maps 9.

  • Page 4: Introducing

    1. Introducing 1.1 Hardware Overview Rear View Top View Total View Figure 1-1 Hardware Overview 1.2 LED and interface Description One LED for Power Indicator One LED for Mute/DND status Indicator One LED for network link and activity One LED for Message LED One switch for power ON/OFF One Power connector for +5V power adapter Two RJ45 connectors for network connection...

  • Page 5: Installing Guide

    2. Installing Guide Please follow the instruction below for setup 1. Connect the RJ-45 connector labeled WAN to a router 2. Connect the RJ-45 connector labeled 'LAN' to a PC. 3. Optionally, you can connect the connector labeled 'Lan' to a switch / hub and connect multiple PCs to the latter. 4.Connect the +5V switching power adapter to Power jack 5.Move the power switch to ON After booting ok,LCD will display ip address of device.Then you can use Web Browser for system...

  • Page 6: Sip Settings

    3.1.3 SIP settings When running with firmware based on sip protocol,sip setting can be access here.if based on iax2 protocol,iax2 setting s can be access here.you can upgrade firmware from sip to iax2 or from iax2 to sip with web browswer or TFTP Option Default Value Description...

  • Page 7: Iax2 Settings

    3.1.4 IAX2 settings When running with firmware based on sip protocol,sip setting can be access here.if based on iax2 protocol,iax2 setting s can be access here.you can upgrade firmware from sip to iax2 or from iax2 to sip with web browswer or tftp Option Default Value Description...

  • Page 8: Phonebook Settings

    3.2 Phonebook Settings You can set 100 entries for contacting persion 3.3 Upgrade Firmware 1)Select the upgrade item according to the phone status. The available options include “Firmware, Configuration, Phonebook and Ringtone” 2)Use“browse……” to open the select window, and then select the upgrade file 3)Press “Start Upgrade”...

  • Page 9: Call Log

    5. Call Log 5.1 Save/Delete a CALL HISTORY 1. Enter the Menu. Press UP or DOWN key to select CALL HISTOYR. Press OK key to into next submenu 2. Press UP or DOWN key to select from “ANSWERED”, “DIALED”, “MISSED” as desired 3.

  • Page 10: Save Phone Book

    5.7 Save PHONE BOOK When some contact entries have been modified or deleted or assigned as speed dial and press CANCEL button to the upper menu, LCD will display “Save Phonebook?” query item. Press OK key to save the amendment entry of phonebook, press CANCEL key to reject the amendment of phonebook.

  • Page 11: Mute

    6.9 Mute During a current call, press MUTE Key. The LED on the phone lights up, indicating that the other party cannot hear you. To cancel this set, press MUTE Key again, LED of MUTE out 6.10 Don’t Disturb (DND) When Phone on hook, press Mute/DND Key to trigger the phone to DND status.

  • Page 12: Digit Maps

    8. Digit Maps Digit map is a set of rules to determine when the user has finished dialing. With digit map, users don’t have to press ‘#’ key or "call" key after dialing. Examples of the digit map refer to Fig 5.2.8 and the detail of digit map explaining as below. X represents any number between 0 and 9.

  • Page 13: Update Ring Tone

    9.3 Update Ring Tone Use parameter put to update ring tone. Command syntax: tftp –i host put source (Enter) "source" is ring tone data file and the filename must begin with “ringtone_”, namely ringtone_xxx.dat. How to make this file will be described in chapter 4. For example: Example: Update ring tone.

  • Page 14: Update Firmware

    10.1 Update Firmware Updating phone program files, such as gf302_iax2_us_010010.bin 10.2 Update Configurations Settings file of the phone is a binary file(.dat). Steps of generating the file are: 1. use getopt.bat to get the settings.txt, for example: getopt 192.168.1.200 (Enter) 2.

  • Page 15: Record Music

    11.1 Record Music Use CoolEdit to record music, here take example for Cool Edit Pro Version 2.1. Set recording control property: 1. Click PC volume property ; 2. Point “property” on ” options” menu and click it; 3. Select “record” in “adjust volume”; 4.
