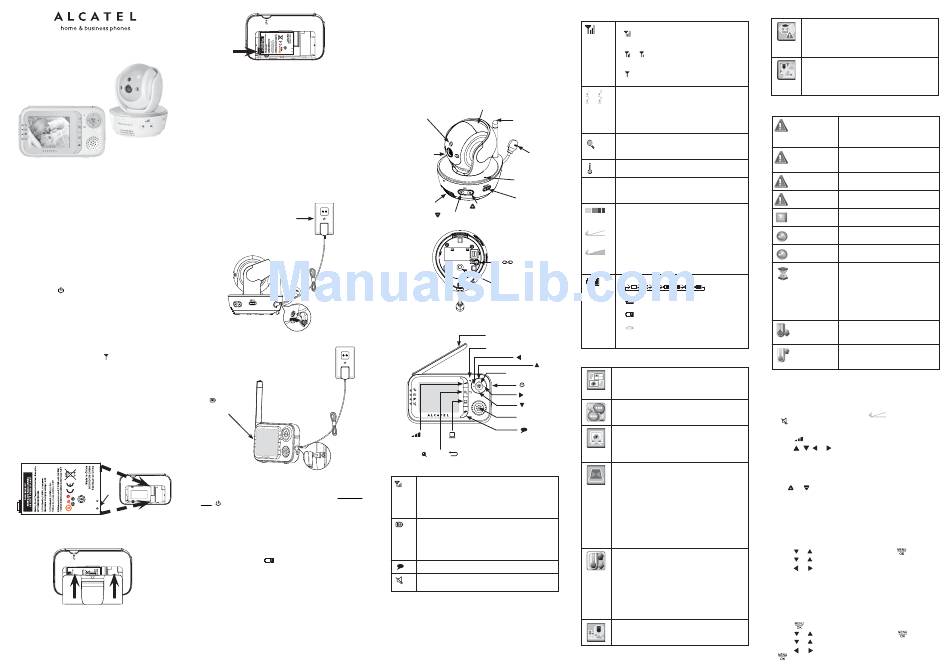

Alcatel BABY LINK 700 User Manual

BABY LINK 700
USER'S GUIDE
PLEASE READ THIS USER'S GUIDE BEFORE USING YOUR BABY MONITOR
ATLINKS, 22 quai Gallieni 92150 Suresnes – France
The Alcatel logo and Alcatel name are trademarks of Alcatel Lucent
and used under license by ATLINKS.
Before use
You may test the baby monitor before initial use, and at regular
times thereafter.
To test your baby monitor:
1. Place the parent unit and the baby unit in the same room to test
the product.
2. Press and hold on the parent unit the screen displays Please
Wait...
3. Slide ON/OFF on the baby unit to turn it on.
4. If the parent unit displays an image from the baby unit. Your baby
monitor is now ready for use.
Note:
• Make sure the baby unit is at least 3 feet away from the parent
unit.
• If both units are not connected, the parent unit displays No Link
for a few seconds.
Then it displays Please Wait... and flashes.
Install the battery
You can power up the parent unit by connecting it to AC power or
to the rechargeable battery provided. Even if the parent unit is
connected to AC power, we recommend you also install the
battery. This guarantees continual operation in case of a power
outage.
Install the battery as shown below.
1. With the label THIS SIDE UP facing up, insert the small tabs of
the battery into the slots inside the battery compartment. Make
sure the metallic contact is correctly oriented as shown below.
Push the battery into the battery compartment until it clicks
securely into place.
2. Align the battery compartment cover flat against the battery
compartment, then slide it towards the center of the parent unit
until it clicks into place.
Replace the battery
To replace the battery, press down on the large tab of the battery
and pull it out of the battery compartment, then follow the steps
above to install the battery.
Note:
• The operating time for using the rechargeable battery is short. If
you want to monitor your baby for a long time, we recommend you
connect the parent unit to AC power.
• If the parent unit will not be used for a long time, disconnect and
remove the battery to prevent possible leakage.
• Use only the battery supplied with this product.
Connect and charge the battery
Note:
• Use only the parent unit power adapter and the baby unit power
adapter supplied with this product.
• The parent unit power adapter and baby unit power adapter are
intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it
is plugged into a ceiling, under-the-table or cabinet outlet.
• Make sure the parent unit, the baby unit and the power adapter
cord are out of reach of children.
Connect the baby unit
Connect the AC adapter
to an electrical outlet
230V/50 Hz
Connect the parent unit
Connect the AC adapter
to an electrical outlet
230V/50 Hz
The bar keeps
scrolling until charging
is completed
Charge the parent unit battery
Once you have installed the parent unit and its battery, press and
hold to turn it on. The battery icon indicates the battery status
(see the Parent unit display icons table).
The standby time varies depending on the sensitivity level you set,
your actual use and the age of the battery.
When the parent unit is operating in battery mode and the battery is
low, you need to charge the parent unit without interruption for at
least 30 minutes to give the parent unit enough charge to use for a
short time. When operating in low battery condition, the parent unit
displays Battery low and . The parent unit plays short beeps to
alert you.
Note:
When you charge the battery initially or it is not used for a long
period of time, charge it for 12 hours continuously. It takes longer to
charge the battery when the parent unit is turned on. To shorten the
charging time, turn the parent unit off while charging.
Positioning the baby monitor
Place the parent unit within the operating range of the baby unit. We
recommend the parent unit is at least 3 feet away from the baby unit
to avoid audio feedback. If you still experience audio feedback,
move the parent unit and the baby unit farther apart.
Note:
For better image quality, do not place the baby unit too far away
from your baby.
Operating range
The operating range of the baby monitor is up to 250m outdoors or
50m indoors. The actual operating range may vary depending on
the environmental conditions and other interferences such as walls,
doors and other obstructions.
Overview
Baby unit overview
270˚ rotatable camera head
Light sensor
Antenna
Camera
Temperature
sensor
ON/OFF LED
light
ON/OFF
Microphone
(Volume up)
(Volume down)
PAIR
Threaded socket
Parent unit overview
Antenna
Microphone
(Left)
(Up)
MENU/SELECT
(On/off)
(Right)
(Down)
Speaker
TALK
VOL (View)
(Volume)
(Zoom) / BACK
Parent unit lights
On when strong signal strength is detected between
the parent unit and the selected baby unit.
Flashes when the parent unit cannot link to the
selected baby unit.
Off when the parent unit is turned off.
On when the parent unit battery is being charged.
Flashes when the parent unit battery is low and needs
charging.
Off when the parent unit battery is fully charged, or
when no battery is installed.
On when the parent unit is talking to the baby unit.
On when the speaker volume of the parent unit is
turned off.
Parent unit display icons
Connection status
- displays when strong signal strength is
detected between the baby unit and the parent
unit.
- or displays when moderate signal strength
is detected between the baby unit and the
parent unit.
- displays when the link between the baby unit
and the parent unit is lost.
Current view status
or or
or - Displays the number of the baby unit that is
being viewed when in Single Baby unit.
- Displays the highlighted baby unit when in
Patrol Mode, if there are more than one baby
units in your system.
Zoom
- Displays when the camera at the baby unit has
zoomed in.
Temperature alert
- Displays when the temperature alert is set to on.
25 o C Real-time temperature
- Displays the real-time temperature of the
selected baby unit.
Sound level indicators
- Displays the sound level according to the scales
or
of loudness when there is sound transmitted
from the baby unit.
Speaker volume
or
- Displays the speaker volume of the parent unit
is turned off.
Speaker volume
- Displays the speaker volume level while adjusting.
Battery status
-
animates when the battery is charging.
- displays solid when the battery is fully
charged.
- displays when the battery is low and needs
charging.
- displays when no battery is installed but
operates using AC power, or the battery has
been installed incorrectly.
Parent unit main menu icons
Monitoring mode
You can choose to monitor in Single Baby unit, Split
Baby unit or Patrol Mode if there are more than one
baby units in your system.
Language
You can select a language to be used in all screen
displays.
Display
- You can change the brightness of the parent unit
screen.
- You can change the contrast of the parent unit
screen.
Alert tone
- You can set whether the parent unit beeps
whenever the parent unit operates in low battery
condition.
- You can set whether the parent unit beeps
whenever the link between the parent unit and the
baby unit is lost.
- You may turn on the sound alert so that the
parent unit beeps as soon as the baby unit
detects sounds which light up four sound level
indicators on the parent unit when the parent unit
volume is turned off manually.
Temperature
- You can set the desired minimum room
temperature of the baby unit.
- You can set the desired maximum room
temperature of the baby unit.
- You can set whether the parent unit beeps
whenever the temperature is out of the preset
temperature range.
- You can set the temperature scale of the baby
unit.
Sensitivity
- You can use the parent unit to change the sound
sensitivity level of the baby units.
Sound activation
- You can set the screen to be turned on
automatically whenever there are sounds
detected from the baby units when the parent unit
screen is turned off manually.
Pair/unpair
- The baby units and parent unit provided are
already paired. You can add or replace baby units
(purchased separately) to your baby monitor
system.
Parent unit display messages
When the parent unit is powered by
Battery low
the rechargeable battery and the
battery level is low, it needs to be
recharged.
The parent unit fails to switch to the
Failed to connect
next baby unit in Single Baby unit or
Patrol Mode.
The selected baby unit slot is not
No Link
linked to the parent unit.
The selected baby unit cannot be
Pairing failed
paired with the parent unit.
You try to unpair the baby unit(s). The
Confirm to unpair?
operation needs your confirmation.
The selected baby unit has been
Pairing completed
paired with the parent unit.
The selected baby unit(s) has been
Unpairing
unpaired with the parent unit.
completed
The link between the parent unit and
Please Wait...
the selected baby unit is lost, or the
selected baby unit is out of range, or
the selected baby unit slot is empty.
When you have only one paired baby
unit and the link is lost, or you have
multiple paired baby units and the
links are lost.
The temperature detected from the
Temperature
selected baby unit is below the set
too low
minimum temperature.
The temperature detected from the
Temperature
selected baby unit is above the set
too high
maximum temperature.
Using the baby monitor
Adjusting speaker volume for parent unit
You can change the speaker volume from Volume 1 to Volume 5,
or turn it off.
When the speaker volume is set to off, appears briefly and
the light turns on.
To adjust the speaker volume:
1. Press when the parent unit is not in use.
2. Press , , or to adjust the speaker volume.
Adjusting speaker volume for baby unit
You can change the speaker volume.
To adjust the speaker volume:
Press or on the baby unit at any time.
Adjusting display
LCD brightness
You can change the brightness of the parent unit screen from
Level 1 to Level 5.
To set the brightness of the parent unit screen:
1. Press MENU/OK when the parent unit is not in use.
to choose DISPLAY, then press
2. Press or to select.
3. Press or to choose Brightness.
4. Press or to choose the desired level of brightness, then
press MENU/OK confirm your selection.
LCD contrast
You can change the contrast of the parent unit screen from Level 1
to Level 5.
To set the contrast of the parent unit screen:
1. Press when the parent unit is not in use.
2. Press or to choose DISPLAY, then press to select.
3. Press or to choose Contrast.
4. Press or to choose the desired level of contrast, then press
to confirm you selection.
