Summary of Contents for phaiser BHS-730

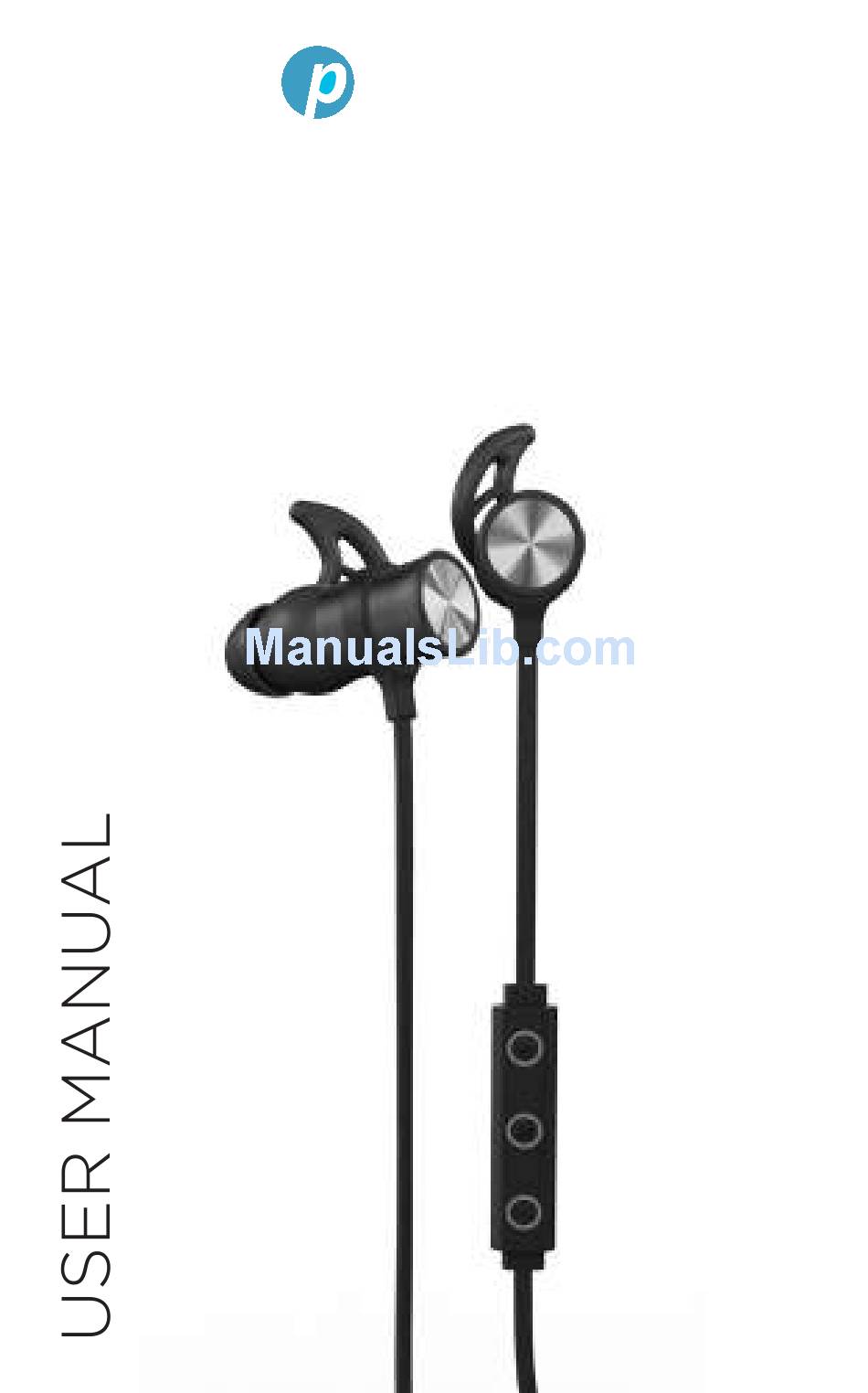

  • Page 1 TECTON BHS-730...
  • Page 2 The BHS-730 is more than just a Bluetooth headset. While providing best all day wea- ring comfort it lets you listen to your favorite tunes in premium stereo quality, keeping you connected to the world at all times. By connecting to your phone or tablet...

  • Page 3: Product Features

    Upper button Increase the volume, Next Middle control button Play/Pause, On/Off, Answer/Hang up Lower button Decrease the volume, Previous Product Features 1. Lightweight metal earbud design for all-day wearing comfort with strong Bass and HD Stereo Music. 2. Patented wing-shaped earphone tips keep the buds in your ears during even the toughest workout.

  • Page 4: Specifications

    Specifications Bluetooth Specification: Bluetooth 4.1 Battery: Lithium Polymer Battery 3,7V Standby Time: UP to 160 hours Talk Time: UP to 5 hours Music Playback Time: UP to 5 hours Charging Time: Less Than 2 hours Operating Temperature: 14°F/-10°C to 140°F/60°C First Steps To ensure best battery performance, it is recommended to charge the headset fully...
  • Page 5 look at the back of the right earphone and find the lightning symbol pull the knob near the lightning symbol with your fingernail rotate the now loose backplate away from the earphone so it allows you to easily plug the USB cable WARNING: Do not pull the backplate up to plug...
  • Page 6 Inserting the Comply™ Premium Earphone Tip 1. Squeeze down the foam tip and roll the tip into a thin, round cylinder. 2. Pull back and up on ear to open the canal. Gently insert the entire tip into the ear. 3.

  • Page 7: Installing The Comply Earphone Replacement Tips

    Installing the Comply Earphone Replacement Tips 1. Remove the silicone tip from the earphone. 2. Clean the earphone nozzle of any debris with a dry cloth. 3. Insert the earphone sound port nozzle into the tip‘s core at an angle. Then push the rest of thetip onto the earpho- ne‘s nozzle.

  • Page 8: Pairing

    “Power On”. 2. On your phone find the Bluetooth menu and “search for” or “add” new devices. Select “BHS-730” from the list and pair it. 3. Once the headset is successfully connec- ted to your phone, you will hear the audio...
  • Page 9 On. You will hear the pairing tones and the audio message “Disconnected” (The original connection will be lost while in pairing mode). 2. Search the Bluetooth menu of your device for “BHS-730” and complete above regular pairing steps until successfully connected.

  • Page 10: Multipoint

    1. Pair the headset with the device which will NOT be used for calling according to the instructions on under “Pairing” (Turn the headset on and select “BHS-730” in the Bluetooth menu). This device will be the secondary device. 2. Pair the headset with the primary device according to the instructions under “ma-...

  • Page 11: Auto Reconnect

    1. If you turn the headset off, it will be disconnected from your phone. It will automatically attempt to reconnect once turned back on and in range. 2. A secondary device must be reconnected through the Bluetooth-menu by selecting “BHS-730”.

  • Page 12: Out Of Range

    Out Of Range 1. If headset and phone are separated by more than 10 meters (33 feet), they will disconnect. The headset will alert you by playing the out of range tones and then say “Disconnected” once the connection is terminated. 2.
  • Page 13 tooth menu of your other device (phone or tablet) to connect the headset by using the regular pairing steps described earlier. The headset will become visible to other devices as soon as all connections are dropped or it’s forced to pairing mode by pressing and holding all 3 control buttons at the same time for 3 seconds.

  • Page 14: Charging The Headset

    Charging the Headset Turn the headset off and plug in the USB charger cable. You can either choose to use a dedicated wall charger with USB ports (like a mobile phone charger), your computers USB ports or basically any powered USB port.

  • Page 15: Refusing Calls

    Refusing Calls To refuse a call, double press the middle control button and the call will be rejected. You will hear a confirmation tone. Ending Calls To end a call, press the middle control button briefly or end the call through your phone.

  • Page 16: Volume Control

    Volume Control By pressing “+” (upper button) you can in- crease the volume and by pressing “-” (lower button) you can decrease it. When volume reaches maximum or minimum, you will hear a warning tone. Warning: Listening to music on a high volume over a longer period of time may damage your hearing ability.

  • Page 17: Next / Previous Track

    Next / Previous Track During media playback you can skip bet- ween tracks by pressing and holding the “+” (upper button) for “Next Track” or “-” (lower button) for “Previous Track”. Fast Forward / Rewind During media playback you can fast forward by pressing and holding the “+”...
  • Page 18 Battery Status Notification Every time you turn the headset on, you will hear the battery status notification. There are 3 battery levels reported: “Battery High”: 100% to 66% battery life “Battery Medium”: 66% to 33% battery life “Battery Low”: 33% to 0% battery life While the headset is already turned on, you can trigger the battery status notification manually by briefly pressing “+”...

  • Page 19: Three-Way Calling

    Three Way Calling To answer a second call coming in on either of your connected devices without hanging up the first call (putting the first caller on hold), briefly press the middle button while the second call is ringing. To answer a second call and hang up the active call, double press the middle control button while the second call is ringing.
  • Page 20 Troubleshooting the headset Issue: The headset does not work Solution: Please make sure the headset is turned on and charged. Issue: Phone disconnects with headset Solution: Make sure the phone supports the Bluetooth Hands-Free Profile and is in range. Issue: Headset does not work properly with the phone Solution: Pair phone and headset again, make sure headset is in range (no obstacles...

  • Page 21: Avoiding Problems

    Avoiding Problems - Please turn the headset off before putting it into your bag or pocket to avoid acci- dental calls. - Do not clean the headset with solvents or abrasives. - Do not expose the headset to extreme temperature (not outside 14°F/-10°C to 140°F/60°C).

  • Page 22: Potentially Explosive Atmosphere

    Additional Information Radio Frequency Exposure This headset is a radio transmitter and recei- ver. It communicates with Bluetooth equip- ped devices by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 Ghz. The output power of the head- set is only 0,001 watt (low).
  • Page 23 feel normal after some time but it can still damage your hearing ability. In case you experience ringing or muffed speech, do not continue listening and have your hearing checked. The higher the volume the sooner your hearing may be affected. Hearing ex- perts suggest that you protect your hearing.
  • Page 24 FCC ID: 2ADQABD-122...
